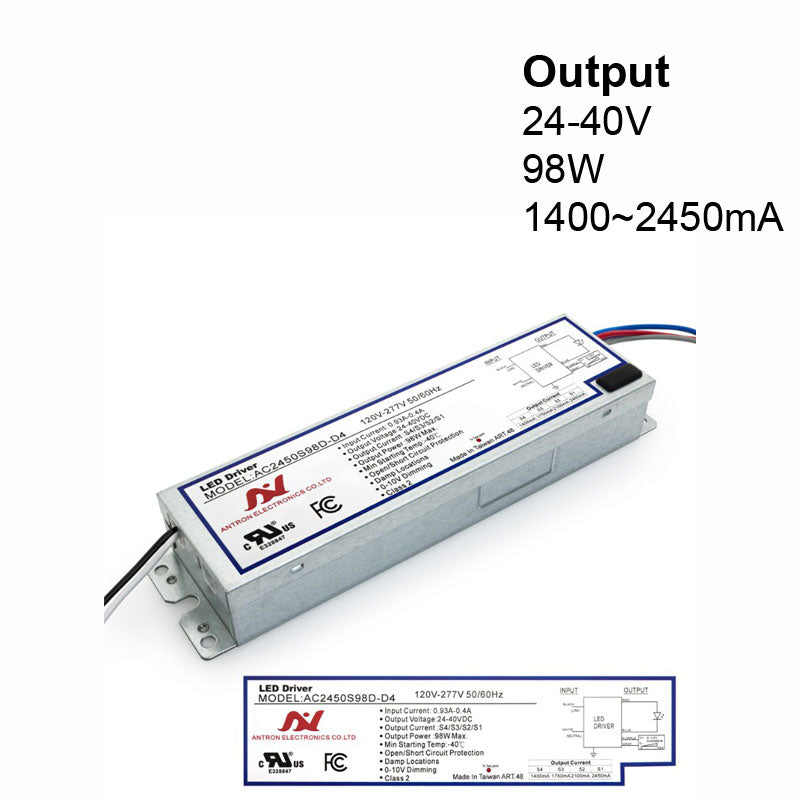

ANTRON AC2450S98D-D4 Constant Current with Selectable Current 1400-1750-2100-2450mA 98W
Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | AC2450S98D-D4 |
| Input Voltage | 120-277V AC |
| Input Current | 0.93-0.4A |
| Input Frequency | 50/60 Hz |
| Efficiency | 88% |
| Output Voltage | 24-40V |
| Output Power | 98W max |
| Output Current | Selectable current from 1400mA/1750mA/ 2100mA/ 2450mA |
| Dimmable: | Yes (3 in 1 Dimming -PWM, Resistance, 0-10V) |
| IP Rating | IP64 (Indoor Rated) |

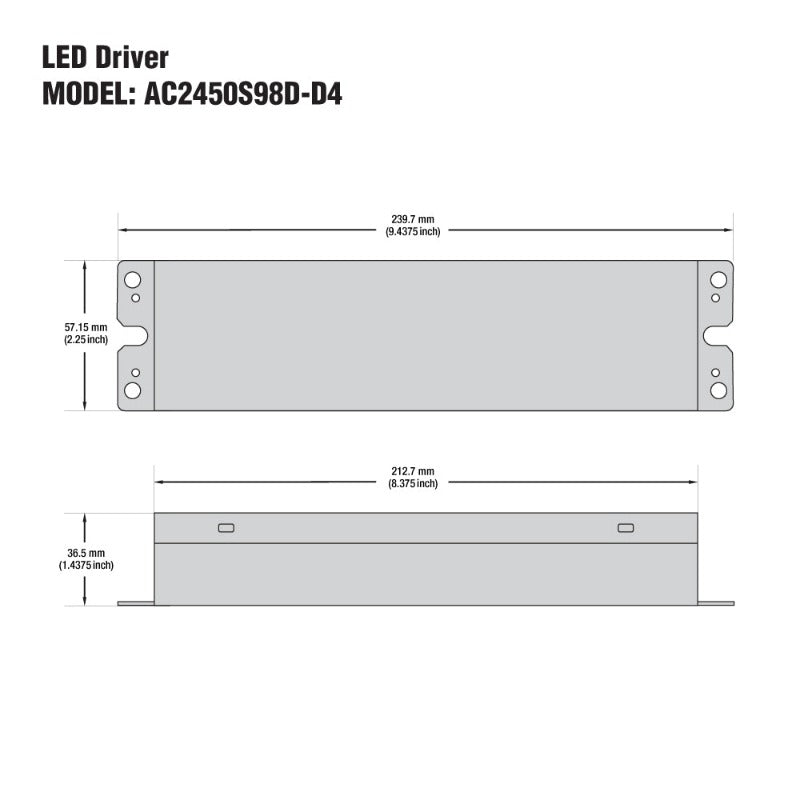

| Dimensions | 240 × 57.1 × 36.5 mm (9.43 x 2.25 x 1.43 in) |
| Class Certification | Class 2 |
| Surge Rating | 2KV |
| Certification |
   |
The ANTRON AC2450S98D-D4 is a Constant Current LED Driver with Selectable Current, designed to provide regulated power to LED lighting systems. Its model number is AC2450S98D-D4, and it can provide a selectable current output of 1400mA, 1750mA, 2100mA, or 2450mA, with an output power of 98W max.
The input voltage range for this driver is 120-277V AC, and it can operate with an input current of 0.93-0.4A and an input frequency of 50/60 Hz. The efficiency of this driver is 88%, which ensures that it is energy-efficient and can save on electricity costs.
The output voltage range for this driver is 24-40V, making it suitable for various LED lighting systems. The driver is also dimmable and can be controlled using 3 in 1 dimming techniques - PWM, Resistance, and 0-10V.
The driver is rated IP64, which means that it is suitable for indoor use and can withstand dust and water splashes. The dimensions of the driver are 24 × 5.71 × 3.65 cm (9.43 x 2.25 x 1.43 in), making it a compact and easy-to-install product. The driver is also rated for surge protection up to 2KV.
This driver is ideal for various LED lighting applications where a selectable current output is required, such as architectural lighting, commercial lighting, and industrial lighting. Its constant current output ensures that the LED lighting system will have a stable and consistent light output, making it suitable for applications where uniform lighting is required.
Features:
- ANTRON AC2450S98D-D4 is a Constant Current LED Driver with Selectable Current
- Model number is AC2450S98D-D4
- Provides selectable current output of 1400mA, 1750mA, 2100mA, or 2450mA
- Output power of 98W max
- Input voltage range: 120-277V AC
- Input current range: 0.93-0.4A
- Input frequency: 50/60 Hz
- Efficiency of 88%
- Output voltage range: 24-40V
- Dimmable and can be controlled using 3 in 1 dimming techniques - PWM, Resistance, and 0-10V
- Rated IP64 suitable for indoor use and can withstand dust and water splashes
- Dimensions: 24 × 5.71 × 3.65 cm (9.43 x 2.25 x 1.43 in)
- Surge protection up to 2KV
- Ideal for various LED lighting applications such as architectural lighting, commercial lighting, and industrial lighting
- Constant current output ensures stable and consistent light output
- Suitable for applications where uniform lighting is required.
Wiring Diagram:
