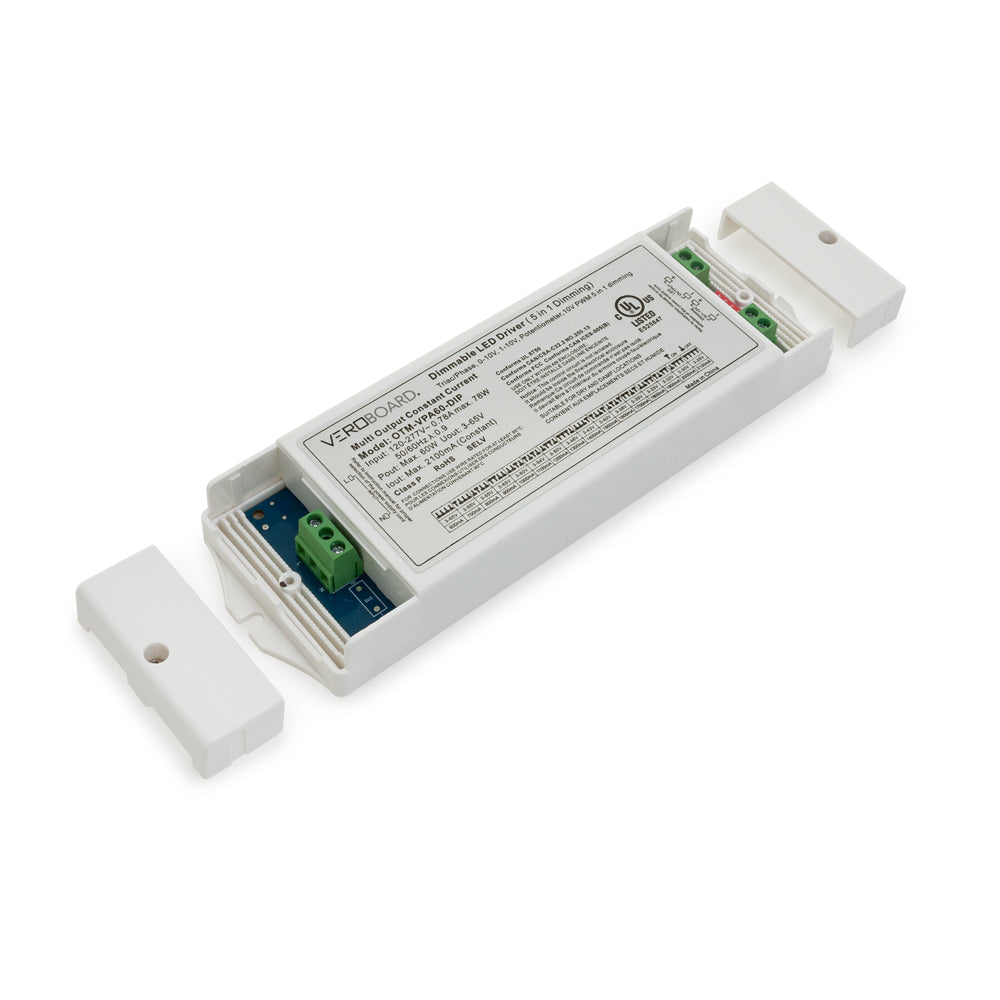

OTM-VPA60-DIP Selectable Constant Current LED Driver (5 in 1 Dimming) 600mA~2100mA 3-65V 60W

  • $116.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561433772
Title:
We only have 87 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product Constant Current LED Driver with Selectable Current
Model OTM-VPA60-DIP
Input Voltage 120-277V AC
Input Wattage 78W
Input Current 0.78A
Input Frequency 50/60 Hz

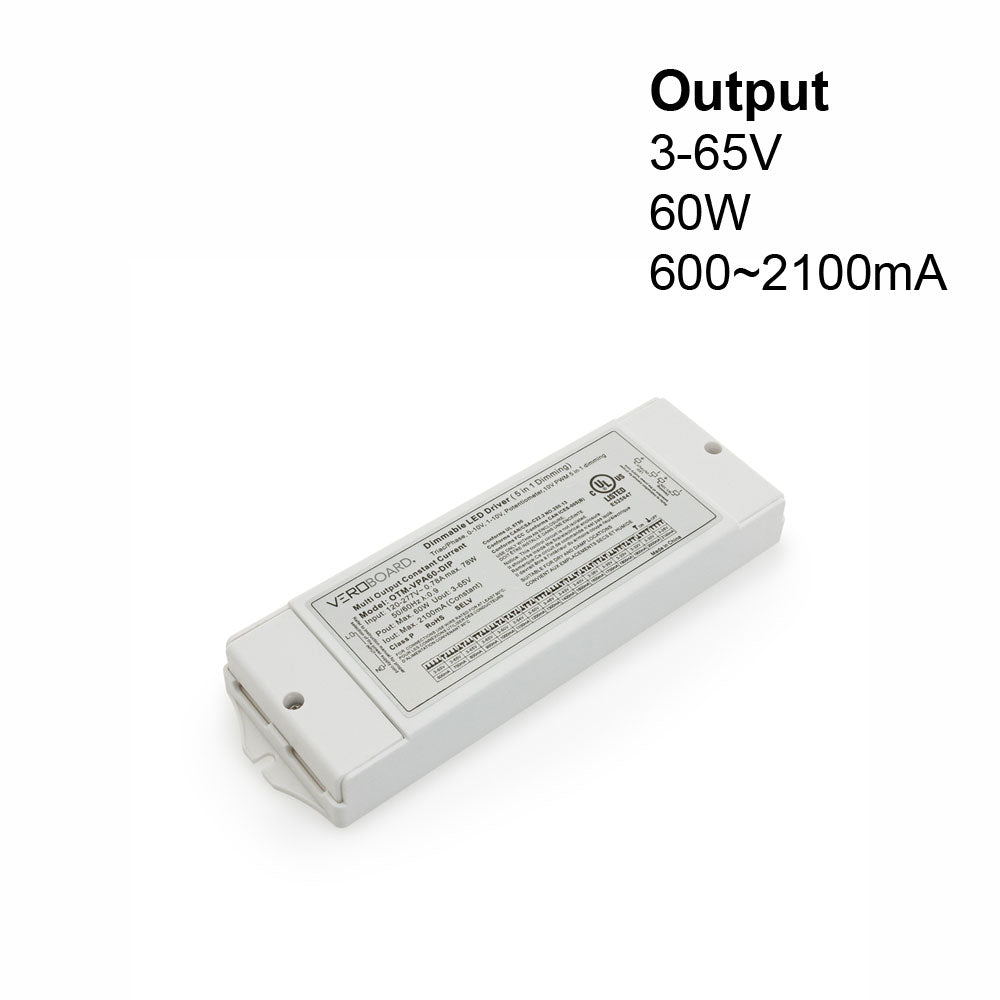

Output Voltage 3-65V
Output Power 60W max

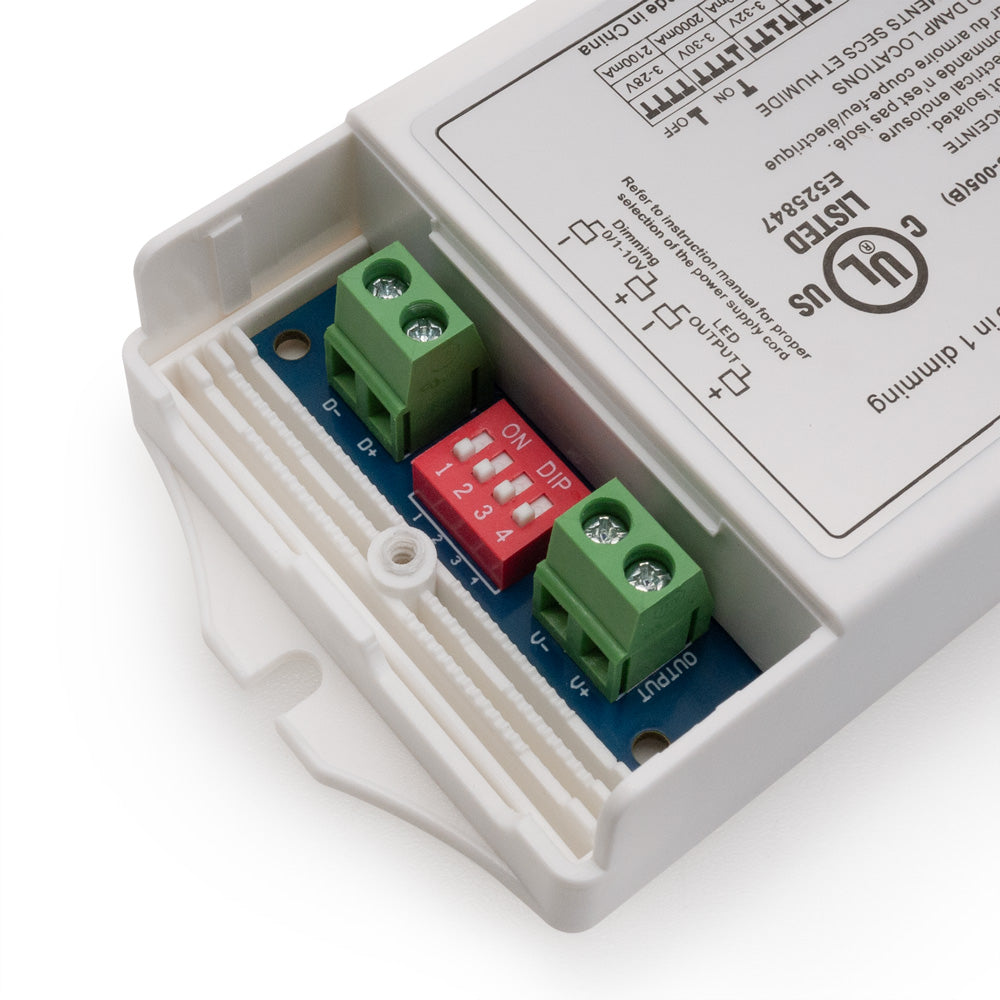

Output Regulated Current 600mA, 700mA, 800mA, 900mA, 1000mA, 1100mA,
1200mA, 1300mA, 1400mA, 1500mA, 1600mA, 1700mA, 1800mA, 1900mA, 2000mA, 2100mA
Dimmable Yes (Triac/Phase, 0-10V, 1-10V, Potentiometer, 10V PWM 5 in 1 Dimming)
IP Rating IP20 (Indoor Rated)

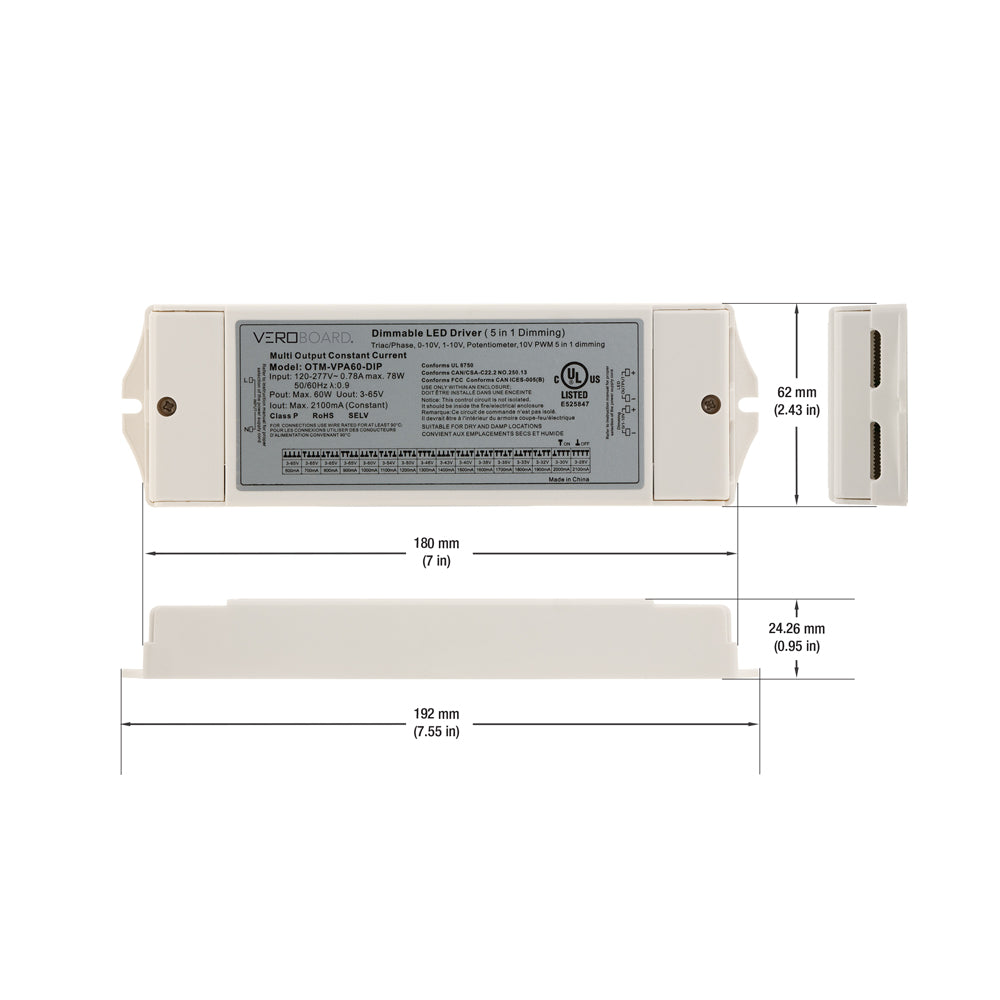

Dimensions 180 x 62 x 24.2mm (7 x 2.4 x 0.9in)
Class Certification Class P
Certification



The OTM-VPA60-DIP Selectable Constant Current LED Driver stands as an exemplary lighting solution, seamlessly combining advanced features and precision control for unparalleled performance. This cutting-edge model, identified as OTM-VPA60-DIP, operates on a versatile input voltage range of 120-277V AC, ensuring compatibility with a variety of electrical systems.

With a low input current of 0.78A and a frequency of 50/60 Hz, this LED driver optimizes energy consumption while maintaining a stable power supply foundation. The output voltage, ranging from 3-65V, allows for flexibility in accommodating different LED configurations. The driver boasts a maximum output power of 60W, making it suitable for a wide range of lighting applications.

One of the standout features of the OTM-VPA60-DIP is its selectable regulated current, offering a range from 600mA to 2100mA. This adaptability ensures precise control over the luminosity of connected LEDs. The dimmable functionality further enhances control, supporting Triac/Phase, 0-10V, 1-10V, Potentiometer, and 10V PWM 5 in 1 dimming option.

Features:

  • Operates on a wide input voltage range of 120-277 V AC, ensuring compatibility with diverse electrical systems.
  • Low input current of 0.78A and a frequency of 50/60 Hz optimize energy consumption while maintaining a stable power supply.
  • Offers a versatile output voltage range from 3-65V, accommodating various LED configurations for customized lighting solutions.
  • Boasts a maximum output power of 60W, suitable for a broad spectrum of lighting applications.
  • Provides adaptability with a selectable regulated current ranging from 600mA to 2100mA, allowing precise control over connected LED luminosity.
  • Enhances control with dimmable options supporting Triac/Phase, 0-10V, 1-10V, Potentiometer, and 10V PWM 5 in 1 dimming choices.
  • Designed for indoor use with an IP20 rating, ensuring reliability in various indoor environments.
  • With dimensions of 180 x 62 x 24.2mm, it is easy to integrate into different lighting fixtures, facilitating convenient installation.
  • Certified with Class P, ensuring adherence to industry standards for safety and reliability.
