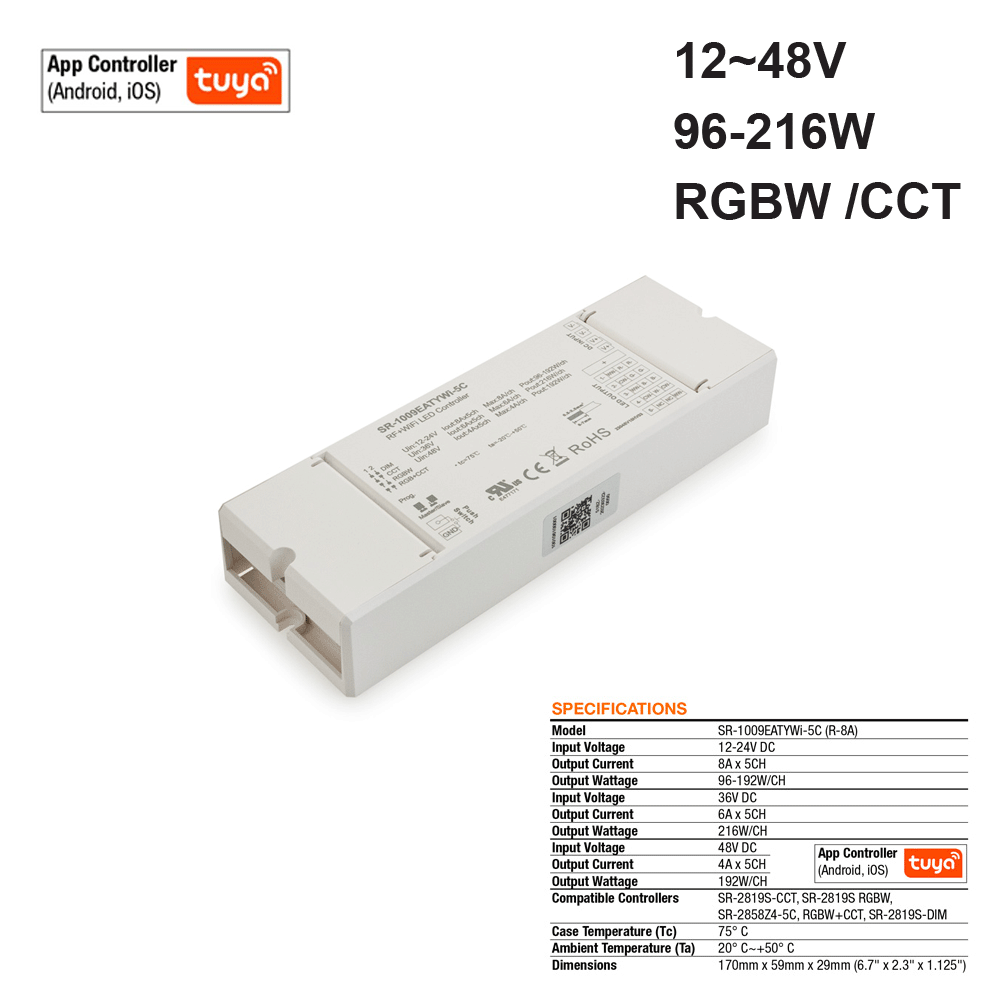

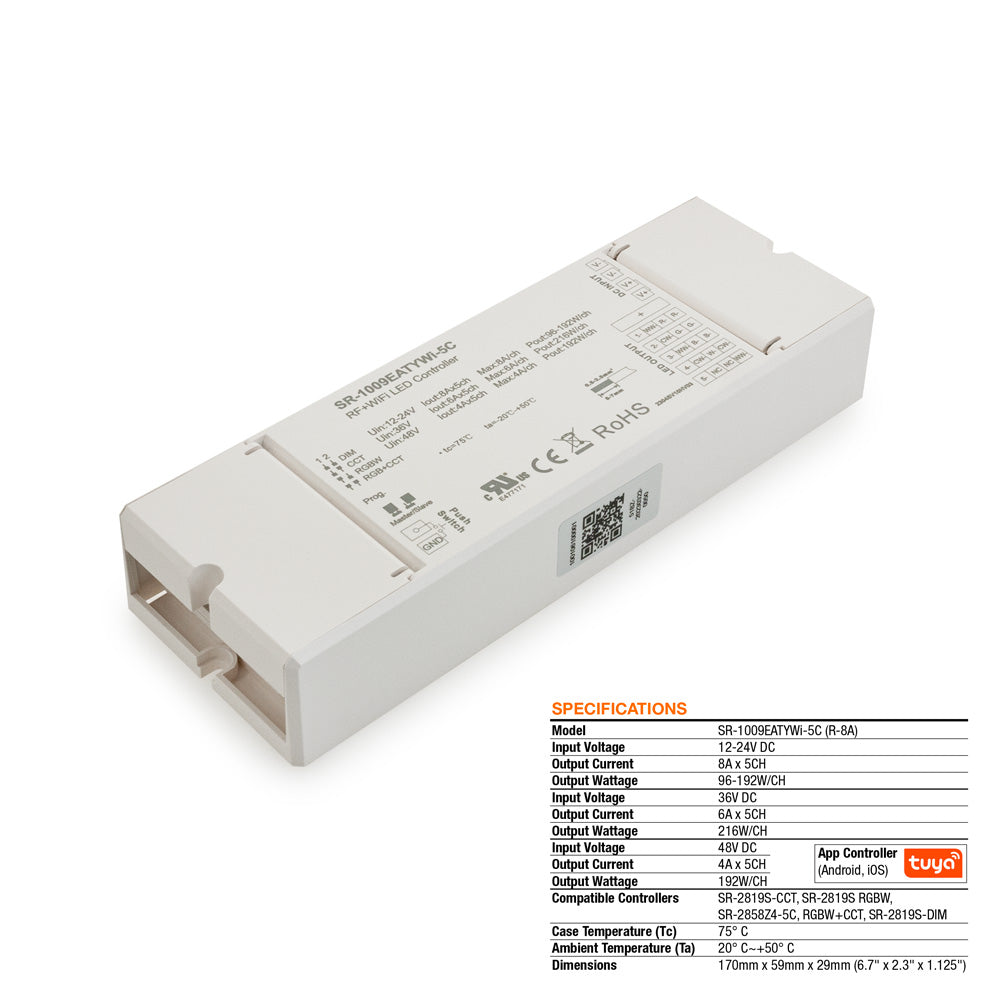

Product Description

Product	LED Receiver (Controller)
Model	SR-1009EATYWI-5C (R-8A)
Input Voltage Output Current Output Wattage	12-24V DC 8A x 5ch 96-192W/ch
Input Voltage Output Current Output Wattage	36V DC 6A x 5ch 216W/ch
Input Voltage Output Current Output Wattage	48V DC 4A x 5ch 192W/ch
App	Tuya Android IOS
Compatible Remote Controllers (Sold Separately)	SR-2819S-DIM (R1) SR-2819S-CCT (R2) SR-2819S RGBW (R3) SR-2858Z4-5C RGBW+CCT (R4)
Case Temperature(Tc)	75℃
Ambient Temperature(Ta)	20℃-+50℃

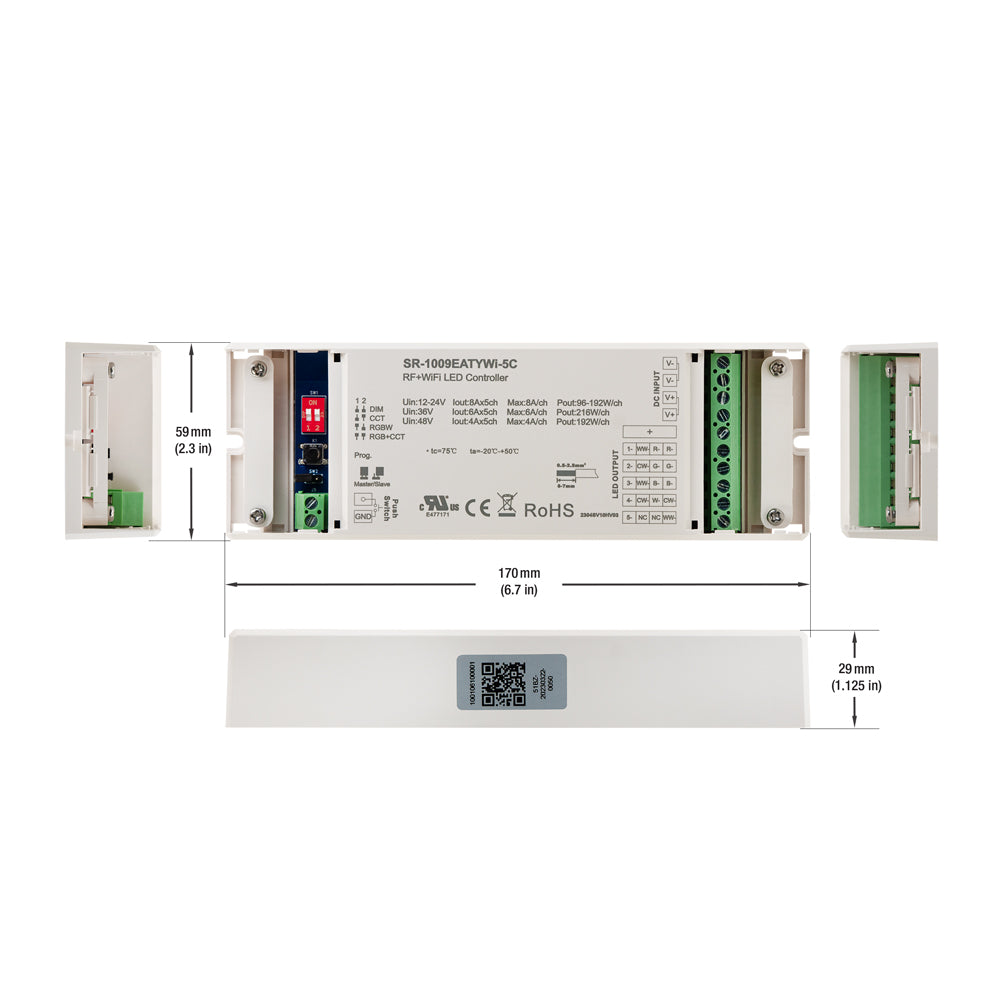

Dimensions	170 X 59 X 29mm (6.7 x 2.3 x 1.1in)
Certifications

The Constant Voltage Receiver SR-1009EATYWI-5C (R-8A)  is a 5 channel full functional constant voltage RF LED Receiver that can operate with an input voltage range of 12-48VDC and deliver a maximum of 5A per channel output. It can be used to drive RGB and dual color (warm white and cold white) LED lighting with a single receiver while pairing with an RGB & CCT remote. The controller also supports mono chrome, dual color, RGB and RGBW LED lighting while pairing with corresponding remote or wall-mounted control.

This LED Receiver is fully compatible with a variety of mono chrome, dual color, RGB/RGBW and RGB+CCT RF remotes. It enables multiple zones to be controlled separately or synchronously with endless receivers in each zone. Each receiver can be controlled by a maximum of 8 different remotes.

The SR-1009EATYWI-5C UL can be WiFi controlled by an app installed on iOS or Android mobile devices while working with a WiFi-RF converter. The brightness of each R, G, B, and W can be adjusted to achieve millions of colors. The radio frequency available is 869.5/434/916.5MHz.

The dimensions of the LED controller are not provided in the description. It is UL certified and can operate at a case temperature (Tc) of up to 75℃ and ambient temperature (Ta) range of 20℃-+50℃.

Features:

• The Constant Voltage Receiver SR-1009EATYWI-5C (R-8A) UL is a 5 channel full functional constant voltage RF LED controller.
• It can operate with an input voltage range of 12-48VDC and deliver a maximum of 5A per channel output.
• The Receiver can be used to drive RGB and dual color (warm white and cold white) LED lighting with a single receiver while pairing with an RGB & CCT remote.
• The Receiver is also compatible with mono chrome, dual color, RGB and RGBW LED lighting while pairing with corresponding remote or wall-mounted control.
• The LED controller is fully compatible with a variety of mono chrome, dual color, RGB/RGBW and RGB+CCT RF remotes.
• The controller enables multiple zones to be controlled separately or synchronously with endless receivers in each zone, and each receiver can be controlled by a maximum of 8 different remotes.
• The SR-1009EATYWI-5C (R-8A) can be WiFi controlled by an app installed on iOS or Android mobile devices while working with a WiFi-RF converter.
• The brightness of each R, G, B, and W can be adjusted to achieve millions of colors.
• The radio frequency available is 869.5/434/916.5MHz.
• The LED controller is UL certified and can operate at a case temperature (Tc) of up to 75℃ and ambient temperature (Ta) range of 20℃-+50℃.
