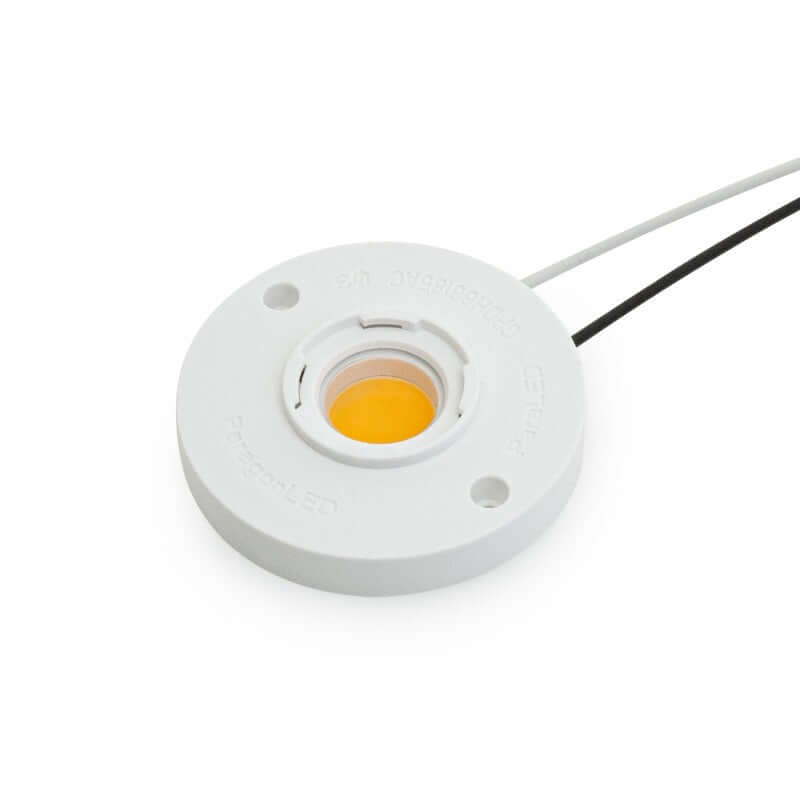

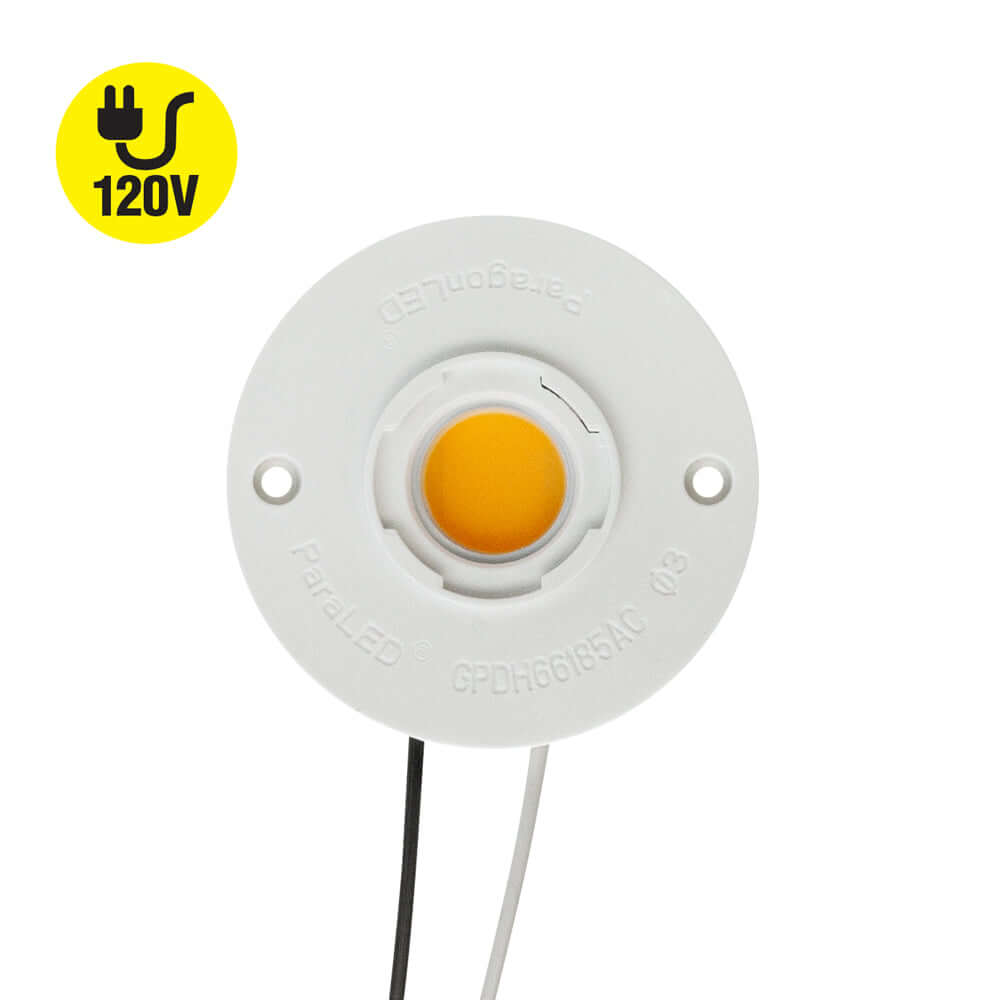

CBHT-042-36185-120V-2700K COB Paragon LED Module with GPDH66185AC LED Holder, 120V 12W 2700K(Soft White)

  • $57.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428662
We only have 11 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Product Paragon LED Module
Model No CBHT-042-36185-120V-2700K
COB Holder Model No GPDH66185AC
LED Type
COB LED
Wattage 12W
Voltage 120V AC
Power Factor PF>0.98
Luminous Intensity 760 lumens
Color Temperature 2700K (Soft White)
Dimmable Yes
Rendering Index CRI>90
IP Rating IP20 (Indoor rated)

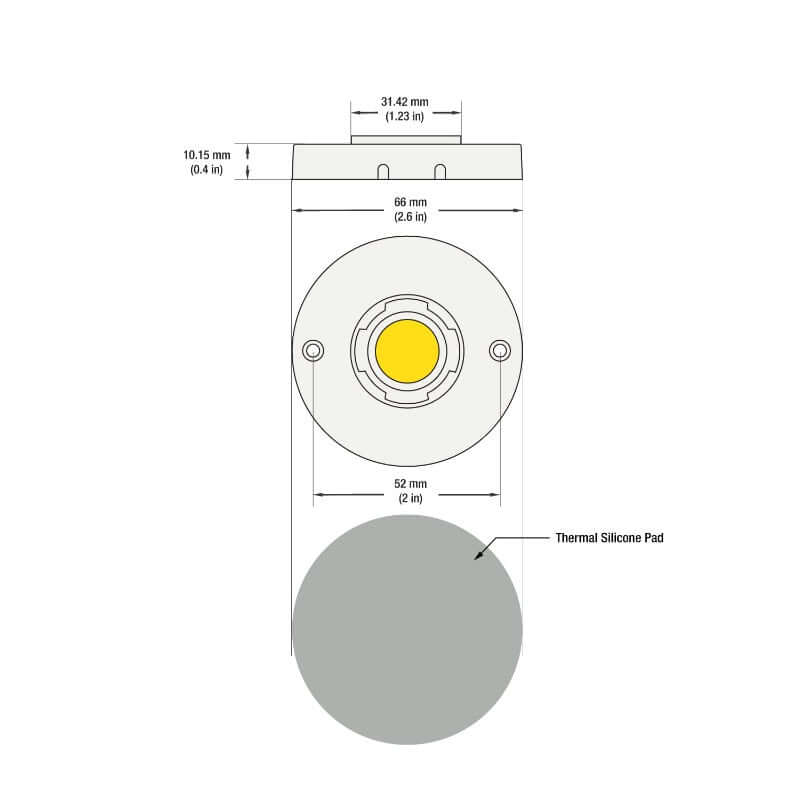

COB Holder Dimensions ∅66mm (2.6 in) x H10.15mm (0.4 in)
COB Module Outer Diameter ∅31.4 mm (1.2 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃
Assembly process Temperature <300℃
Solder joint point <105℃
Dielectric Breakdown Voltage of Thermal Pad >4KV
Included Content COB Module, COB LED Holder, Thermal Pad
Certifications


The CBHT-042-3685-120V-27 Paragon LED Module is a COB LED module designed for indoor use with a power consumption of 12W and a voltage rating of 120V AC. It has a color temperature of 2700K, which produces a soft white light. The module is dimmable and has a high color rendering index of over 90, ensuring that colors are displayed accurately.

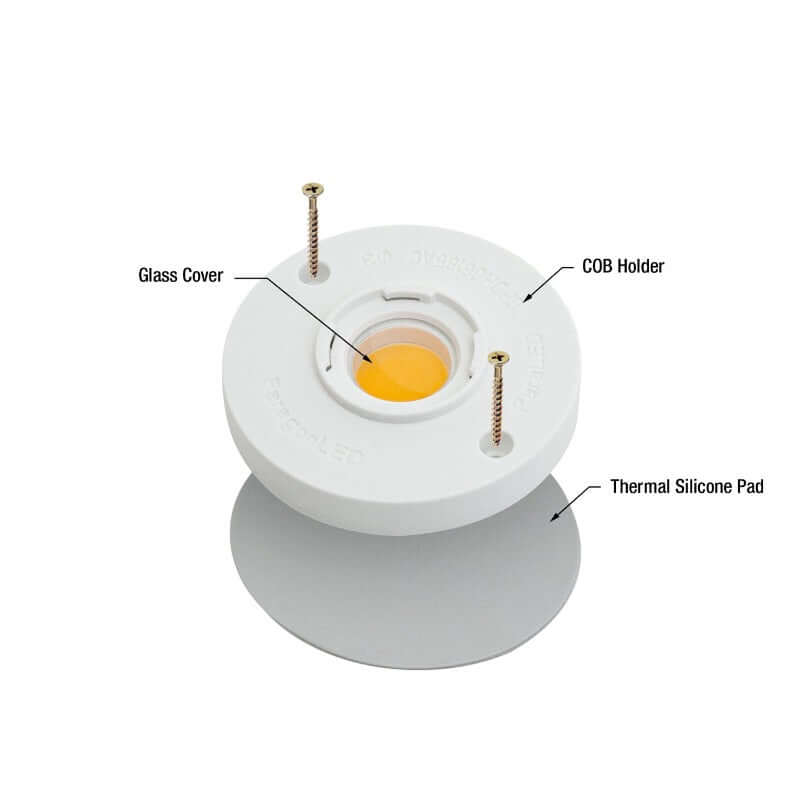

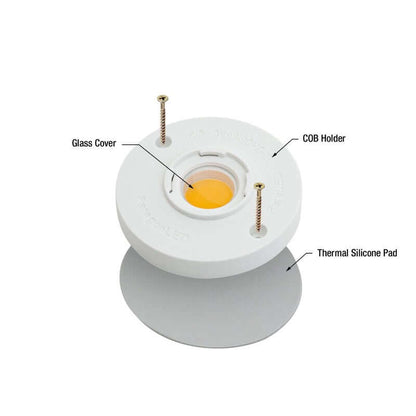

The module comes with a GPDH66185AC COB LED holder that allows for easy mechanical and electrical connections, as well as secure attachment to a heat sink. The COB holder has dimensions of ∅66mm (2.6 in) x H10.15mm (0.4 in). The outer diameter of the COB module itself is ∅31.4 mm (1.2 in).

To prevent overheating and ensure the longevity of the module, it is recommended to use an aluminum heat sink when designing lamps with this module. The silicone grease thermal pad that comes with the module provides additional heat dissipation.

It is important to ground the light fixtures when designing lamps to ensure safe operation. COB LEDs are known for their high energy efficiency and brightness, making them a popular choice for various luminaires. The operating temperature range for this module is -40 ~ +105℃, and the storage temperature range is also -40 ~ +105℃. The assembly process temperature should not exceed 300℃, and the solder joint point temperature should not exceed 105℃. Finally, the dielectric breakdown voltage of the thermal pad is greater than 4KV.

Features:

  • COB LED module designed for indoor use with 12W power consumption and 120V AC voltage rating
  • Color temperature of 2700K producing soft white light, dimmable and high color rendering index of over 90
  • GPDH66185AC COB LED holder with dimensions of ∅66mm (2.6 in) x H10.15mm (0.4 in) for easy mechanical and electrical connections and secure attachment to heat sink
  • Outer diameter of the COB module is ∅31.4 mm (1.2 in)
  • Recommended to use an aluminum heat sink and silicone grease thermal pad to prevent overheating and ensure longevity
  • UL certified and suitable for use in damp locations
  • Grounding of light fixtures is important for safe operation
  • COB LEDs are known for high energy efficiency and brightness
  • Operating temperature range of -40 ~ +105℃ and storage temperature range is also -40 ~ +105℃
  • Assembly process temperature should not exceed 300℃, and the solder joint point temperature should not exceed 105℃
  • Dielectric breakdown voltage of the thermal pad is greater than 4KV
