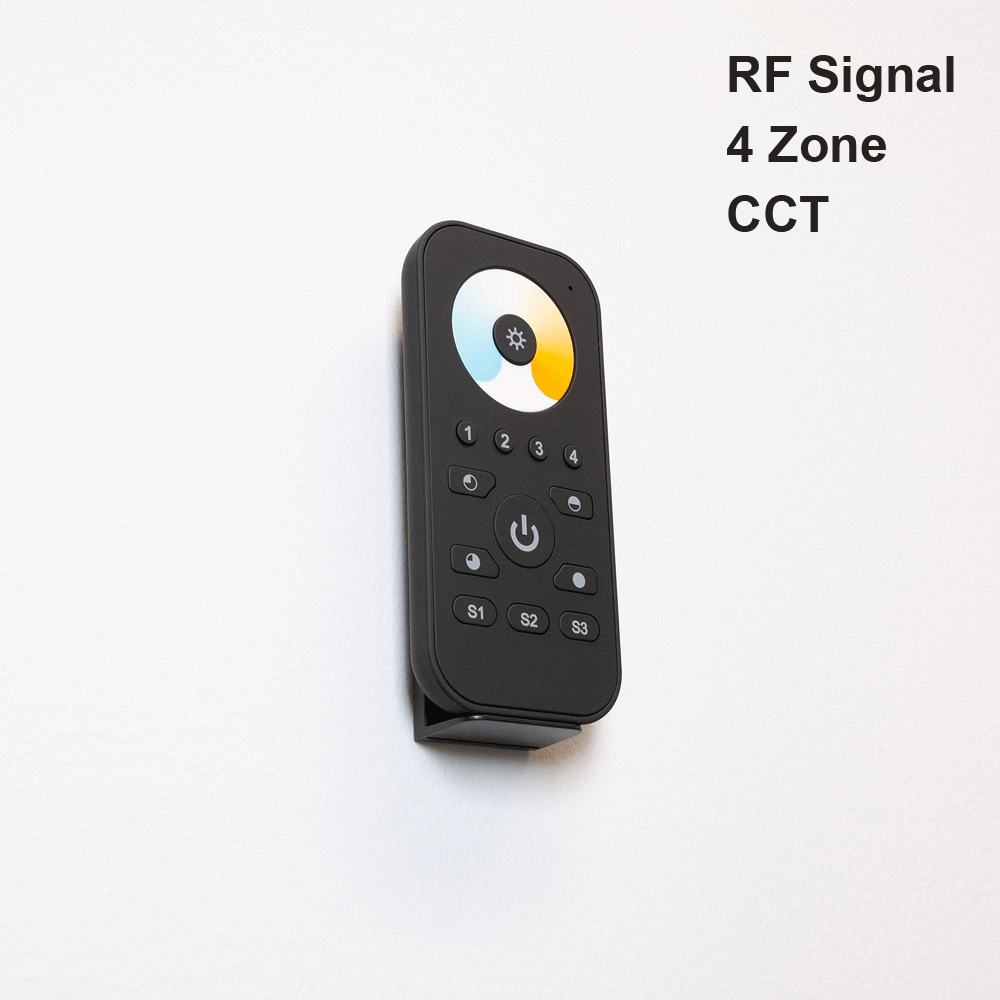

SR-2819S-CCT (R2), CCT Remote controller
Product Description
Product | LED Remote Controller |
Model | SR-2819S-CCT (R2) |
Output | RF Signal |
Voltage | 4.5V (3xAAA battery) |
Frequency | 434MHz/869.5MHz/916.5MHz |
Control Zone | 4 Zone |
Color Controller | CCT |
Compatible Controllers (Sold Separately) |
SR-1009EA-5C (R-25.5A) SR-1009FA3 (R-1.6A) SR-1009FA7 (R-3A) SR-1009EATYWI-5C (R-8A) SR-1009TYWI-5C (R-4A) |
Color | Black |
Operating temperature | 0-40° C |
Relative humidity | 8% to 80% |
IP Rated | IP20 |

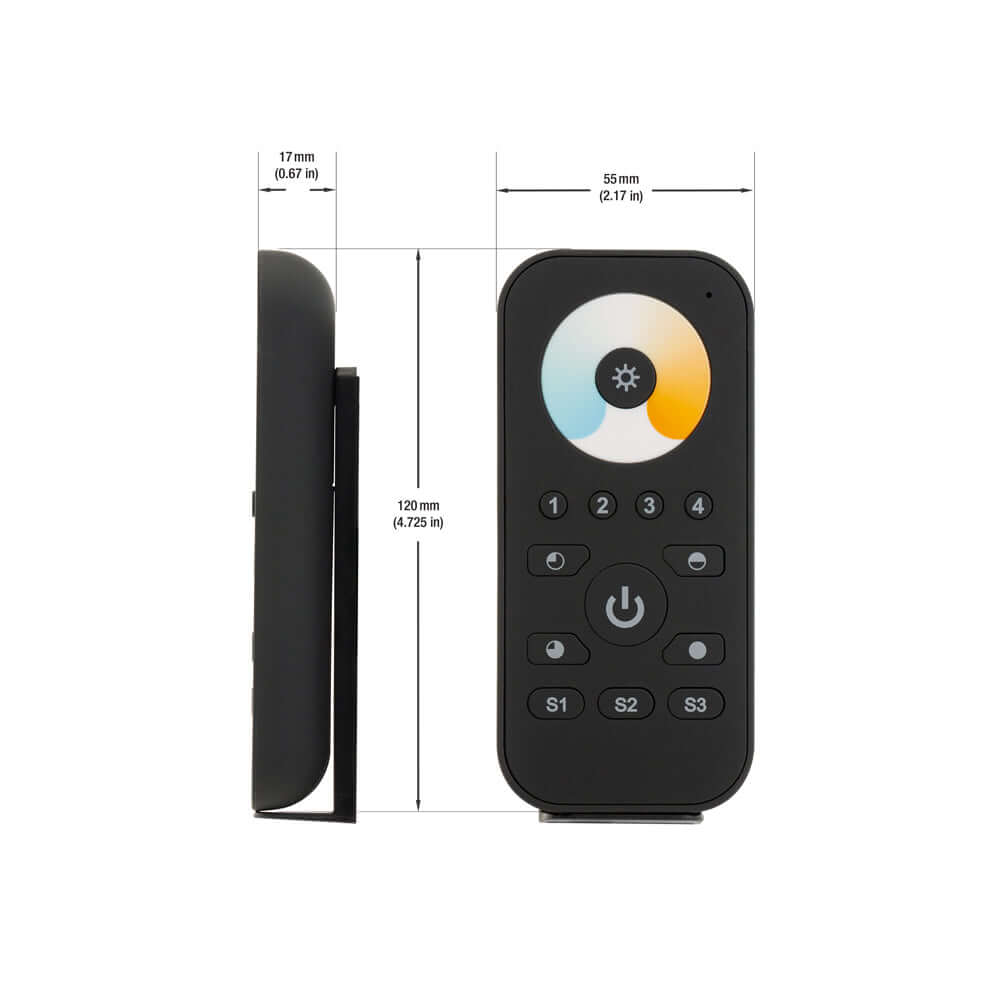

Dimensions | 120 x 55 x 17mm (4.7 x 2.1 x 0.66in) |
The SR-2819S-CCT (R2) is a LED remote controller designed to control CCT color temperature lighting fixtures. It operates on RF signal with a frequency of 434MHz, 869.5MHz, or 916.5MHz, and requires 3 AAA batteries with a voltage of 4.5V for power. The remote controller has a 4-zone control capability and functions as a dimmer for the lighting fixtures.
The controller is black in color and has an operating temperature range of 0-40°C with a relative humidity range of 8% to 80%. It has an IP20 rating, meaning it is protected against solid objects greater than 12mm in size and has no protection against water.
The dimensions of the SR-2819S-CCT (R2) are 120 x 55 x 17mm (4.7 x 2.1 x 0.66in), making it compact and easy to handle. With this remote controller, users can easily adjust the color temperature of their CCT lighting fixtures to achieve the desired ambiance and lighting effect.
Features:
- LED remote controller for CCT color temperature lighting fixtures
- Operates on RF signal with frequency options of 434MHz, 869.5MHz, or 916.5MHz
- Requires 3 AAA batteries with 4.5V voltage for power
- 4-zone control capability and functions as a dimmer for the lighting fixtures
- Black in color with operating temperature range of 0-40°C and relative humidity range of 8% to 80%
- IP20 rating protects against solid objects >12mm in size, but no protection against water
- Dimensions are 120 x 55 x 17mm (4.7 x 2.1 x 0.66in), making it compact and easy to handle
- Allows users to adjust color temperature for desired ambiance and lighting effect.
