SR-2858Z4-5C (R4), RGB+CCT Remote Controller

  • $215.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561430870
We only have 28 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Product LED Remote Controller
Model SR-2858Z4-5C (R4)
Output RF Signal
Voltage 4.5V (3xAAA battery)
Frequency 434MHz/869.5MHz/916.5MHz
Control Zone 4 Zone
Color Controller RGB+CCT
Compatible Controllers (Sold Separately) SR-1009EA-5C (R-25.5A)
SR-1009EATYWI-5C (R-8A)
SR-1009TYWI-5C (R-4A)
Color Black
Operating temperature 0-40° C
Relative humidity 8% to 80%
IP Rated IP20

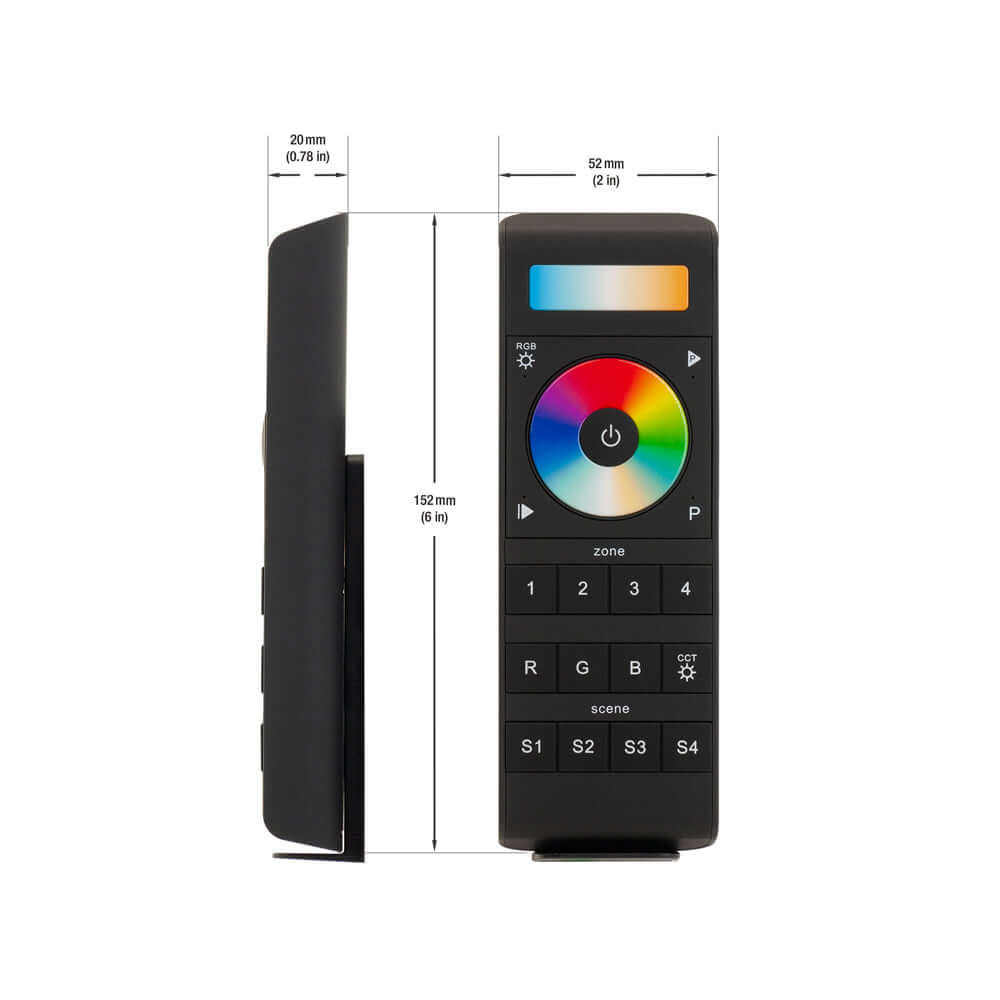

Dimensions 152 x 52 x 20mm (6 x 2 x 0.7in)



The SR-2858Z4-5C (R4) is a remote controller for RGB and dual color (warm white and cold white) LED lighting fixtures. It operates on an RF signal with a frequency of 434MHz/869.5MHz/916.5MHz and is powered by 3 AAA batteries, providing an output voltage of 4.5V. The controller features a sleek and ergonomic design made of high-end PC material, and is black in color.

The remote controller allows for 5-channel control of RGB and dual color, with each channel (R, G, B, warm white, and cold white) able to be controlled separately. It features an ultra-sensitive tempered glass touch color wheel for accurate and fast RGB color tone adjustment, and supports programmable functions by choosing colors (up to 5) and touching the "P" key.

Four running modes, including jump, flash, fade, and strobe, are available for the programmed colors. The controller can also control 4 separate zones, each with endless receivers, and up to 8 different remotes can control each receiver. The user can set 4 different scenes, and the synchronization function of pattern changing ensures consistent change forever.

The controller is rated IP20, indicating that it is suitable for indoor use only, and can operate at temperatures between 0-40° C with a relative humidity of 8% to 80%. The controller's dimensions are 152 x 52 x 20mm (6 x 2 x 0.7in). Its user-friendly interface allows for easy and simple operation.

Features:

  • Remote controller for RGB and dual color (warm white and cold white) LED lighting fixtures
  • Operates on RF signal with frequency options of 434MHz/869.5MHz/916.5MHz
  • Powered by 3 AAA batteries, providing 4.5V output voltage
  • Sleek and ergonomic design made of high-end PC material, and is black in color
  • 5-channel control of RGB and dual color with separate control of each channel (R, G, B, warm white, and cold white)
  • Ultra-sensitive tempered glass touch color wheel for accurate and fast RGB color tone adjustment
  • Supports programmable functions by choosing colors (up to 5) and touching the "P" key
  • Four running modes available for programmed colors: jump, flash, fade, and strobe
  • 4 separate zones, each with endless receivers, and up to 8 different remotes can control each receiver
  • User can set 4 different scenes, and synchronization function of pattern changing ensures consistent change forever
  • Rated IP20 for indoor use only, with operating temperature range of 0-40° C and relative humidity range of 8% to 80%
  • User-friendly interface for easy and simple operation.
