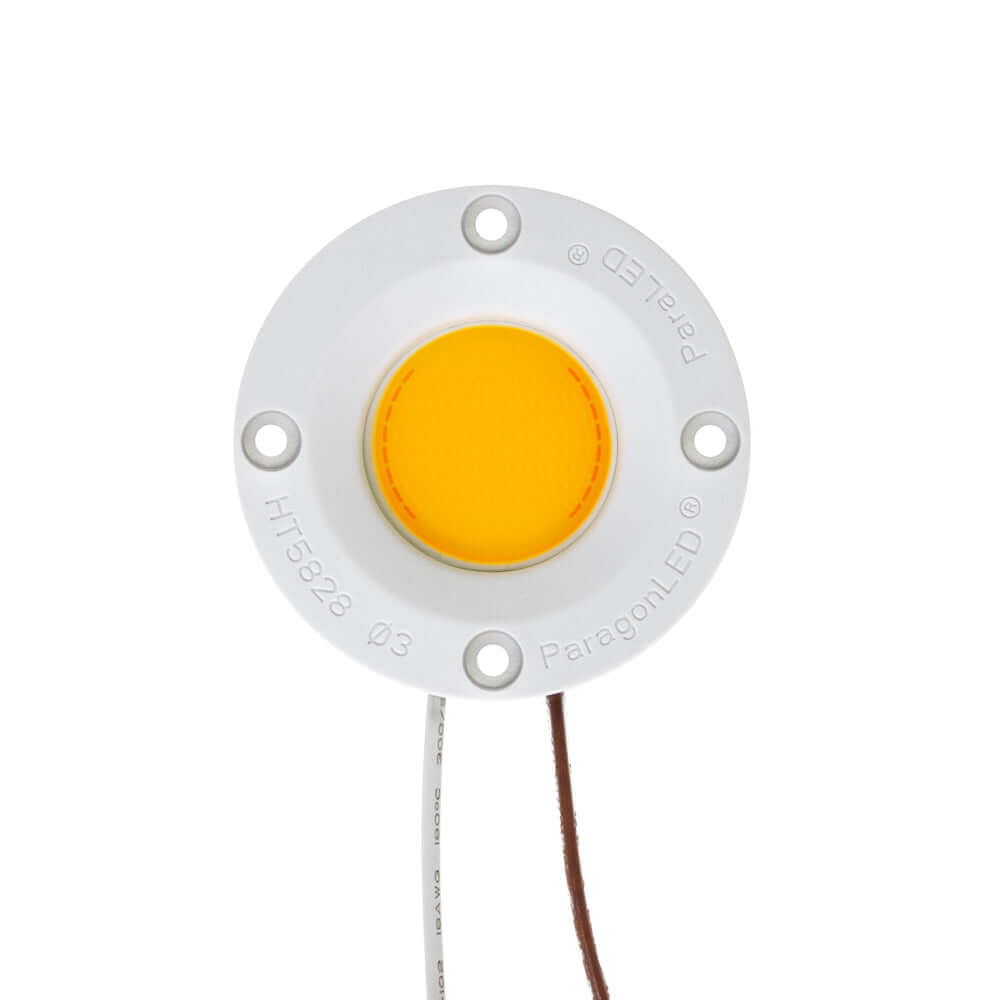

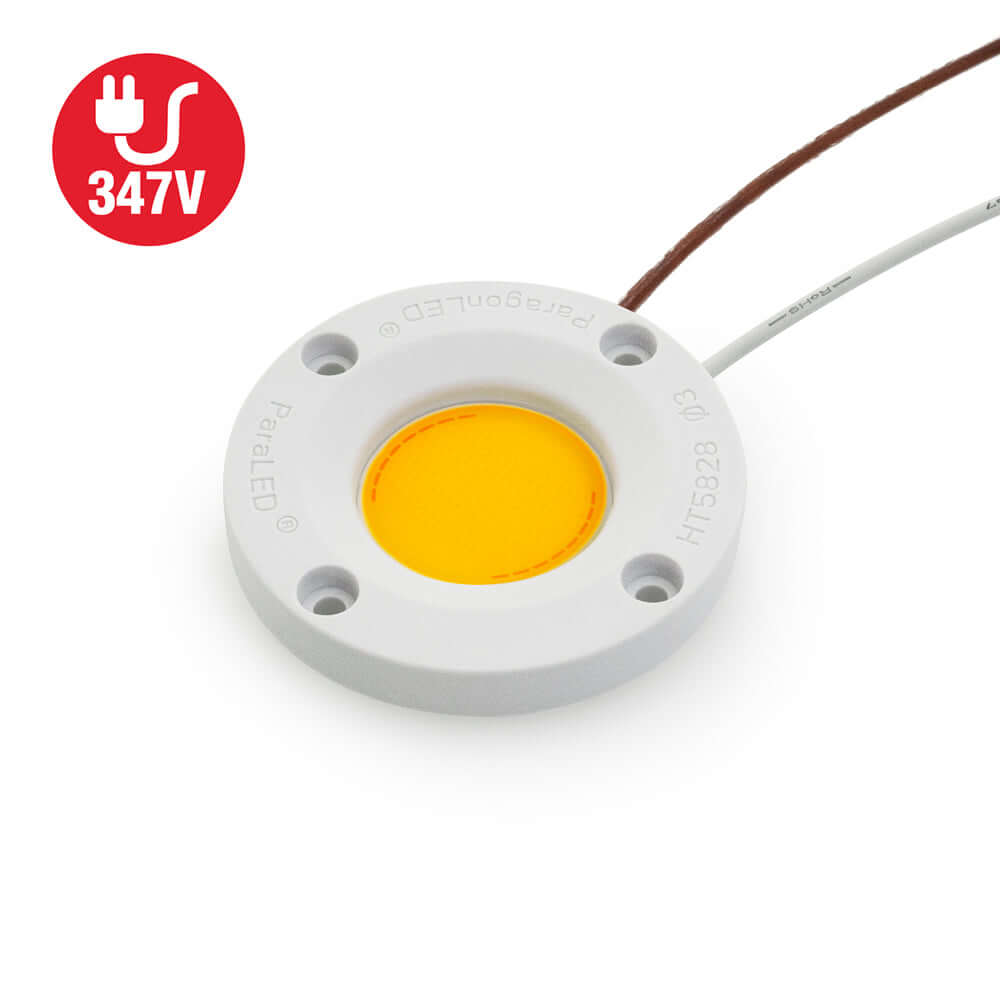

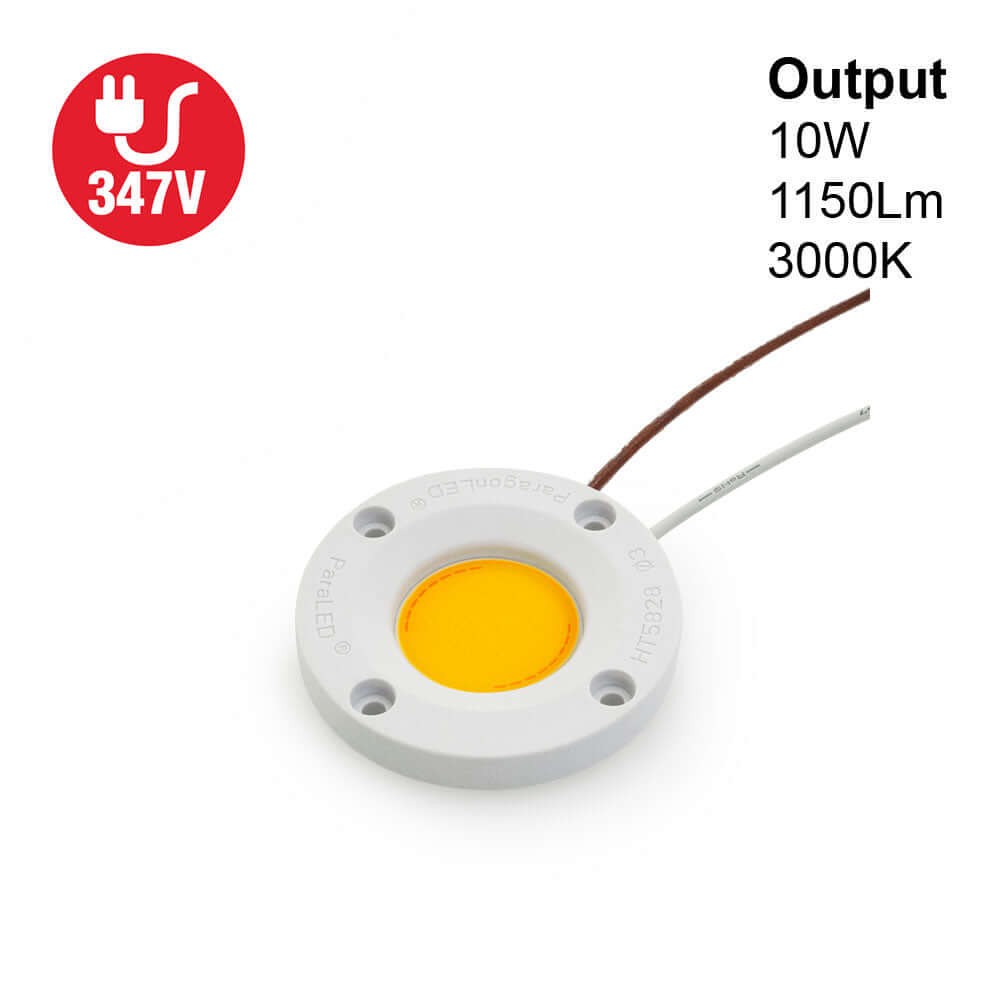

CDAC-136-5028-347-3000K COB Paragon LED Module with HT5828 LED Holder, 347V 10W 3000K(Warm White)
Product Description
Product | Paragon LED Module |

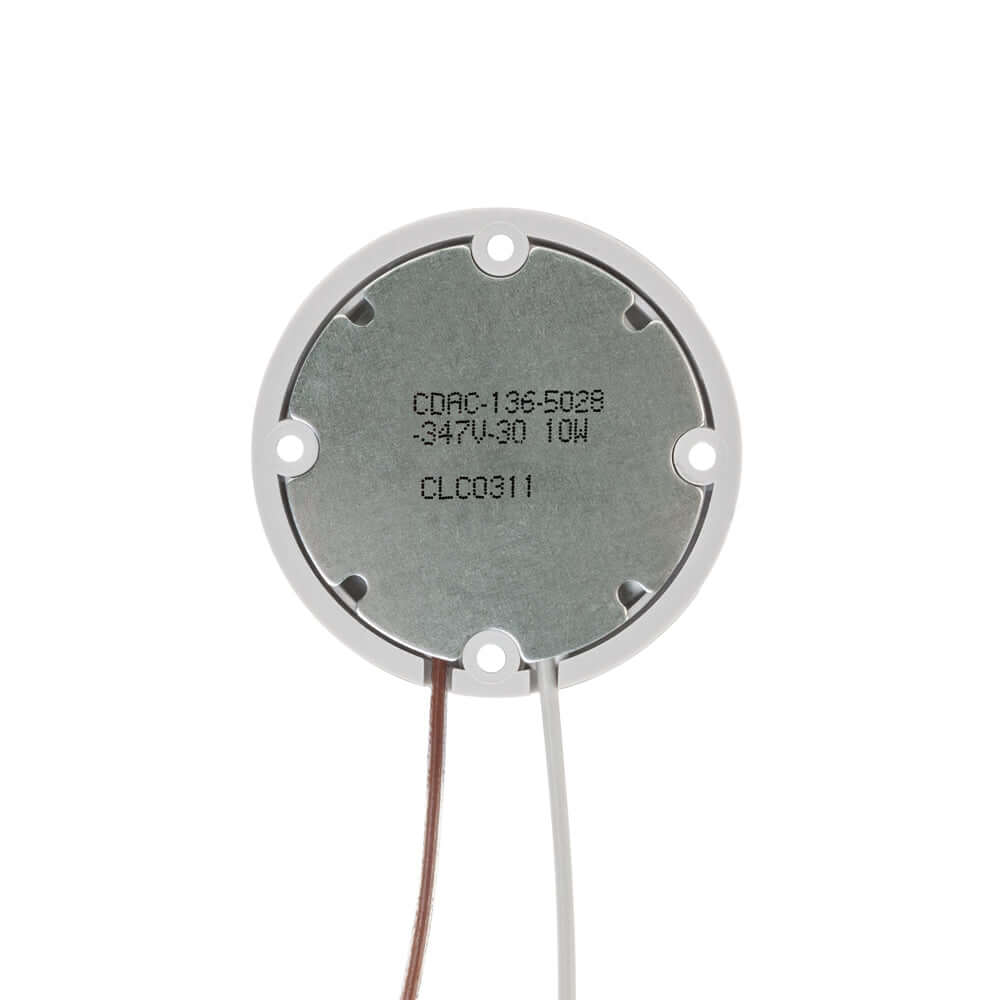

Model No | CDAC-136-5028-347-3000K |
COB Holder Model No | HT5828 |
LED Type |
COB LED |
No LED chips | 136 |
Wattage | 10W |
Voltage | 347V AC |
Power Factor | PF>0.85 |
Luminous Intensity | 1150 Lumens |
Color Temperature | 3000K (Warm White) |
Dimmable | Yes |
Rendering Index | CRI>80 |
IP Rating | IP20 (Indoor rated) |

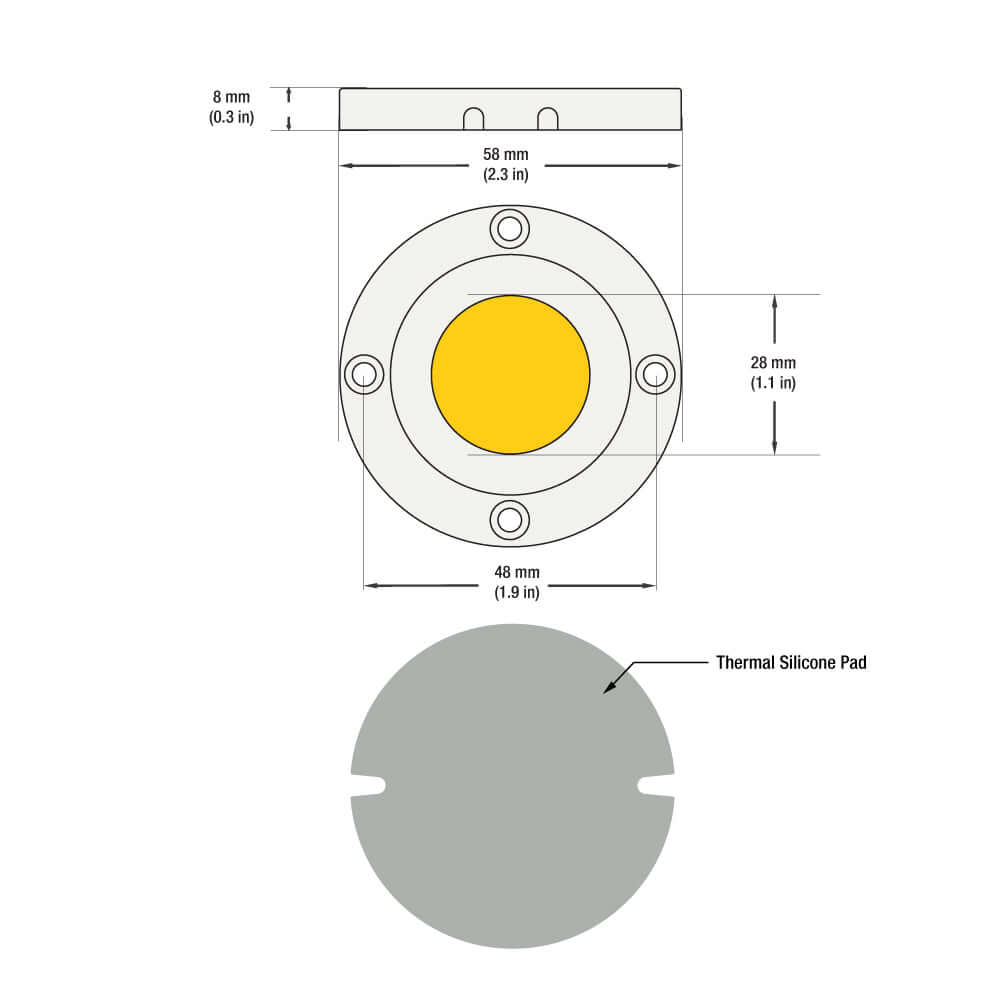

COB Holder Dimensions | ∅58mm (2.7in) x H8mm (0.3 in) |
COB Module Outer Diameter | ∅29mm (1.1 in) |
Operating Temperature | -40 ~ +105℃ |
Storage Temperature | -40 ~ +105℃ |
Included Content | COB Module, COB LED Holder, Thermal Pad |
Certifications |
The CDAC-136-5028-347-3000K is a Paragon LED Module with a model number of CDAC-136-05028-347-3000K. The module uses a COB LED type and has 136 LED chips. It consumes 10W of power and operates on a voltage of 347V AC. The power factor of the module is greater than 0.85 and has a luminous intensity of 1150 Lumens. It has a color temperature of 3000K (Warm White) and a rendering index of greater than 80. The module is dimmable and has an IP20 rating, making it suitable for indoor use.
The CDAC-136-5028-347-3000K Paragon LED Module has low power consumption and high energy efficiency. It is suitable for damp locations and requires an aluminum heat sink to prevent overheating or luminous decay. COB LEDs have a brighter and higher quality beam output, while consuming less power compared to older LED technologies. It is essential to ground light fixtures while designing lamps, and the module comes with a polycarbonate diffuser that reduces glare and refracts light in a wider beam.

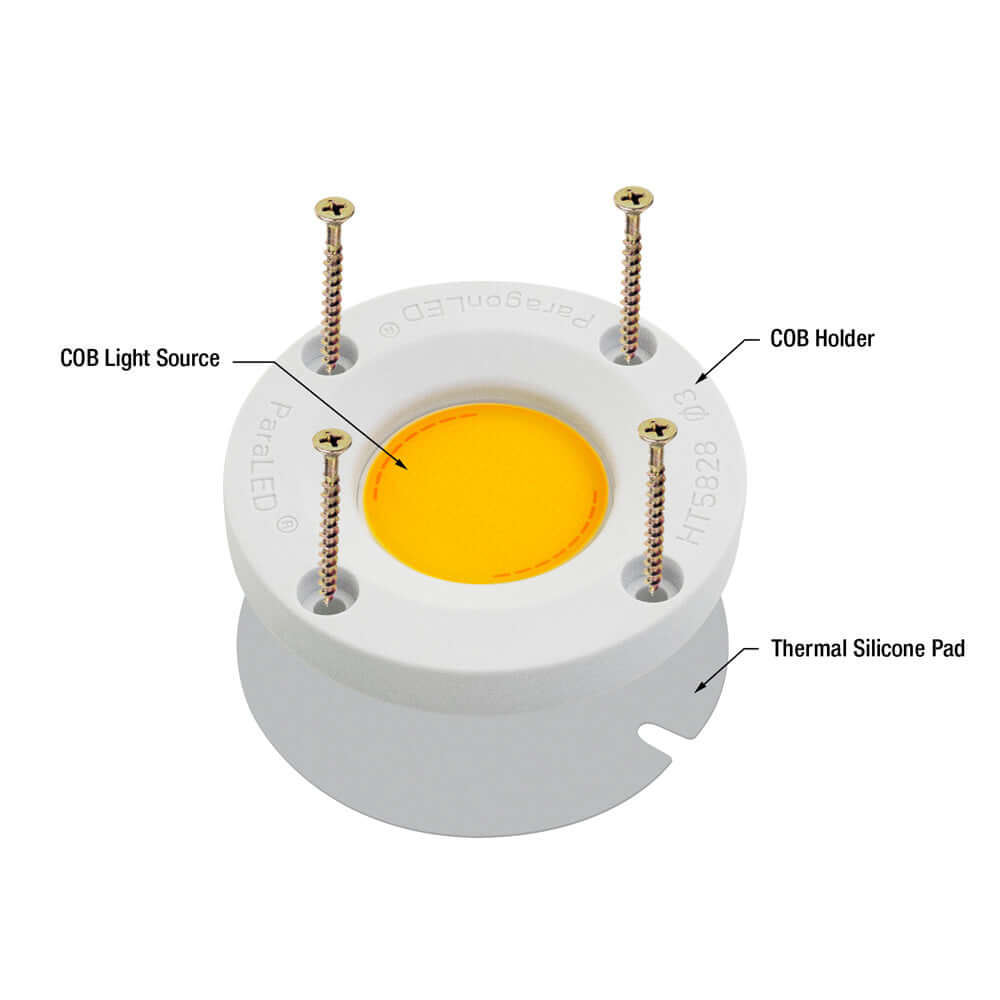

COB LEDs are versatile and can be used in almost every type of luminaire. The COB holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink, while the silicone grease thermal pad provides a heat sink and helps in better heat dissipation, thereby increasing the module's lifespan.
Features:
- COB LED type with 136 LED chips, consuming 10W of power and operating on a voltage of 347V AC
- Luminous intensity of 1150 Lumens with a color temperature of 3000K (Warm White) and a rendering index of >80
- Dimmable and has an IP20 rating, making it suitable for indoor use
- COB holder model number HT5828 with dimensions of ∅58mm (2.7in) x H8mm (0.3in), and the COB module outer diameter is ∅29mm (1.1in)
- Operating temperature range of -40 ~ +105℃ with a thermal pad for heat dissipation
- Comes with a polycarbonate diffuser that reduces glare and refracts light in a wider beam
- Certified by UL for quality and safety
- Suitable for damp locations and requires an aluminum heat sink to prevent overheating or luminous decay
