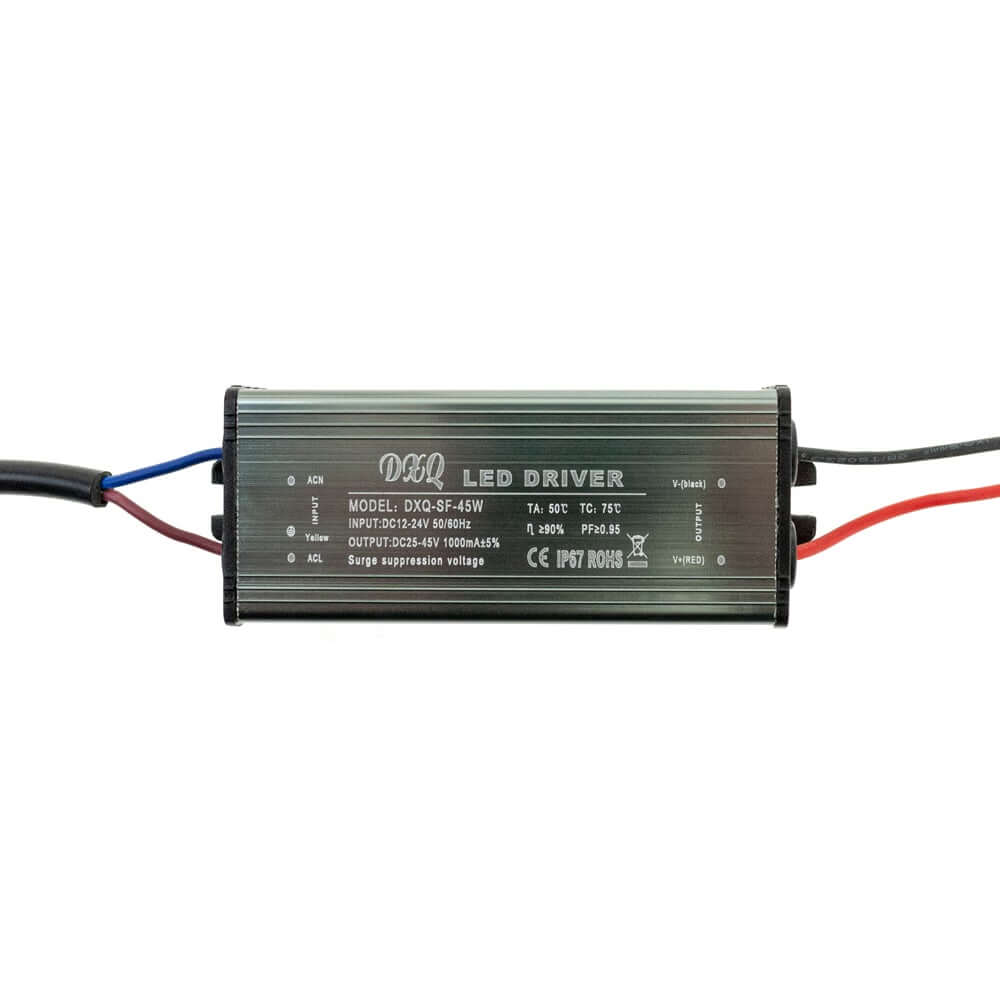

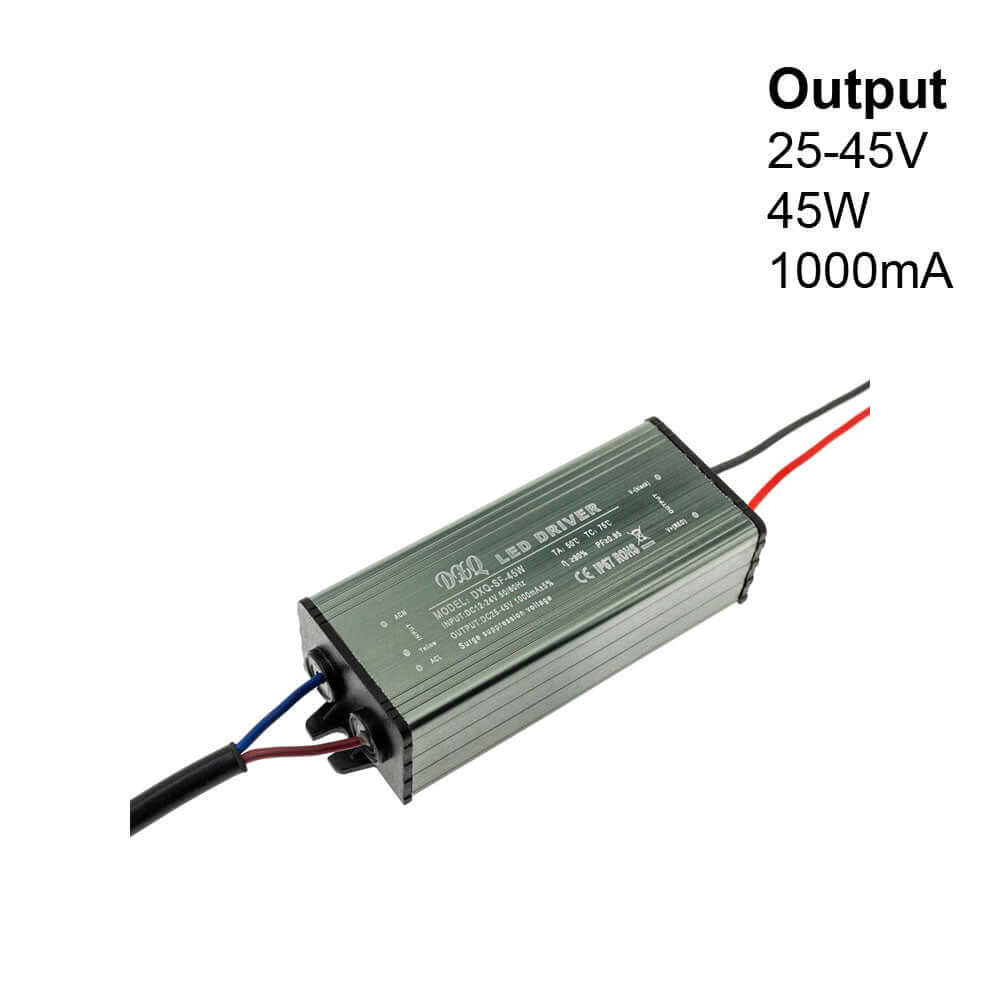

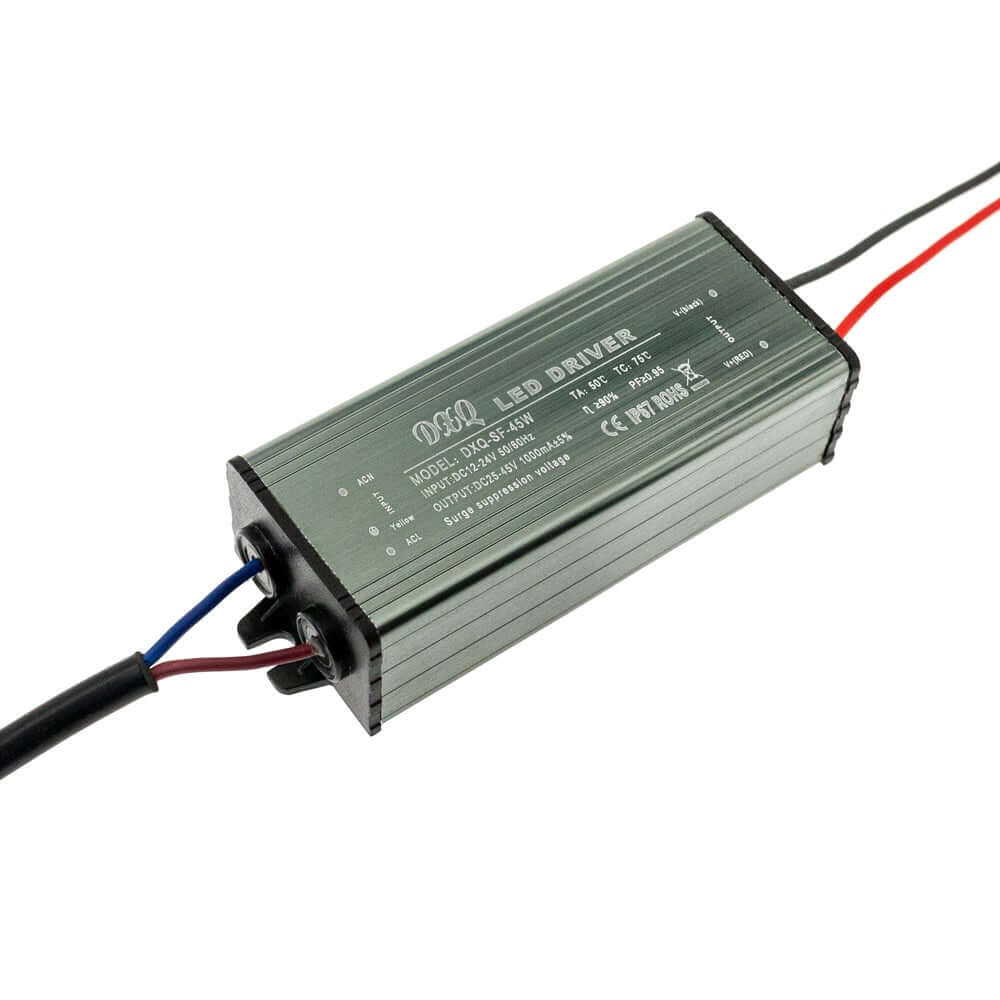

DXQ-SF-45W Non-Dimmable Constant Current LED Driver, 12-24V 45W 1000mA
Product Description
| Model | DXQ-SF-45W |
| Input Voltage | 12-24V AC |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.95 |
| Efficiency | >90% |
| Output Regulated Current | 1000mA |
| Output Power | 45W |
| Output Voltage | 25-45V DC |
| Dimmable | No |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 75°C |
| IP Rating | IP67 (Waterproof) |

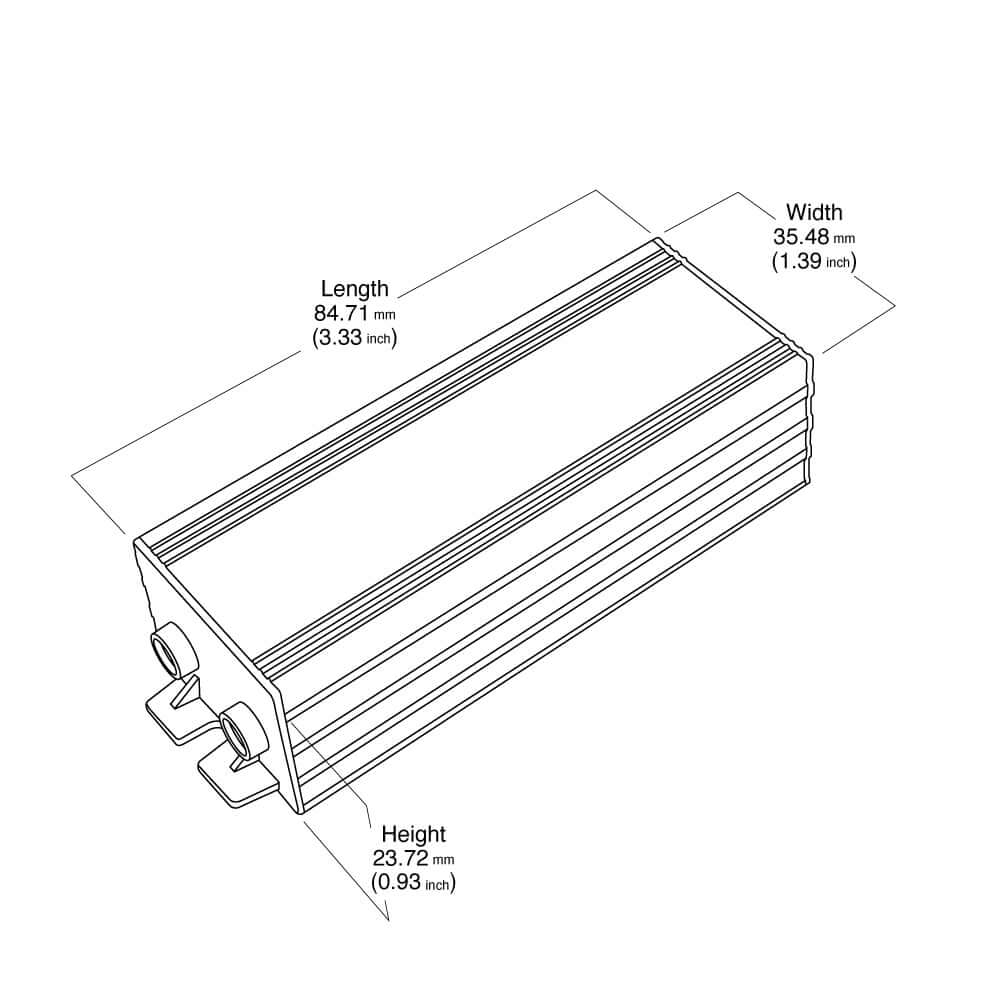

| Dimensions | 85 x 35 x 24 mm (3.3 x 1.3 x 0.94 in) |
| Class Certification | Class II |
| Certification |
  |
The DXQ-SF-45W LED driver is designed to be used with LED lighting systems that require constant current output. It has an input voltage range of 12-24V AC, input frequency of 50-60Hz, and a power factor of PF>0.95.
This LED driver has an output regulated current of 1000mA and an output power of 45W. It has an output voltage range of 25-45V DC, which makes it suitable for powering LED lighting systems that require constant current output.
This LED driver is non-dimmable, meaning that it cannot be used to adjust the brightness of the connected LED lights. The DXQ-SF-45W LED driver is Class II certified, which provides double insulation protection and ensures safe operation in applications where contact with electrical conductors is possible.
Features:
- Model: DXQ-SF-45W
- Input Voltage: 12-24V AC
- Input Frequency: 50-60Hz
- Power Factor: PF>0.95
- Efficiency: >90%
- Output Regulated Current: 1000mA
- Output Power: 45W
- Output Voltage: 25-45V DC
- Dimmable: No
- Ambient Temperature (Ta): 50°C
- Case Temperature (Tc): 75°C
- IP Rating: IP67 (Waterproof)
- Dimensions: 85 x 35 x 24 mm (3.3 x 1.3 x 0.94 in)
- Class Certification: Class II
