Constant Current COB LED Module, 350mA 9-10V 3W CCT(3K, 3.5K, 4K, 6K)

  • $9.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561417796
We only have 27 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Model No

3WW14E33-Y6C(For 3000K, 3500K)
3W14E33-Y6C (For 4000K, 6000K)

Voltage 9-10V
Wattage 3W
Current 350mA
Available Color Temperature 3000K(Warm White)
3500K (Mid-Warm White)
4000K (Natural Light)
6000K (Cool White)
Luminous Flux 180-200lm (For 3000K) & 200-300lm (3500k, 4000K, 6000K)
Material Metallic base

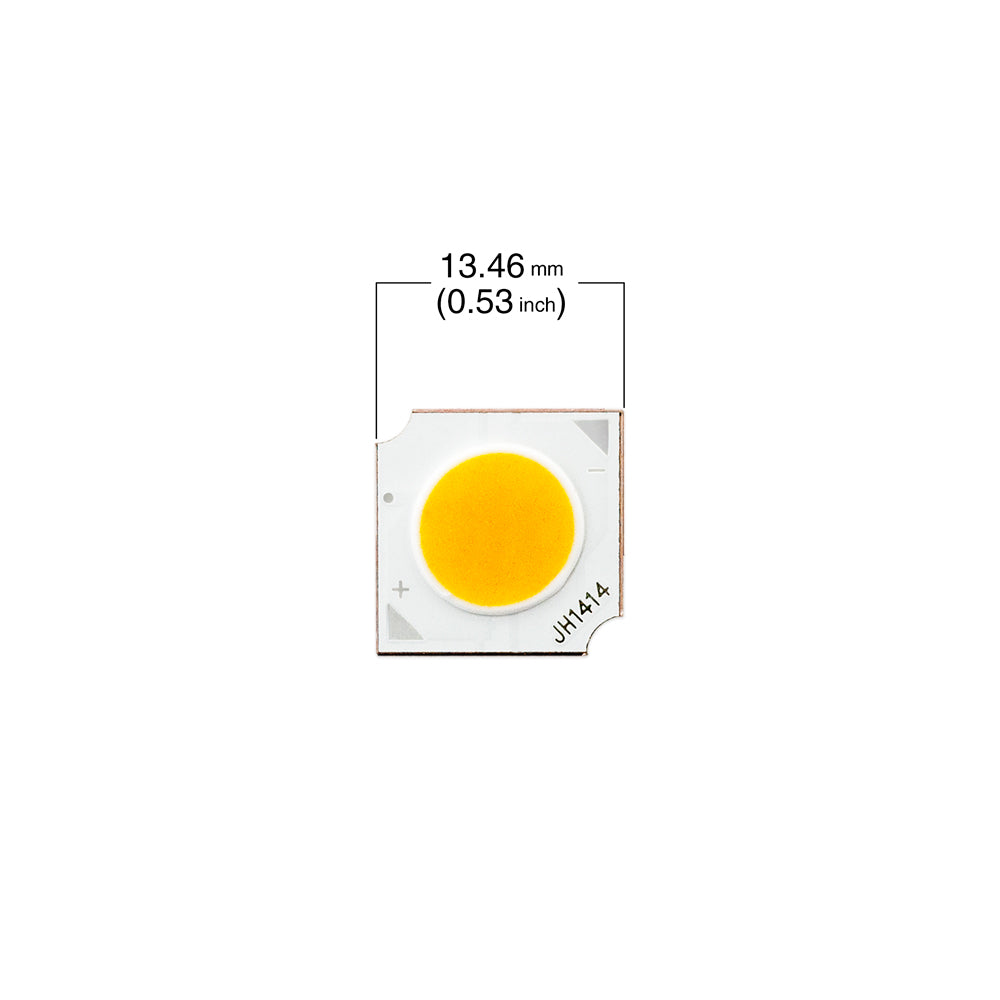

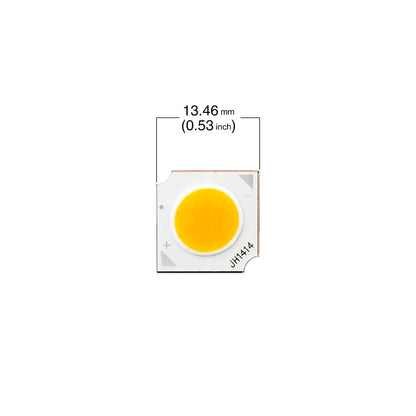

Dimensions 13.4 x 13.4 x 1.5mm (0.5 x 0.5 x 0.05inch)
Package content LED Module
Thermal Grease HY510 (5gr)












The Constant Current COB LED Module, 350mA 9-10V 3W CCT(3K, 3.5K, 4K, 6K) is a high-quality lighting solution that provides efficient and bright illumination. This LED module is available in two different models: the 3WW14E33-Y6C for 3000K and 3500K color temperatures, and the 3W14E33-Y6C for 4000K and 6000K color temperatures.

This LED module has a wattage of 3W, operates at a current of 350mA, and has a voltage range of 9-10V DC. It has a luminous flux output of 180-200 lumens for the 3000K model and 200-300 lumens for the 3500K, 4000K, and 6000K models. This LED module has a metallic base and dimensions of 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch).

To ensure optimal performance and longevity. It is recommended to use Thermal Grease HY510 (5gr) during installation. The package content includes the LED module and Thermal Grease HY510 (5gr).

One of the advantages of this LED module is that it is available in different color temperatures (3000K, 3500K, 4000K, 6000K), providing flexibility in lighting design. Additionally, it has a low power consumption and high energy efficiency, making it an eco-friendly and cost-effective lighting solution. Overall, the Constant Current COB LED Module, 350mA 9-10V 3W CCT(3K, 3.5K, 4K, 6K) is an excellent lighting option for various indoor and outdoor applications, including home, office, commercial, and industrial use.

Features:

  • Available in two different models: the 3WW14E33-Y6C for 3000K and 3500K color temperatures, and the 3W14E33-Y6C for 4000K and 6000K color temperatures.
  • Wattage of 3W, operates at a current of 350mA, and has a voltage range of 9-10V DC.
  • Luminous flux output of 180-200 lumens for the 3000K model and 200-300 lumens for the 3500K, 4000K, and 6000K models.
  • Metallic base and dimensions of 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch).
  • Package content includes the LED module and Thermal Grease HY510 (5gr).
  • Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage.
  • Available in different color temperatures (3000K, 3500K, 4000K, 6000K), providing flexibility in lighting design.
  • Low power consumption and high energy efficiency, making it an eco-friendly and cost-effective lighting solution.
  • Suitable for various indoor and outdoor applications, including home, office, commercial, and industrial use.
  • Use Thermal Grease or Thermal Pad for installation.
