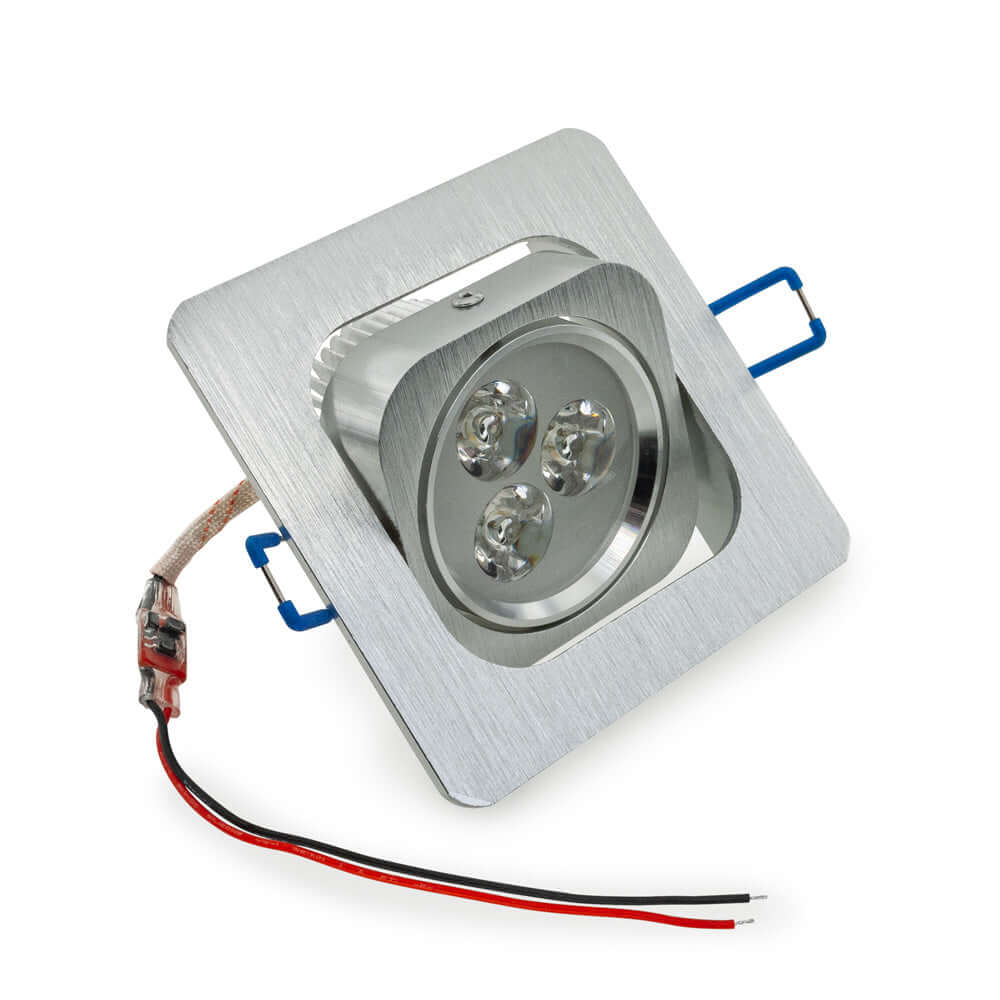

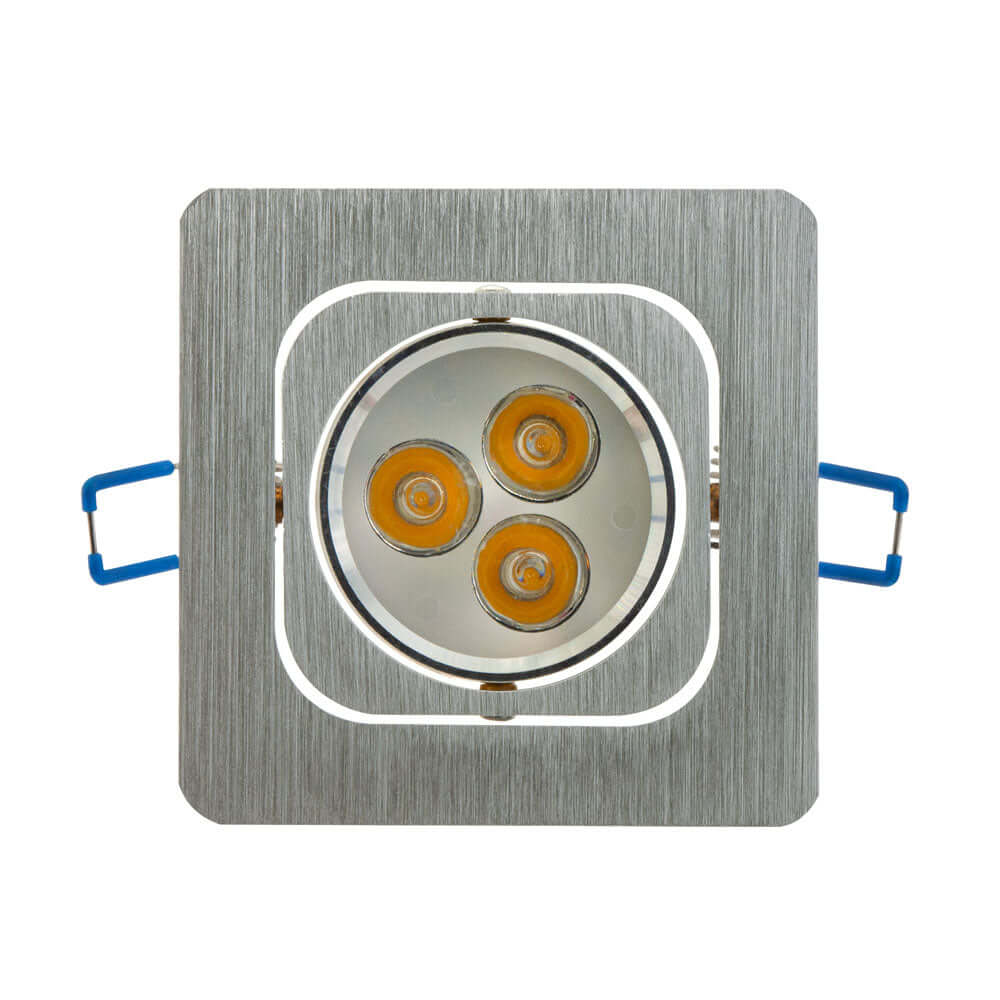

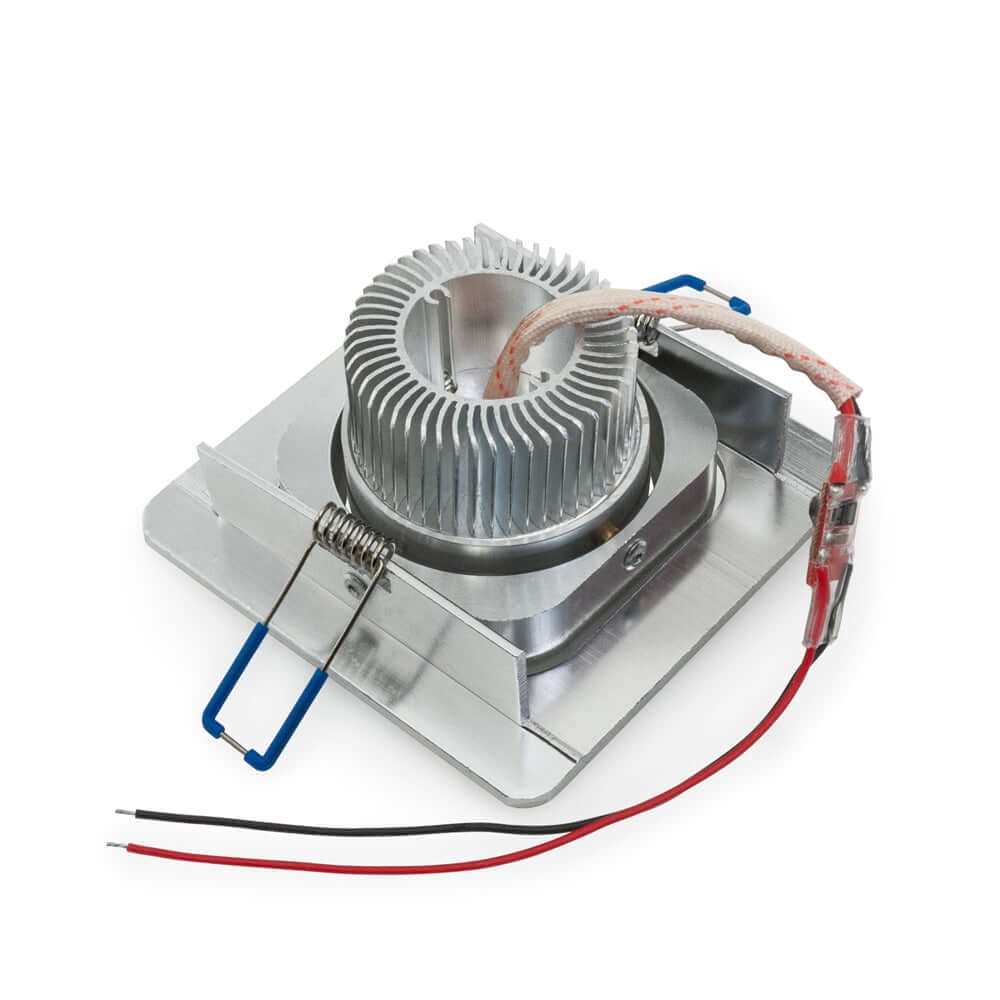

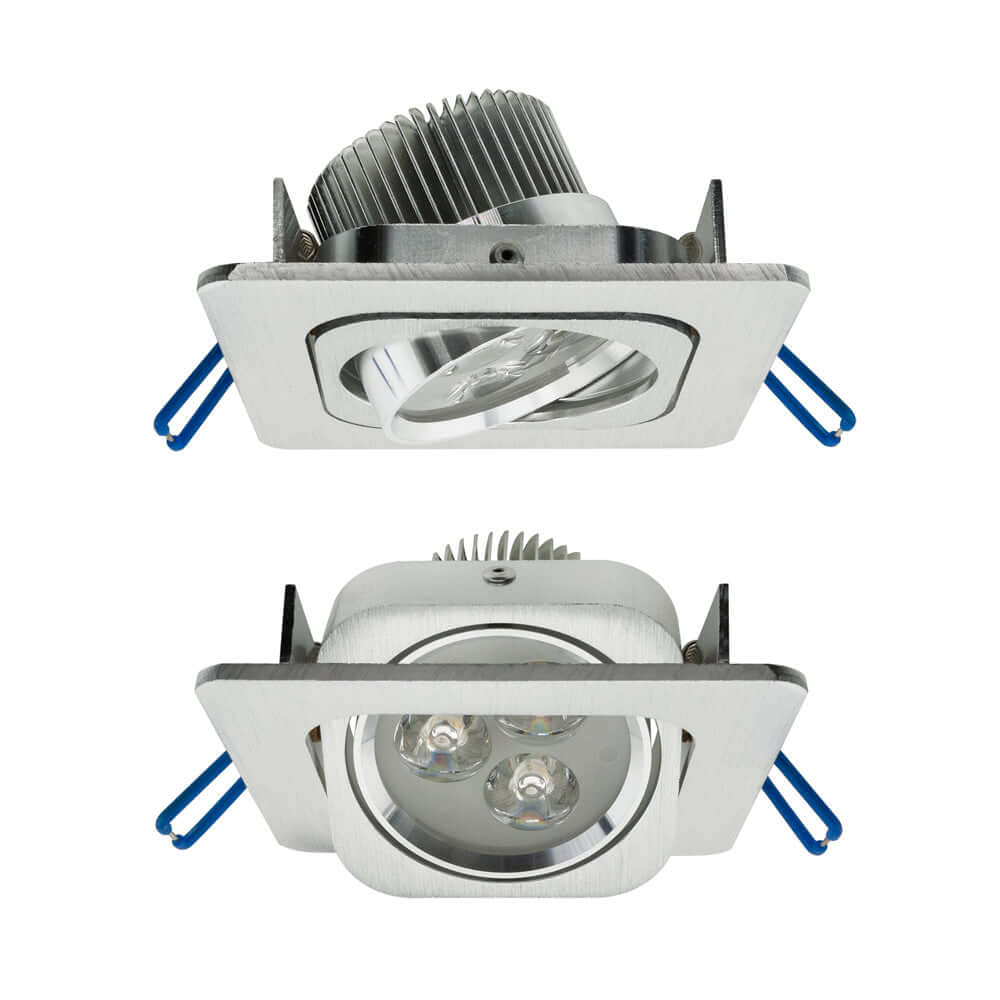

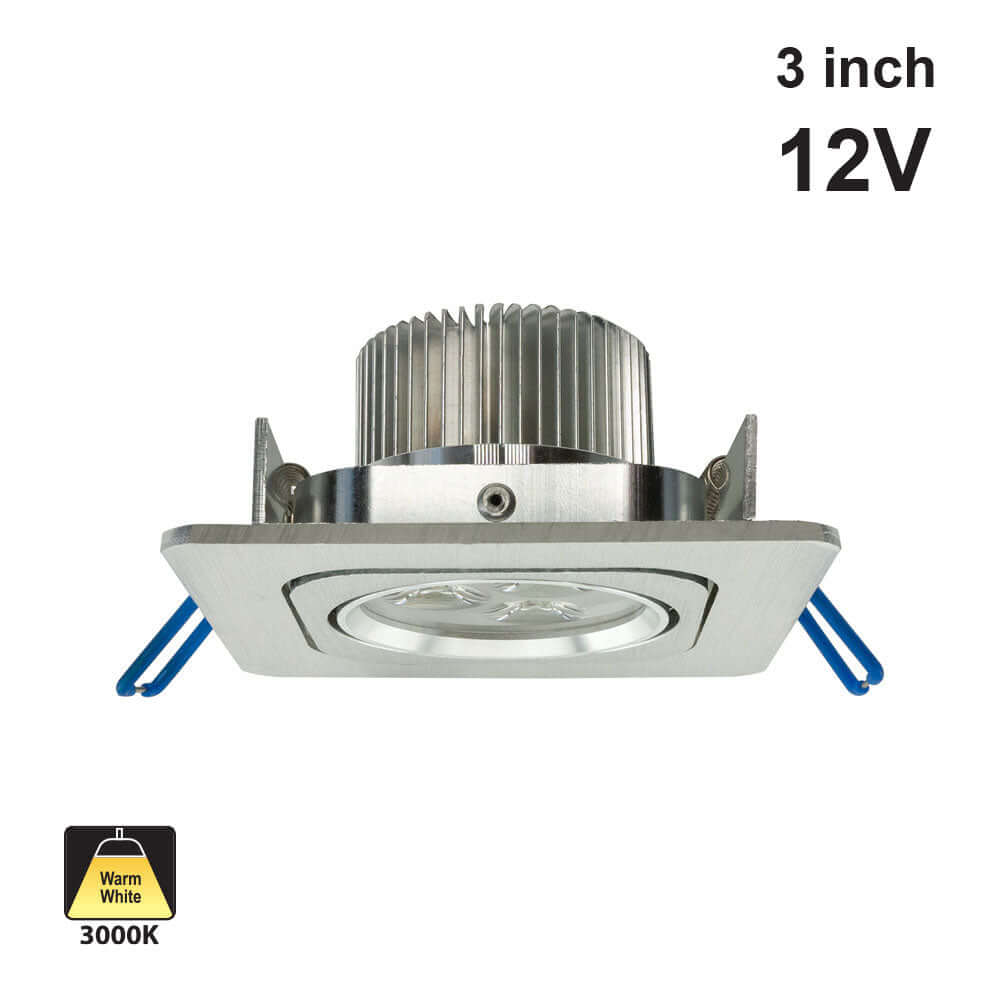

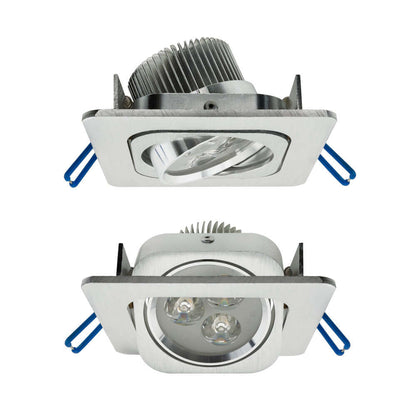

Type7, 3 inch Downlights/ Ceiling Lights, 12V 3W 3000K(Warm White)

  • $35.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561414511
We only have 49 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).

Product Description

Product Downlights/ Ceiling Lights
Voltage 12V
Wattage 3W
Light Source 3 x 1W
Color Temperature 3000K (Warm White)
Luminous Flux 250 - 300lm
Trim Color Brushed Silver
Beam Angel 30°
Tilt Angel 45°
Rendering Index CRI>80
Dimmable Yes
IP Rating IP20 (Suitable for damp locations)
Wire Length 23 cm (9 in) 24AWG
Mounting Plate (Sold Separately): MP-UNV-23345    SKU: 666561433802
MP-UNV-346     SKU: 666561433796

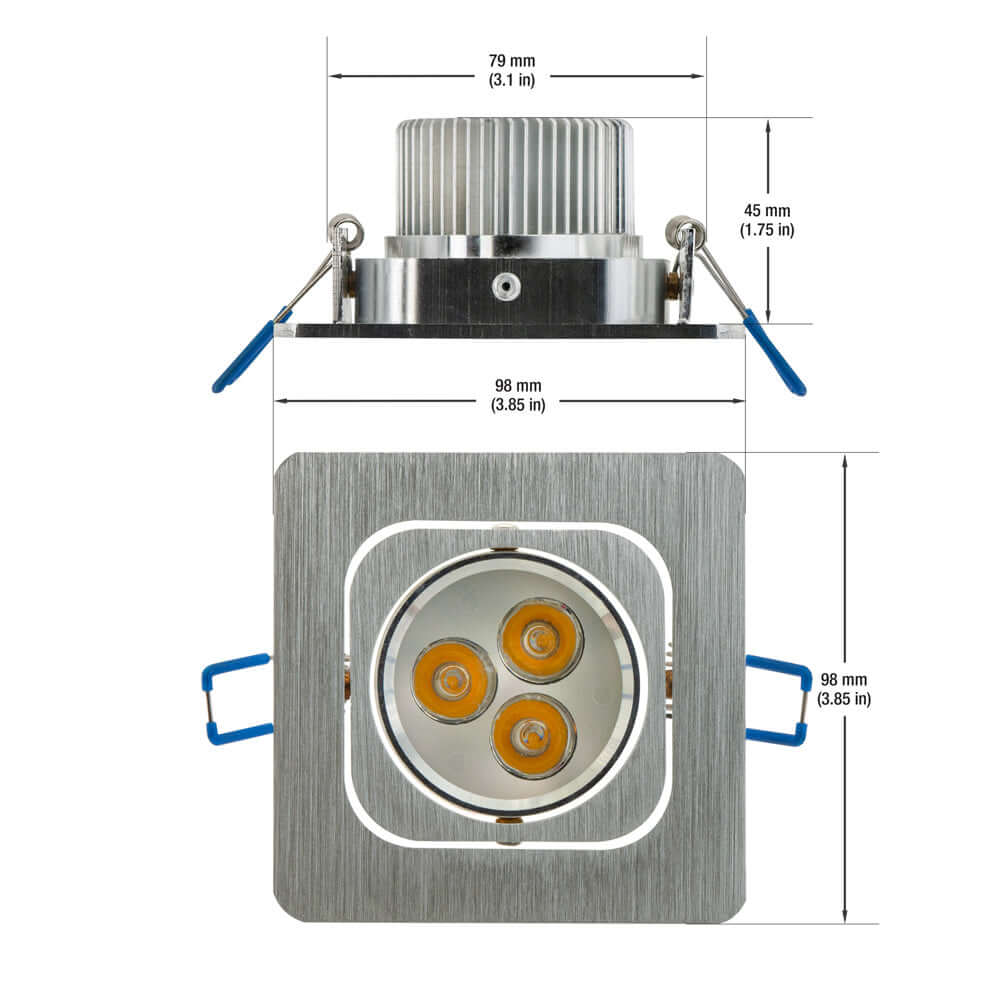

Dimensions Overall Length: 98 mm (3.85 in)
Depth: 45 mm (1.75 in)
Cut Size 79 mm (3.1 in)


The Type7 Downlights/ Ceiling Lights are a 12V 3W lighting solution with a warm white color temperature of 3000K. The light source comprises three 1W LEDs, providing a luminous flux of 250-300lm. The trim color is a brushed silver finish, and the beam angle is 30° with a tilt angle of 45°. The downlights have a high rendering index of CRI>80, ensuring that colors appear natural and vibrant. They have an IP20 rating, making them suitable for damp locations.

The wire length is 23 cm (9 in) with a 24AWG gauge, and the overall dimensions are 98 mm (3.85 in) in length and 45 mm (1.75 in) in depth. The cut size required for installation is 79 mm (3.1 in). These downlights/ ceiling lights are suitable for a variety of applications, including residential and commercial lighting.


  • Type: Downlights/Ceiling Lights
  • Power: 12V, 3W
  • Color temperature: 3000K (warm white)
  • Light source: Three 1W LEDs, luminous flux of 250-300lm
  • Trim color: Brushed silver finish
  • Beam angle: 30°
  • Tilt angle: 45°
  • High rendering index: CRI>80
  • IP rating: IP20 (suitable for damp locations)
  • Wire length: 23 cm (9 in) with 24AWG gauge
  • Dimensions: 98 mm (3.85 in) length, 45 mm (1.75 in) depth
  • Cut size: 79 mm (3.1 in)
  • Applications: Residential and commercial lighting
