Deep Linear Aluminum LED Channel for LED Strips 1Meter(3.2ft) VBD-CH-S4

Veroboard

  • $19.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561423094

Longer than 1 meter long(3.2ft) Ask for a Quote

We only have 97 left! Get it now before it's completely gone.

FREE Shipping over $49 USD



Product Description

Product LED Channel / LED Extrusion
Model VBD-CH-S4
Material Aluminum
Diffuser Material Polycarbonate (PC)
Diffuser Style PC Frosted Cover/ PC Clear Cover/ 30 Degree Clear Lens
Fixture color Finish Silver Grey
Package content

1 meter Aluminum channel with frosted Diffuser (lens)
1 pair of Endcaps (with and without holes)
2 pieces of Mounting Brackets with mounting screws.

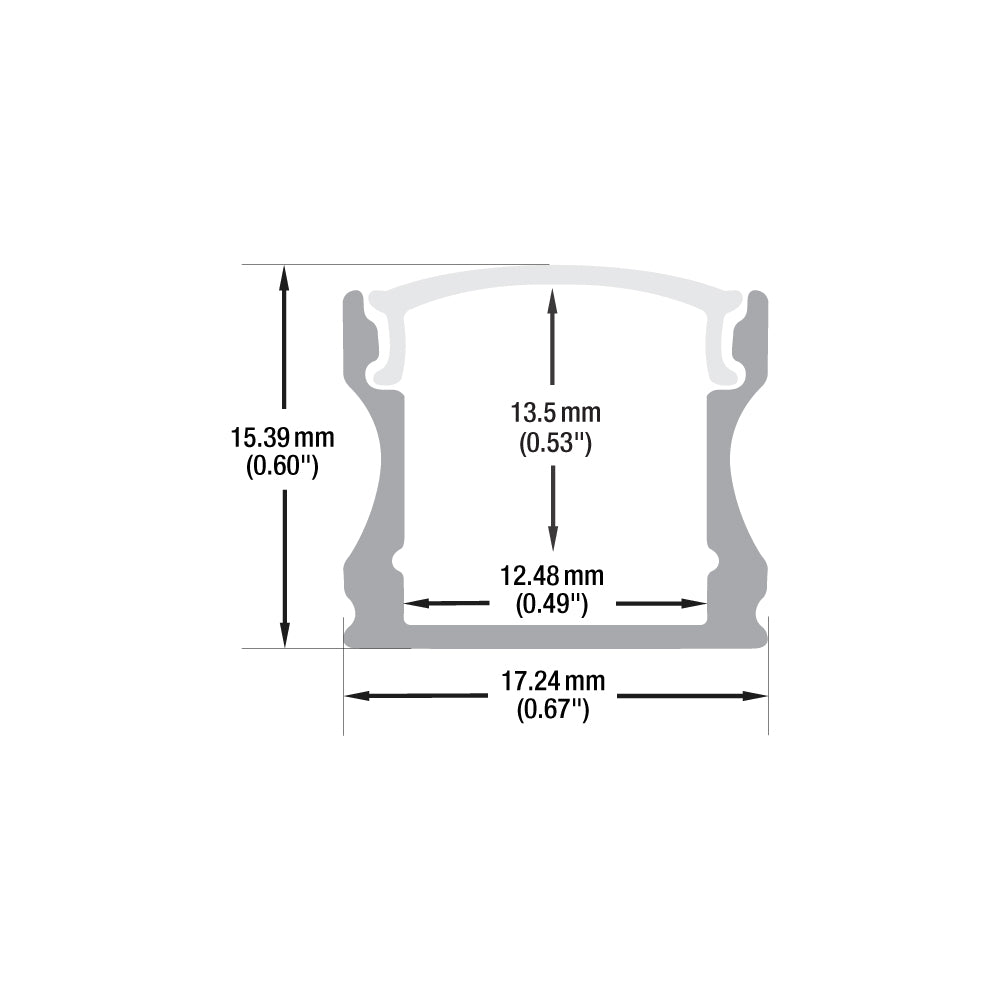

Dimensions 1000mm x 17.24mm x 15.39mm
(39.3in x 0.67in x 0.60in)
Mounting
  • Mount using a 3M Double-sided tape
  • Directly screw or groove into the mounting surface.
  • Mount using mounting clips.
Accessories (Sold Separately) 4 pairs Endcaps VBD-ENCH-S4 SKU:666561426750
6 pcs Mounting Clips VBD-CLCH-S4 SKU:666561427177
1 pair Adjustable Bracket VBD-BR-S4S5 SKU:666561427450




VEROBOARD VBD-CH-S4 Deep Aluminum Channels are popular for cabinets, shelves, closets, staircase, decorative and, vanity lighting applications. These are popular channels for preventing any visible spots of the LED strip. They are also available in the Black color in the same size.

The VEROBOARD VBD-CH-S4 Deep Linear Aluminum LED Channel is a popular solution for creating a sleek and professional installation of LED strips. Designed for cabinets, shelves, closets, and various decorative lighting applications, this channel helps prevent visible spots from the LEDs and provides uniform light.

Made of high-quality aluminum material, this LED channel is available in both Black and Silver colors. The aluminum channel measures 1000mm x 17.24mm x 15.39mm (39.3in x 0.67in x 0.60in) and comes with a frosted polycarbonate diffuser that reduces light glare and provides protection from dust, avoiding any kind of damage to the LEDs.

The VBD-CH-S4 channel includes end caps with and without holes, as well as mounting brackets with mounting screws, making it easy to install. This channel can be cut to size using a regular hack saw and mounted using 3M double-sided tape, directly screwed or grooved into the mounting surface, or mounted using the included mounting clips.

In addition to the included frosted diffuser, clear diffusers and 30-degree clear lenses are also available for this channel. The channel helps in reducing light glare and provides uniform light, as the strip light is 12 mm away from the diffuser, avoiding the visibility of the dots from the LEDs. The material is corrosion-free and can be used for outdoor purposes with waterproof strip lights (IP 66 and higher rating), provided that the end caps are sealed with silicon to avoid water.

This channel is a functional solution for adding LED lighting to any space. It acts as a heat sink for the LED strip installed in it, increasing the lifetime of the LEDs. The channel is lightweight and environment-friendly, and several lengths can be positioned together for longer installations. The brackets make it easy to install, and the simple design provides a good quality finish.

Features:

  • High-quality aluminum material, available in Black and Silver colors
  • Frosted polycarbonate diffuser reduces light glare and provides protection from dust
  • End caps with and without holes, as well as mounting brackets with mounting screws included
  • Can be cut to size and mounted using 3M double-sided tape, direct screw or groove, or mounting clips
  • Clear diffusers and 30-degree clear lenses also available
  • Strip light is 12 mm away from the diffuser, avoiding visible spots from the LEDs and providing uniform light
  • Corrosion-free material suitable for outdoor use with waterproof strip lights (IP 66 and higher rating)
  • Acts as a heat sink for the LED strip, increasing the lifetime of the LEDs
  • Lightweight and environment-friendly, with several lengths that can be positioned together for longer installations
  • Brackets make it easy to install, with a simple design providing a good quality finish.

You can also buy this product in custom lengths along with integrated custom LED strip lighting

Contact us for more details.
