Selectable Constant Current 40W LED Driver 0-10V PUP40A-1WMC-1200 , 120VAC-277VAC 850 to 1200mA

  • $107.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428341
We only have 13 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).



Product Description

Product Constant Current LED Driver with Selectable Current
Model PUP40A-1WMC-1200
Input Voltage 120-277VAC
Input Current 0.6Amax@100VAC

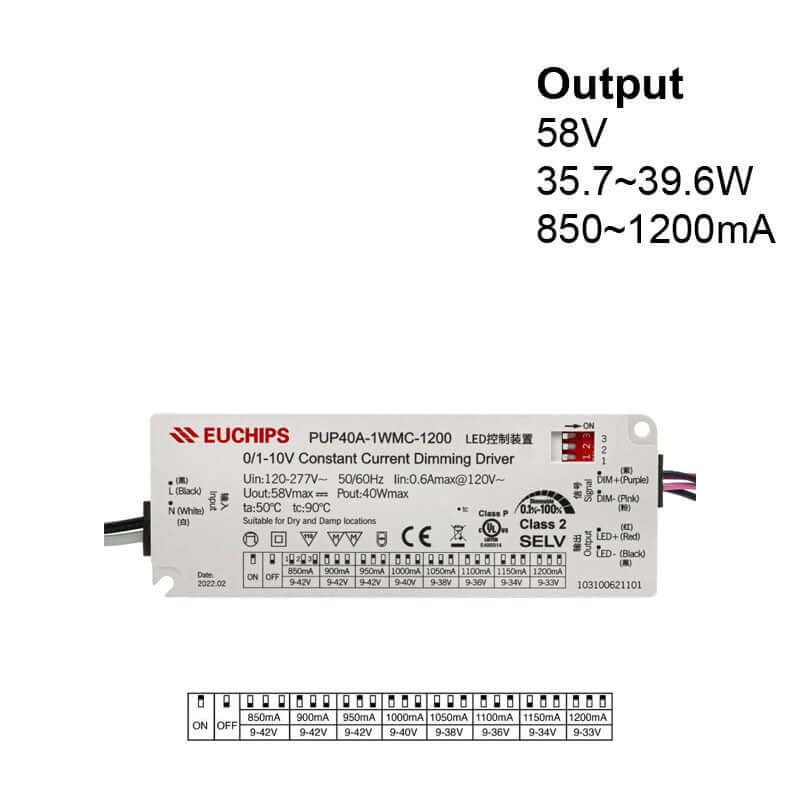

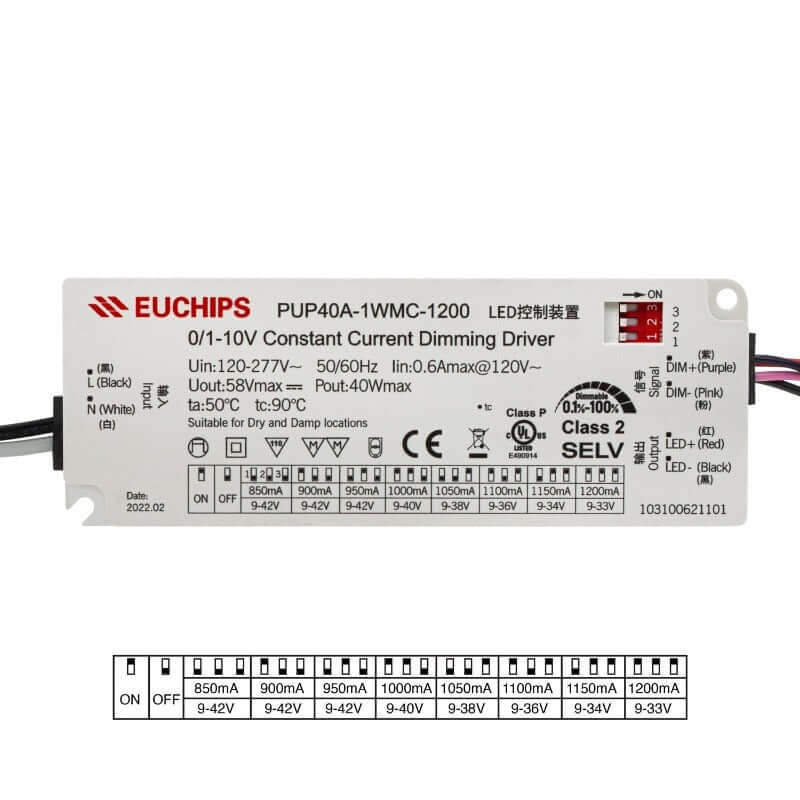

Output Current/Voltage/Power

850mA/9-42VDC/35.7W
900mA/9-42VDC/37.8W
950mA/9-42VDC/39.99W
1000mA/9-40VDC/40W
1050mA/9-38VDC/39.9W
1100mA/9-36VDC/39.6W
1150mA/9-34VDC/39.1W
1200mA/9-33VDC/39.6W

No-load Output Voltage 58V Max
Input Frequency 50/60Hz
Dimming Type 0/1-10V(Type A)
Dimming Range 0.1%-100% Dimming to off
IP Rating IP20 (Dry and Damp Locations)
Efficiency >87%@120VAC, Full load
Working Temperature -20℃~50℃
Lifetime 50,000h @ Tc:85℃

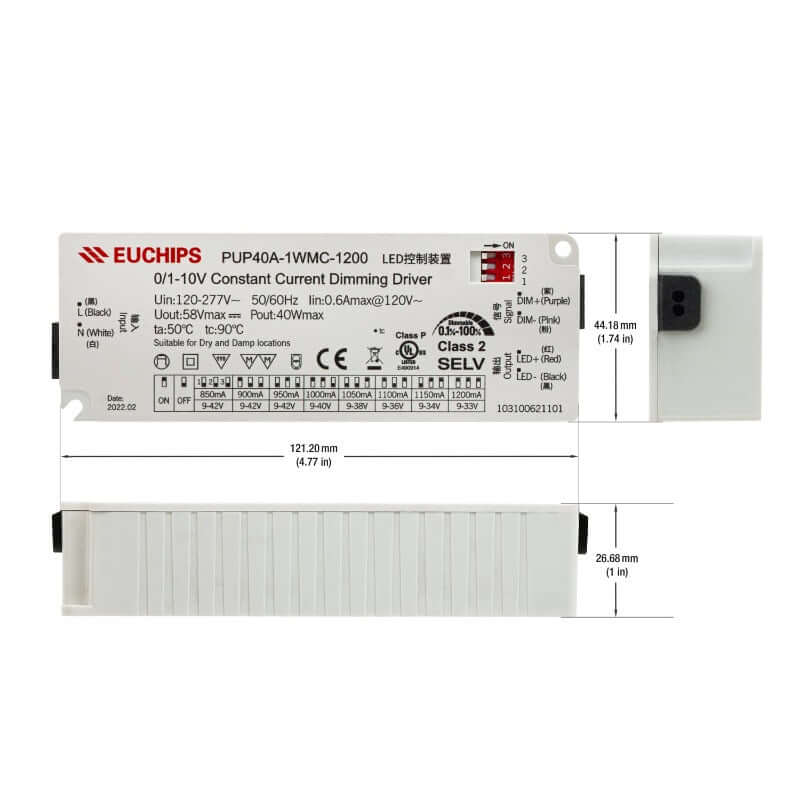

Dimensions 121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in)
Certifications


The PUP40A-1WMC-1200 is a selectable constant current LED driver that can handle up to 40W of power. It supports input voltages ranging from 120-277VAC and has a maximum input current of 0.6A at 100VAC. The driver provides a range of output currents from 850mA to 1200mA with a corresponding output voltage ranging from 9-42VDC. The maximum output power is 39.99W for the 950mA output current and 40W for the 1000mA output current.

The driver supports 0/1-10V(Type A) dimming, allowing for a dimming range of 0.1%-100% and dimming to off. The no-load output voltage is 58V max. The driver has an IP20 rating, making it suitable for use in dry and damp locations. Its efficiency is greater than 87% at full load and 120VAC input voltage. The working temperature range is -20℃ to 50℃ and the lifetime is rated at 50,000 hours at Tc:85℃. The dimensions of the driver are 121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in).

Features:

  • The PUP40A-1WMC-1200 is a selectable constant current LED driver that can handle up to 40W of power.
  • It supports input voltages ranging from 120-277VAC and has a maximum input current of 0.6A at 100VAC.
  • The driver provides a range of output currents from 850mA to 1200mA with a corresponding output voltage ranging from 9-42VDC.
  • The maximum output power is 39.99W for the 950mA output current and 40W for the 1000mA output current.
  • The driver supports 0/1-10V(Type A) dimming, allowing for a dimming range of 0.1%-100% and dimming to off.
  • The no-load output voltage is 58V max.
  • The driver has an IP20 rating, making it suitable for use in dry and damp locations.
  • Its efficiency is greater than 87% at full load and 120VAC input voltage.
  • The working temperature range is -20℃ to 50℃ and the lifetime is rated at 50,000 hours at Tc:85℃.
  • The dimensions of the driver are 121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in).
