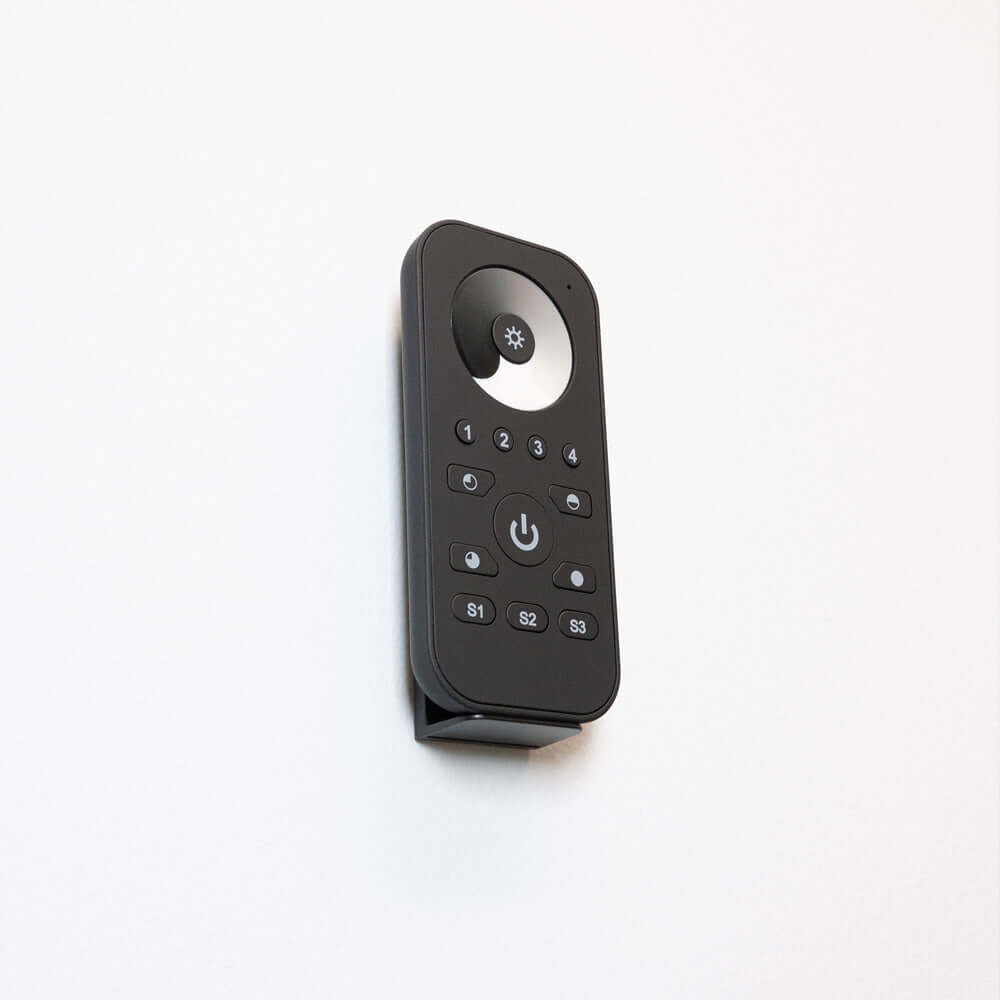

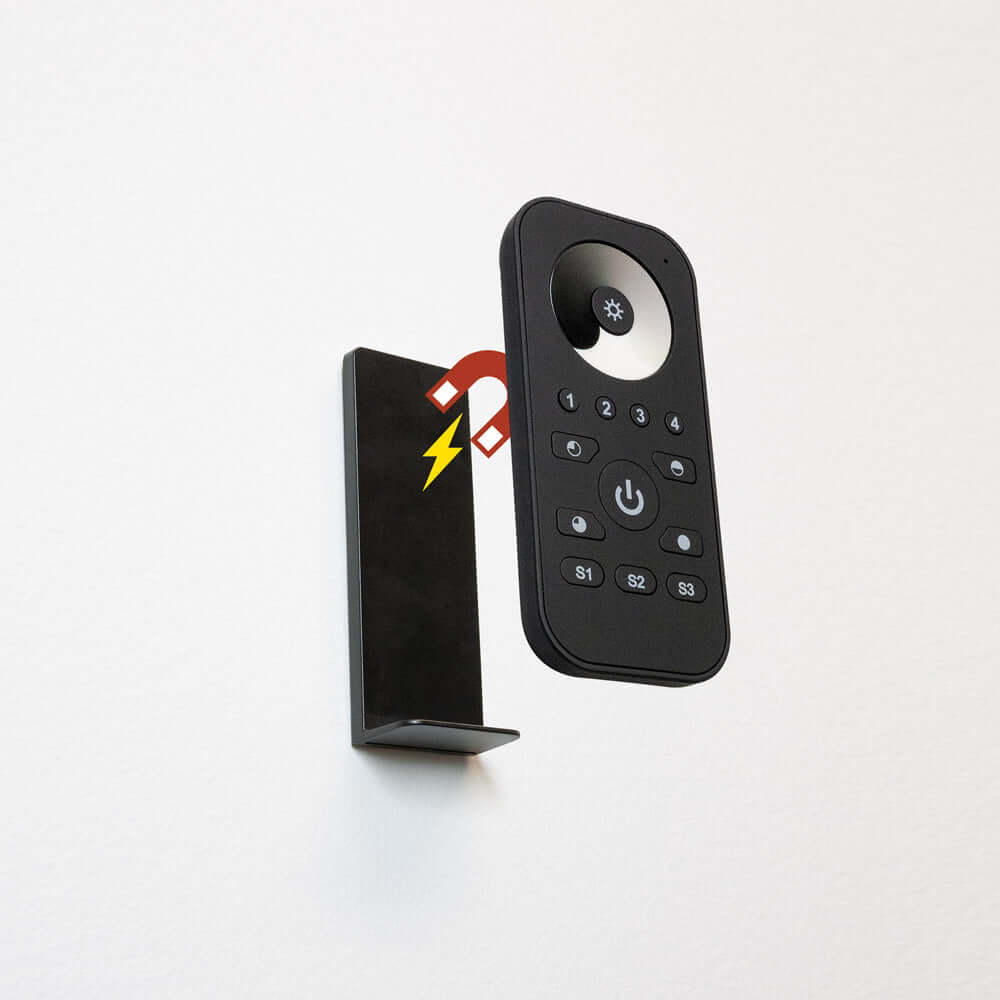

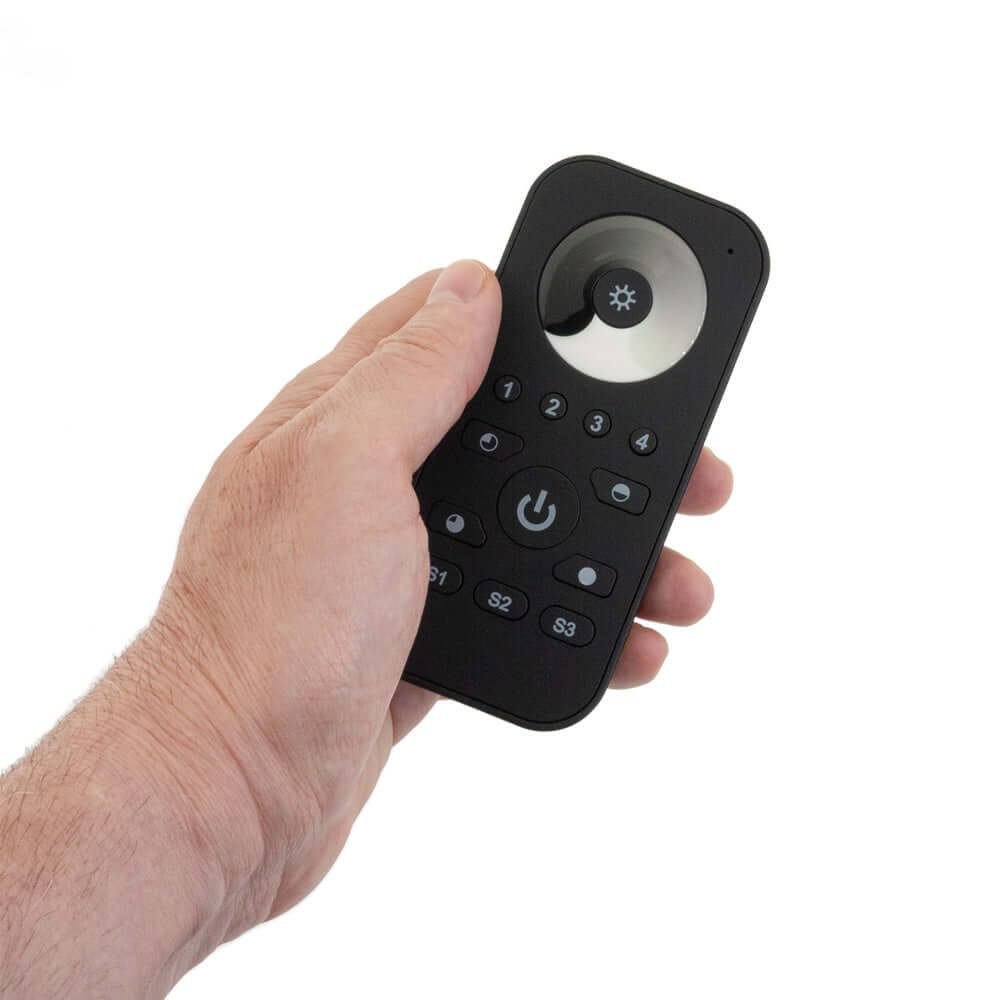

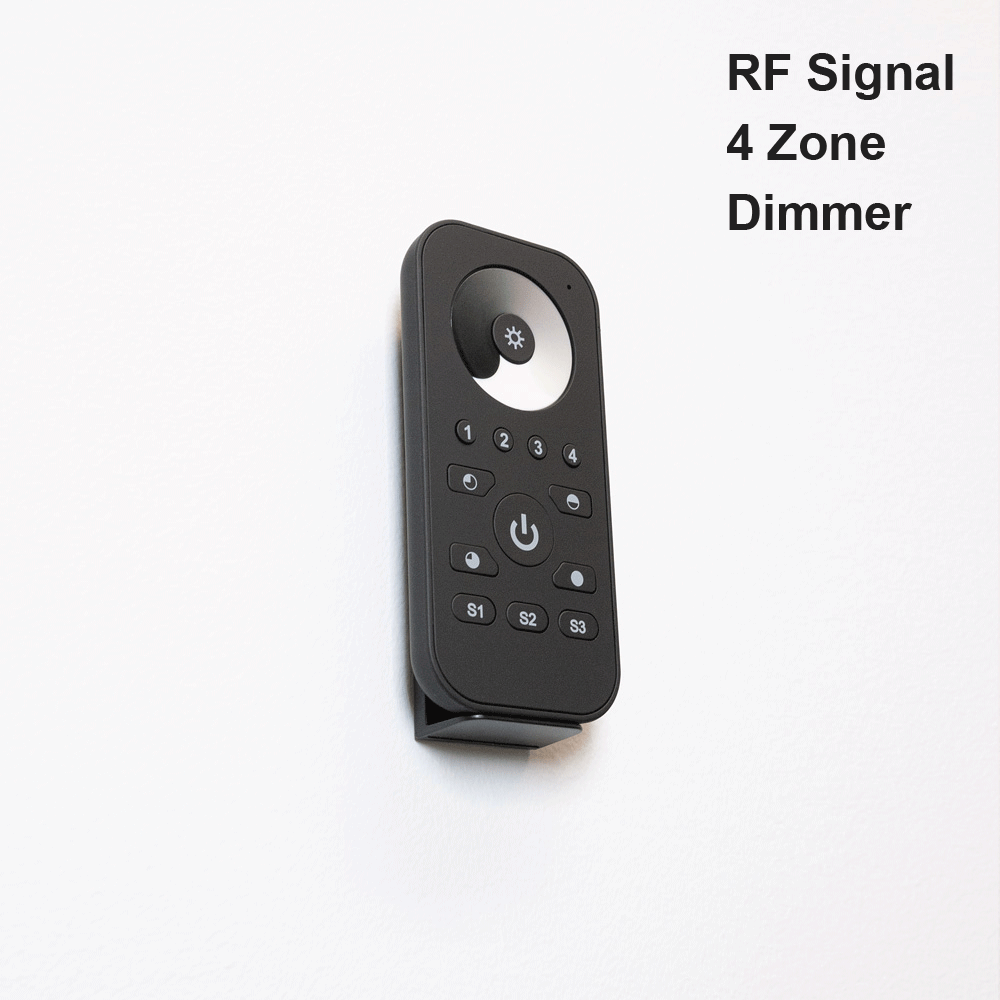

SR-2819S-DIM (R1), Single Color Remote controller
Product Description
Product | LED Remote Controller |
Model | SR-2819S-DIM (R1) |
Output | RF Signal |
Voltage | 4.5V (3xAAA battery) |
Frequency | 434MHz/869.5MHz/916.5MHz |
Control Zone | 4 Zone |
Remote Type | Dimmer |
Compatible Controllers (Sold Separately) |
SR-1009EA-5C (R-25.5A) SR-1009FA3 (R-1.6A) SR-1009FA7 (R-3A) SR-1009EATYWI-5C (R-8A) SR-1009TYWI-5C (R-4A) SR-1009CS (R1) |
Color | Black |
Operating temperature | 0-40° C |
Relative humidity | 8% to 80% |
IP Rated | IP20 |

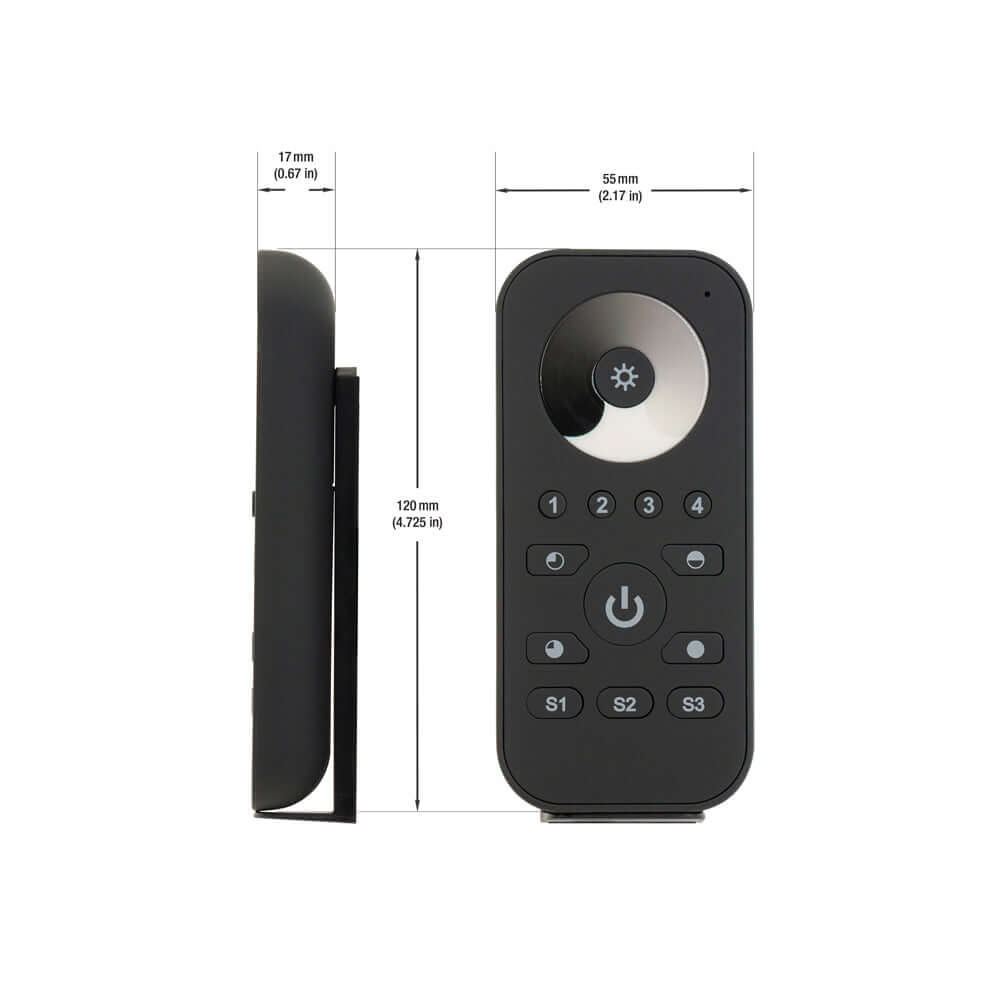

Dimensions | 120 x 55 x 17mm (4.7 x 2.1 x 0.66in) |
The SR-2819S-DIM (R1) is a single color remote controller designed for CCT (correlated color temperature) LED lights. It operates on an RF signal output and uses a voltage of 4.5V, which is powered by 3 AAA batteries. The controller communicates using a frequency of 434MHz/869.5MHz/916.5MHz and has a control zone of 4, which allows you to control up to 4 different zones of LED lights with endless receivers in each zone.
The SR-2819S-DIM (R1) remote controller has an ultra-sensitive touch control brightness touch wheel, which enables accurate and fast color control. You can touch the color wheel to choose the brightness level that you want. The controller also allows you to save 3 different scenes for each zone and control the distance around 20-30 meters.
With 256 level brightness adjustment for each white, the SR-2819S-DIM (R1) remote controller allows you to achieve millions of different colors. Additionally, the controller enables smooth dimming without any flickering from 0.1% to 100%, and you can directly access 25%, 50%, 75%, and 100% brightness using the buttons.
The SR-2819S-DIM (R1) remote controller also has a humanized memory function that remembers the last Kelvin setting after turn off or cut off. It can work with a power repeater to expand output unlimitedly. The remote comes in a black color and has an operating temperature of 0-40° C and relative humidity of 8% to 80%. The IP rating is IP20, and the dimensions of the controller are 120 x 55 x 17mm (4.7 x 2.1 x 0.66in).
Features:
- The SR-2819S-DIM (R1) is a single color remote controller for CCT LED lights.
- It operates on an RF signal output and uses a voltage of 4.5V powered by 3 AAA batteries.
- The controller communicates using a frequency of 434MHz/869.5MHz/916.5MHz and has a control zone of 4.
- Ultra-sensitive touch control brightness touch wheel enables accurate and fast color control.
- 3 different scenes can be saved for each zone and can control the distance around 20-30 meters.
- 256 level brightness adjustment for each white allows you to achieve millions of different colors.
- Smooth dimming without any flickering from 0.1% to 100% and direct access to 25%, 50%, 75%, and 100% brightness using the buttons.
- The SR-2819S-DIM (R1) remote controller has a humanized memory function that remembers the last Kelvin setting.
- It can work with a power repeater to expand output unlimitedly.
- The controller comes in a black color and has an operating temperature of 0-40°C and relative humidity of 8% to 80%.
- The IP rating is IP20, and the dimensions of the controller are 120 x 55 x 17mm (4.7 x 2.1 x 0.66in).
