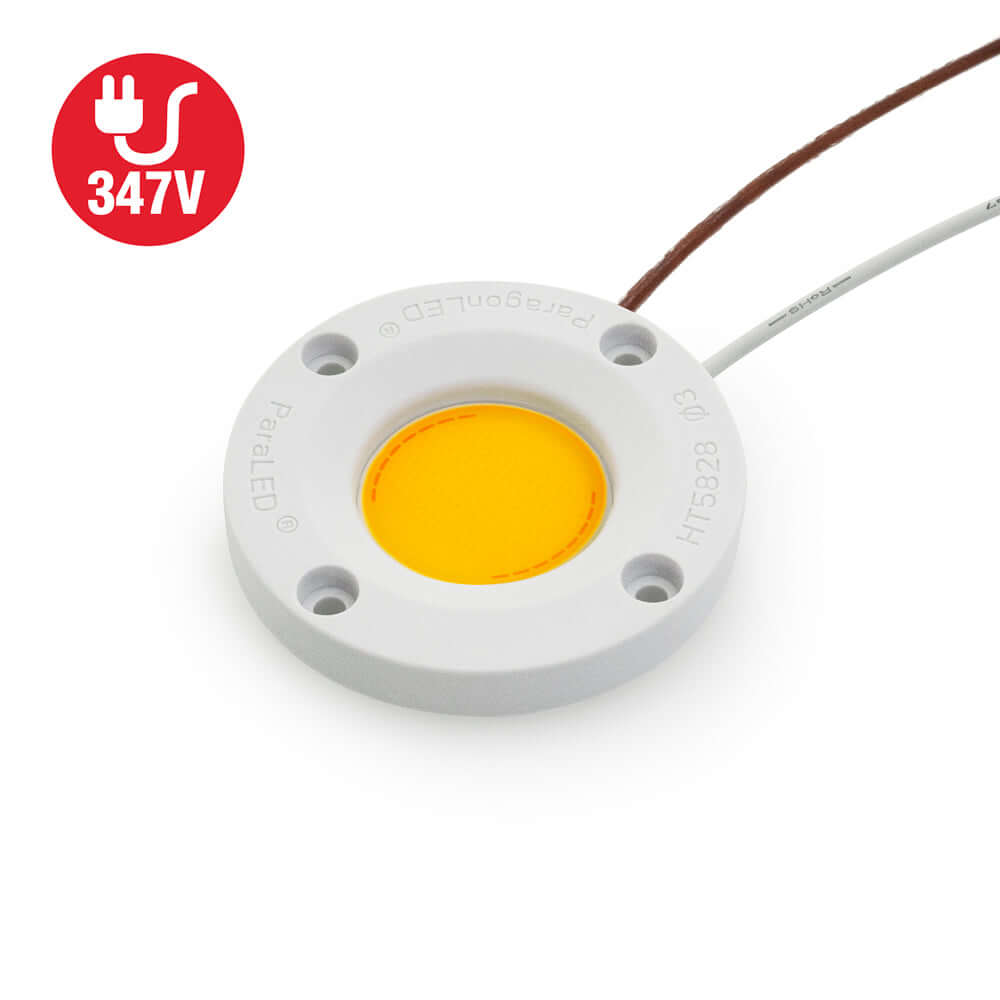

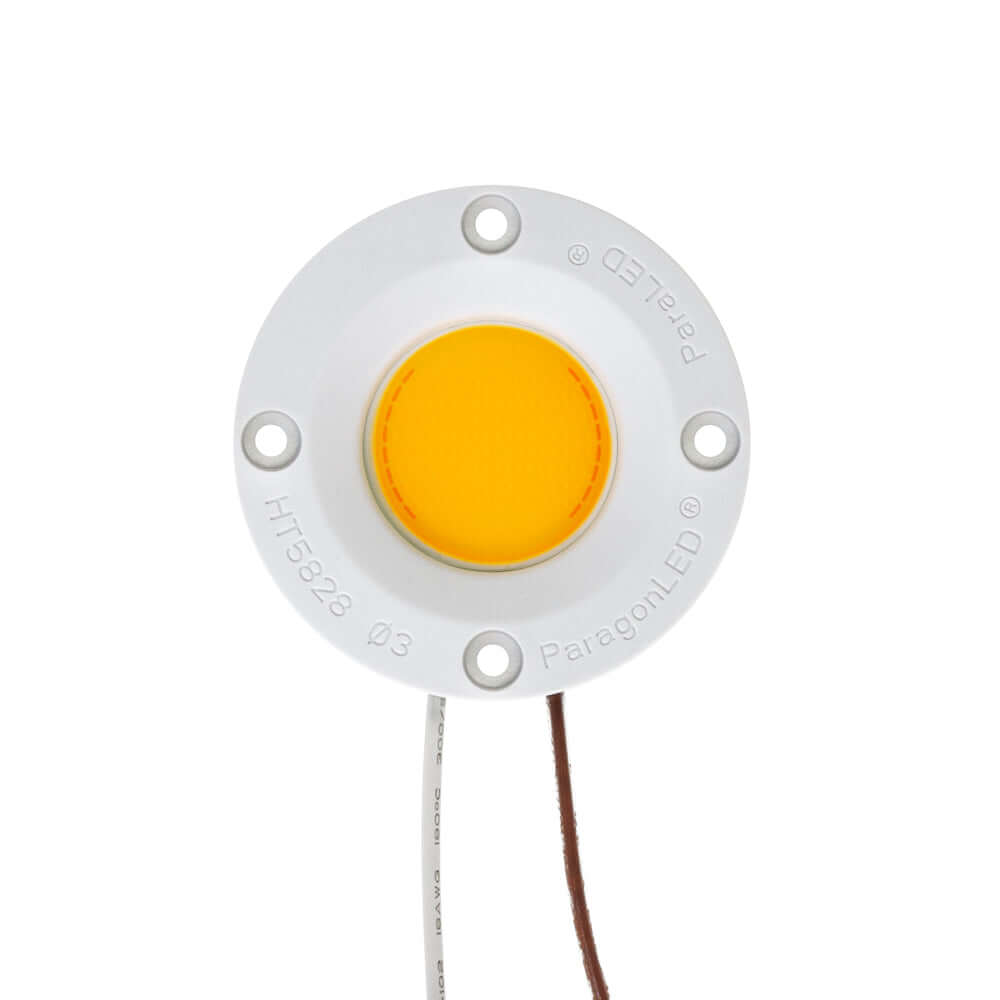

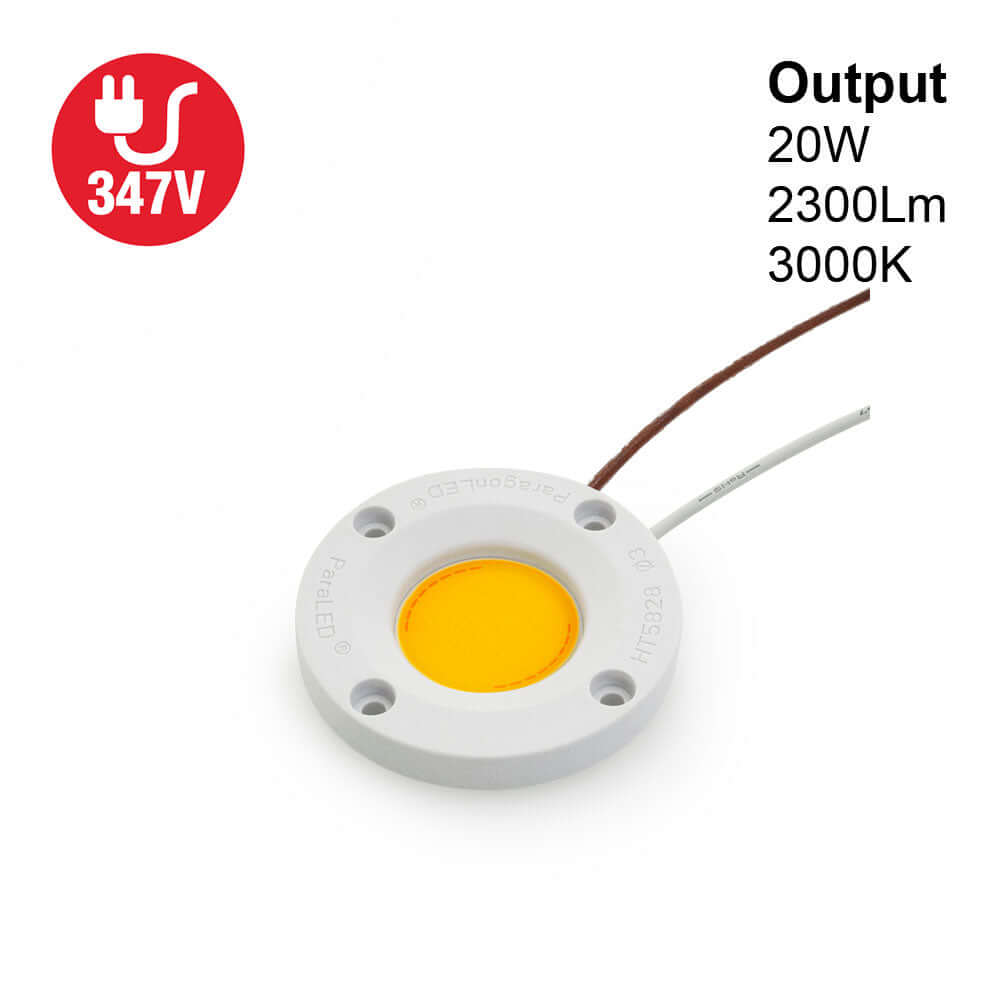

CDAC-136-5028-347-3000K COB Paragon LED Module with HT5828 LED Holder, 347V 20W 3000K(Warm White)
Product Description
Product | Paragon LED Module |
Model No | CDAC-136-5028-347-3000K |
COB Holder Model No | HT5828 |
LED Type |
COB LED |
No LED chips | 136 |
Wattage | 20W |
Voltage | 347V AC |
Power Factor | PF>0.85 |
Luminous Intensity | 2300 Lumens |
Color Temperature | 3000K (Warm White) |
Dimmable | Yes |
Rendering Index | CRI>80 |
IP Rating | IP20 (Indoor rated) |

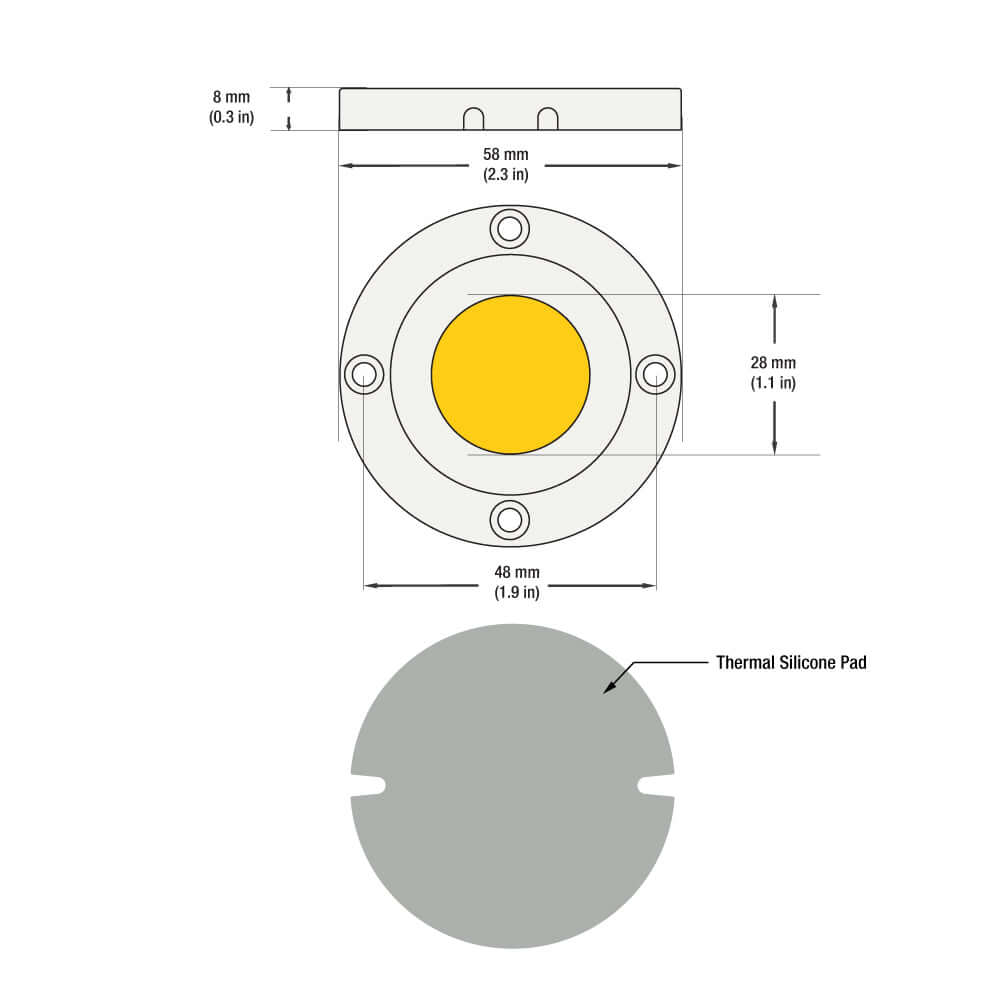

COB Holder Dimensions | ∅58mm (2.7in) x H8mm (0.3 in) |
COB Module Outer Diameter | ∅29mm (1.1 in) |
Operating Temperature | -40 ~ +105℃ |
Storage Temperature | -40 ~ +105℃ |

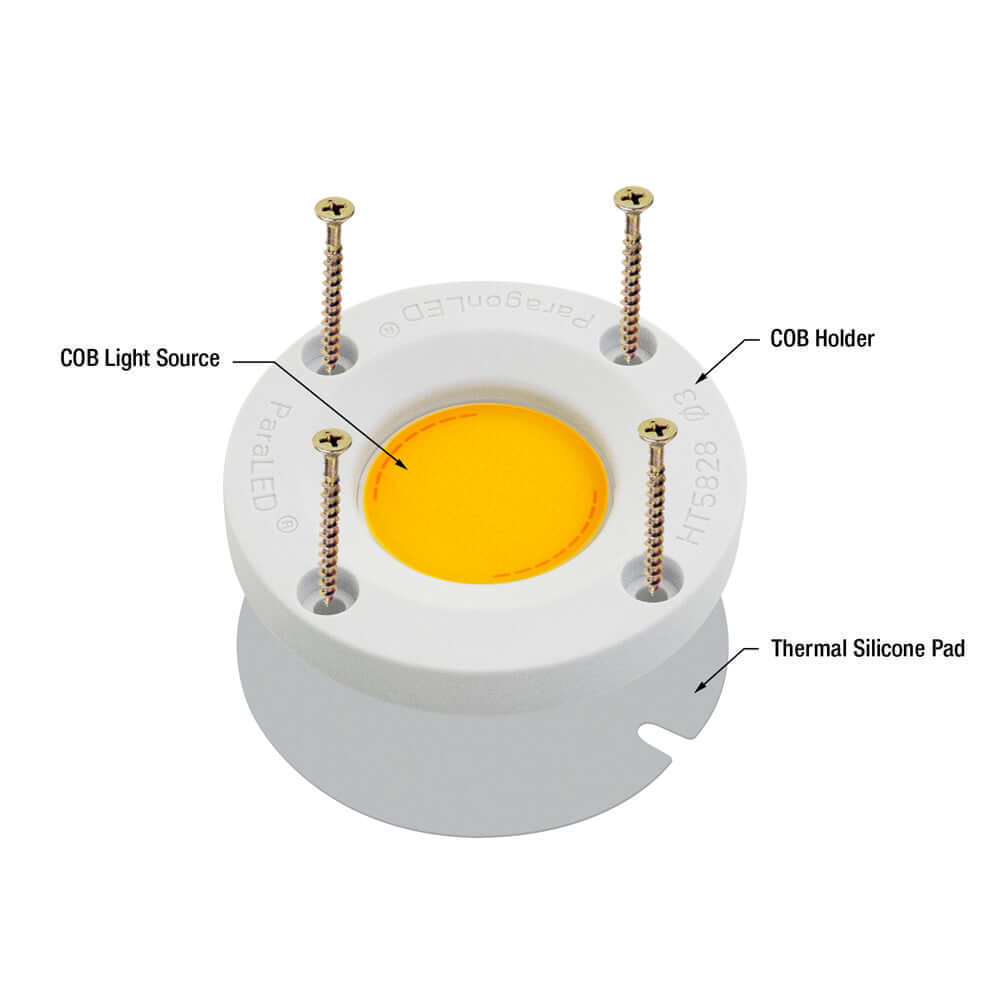

Included Content | COB Module, COB LED Holder, Thermal Pad |
Certifications |
The CDAC-136-5028-347-3000K Paragon LED Module is a COB LED module designed for indoor lighting applications. It comes with an HT5828 LED holder and has a voltage of 347V AC with a wattage of 20W. The module has 136 LED chips and produces a warm white light with a color temperature of 3000K. It has a high power factor (PF>0.85) and a high luminous intensity of 2300 lumens.
This LED module is dimmable and has a high color rendering index (CRI>80). It has an IP20 rating, making it suitable for use in damp locations. To prevent overheating and ensure a longer lifespan, this module requires an aluminum heat sink, which can be easily attached using the included COB holder. The module also comes with a silicone grease thermal pad that provides better heat dissipation.
The CDAC-136-5028-347-3000K LED module is energy-efficient and has a low power consumption. It is designed to be used in various types of luminaires and is generally suitable for most lighting applications. It also includes a polycarbonate diffuser that helps reduce glare and refract light in a wider beam. When designing lamps using this module, it is important to ground the light fixtures to ensure safety. The product is UL certified.
Features:
- The CDAC-136-5028-347-3000K Paragon LED Module is designed for indoor lighting applications
- It features a COB LED module with an HT5828 LED holder and has a voltage of 347V AC with a wattage of 20W
- The module includes 136 LED chips that produce a warm white light with a color temperature of 3000K
- It has a high power factor (PF>0.85) and a high luminous intensity of 2300 lumens
- The module is dimmable and has a high color rendering index (CRI>80)
- It has an IP20 rating, making it suitable for use in damp locations
- An aluminum heat sink is required to prevent overheating and ensure a longer lifespan, which can be easily attached using the included COB holder
- The module also comes with a silicone grease thermal pad that provides better heat dissipation
- It is energy-efficient and has a low power consumption
- The module includes a polycarbonate diffuser that helps reduce glare and refract light in a wider beam
- It is important to ground the light fixtures to ensure safety when designing lamps using this module
- The product is UL certified.
