Selectable Constant Current 10W LED Driver DALI Dim PUP10D-1WMC-700 , 100VAC-240VAC 350 to 700mA

Shipping calculated at checkout.
SKU: 666561428334
We only have 97 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).

Tags: 10w 110-277V 2-21V 350ma 400mA 450mA 500ma 550mA 600ma 650mA 700ma constant current driver Dali Dimming dimmable LED Driver Selectable Current


Product Description

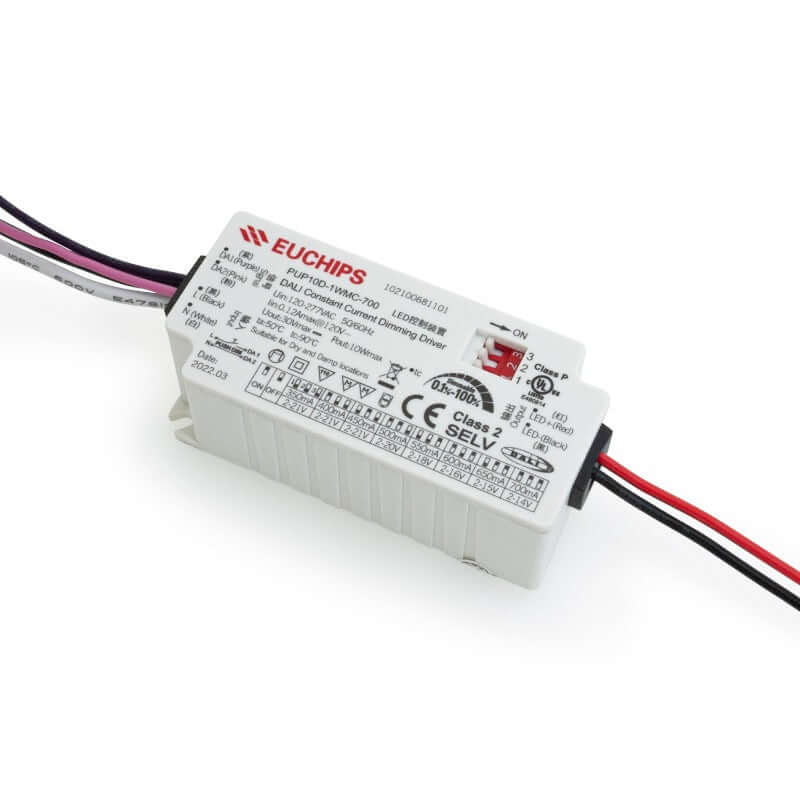

Product Constant Current LED Driver with Selectable Current
Model PUP10D-1WMC-700
Input Voltage 100-240VAC
Input Current 0.12Amax@100VAC

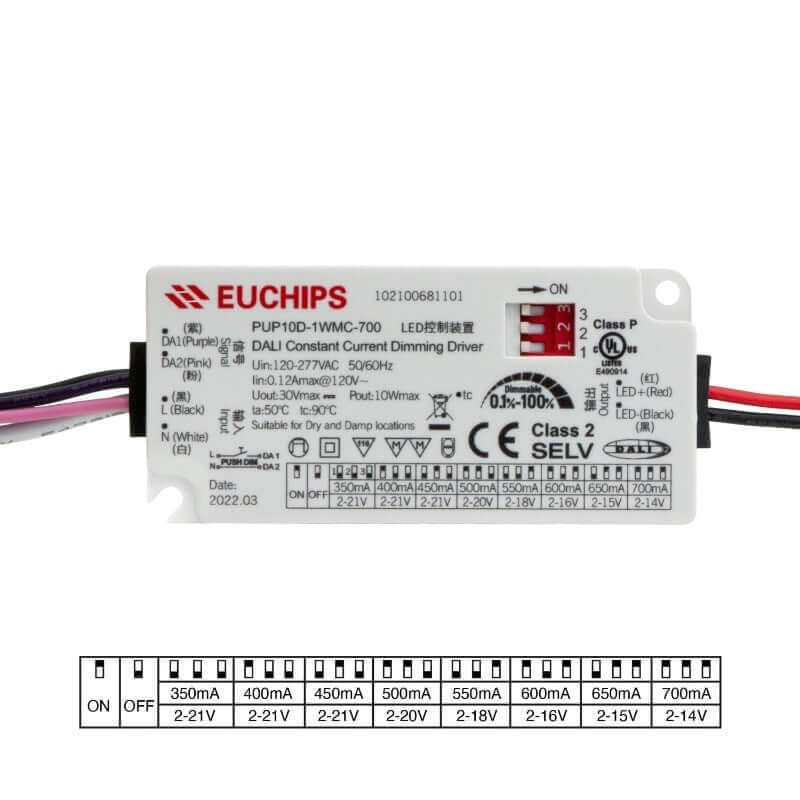

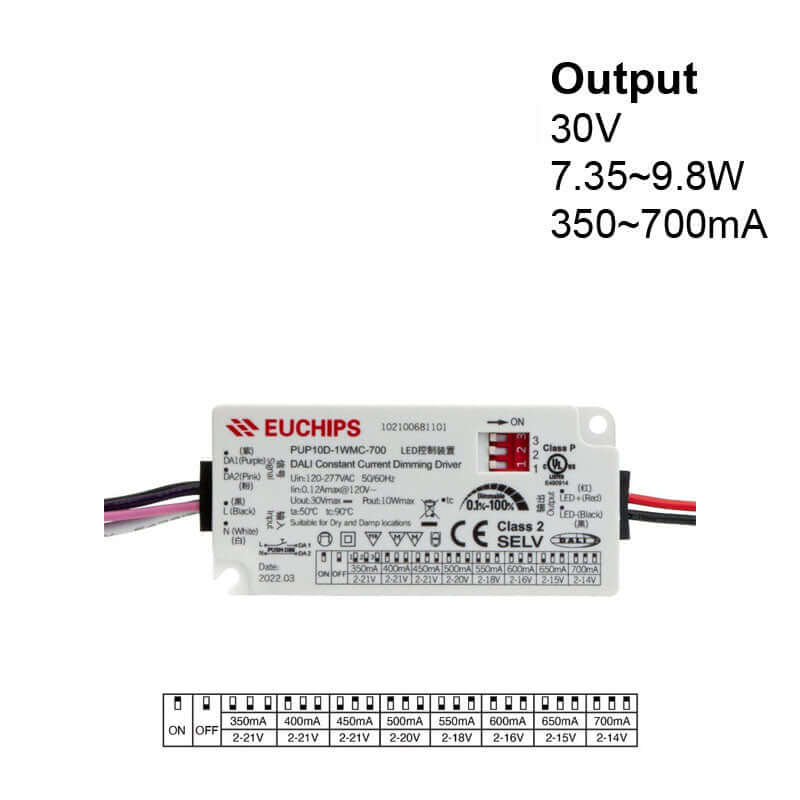

Output Current/Voltage/Power 350mA/2-21V/7.35W
400mA/2-21V/8.4W
450mA/2-21V/9.45W
500mA/2-20V/10W
550mA/2-18V/9.9W
600mA/2-16V/9.6W
650mA/2-15V/9.75W
700mA/2-14V/9.8W
No-load Output Voltage 60V Max
Input Frequency  50/60Hz
Dimming Type DALI/Touch DIM (Push DIM)
Dimming Range 0.1%-100% Dimming to off
IP Rating IP20 (Dry and Damp Locations)
Efficiency 78%@230VAC, Full load
Working Temperature -20℃~50℃
Lifetime 50,000h @ Tc:85℃

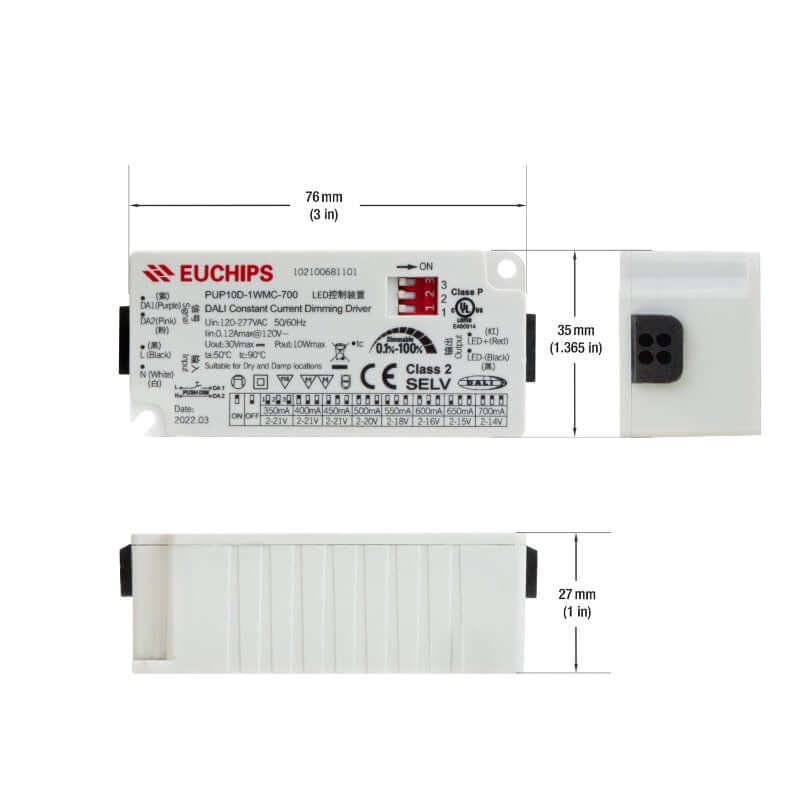

Dimensions 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in)
Certifications


The PUP10D-1WMC-700 is a selectable constant current LED driver capable of outputting 10W of power. It has an input voltage range of 100-240VAC and a maximum input current of 0.12A at 100VAC. The driver has several output current options, ranging from 350mA to 700mA, with corresponding output voltage and power specifications. The no-load output voltage is 60V max, and the input frequency is 50/60Hz.

The driver is dimmable through DALI and Touch DIM (Push DIM) dimming types, with a dimming range of 0.1%-100% and dimming to off capability. It has an IP20 rating for dry and damp locations and has an efficiency of 78% at 230VAC full load. The working temperature range is -20℃~50℃, and it has a lifetime of 50,000 hours at Tc:85℃. The dimensions of the driver are 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in).

Features:

  • The PUP10D-1WMC-700 is a selectable constant current LED driver capable of outputting 10W of power.
  • It has an input voltage range of 100-240VAC and a maximum input current of 0.12A at 100VAC.
  • The driver has several output current options, ranging from 350mA to 700mA, with corresponding output voltage and power specifications.
  • The no-load output voltage is 60V max, and the input frequency is 50/60Hz.
  • The driver is dimmable through DALI and Touch DIM (Push DIM) dimming types, with a dimming range of 0.1%-100% and dimming to off capability.
  • It has an IP20 rating for dry and damp locations and has an efficiency of 78% at 230VAC full load.
  • The working temperature range is -20℃~50℃, and it has a lifetime of 50,000 hours at Tc:85℃.
  • The dimensions of the driver are 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in).
