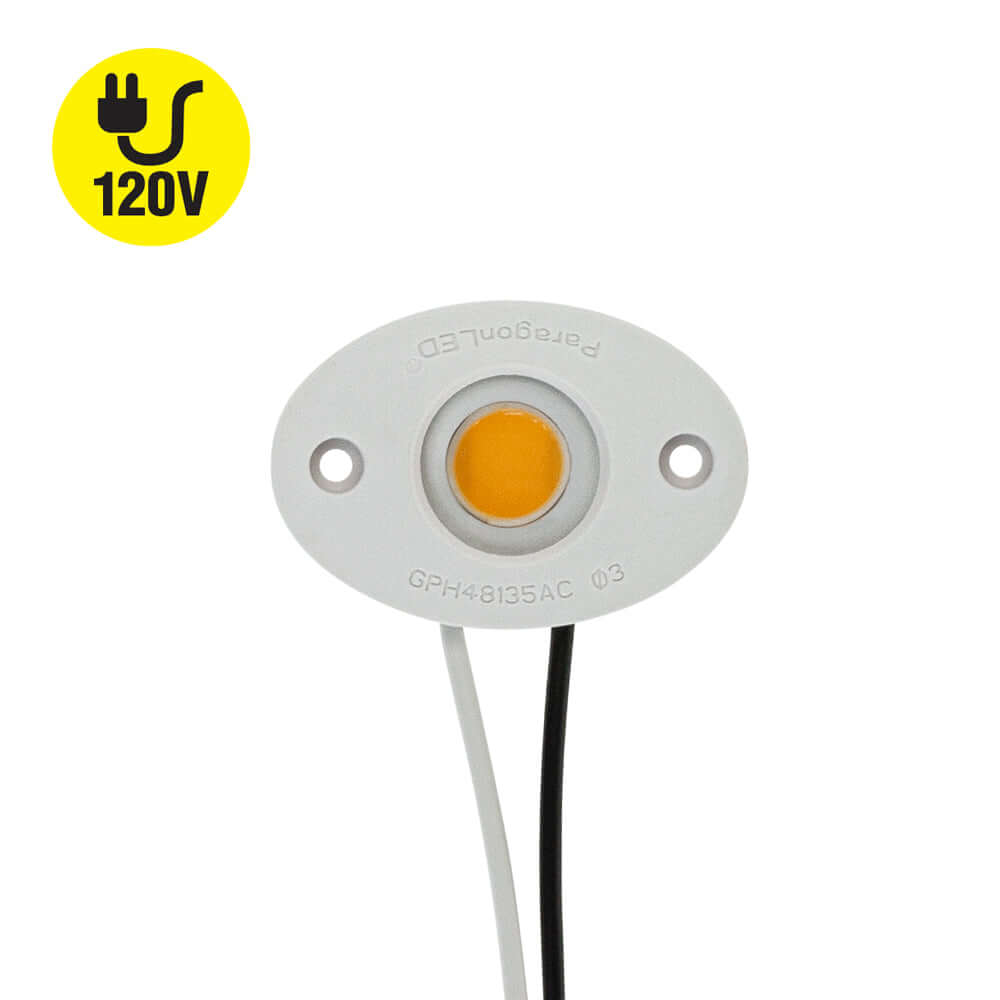

CBAC-084-30135-120-3000-G12 COB Paragon LED Module with GPH48135AC LED Holder, 120V 16W 3000K (Warm White)

Product Description

Product	Paragon LED Module
Model No	CBAC-084-30135-120-3000-G12
COB Holder Model No	GPH48135AC
LED Type	COB LED
Wattage	16W
Voltage	120V AC
Brightness	1280 Lumens
Color Temperature	3000K (Warm White)
Dimmable	Yes
Rendering Index	CRI>80
IP Rating	IP20 (Indoor rated)

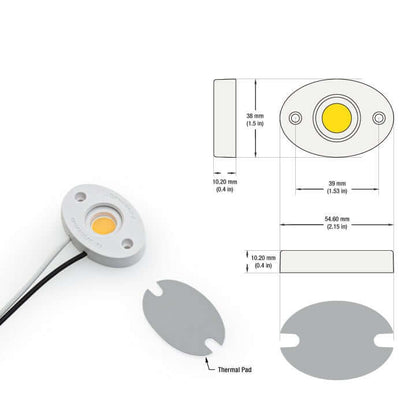

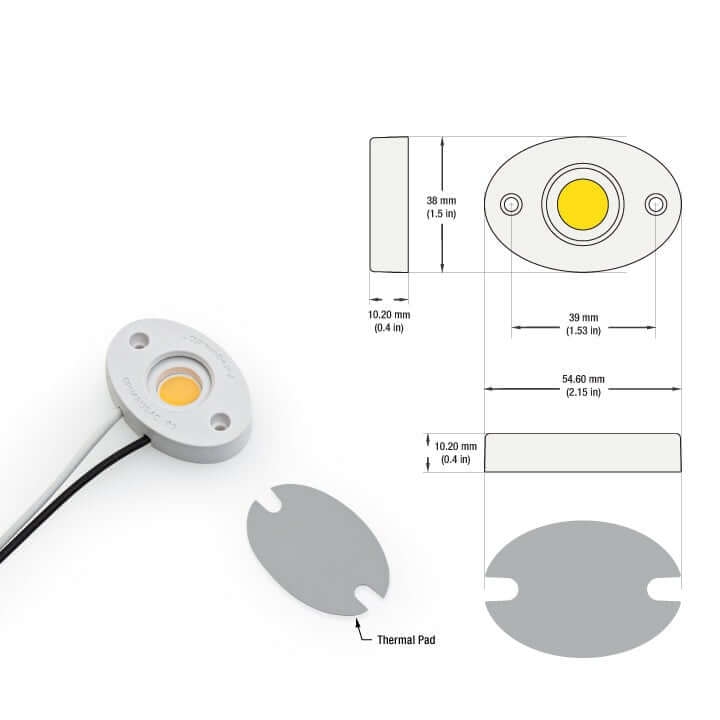

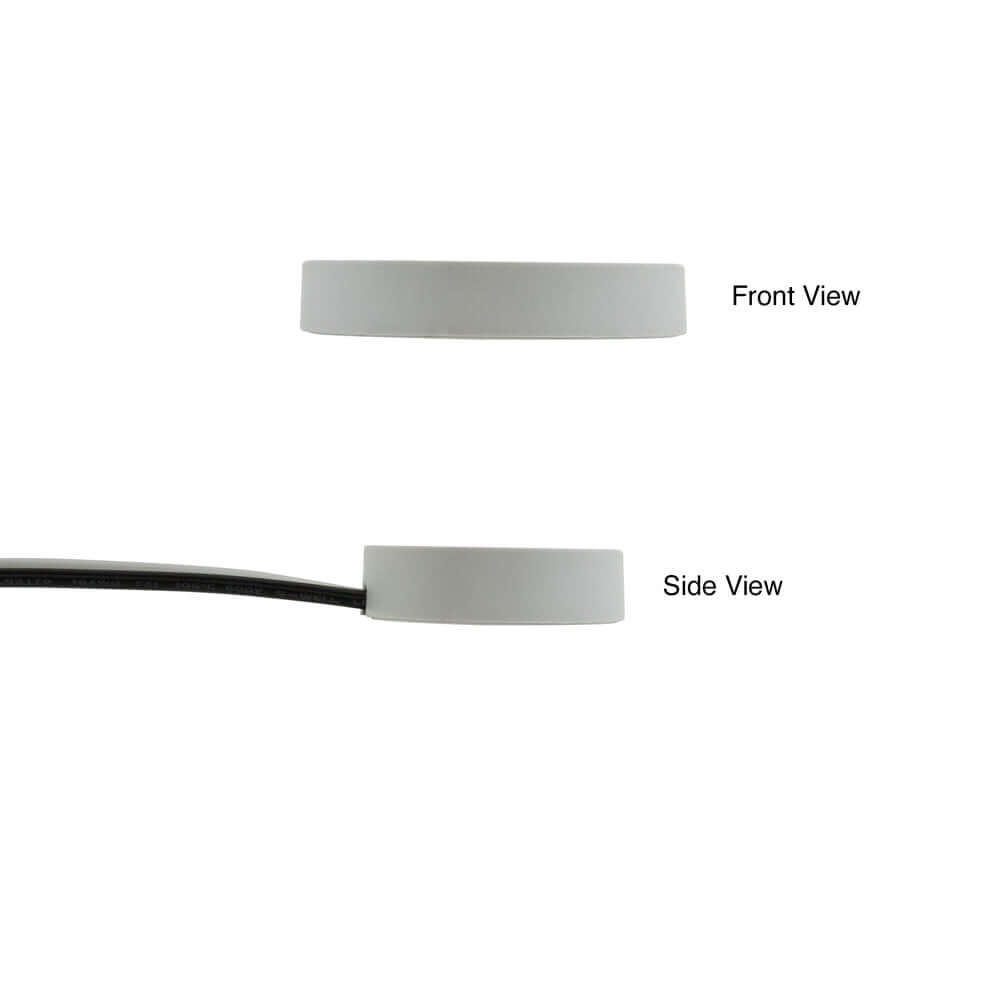

COB Holder Dimensions	∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in)
COB Module Outer Diameter	∅27mm (1.06 in)
Operating Temperature	-60 ~ +105℃
Storage Temperature	-60 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

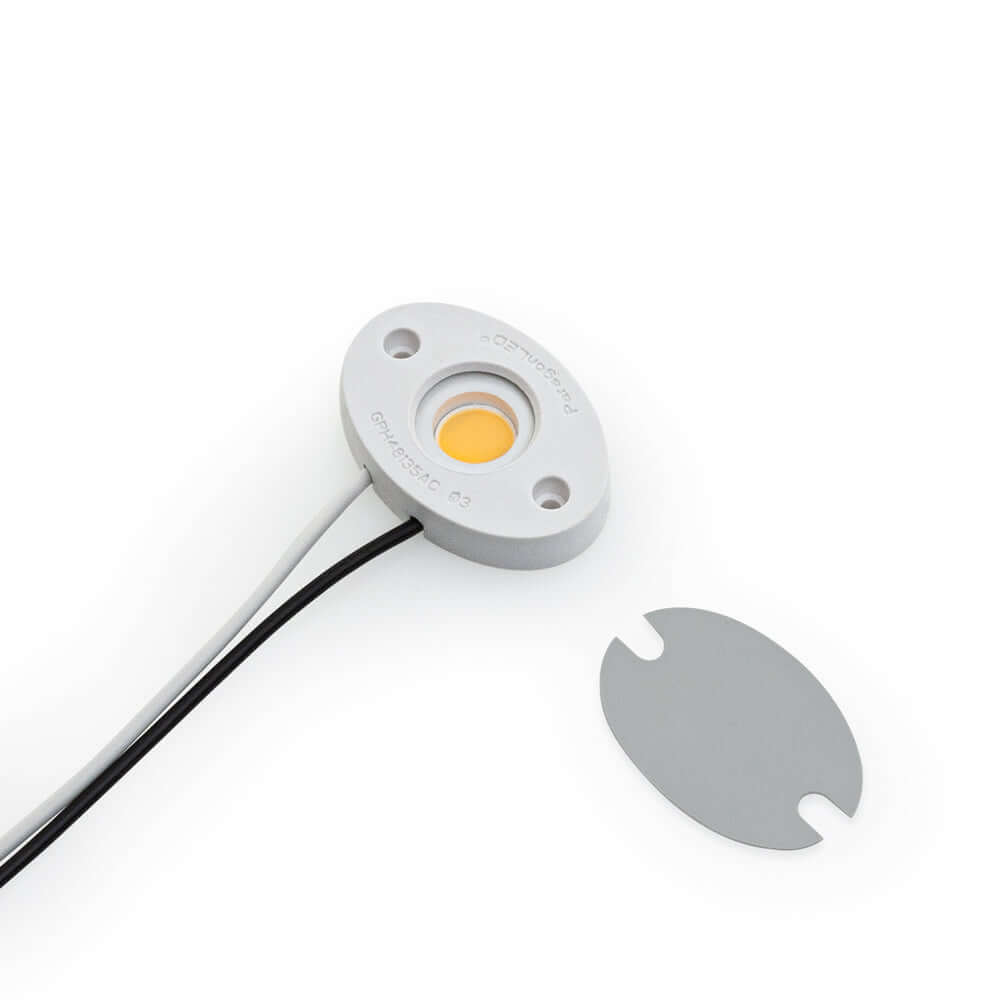

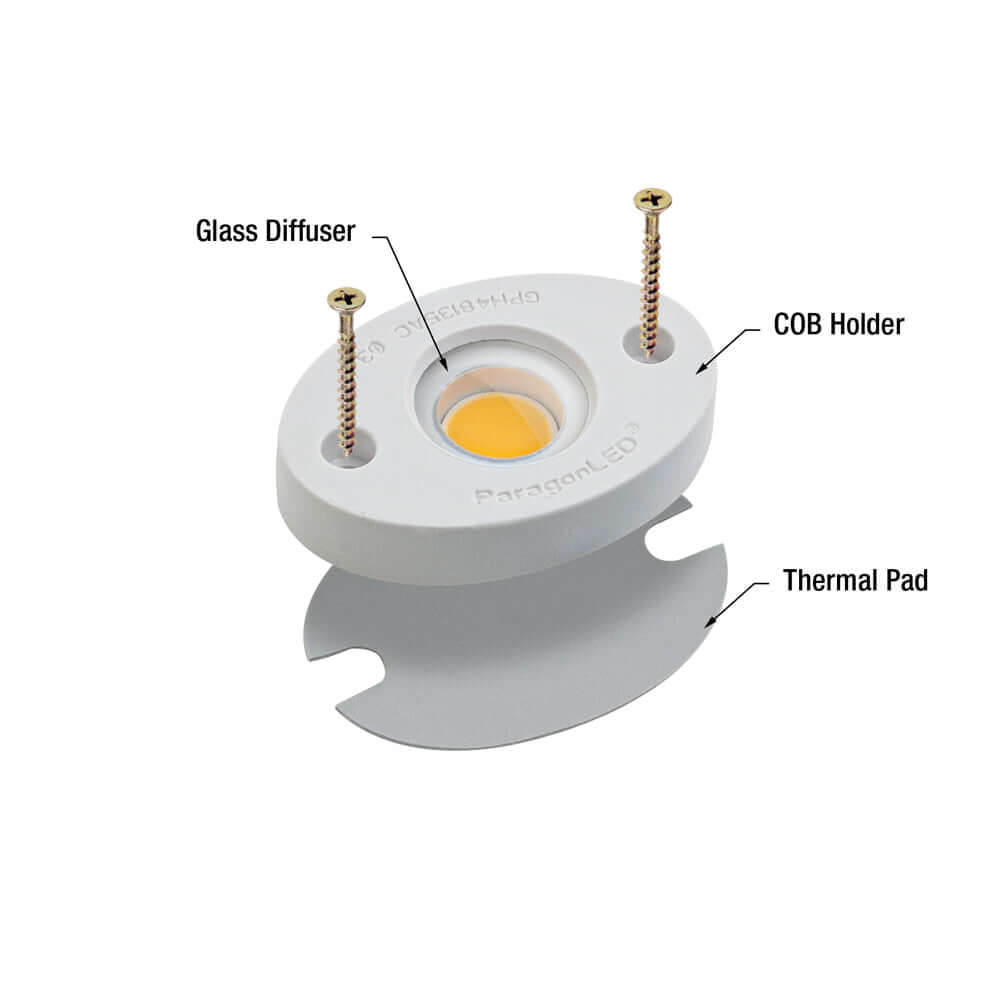

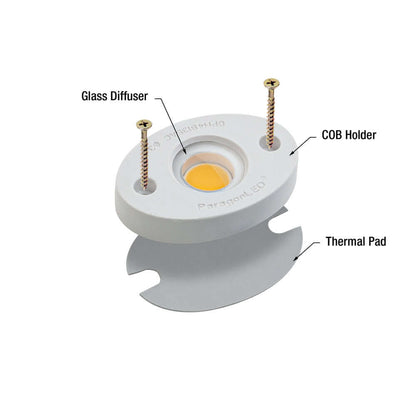

Included Content	COB Module, COB Holder with Thermal Pad
Certifications

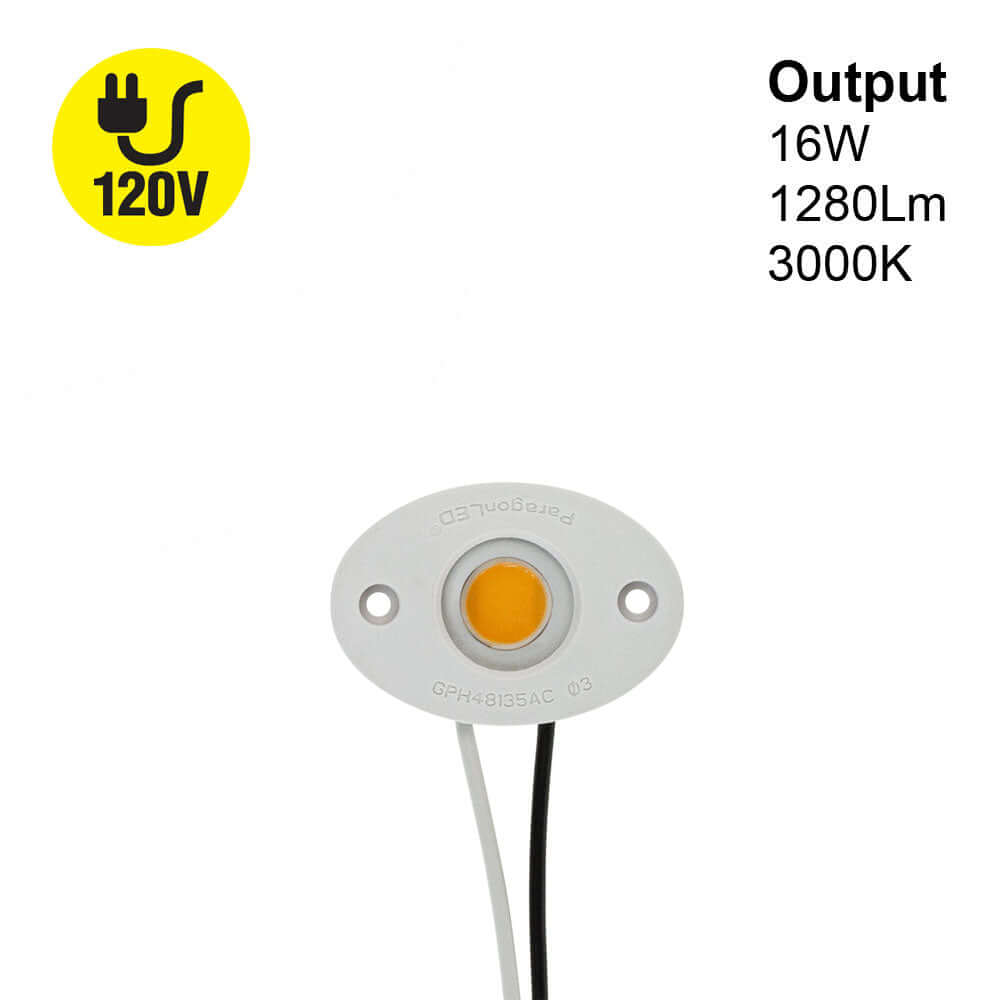

The CBAC-084-30135-120-3000-G12 Paragon LED Module is a COB LED module that comes with a GPH48135AC LED holder. It has a wattage of 16W and a voltage rating of 120V AC. The module produces a warm white light with a color temperature of 3000K and has a brightness of 1280 lumens.

This LED module is dimmable and has a rendering index of CRI>80. It has an IP20 rating which makes it suitable for indoor use in damp locations. The COB holder dimensions are ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) and the COB module outer diameter is ∅27mm (1.06 in).

The operating temperature range is -60 ~ +105℃, the storage temperature range is -60 ~ +105℃, and the assembly process temperature should be kept below 300℃. The solder joint point should be below 105℃ and the dielectric breakdown voltage of the thermal pad should be greater than 4KV.

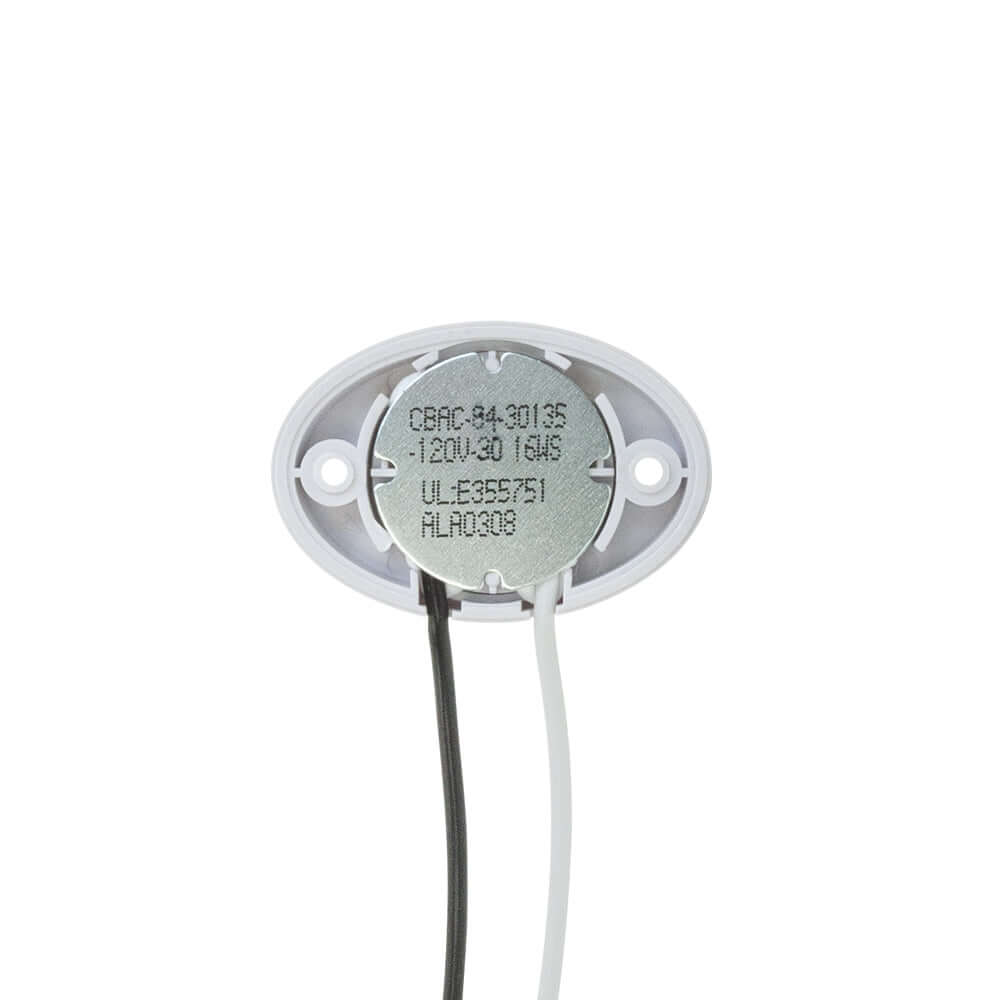

The package includes a COB module, a COB holder, and a thermal pad. The LED module has UL certification. To prevent overheating, an aluminum heat sink is required which helps in better heat dissipation, thereby increasing the life span of the module. COB LEDs are brighter, consume less power, and have a higher quality beam output compared to older LED technologies. This module is generally used in almost every kind of luminaire.

Features:

• COB LED module with GPH48135AC LED holder
• Wattage: 16W, Voltage: 120V AC
• Warm white light with 3000K color temperature and 1280 lumens brightness
• Dimmable with CRI>80 rendering index
• IP20 rated for indoor use in damp locations
• COB holder dimensions: ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in), COB module outer diameter: ∅27mm (1.06 in)
• Operating temperature range: -60 ~ +105℃, Storage temperature range: -60 ~ +105℃
• Dielectric breakdown voltage of thermal pad: >4KV
• Package includes COB module, COB holder with thermal pad
• UL certified LED module
• Requires aluminum heat sink to prevent overheating and increase lifespan
• COB LEDs are brighter and consume less power with a higher quality beam output compared to older LED technologies
• Suitable for use in almost every kind of luminaire.
