CDAC-136-05028-347-2700K COB Paragon LED Module with HT5828 LED Holder, 347V 20W 2700K(Soft White)

  • $134.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561430665
We only have 10 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Product Paragon LED Module
Model No CDAC-136-05028-347-2700K
COB Holder Model No HT5828
LED Type
COB LED
No LED chips 136
Wattage 20W
Voltage 347V AC
Power Factor PF>0.85
Luminous Intensity 2300 Lumens
Color Temperature 2700K (Soft White)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

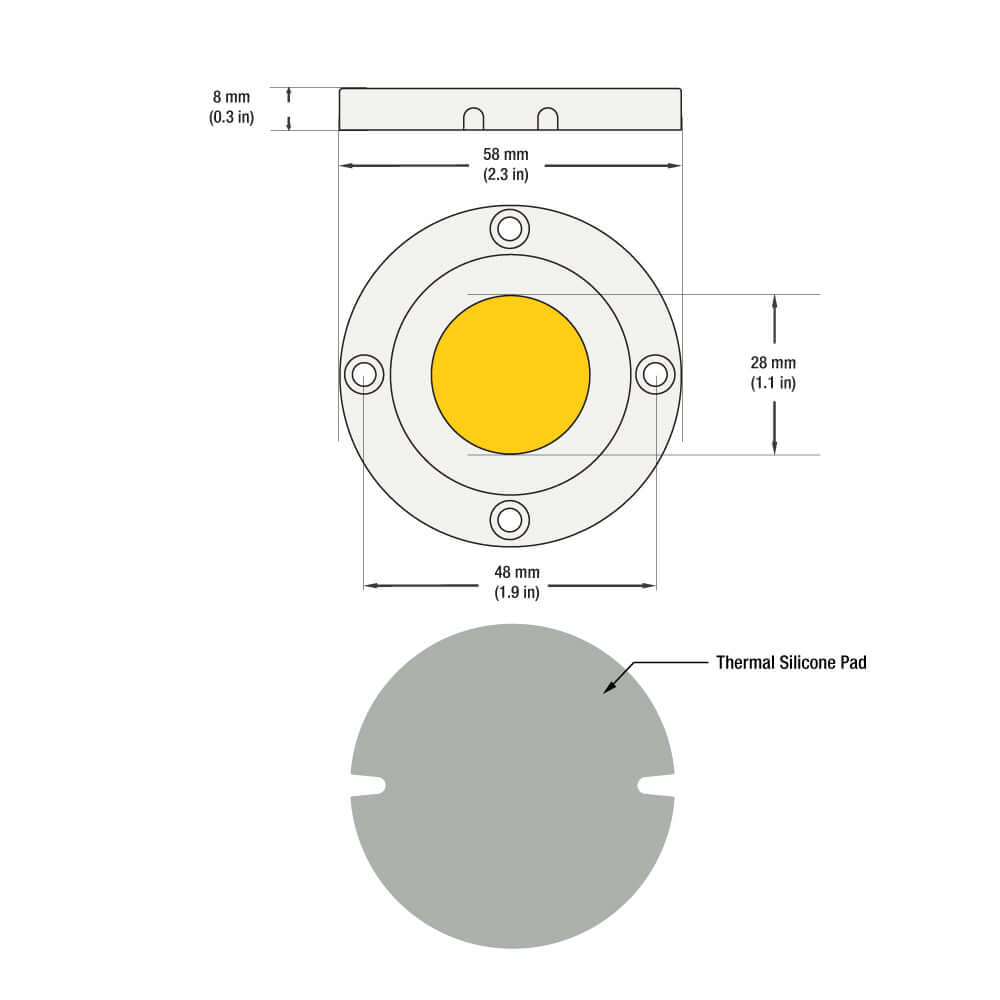

COB Holder Dimensions ∅58mm (2.7in) x H8mm (0.3 in)
COB Module Outer Diameter ∅29mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃
Included Content COB Module, COB LED Holder, Thermal Pad
Certifications


The CDAC-136-05028-347-2700K Paragon LED Module is a high-quality lighting solution that offers low power consumption and high energy efficiency. It is powered by a 20W COB LED that contains 136 LED chips and operates at a voltage of 347V AC. The LED module has a power factor greater than 0.85 and a luminous intensity of 2300 lumens, making it suitable for indoor lighting applications.

The color temperature of this LED module is 2700K, providing a warm and comfortable soft white light. It has a high color rendering index of greater than 80, which means that it accurately displays colors and details. The LED module is dimmable, allowing users to adjust the brightness to their preference.

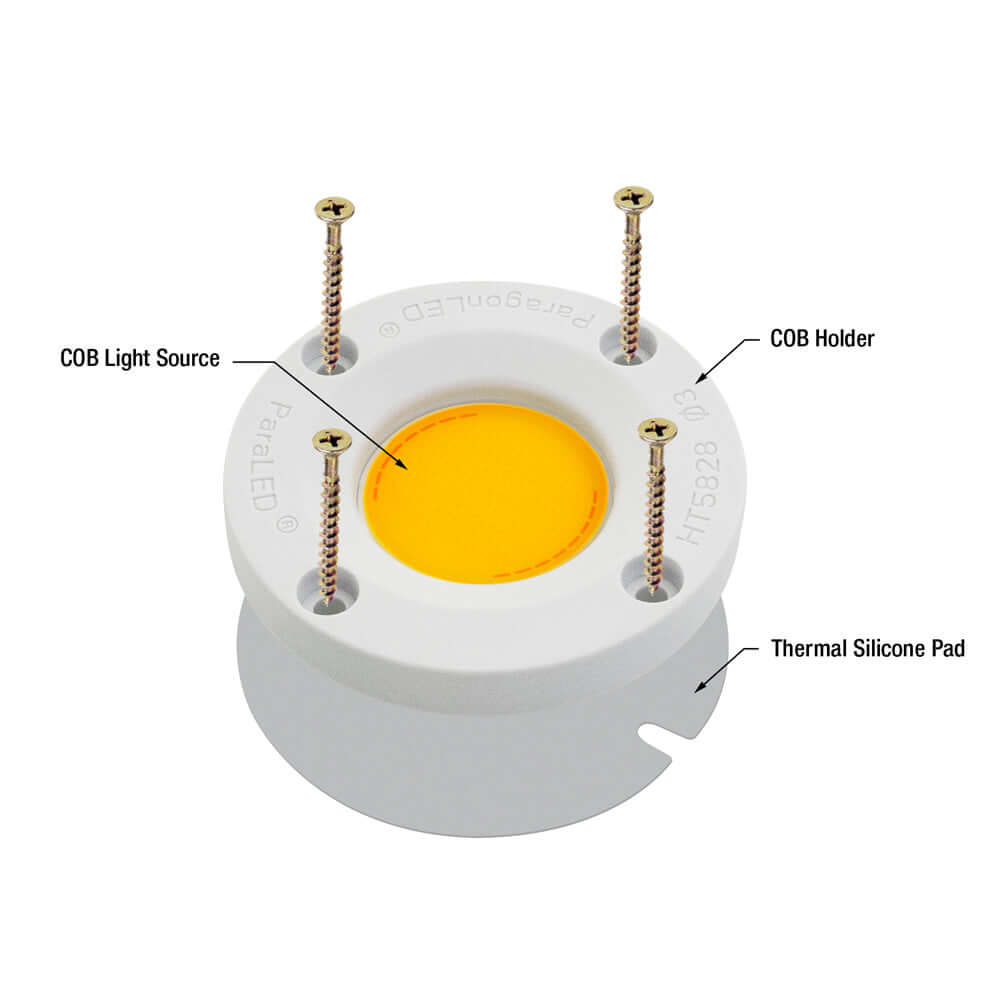

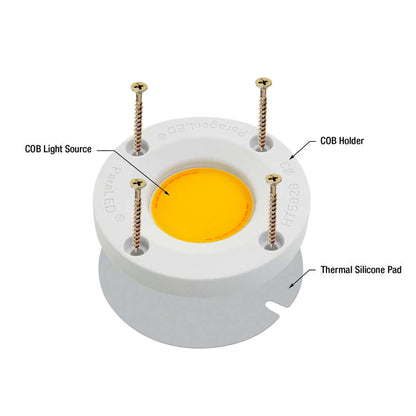

The module comes with an HT5828 LED holder, which mechanically secures and electrically connects the module to a heat sink. The holder has a diameter of 50mm and a height of 7.8mm, while the module's outer diameter is 28mm. The LED module comes with a thermal pad that helps dissipate heat and increase the module's lifespan.

The LED module is rated IP20, making it suitable for indoor and damp locations. However, it requires an aluminum heat sink to prevent overheating, which can cause serious luminous decay. The product also comes with a polycarbonate diffuser that helps reduce glare and refract light in a wider beam.

Features:

  • 20W COB LED with 136 LED chips
  • Voltage of 347V AC and power factor greater than 0.85
  • Luminous intensity of 2300 lumens
  • Color temperature of 2700K (warm soft white light)
  • High color rendering index greater than 80
  • Dimmable
  • HT5828 LED holder with diameter of 58mm and height of 8mm
  • COB module outer diameter of 29mm
  • Thermal pad included for heat dissipation and longer lifespan
  • Rated IP20 for indoor and damp locations
  • Requires aluminum heat sink for heat dissipation
  • Polycarbonate diffuser included for reduced glare and wider beam
  • Suitable for a wide range of indoor lighting applications
  • Certified by UL for added safety and reliability
