VBD-012-096DM Triac Dimmable Constant Voltage LED Driver, 12V 8.0A 96W
VBD-012-096DM Triac Dimmable Constant Voltage LED Driver, 12V 8.0A 96W
SKU: SKU:666561415730
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Model | VBD-012-096DM |
| Input Voltage | 100-130V AC |
| Input Current | 1.53A |
| Frequency | 47/63Hz |
| Power Factor | 0.68 |
| Output voltage | 12V DC |
| Output regulated current | 8.0A |
| Output max Power | 96W max |
| Dimmable | Yes (Phase-Cut and Triac Dimming) |
| IP Rating | IP67 (Outdoor rated) |

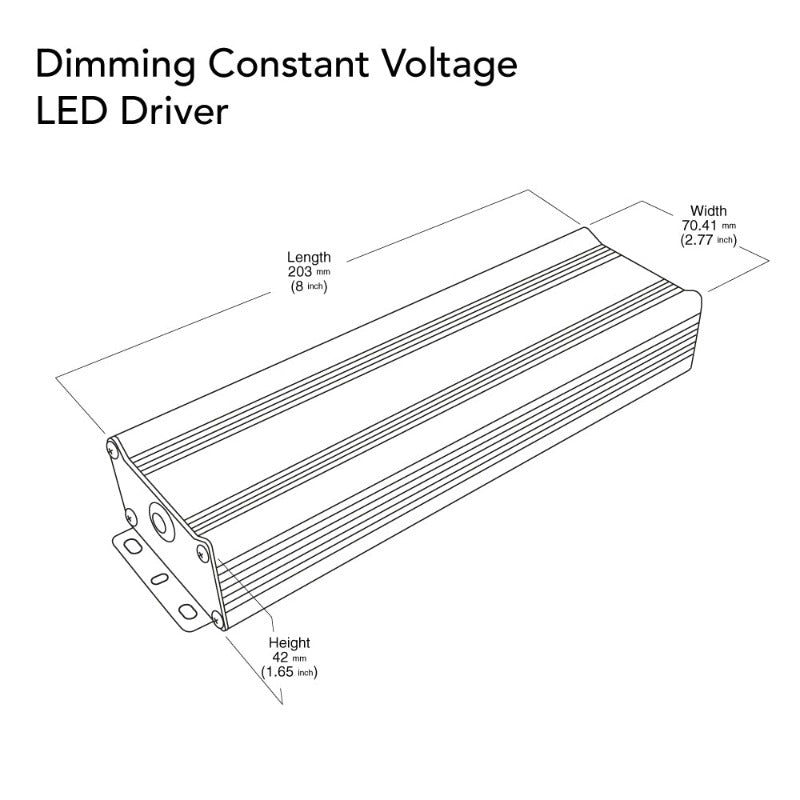

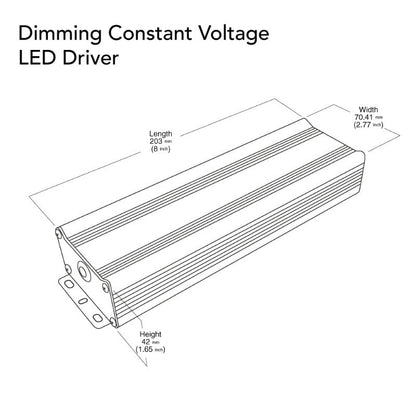

| Dimensions (Without Box) | 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) |

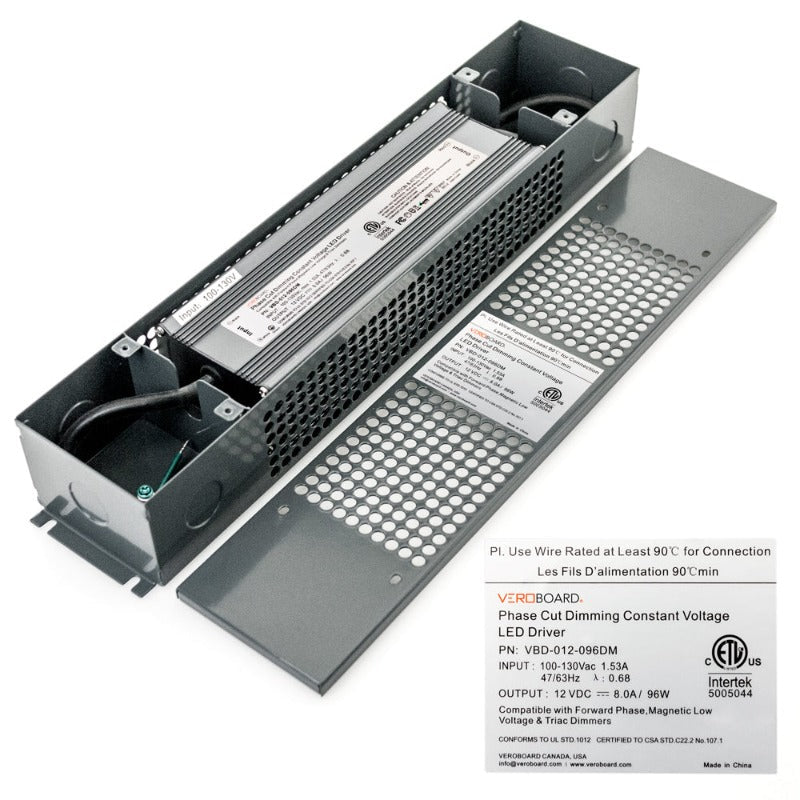

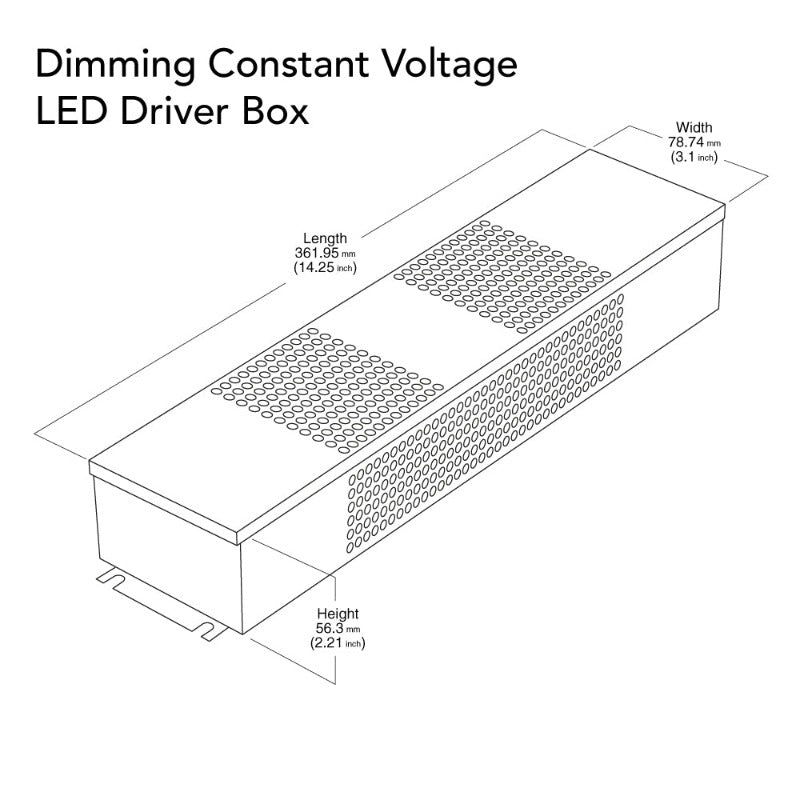

| Dimensions (Box) | 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) |
| Certifications |    |
| Applicable for dry, damp, and wet locations. |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |

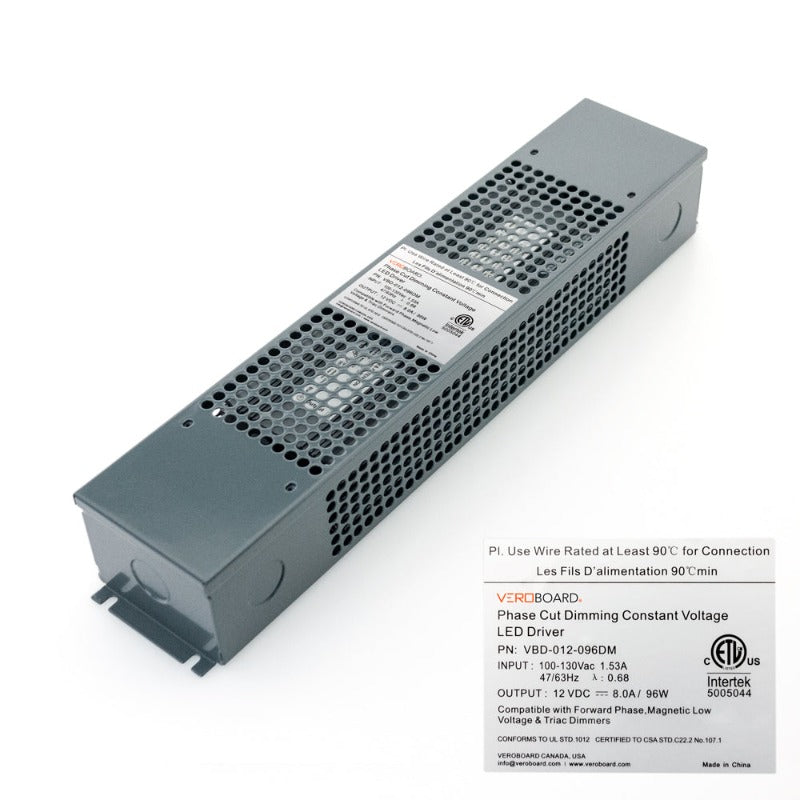

The VBD-012-096DM Triac Dimmable Constant Voltage LED Driver is designed to power LED lighting systems with a constant output voltage of 12 volts and output current of 8.0 amps, which delivers a maximum output power of 96 watts. The Triac Dimmable Constant Voltage LED Driver is dimmable using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.
The driver operates with an input voltage range of 100-130V AC and an input current of 1.53A. It has a frequency range of 47/63Hz and a power factor of 0.68. The Triac Dimmable Constant Voltage LED Driver is designed to regulate output voltage at 12V DC and provide a constant output current of 8.0 amps, delivering a maximum output power of 96W.
The VBD-012-096DM LED driver is IP67 rated, indicating it is suitable for outdoor use and is protected against dust and water immersion up to 1 meter depth. The dimensions of the LED driver are 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) without the box and 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) with the box.
The LED Driver is certified by ETL, indicating that it meets safety standards and compliance regulations set by the testing organization. This certification assures users that the Triac LED Driver is safe to use and meets quality standards for electrical devices.
Features:
- The VBD-012-096DM Triac Dimmable Constant Voltage LED Driver is designed for LED lighting systems with a constant output voltage of 12 volts and output current of 8.0 amps, delivering a maximum output power of 96 watts.
- The Triac Dimmable Constant Voltage LED Driver can be dimmed using both Phase-cut and Triac dimming methods, providing flexibility in lighting control.
- The driver operates with an input voltage range of 100-130V AC and an input current of 1.53A, with a frequency range of 47/63Hz and a power factor of 0.68.
- The LED driver is designed to regulate output voltage at 12V DC and provide a constant output current of 8.0 amps, delivering a maximum output power of 96W.
- The VBD-012-096DM LED driver is IP67 rated, indicating it is suitable for outdoor use and is protected against dust and water immersion up to 1 meter depth.
- The dimensions of the LED driver are 203 x 70.41 x 42mm (8 x 2.77 x 1.65 in) without the box and 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in) with the box.
- The LED Driver is certified by ETL, indicating that it meets safety standards and compliance regulations set by the testing organization, assuring users of its safety and quality standards for electrical devices.
