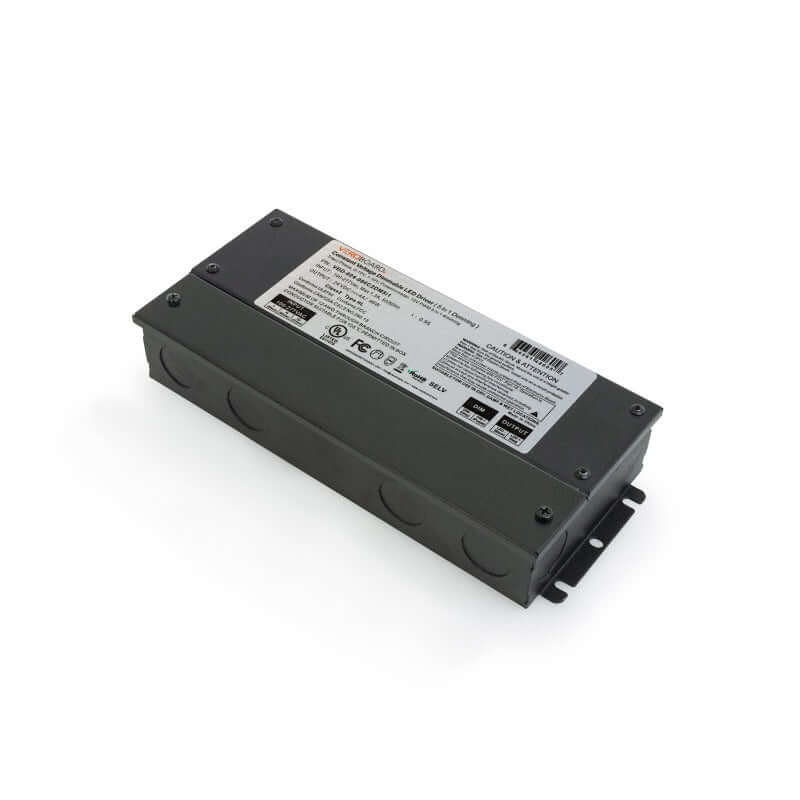

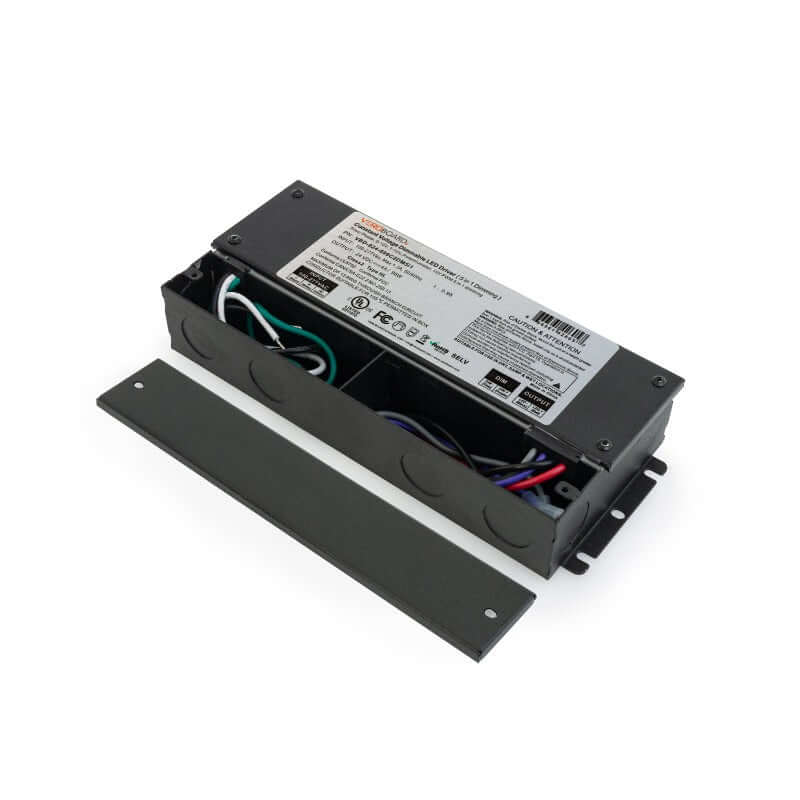

5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM, LED Driver VBD-024-096C2DM5i1(Class2)

Product Description

Model	VBD-024-096C2DM5i1
Input Voltage	100-277V AC
Input Current	1.3A
Frequency	50-60 Hz
Power Factor	>0.95

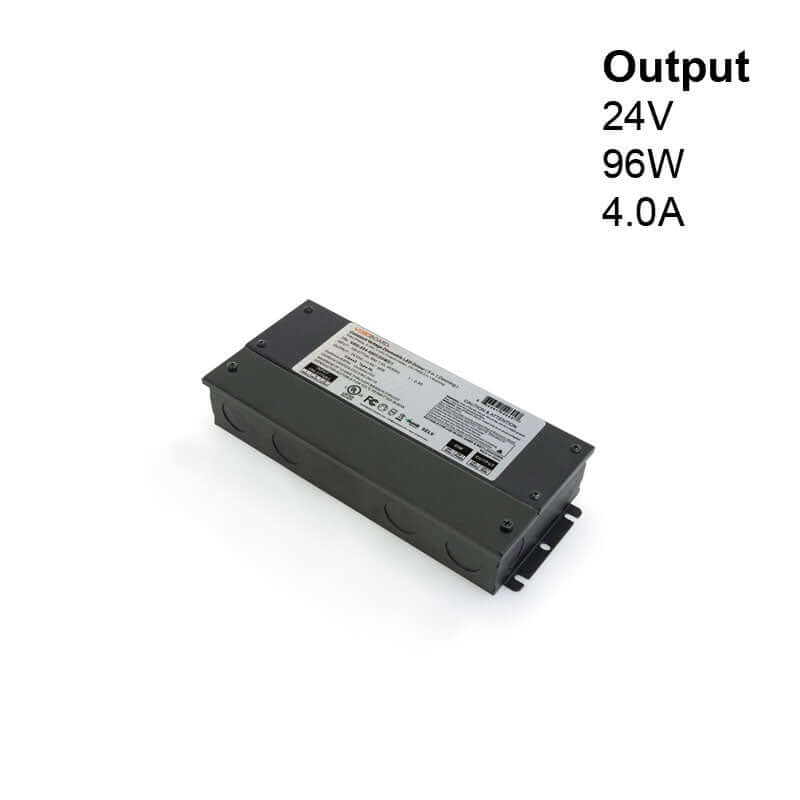

Output Voltage	24V DC
Output regulated Current	4A
Output Power	96W max

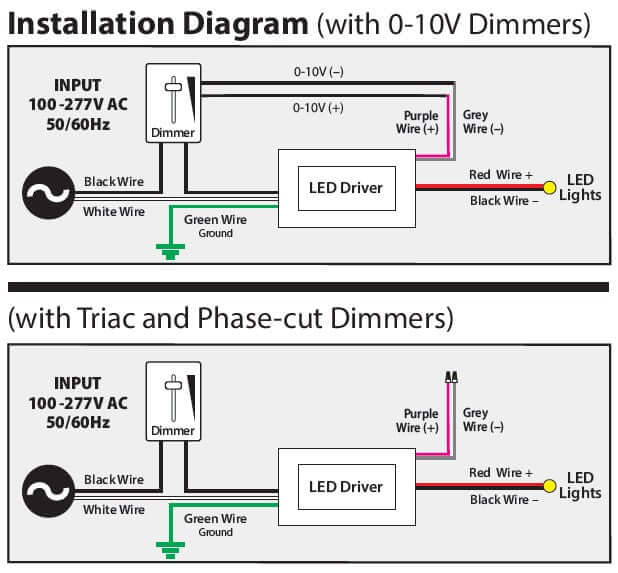

Dimmable	Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating	IP67 (Dry, Damp and Wet Locations)

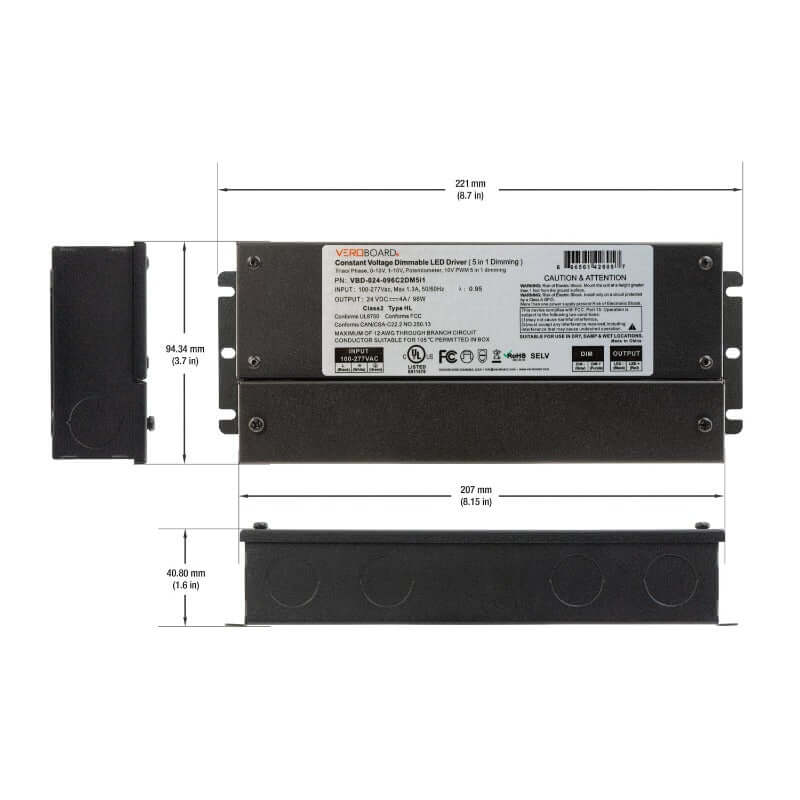

Dimensions	221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in)
Class Certification	Class 2
Certifications:

The VBD-024-096C2DM5i1 is a 5 in 1 dimming LED driver that supports various dimming methods including Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM. It is designed to work with an input voltage range of 100-277V AC and has an input current of 1.3A with a frequency range of 50-60 Hz. The LED driver has a power factor of >0.95 and provides an output voltage of 24V DC with a regulated current of 4A. The maximum output power of the driver is 96W.

The VBD-024-096C2DM5i1 is Class 2 certified and has an IP rating of IP67, which means it can be used in dry, damp, and wet locations. The dimensions of the LED driver are 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in). The LED driver is also certified by UL and FCC.

Features:

• 5-in-1 dimming LED driver
• Supports various dimming methods including Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM
• Input voltage range of 100-277V AC with an input current of 1.3A and frequency range of 50-60 Hz
• Power factor of >0.95
• Output voltage of 24V DC with a regulated current of 4A
• Maximum output power of 96W
• Class 2 certified for safety in low voltage applications
• IP67 rating, suitable for dry, damp, and wet locations
• Dimensions of 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in)
• UL and FCC certified for electrical safety and electromagnetic interference standards
