Product Description
Product | Constant Current Programmable LED Driver |
Model | PAC1250S30DL |
Input Voltage | 120-277V AC |
Input Current | 0.3A-0.13A |
Input Frequency | 50/60Hz |

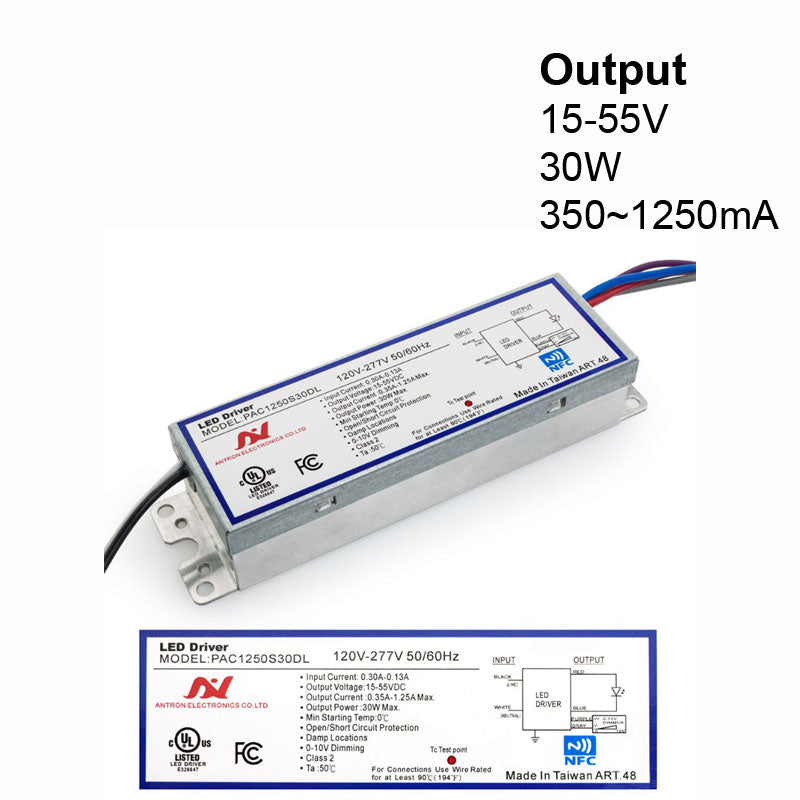

Output Voltage | 15-55V |
Output Power | 30W max |
Output regulated Current Range | Programmable Output Current 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA,900mA 950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA |
Dimmable | 3 in 1 Dimming ( PWM, 1-10V, Resistance) |
IP Rating | IP20 |

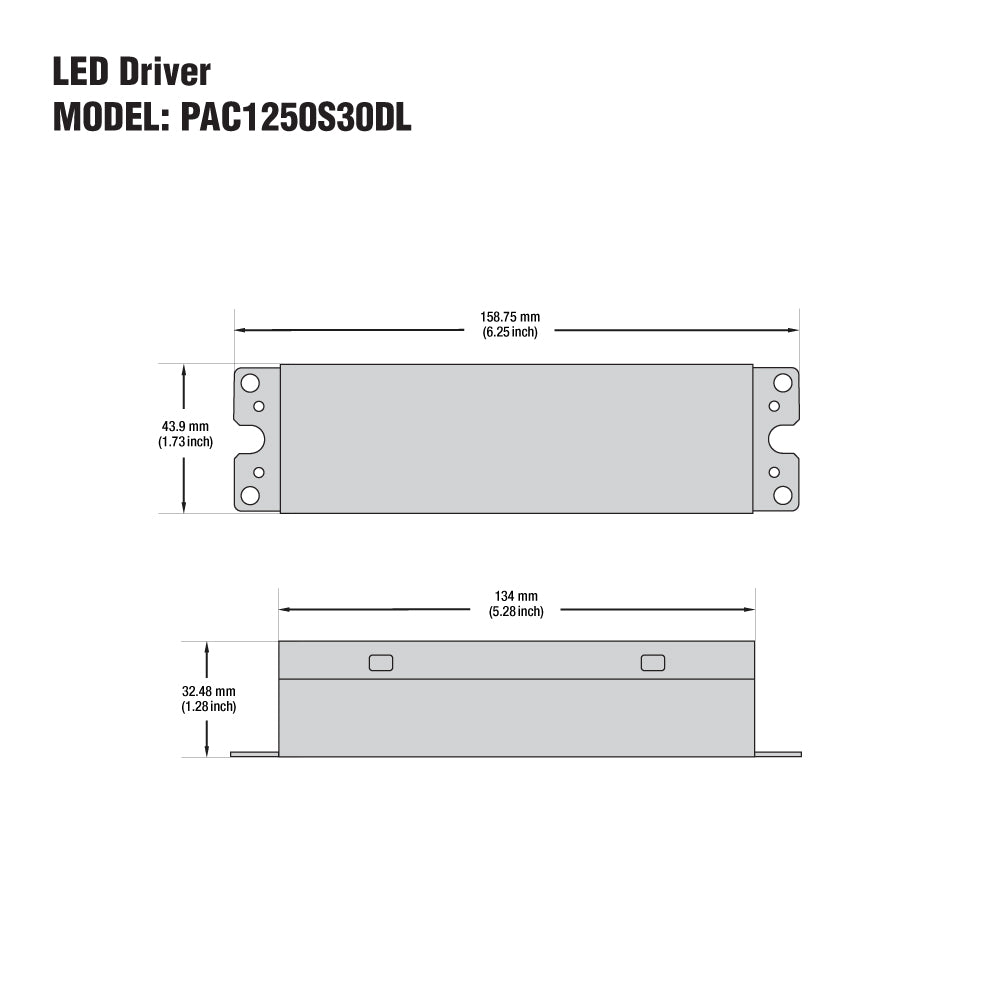

Dimensions | 158.7 × 44 × 32.4 mm (6.24 x 1.7 x 1.27in) |
Class Certification | Class 2 |
Certification |
|

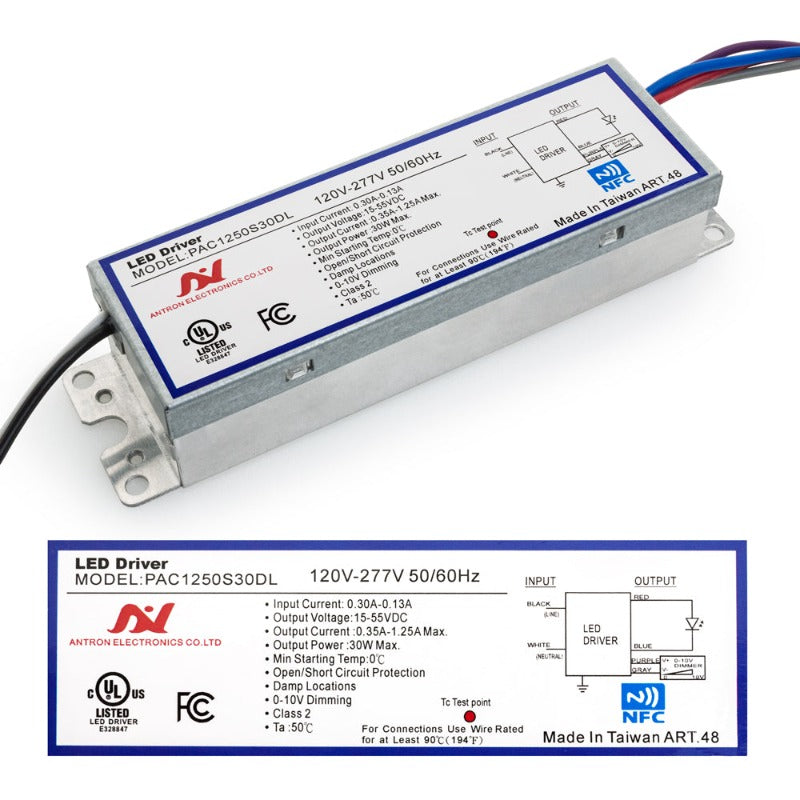

The PAC1250S30DL is a Constant Current Programmable LED Driver designed to provide custom output current levels ranging from 350-1250mA. It has a maximum output power of 30W and a regulated output voltage range of 15-55V, making it suitable for a variety of LED lighting applications. The input voltage can range from 120-277V AC, and the input current ranges from 0.3A to 0.13A.
This LED driver is also dimmable with 3 in 1 dimming capability, including PWM, 1-10V, and Resistance. It has an IP20 rating, which means it is protected against solid objects larger than 12.5mm in diameter but not against water. The PAC1250S30DL is classified as Class 2, which means that it is a low voltage device that is double insulated and does not require a ground connection.
Features:
- The PAC1250S30DL is a Constant Current Programmable LED Driver
- It provides custom output current levels ranging from 350-1250mA with a maximum output power of 30W
- The regulated output voltage range is 15-55V, suitable for a variety of LED lighting applications
- The input voltage can range from 120-277V AC, and the input current ranges from 0.3A to 0.13A
- It is dimmable with 3 in 1 dimming capability, including PWM, 1-10V, and Resistance
- The PAC1250S30DL has an IP20 rating, protecting it against solid objects larger than 12.5mm in diameter but not against water
- It is classified as Class 2, a low voltage device that is double insulated and does not require a ground connection
- It is suitable for a range of indoor lighting applications that require programmable output current levels, allowing for easy customization of current levels to suit specific lighting needs.
Wiring Diagram:
