Product Description
| Product |
Constant Current LED Module |
| Model | BXRA-56C1600-B |
| Brand | Bridgelux |
|
Current |
500mA |
| Voltage Range | 22.6-32.6V |
| Typical Voltage | 29.6V |
| Power | 14.8W |
| LED Type | COB |
| Luminous Flux | 1725-1920 lumens |
| Efficacy | 128 Lm/W |
| Color Temperature | 5600K (Cool White) |
| Rendering Index | CRI>70 |
| Dimmable | Yes |
| Junction temperature (Tj) | 25ºC |
| Operating Case Temperature Max Range (Tc) | 105°C |
| Material | Metallic base |
| Soldering Temperature | 350ºC |
| Thermal Grease |
We will include thermal grease to cover the quantity of LED modules ordered. |

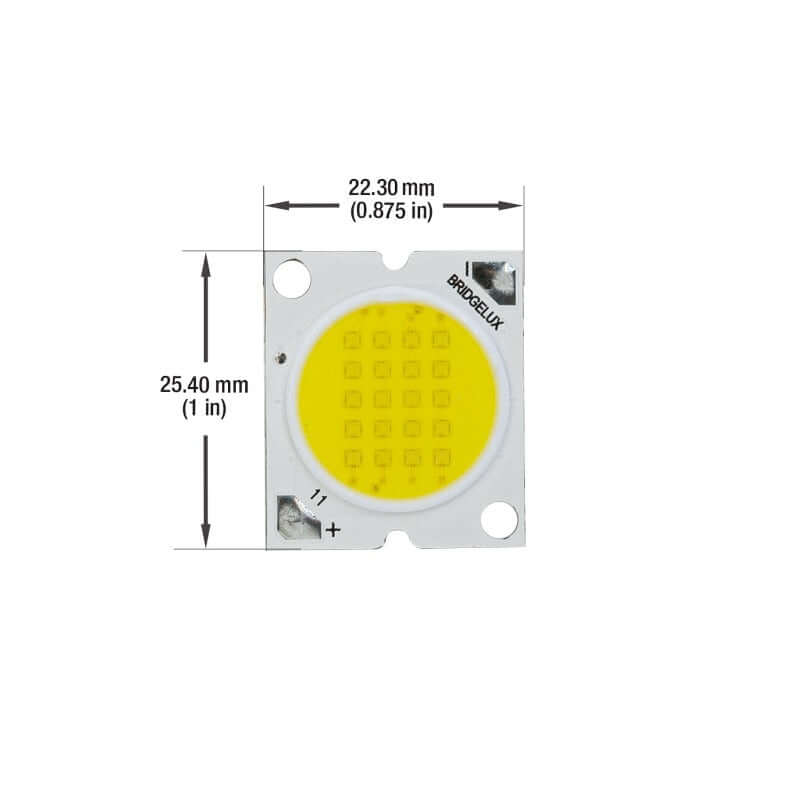

| Dimensions | 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in) |

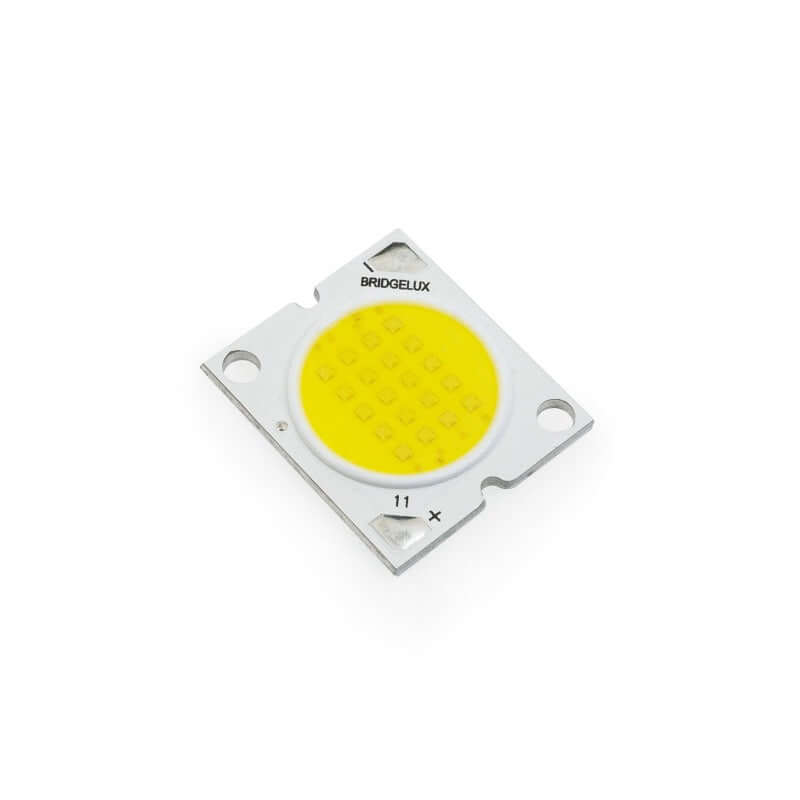

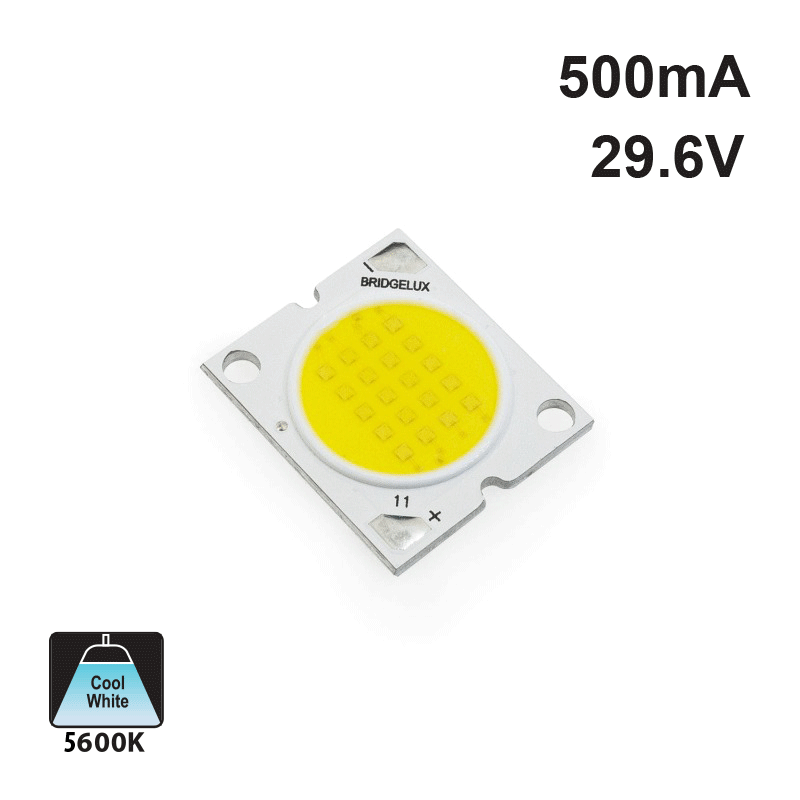

The BXRA-56C1600-B Constant Current COB LED Module is a high-quality lighting component produced by the renowned brand Bridgelux. This LED module operates at a current of 500mA, with a voltage range of 22.6-32.6V and a typical voltage of 29.6V. It has a power output of 14.8W, making it a powerful lighting source.
This LED module uses Chip-on-Board (COB) technology, which provides high-quality, uniform, and consistent light with pixelation technology. It has a luminous flux output of 1725-1920 lumens and an efficacy of 128 Lm/W, making it an energy-efficient lighting option.
The color temperature of this LED module is 5600K (Cool White), which produces a bright and crisp light that is ideal for various lighting applications. It has a rendering index of CRI>70, which ensures that the colors appear natural and vibrant.
Features:
- High-quality lighting component produced by Bridgelux
- Current of 500mA and voltage range of 22.6-32.6V
- Power output of 14.8W
- Uses Chip-on-Board (COB) technology for high-quality, uniform, and consistent light with pixelation technology
- Luminous flux output of 1725-1920 lumens and efficacy of 128 Lm/W
- Color temperature of 5600K (Cool White) with a rendering index of CRI>70
- Dimmable for greater control over the lighting output
- Junction temperature of 25ºC and operating case temperature max range of 105°C for optimal performance and longevity
- Metallic material construction with dimensions of 22.30 x 25.40 mm (0.875 x 1 in)

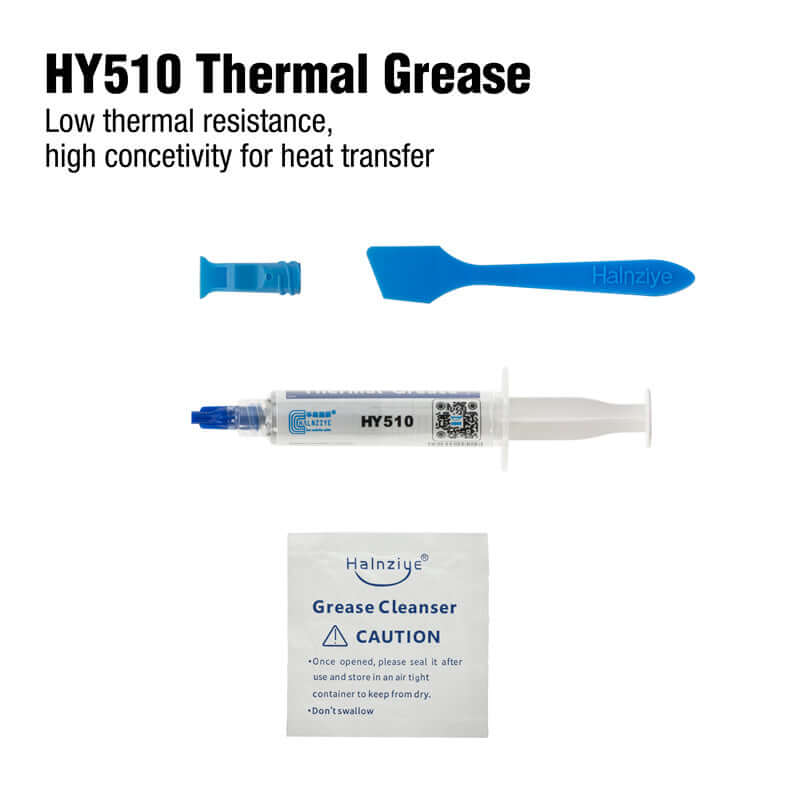

- Package content includes the LED module and Thermal Grease HY510 (5gr)
- Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage
- Energy-efficient, reliable, and versatile lighting solution.
- Use Thermal Grease or Thermal Pad for installation.
