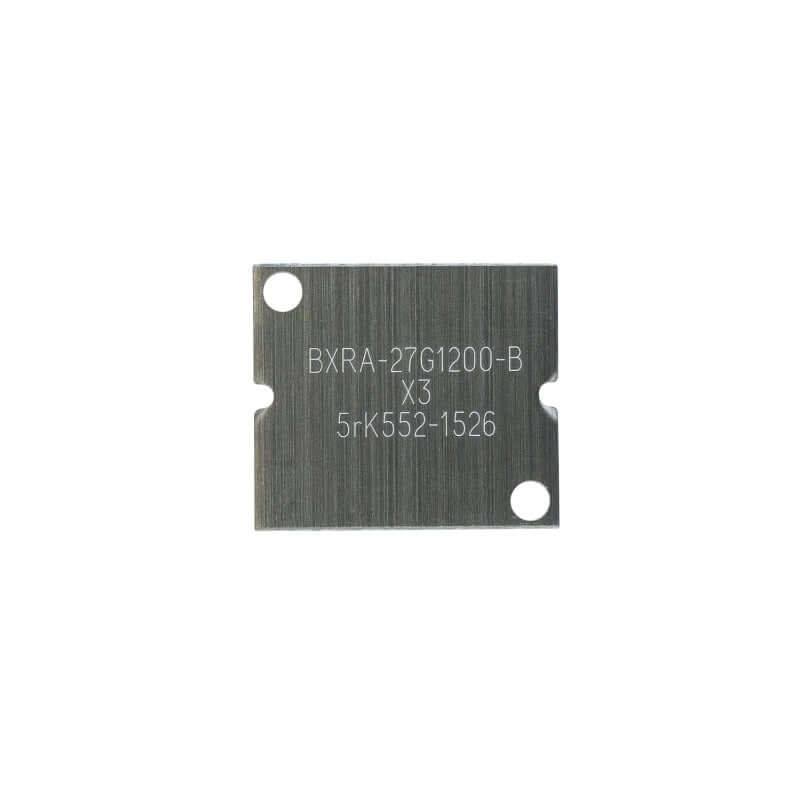

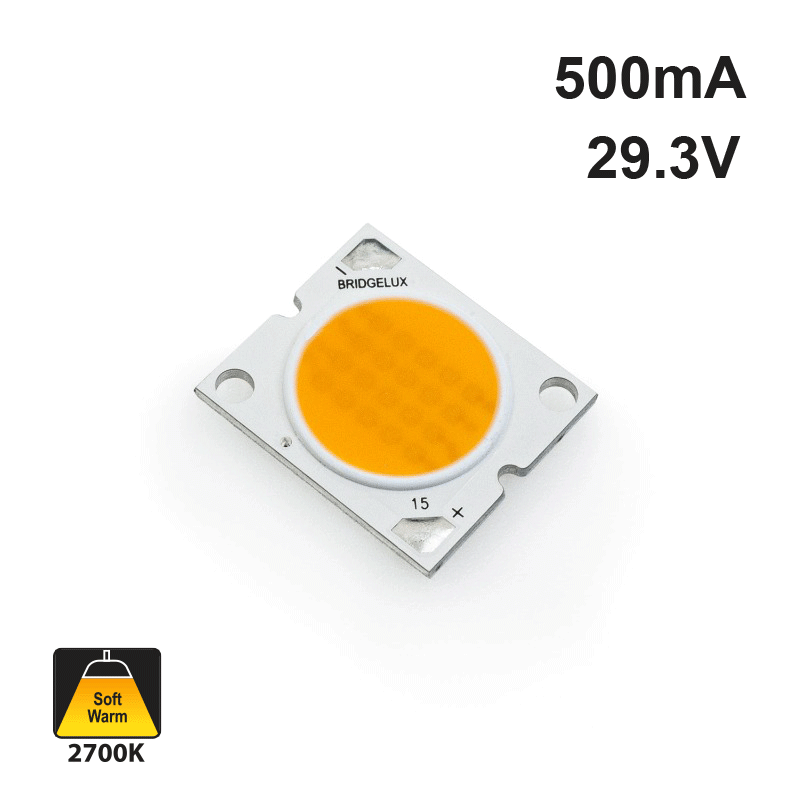

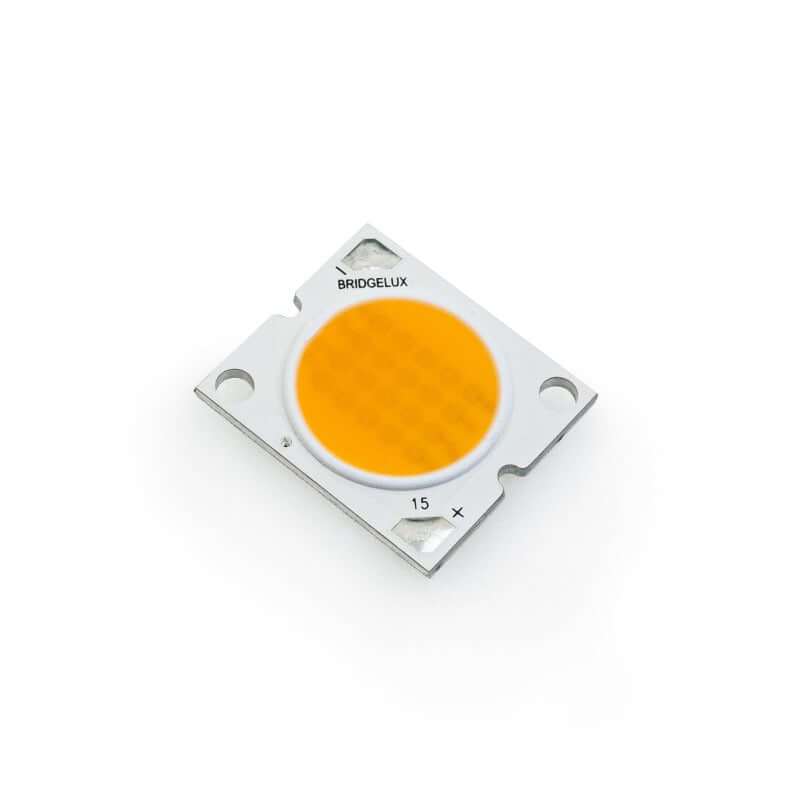

BXRA-27G1200-B Constant Current COB LED Module, 500mA 15W 2700K(Soft White)

  • $25.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561417093
We only have 29 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Model BXRA-27G1200-B
Brand Bridgelux
Current
500mA
Voltage 26.3-32.2V
Typical Voltage 29.3V
Power 14.7W (∼15V)
LED Type COB
Luminous Flux 1040-1200 lumens
Typical Efficacy 81 lm/W
Color Temperature 2700K (Soft White)
Rendering Index CRI>90
Dimmable Yes
Junction temperature (Tj) 25ºC
Case Temperature (Tc) 85ºC
Material Metallic base
Soldering Temperature 350ºC

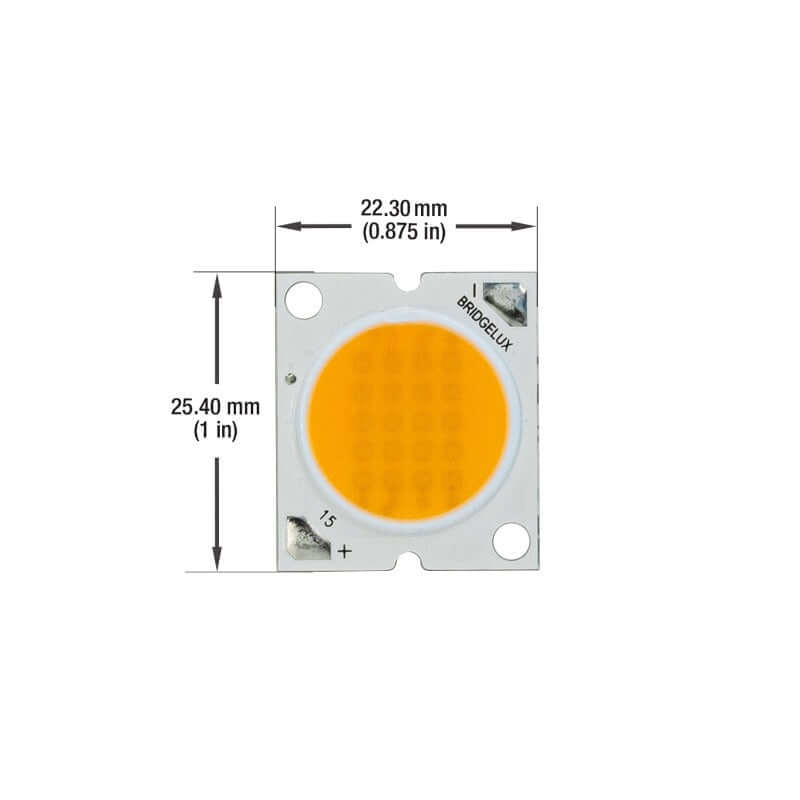

Dimensions 22.30 x 25.40 x 1.5mm (0.87 x 1 x 0.05in)
Package content LED Module

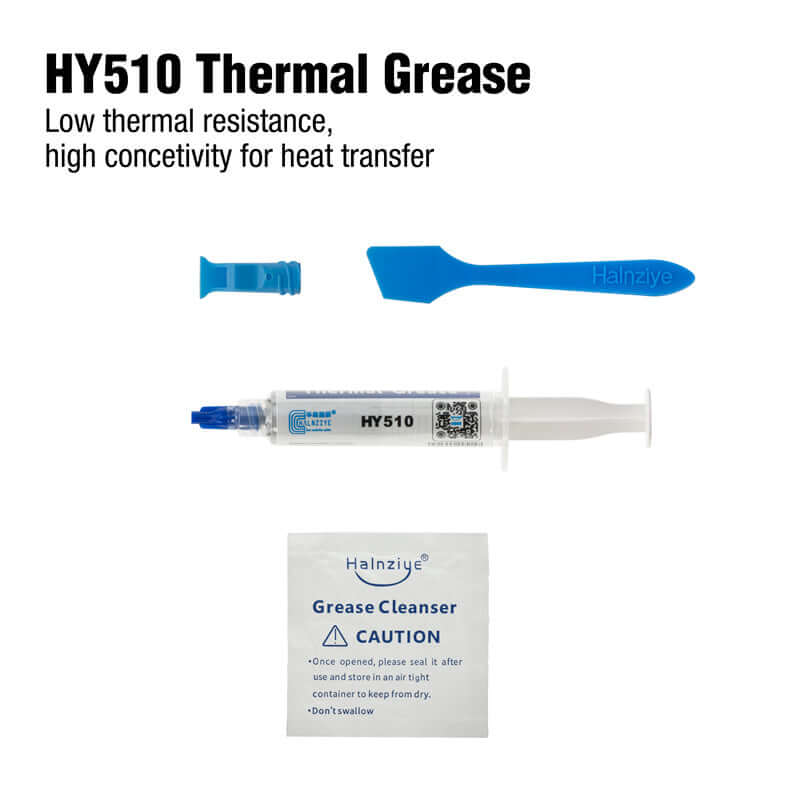

Thermal Grease HY510 (5gr)



The BXRA-27G1200-B Constant Current COB LED Module is a high-quality lighting component produced by Bridgelux. It operates at a current of 500mA, with a voltage range of 26.3-32.2V and a typical voltage of 29.3V. This LED module has a power output of 14.7W (∼15V), making it an energy-efficient lighting source.

This LED module uses Chip-on-Board (COB) technology, which provides high-quality, uniform, and consistent light with pixelation technology. It has a luminous flux output of 1040-1200 lumens and a typical efficacy of 81 lm/W, making it an energy-efficient lighting option.

The color temperature of this LED module is 2700K (Soft White), which produces a warm and cozy light that is ideal for various indoor lighting applications. It has a rendering index of CRI>90, ensuring that the colors appear natural and vibrant.

This LED module is dimmable, allowing for greater control over the lighting output. It has a junction temperature (Tj) of 25ºC and a case temperature (Tc) of 85ºC, ensuring optimal performance and longevity. The material used in the construction of this LED module is metallic, and it has dimensions of 22.30 x 25.40 mm (0.87 x 1 in).

It is recommended to use Thermal Grease or Thermal Pad for installation. The package content includes the LED module and Thermal Grease HY510 (5gr).

Features:

  • High-quality lighting component produced by Bridgelux
  • Operates at a current of 500mA, with a voltage range of 26.3-32.2V and a typical voltage of 29.3V
  • Power output of 14.7W (∼15V), making it an energy-efficient lighting source
  • Uses Chip-on-Board (COB) technology, providing high-quality, uniform, and consistent light with pixelation technology
  • Luminous flux output of 1040-1200 lumens and a typical efficacy of 81 lm/W, making it an energy-efficient lighting option
  • Color temperature of 2700K (Soft White) produces a warm and cozy light ideal for various indoor lighting applications
  • Rendering index of CRI>90 ensures that the colors appear natural and vibrant
  • Dimmable, allowing for greater control over the lighting output
  • Junction temperature (Tj) of 25ºC and a case temperature (Tc) of 85ºC ensure optimal performance and longevity
  • Material used in construction is metallic, and it has dimensions of 22.30 x 25.40 mm (0.87 x 1 in)
  • Package content includes the LED module and Thermal Grease HY510 (5gr)
  • Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage
  • Energy-efficient, reliable, and versatile lighting solution.
  • Use Thermal Grease or Thermal Pad for installation.
