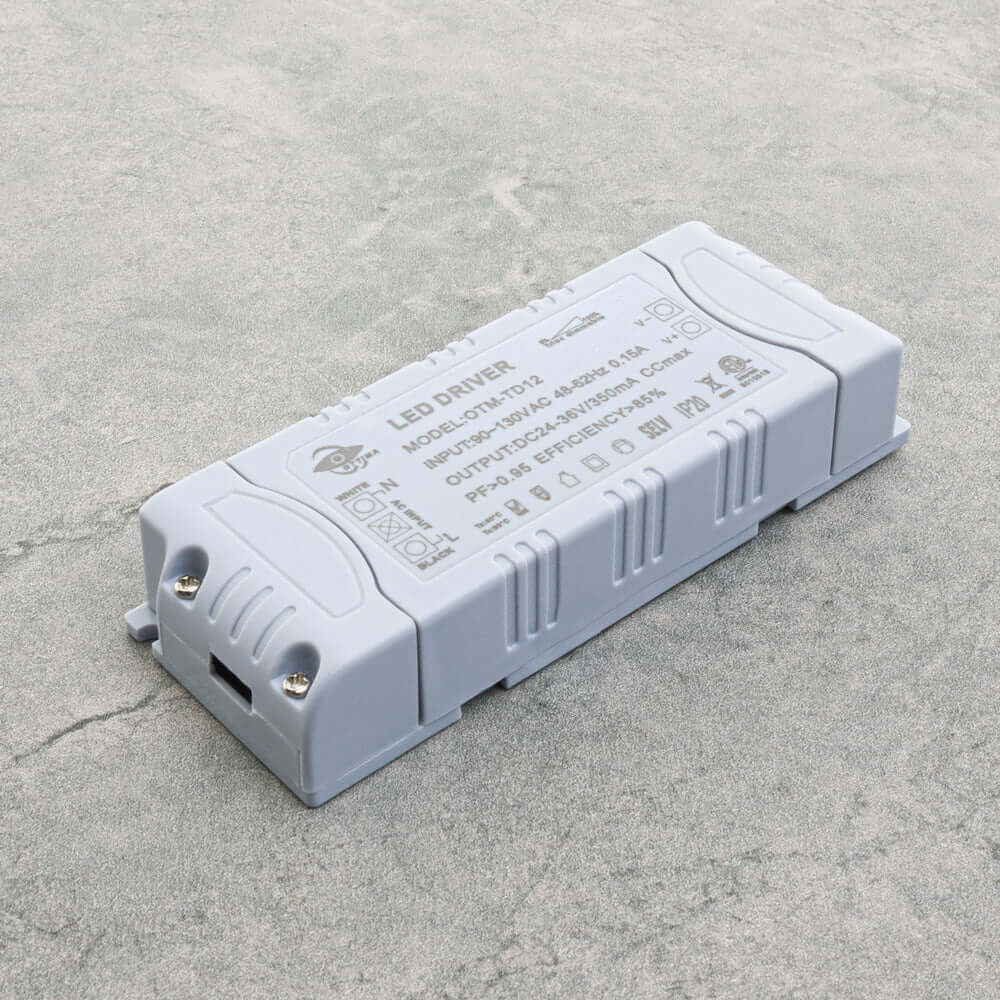

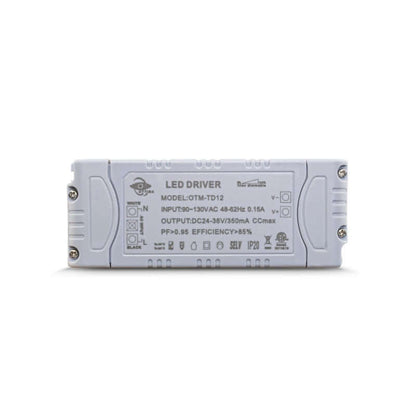

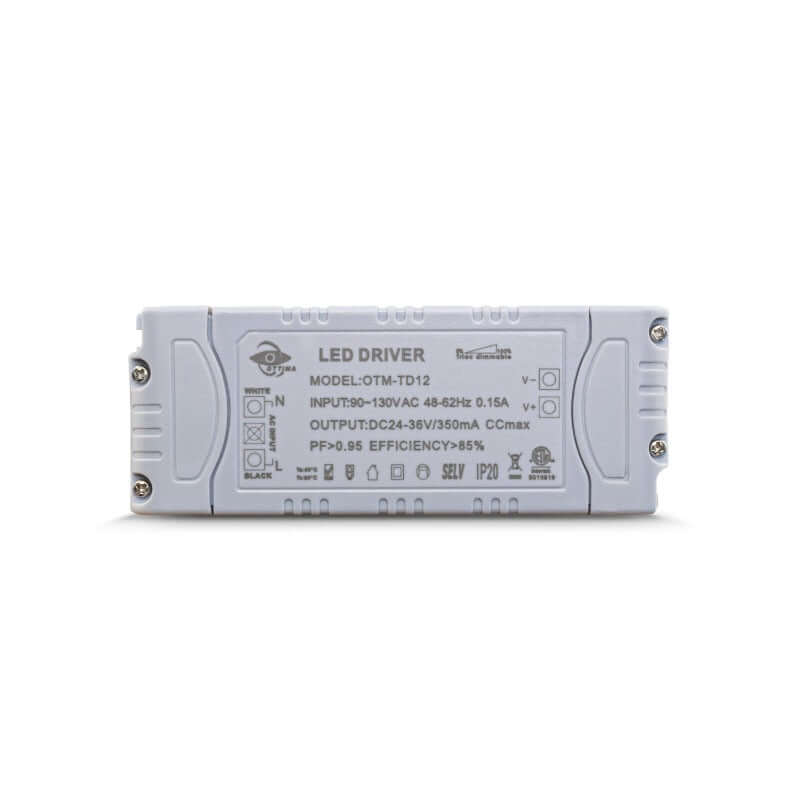

OTTIMA OTM-TD12 Constant Current LED Driver, 350mA 24-36V 12W

Product Description

Product	Constant Current LED Driver
Model	OTM-TD12
Input Voltage	90-130V AC
Input Current	0.15A
Input Frequency	48-62Hz
Power Factor	PF>0.95
Efficiency	>85%

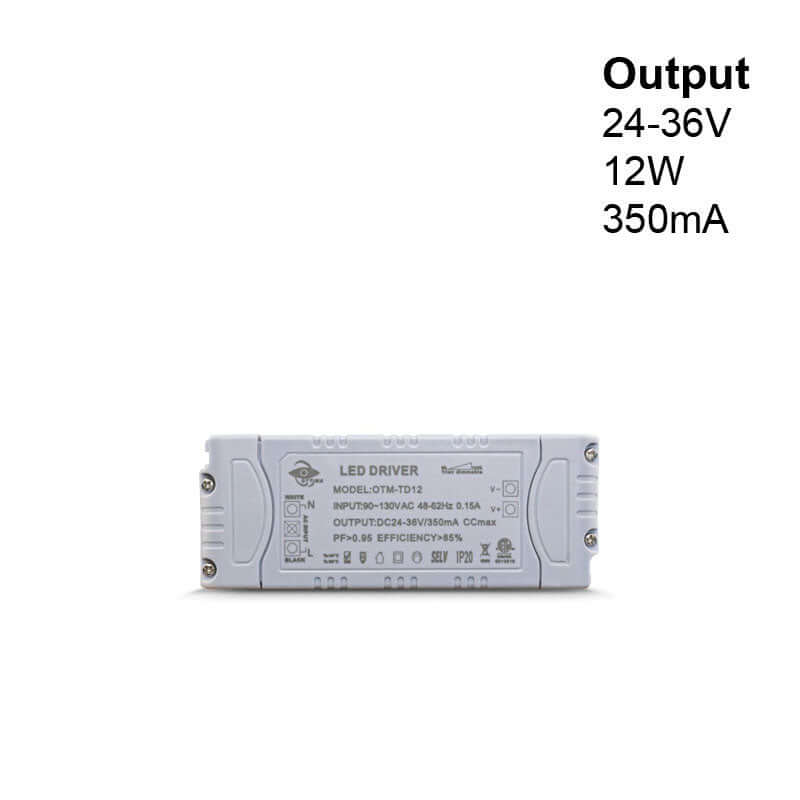

Output Regulated Current	350mA
Output Power	12W
Output Voltage	24-36V DC
Dimmable	Yes (Triac Dimming)
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	90°C
IP Rating	IP20 (Indoor use only)

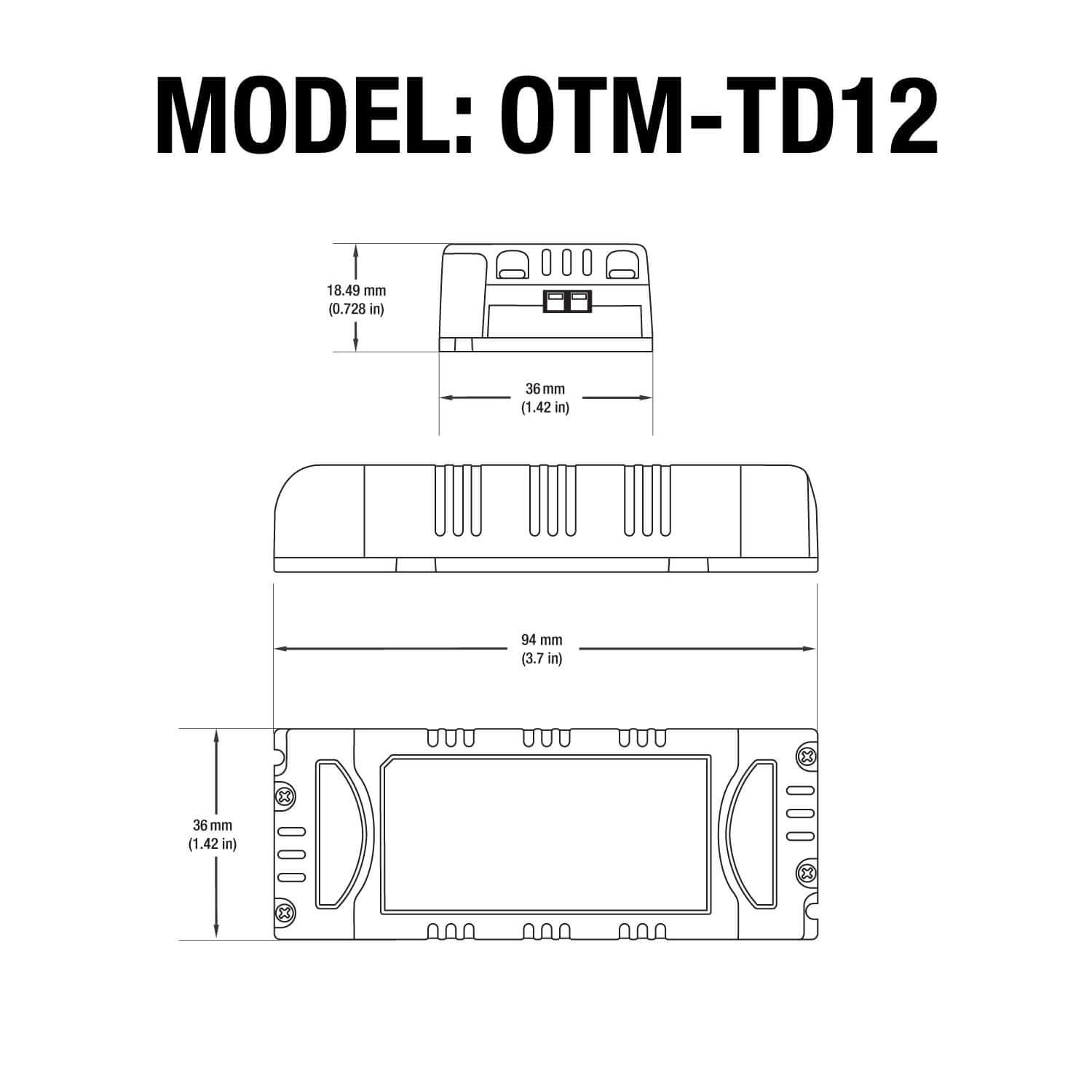

Dimensions	94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
Class Certification	Class II
Certification

The OTTIMA OTM-TD12 Constant Current LED Driver is an electronic device that supplies a regulated constant current to LED lights. The model number of this driver is OTM-TD12. It has an input voltage range of 90-130V AC with an input current of 0.15A and a frequency range of 48-62Hz. It has a high power factor (PF) of greater than 0.95, which means it is highly efficient in converting the input power to output power. The efficiency of this LED driver is greater than 85%.

The output regulated current of this LED driver is 350mA, and its output power is 12W. The output voltage range is 24-36V DC. It is dimmable with Triac Dimming, which allows for control of the brightness of the LED lights. The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.

Features:

• The OTTIMA OTM-TD12 Constant Current LED Driver supplies a regulated constant current to LED lights.
• The model number of the LED driver is OTM-TD12.
• The LED driver has an input voltage range of 90-130V AC with an input current of 0.15A and a frequency range of 48-62Hz.
• The LED driver has a high power factor (PF) of greater than 0.95 and an efficiency greater than 85%.
• The LED driver has an output regulated current of 350mA and an output power of 12W with an output voltage range of 24-36V DC.
• The LED driver is dimmable with Triac Dimming, allowing for control of the brightness of the LED lights.
• The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.
• The LED driver is rated IP20 and is suitable for indoor use only.
• The LED driver has double insulation and does not require a grounding wire.

How to Install OTTIMA OTM-TD12 Dimming Constant Current LED Driver?

1. Ensure that the power is turned off.
2. Verify the output current of both the light and the driver.
3. Remove the caps on both sides and loosen the screws on the green terminals.
4. Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
5. Connect the positive wire of the light to V+ and the negative wire to V-.
