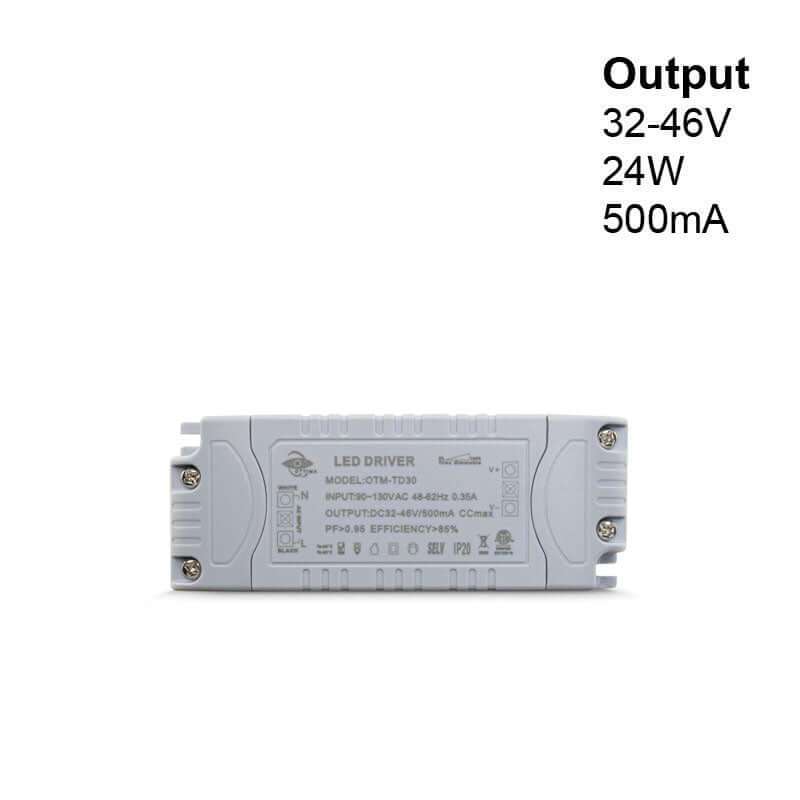

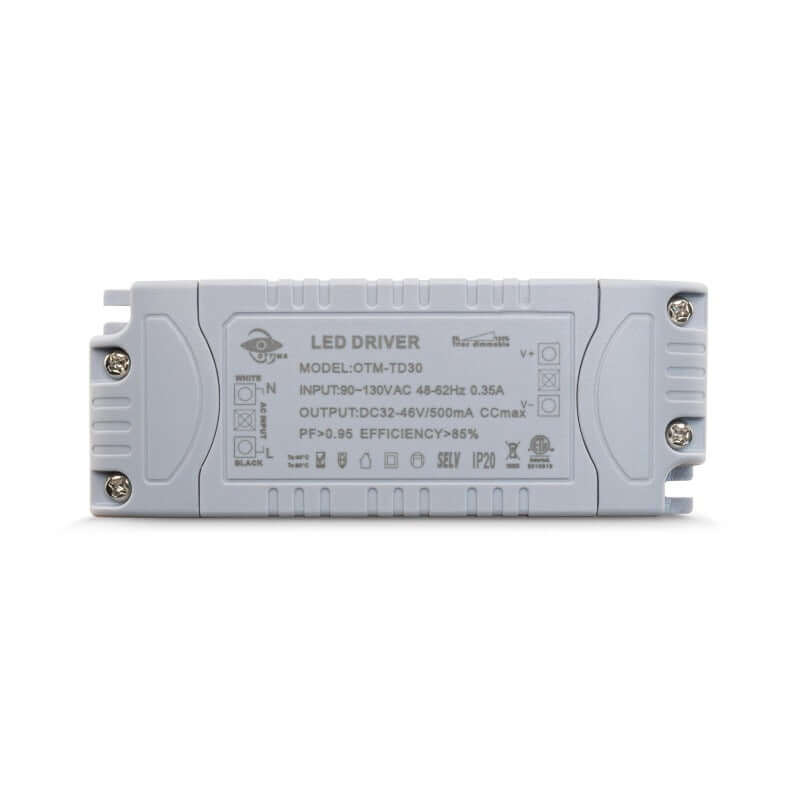

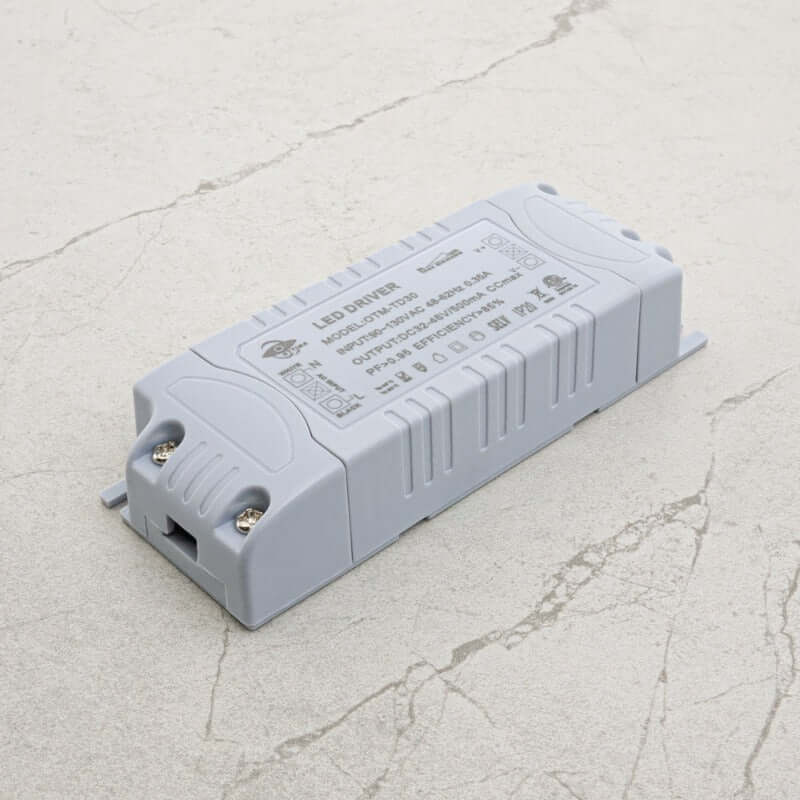

OTM-TD30 Constant Current LED Driver, 500mA 32-46V 24W
Product Description
Product | Constant Current LED Driver |
Model | OTM-TD30 |
Input Voltage | 90-130V AC |
Input Current | 0.35A |
Input Frequency | 48-62Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 500mA |
Output Power | 24W |
Output Voltage | 32-46V DC |
Dimmable: | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Indoor use only) |

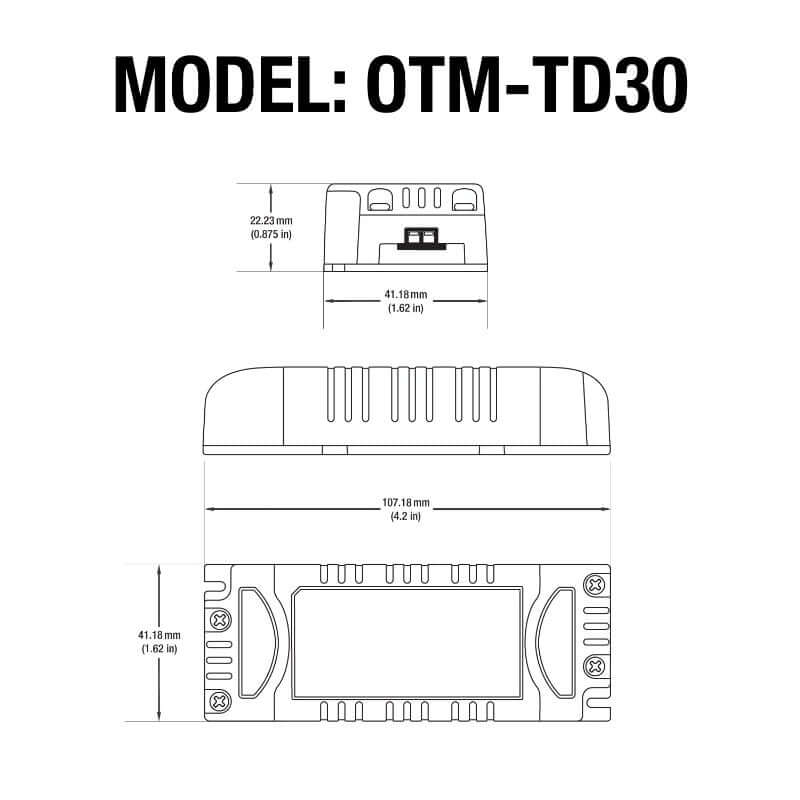

Dimensions | 107.18 x 41.18 x 22.83 mm (4.2 x 1.62 x 0.875 in) |
Class Certification | Class II |
Certification |
|
he OTM-TD30 Constant Current LED Driver is a product from OTTIMA. It is designed to power LED lights with a regulated current of 500mA, output voltage range of 32-46V DC, and a total output power of 24W. The driver is compatible with an input voltage of 90-130V AC and has an input frequency of 48-62Hz. The power factor is greater than 0.95 and the efficiency is greater than 85%.
It is dimmable using triac dimming and has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C. The driver has an IP20 rating, which means it is suitable for indoor use only. The dimensions of the product are 107.18 x 41.18 x 22.83 mm (4.2 x 1.62 x 0.875 in), and it has a Class II certification.
Features:
- The OTM-TD30 Constant Current LED Driver is a product from OTTIMA.
- It is designed to power LED lights with a regulated current of 500mA, output voltage range of 32-46V DC, and a total output power of 24W.
- The driver is compatible with an input voltage of 90-130V AC and has an input frequency of 48-62Hz.
- The power factor is greater than 0.95 and the efficiency is greater than 85%.
- It is dimmable using triac dimming and has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.
- The driver has an IP20 rating, which means it is suitable for indoor use only.
- The dimensions of the product are 107.18 x 41.18 x 22.83 mm (4.2 x 1.62 x 0.875 in).
- It has a Class II certification.
How to Install OTTIMA OTM-TD30 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.

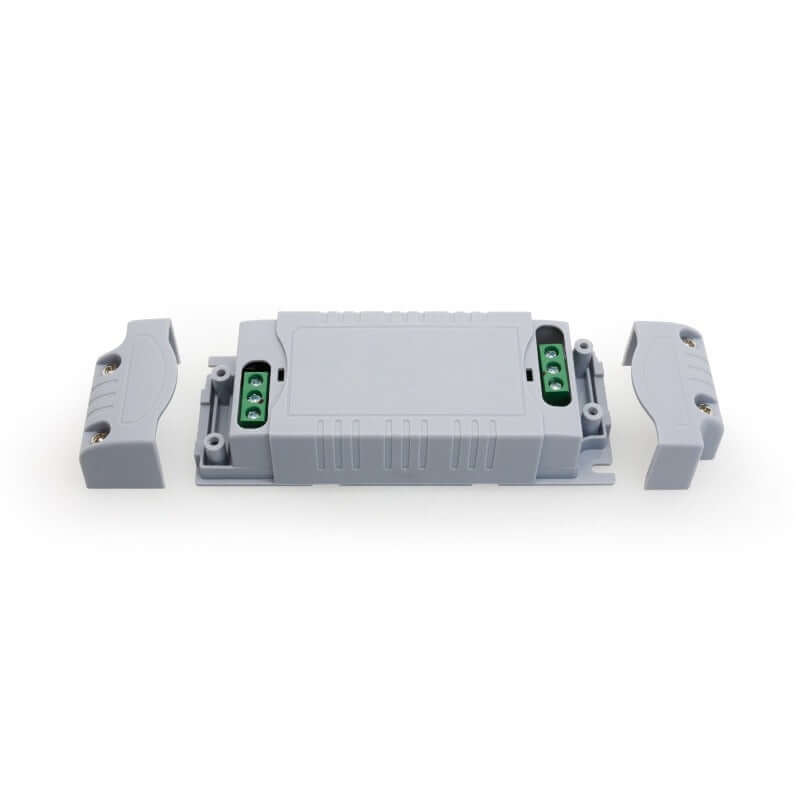

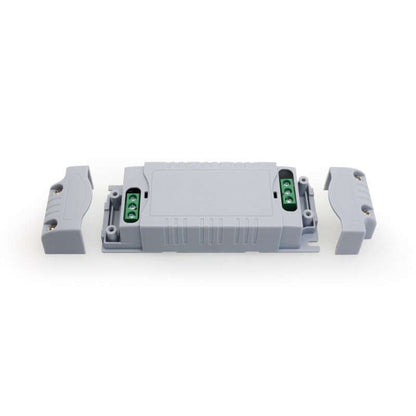

- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
