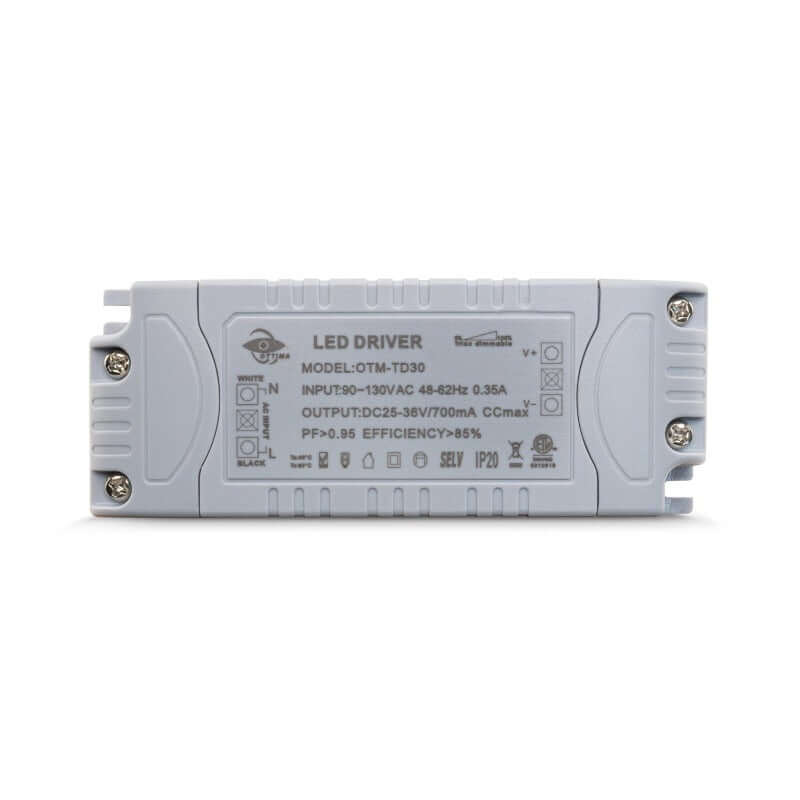

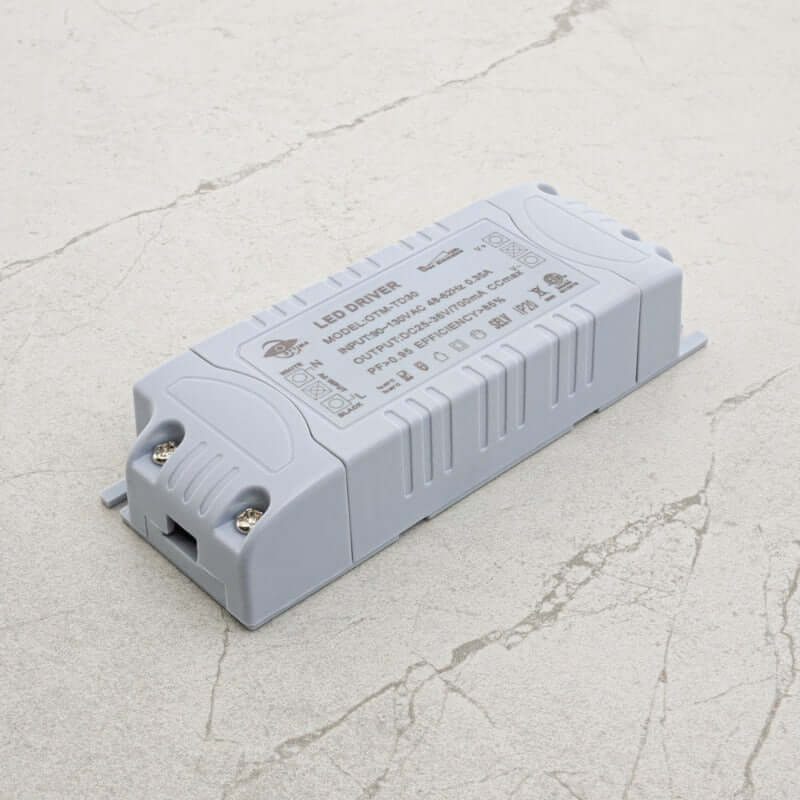

OTTIMA OTM-TD30 Constant Current LED Driver, 700mA 25-36V 25W

  • $41.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561424954
Title:
We only have 75 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product Constant Current LED Driver
Model OTM-TD30
Input Voltage 90-130V AC
Input Current 0.35A
Power Factor P.F>0.95
Efficiency >85%
Input Frequency 48-62Hz

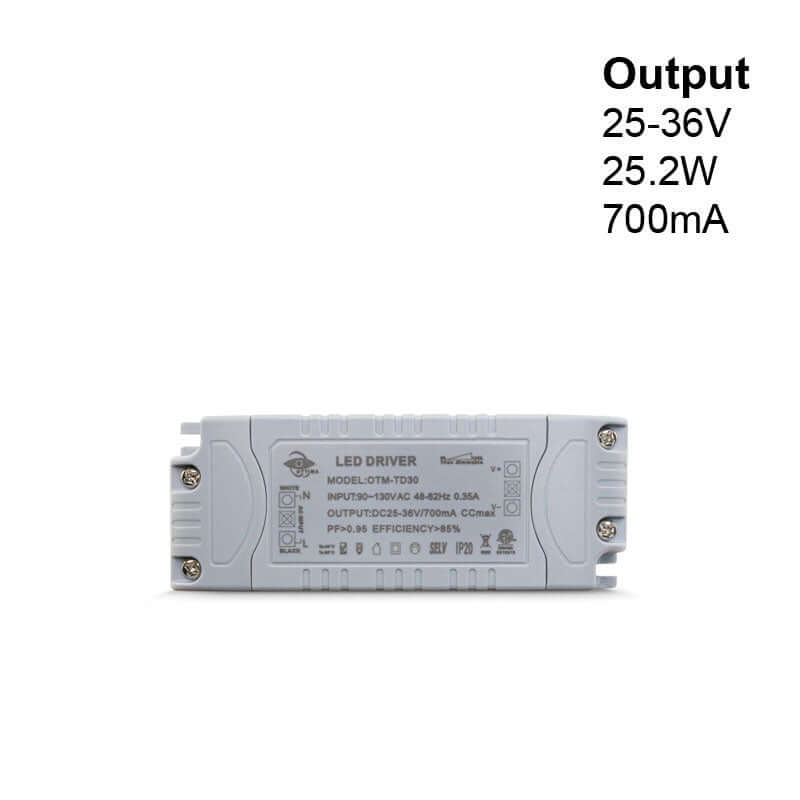

Output Regulated Current 700mA
Output Power 25.2W
Output Voltage 25-36V DC
Dimmable: Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Indoor use only)

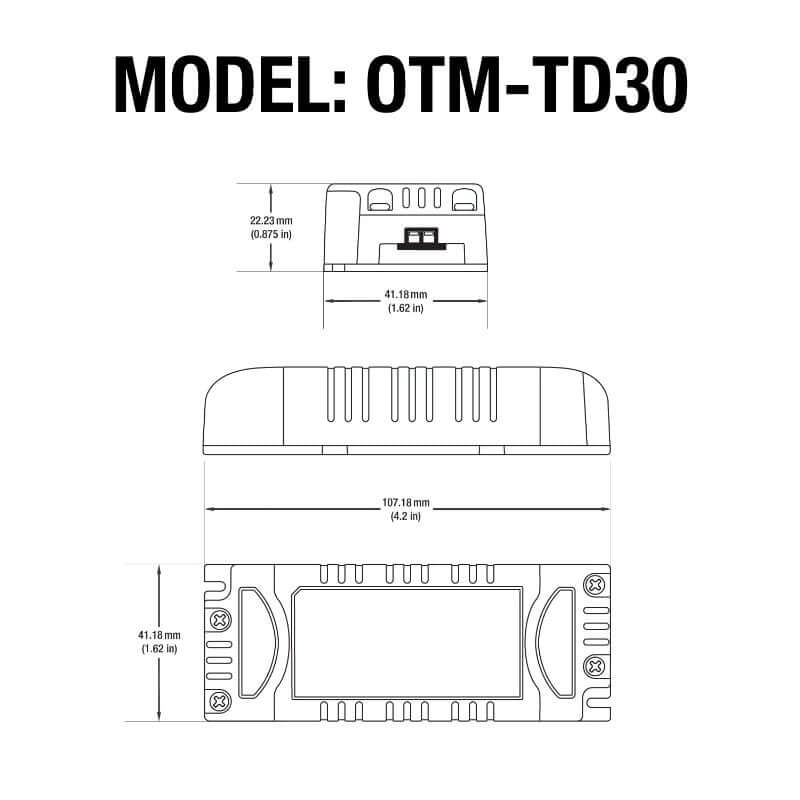

Dimensions 107.18 x 41.18 x 22.83mm (4.2 x 1.62 x 0.875 in)
Class Certification Class II
Certification




The OTTIMA OTM-TD30 is a Constant Current LED Driver that provides a regulated current of 700mA to power LED lighting systems. It has an input voltage of 90-130V AC with an input current of 0.35A and input frequency of 48-62Hz. The Power Factor is P.F>0.95, and efficiency is greater than 85%. The output power is 25.2W, and the output voltage is 25-36V DC.

This LED driver is compatible with Triac dimming, making it suitable for various lighting applications that require brightness control. The ambient temperature (Ta) is rated at 40°C, while the case temperature (Tc) is rated at 90°C.

Features:

  • The OTTIMA OTM-TD30 is a Constant Current LED Driver that delivers a regulated current of 700mA to power LED lighting systems.
  • It has an input voltage of 90-130V AC with an input current of 0.35A and input frequency of 48-62Hz.
  • The Power Factor is P.F>0.95, and efficiency is greater than 85%.
  • The output power is 25.2W, and the output voltage is 25-36V DC.
  • This LED driver is compatible with Triac dimming, making it suitable for various lighting applications that require brightness control.
  • The ambient temperature (Ta) is rated at 40°C, while the case temperature (Tc) is rated at 90°C.
  • The OTM-TD30 has an IP20 rating, indicating that it is suitable for indoor use only.
  • Its dimensions are 107.18 x 41.18 x 22.83mm (4.2 x 1.62 x 0.875 in).
  • It is Class II certified, providing double insulation protection against electric shock.
  • Overall, the OTTIMA OTM-TD30 LED driver is a reliable and efficient option for powering LED lighting systems that require a constant current supply, with compatibility with Triac dimming making it a versatile choice for various lighting applications.

How to Install OTTIMA OTM-TD30 Dimming Constant Current LED Driver?

  1. Ensure that the power is turned off.
  2. Verify the output current of both the light and the driver.

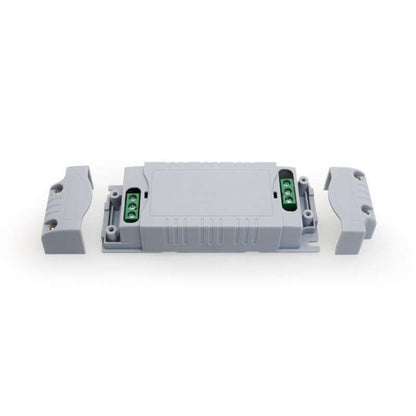

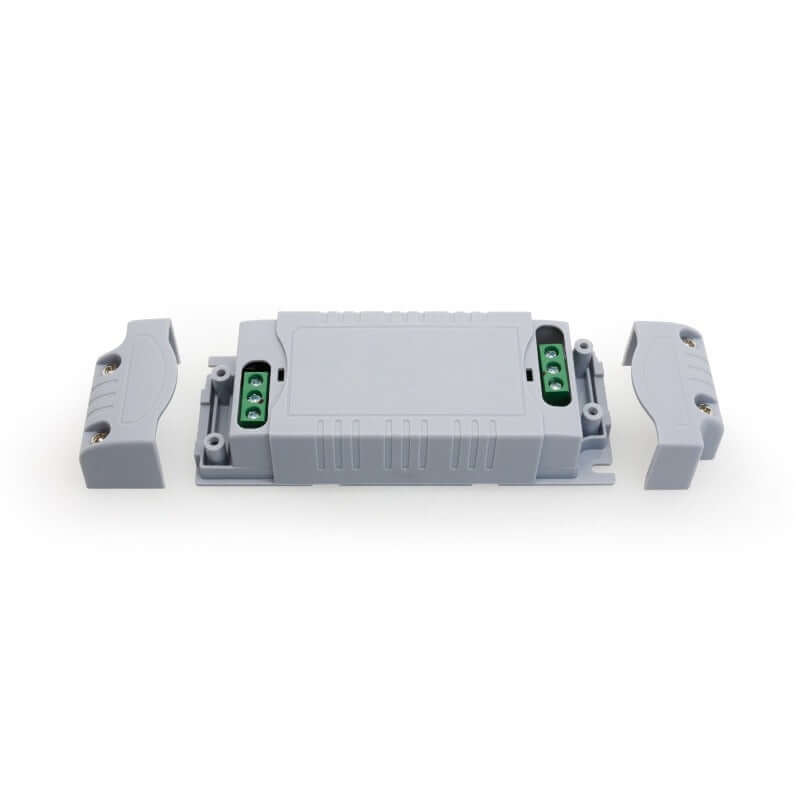

  3. Remove the caps on both sides and loosen the screws on the green terminals.
  4. Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
  5. Connect the positive wire of the light to V+ and the negative wire to V-.
