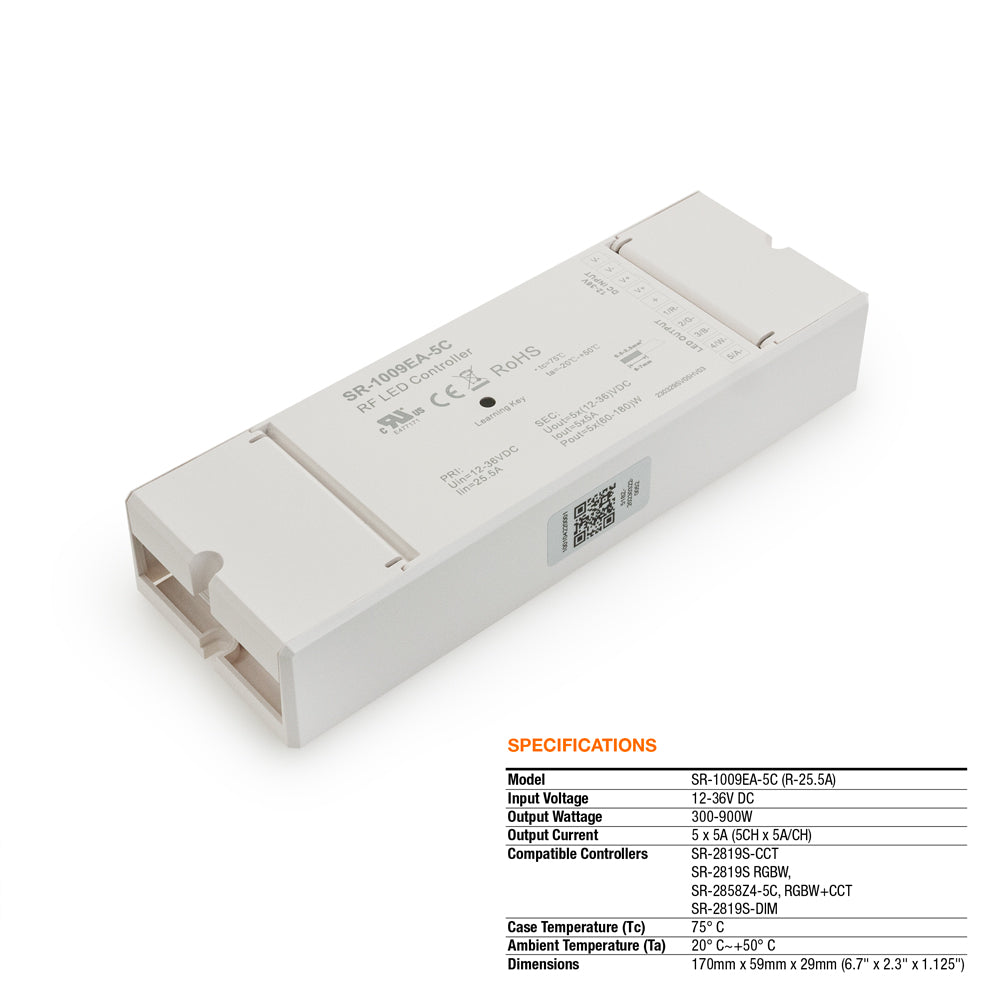

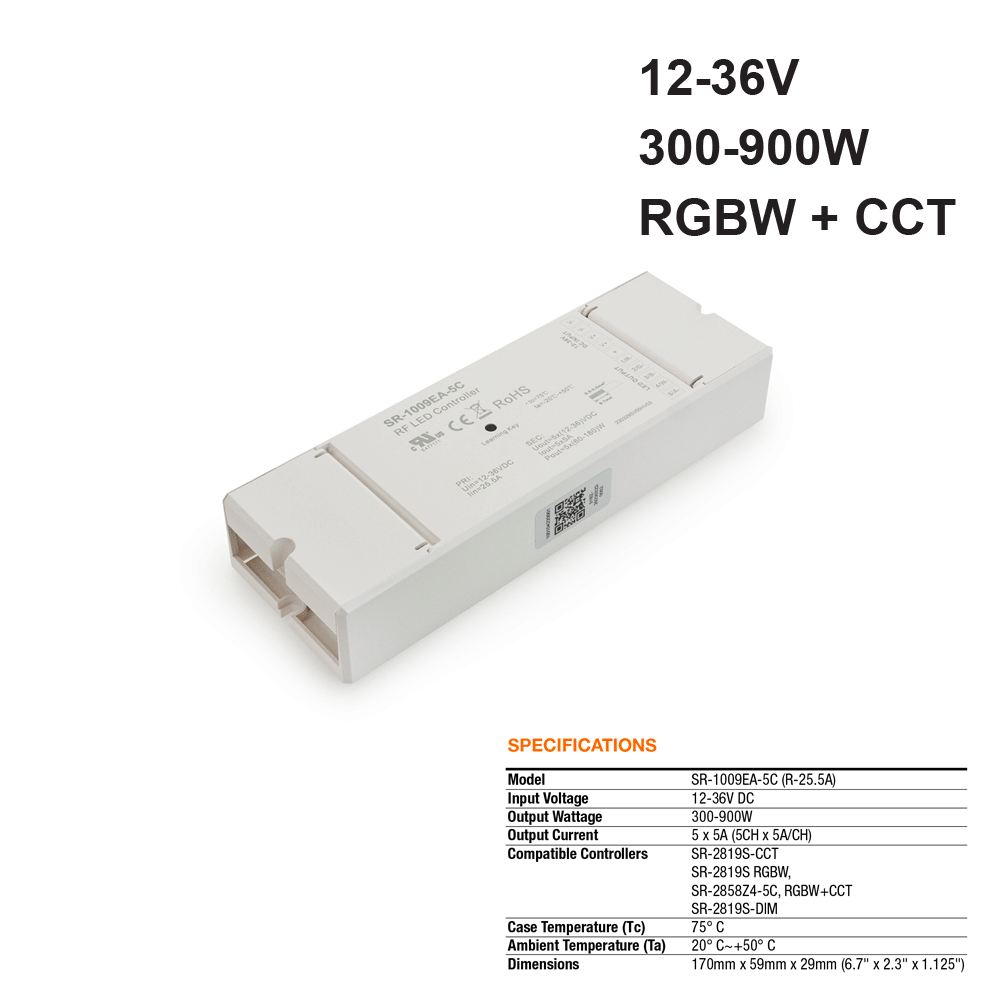

Product Description
| Product | LED Receiver (Controller) |
| Model | SR-1009EA-5C (R-25.5A) |
| Input Voltage | 12-36V DC |
| Output Wattage | 300-900W |
| Output Current | 5 x 5A (5CH x 5A/CH) |
| Case Temperature(Tc) | 75℃ |
| Compatible Remote Controllers (Sold Separately) |
SR-2819S-DIM (R1) SR-2819S-CCT (R2) SR-2819S RGBW (R3) SR-2858Z4-5C RGBW+CCT (R4) |
| Ambient Temperature(Ta) | 20℃-+50℃ |

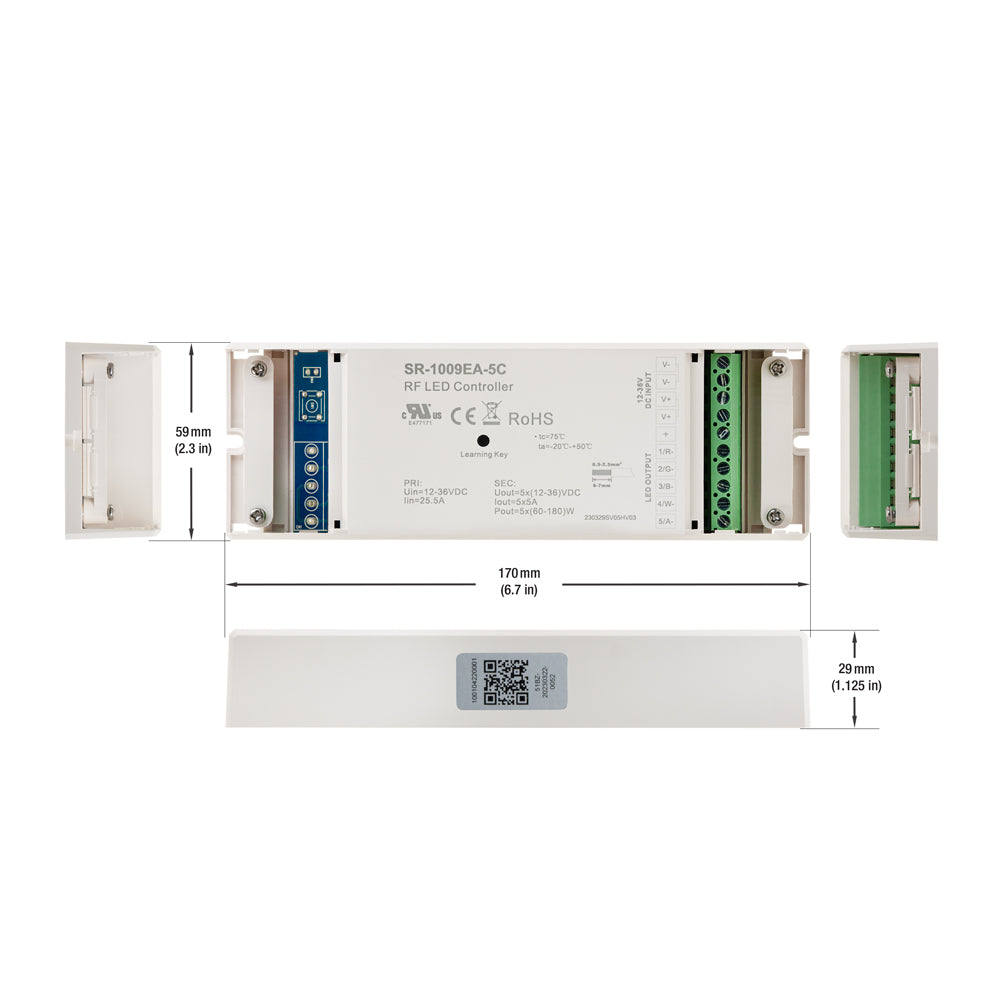

| Dimensions | 170 x 59 x 29mm (6.7 x 2.3 x 1.1in) |
| Certifications |
|
Features:
- The Constant Voltage Receiver SR-1009EA-5C (R-25.5A) is a 5-channel RF LED controller for controlling RGB and dual color LED lighting with a single receiver.
- It has an input voltage of 12-36V DC and an output wattage of 300-900W, with each channel capable of outputting a maximum of 5A.
- The case temperature is rated up to 75℃, and the ambient temperature range for operation is between 20℃ and +50℃.
- The controller is compatible with a variety of mono chrome, dual color, RGB/RGBW, and RGB+CCT RF remotes, and each receiver can be controlled by up to 8 different remotes.
- The controller allows for multiple zones to be controlled separately or synchronously with endless receivers in each zone.
- The brightness of each R, G, B, and W can be adjusted to achieve millions of colors.
- The radio frequency available for use is 869.5/434/916.5MHz.
- The dimensions of the controller are 170 x 59 x 29mm (6.7 x 2.3 x 1.1in).
