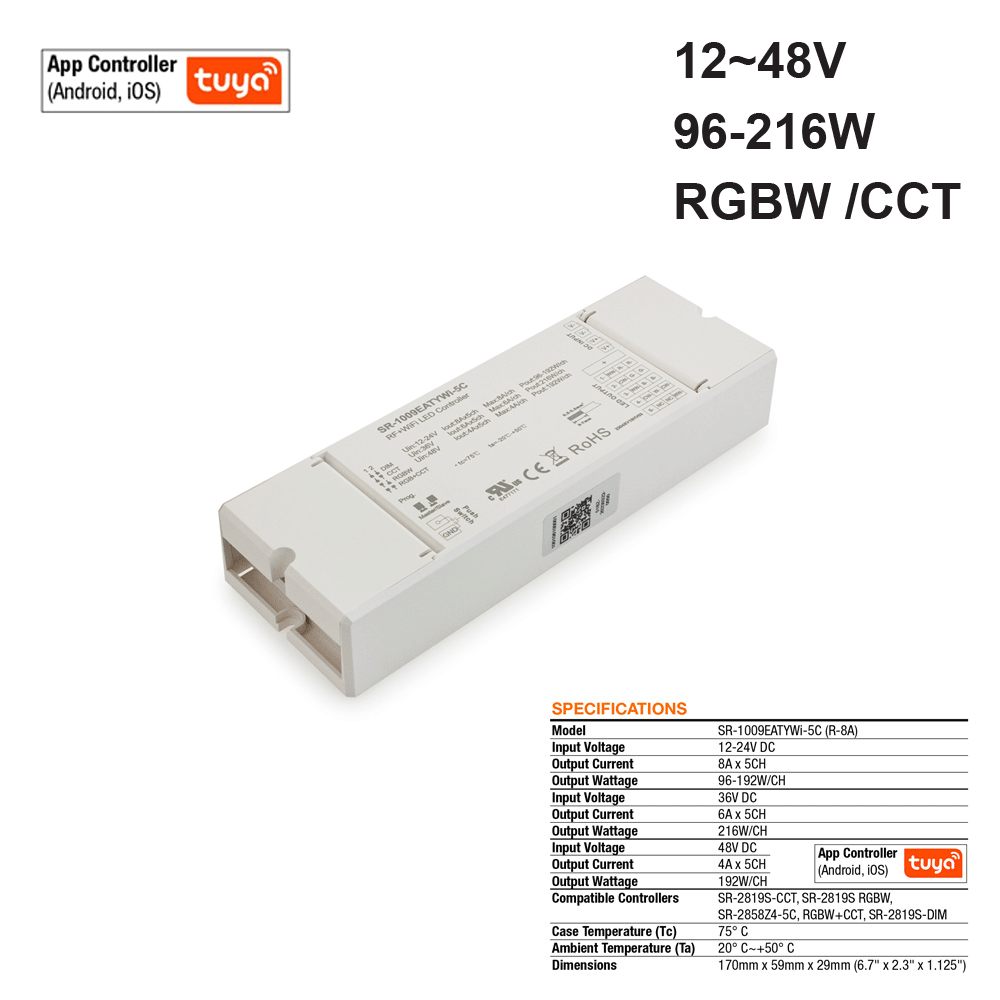

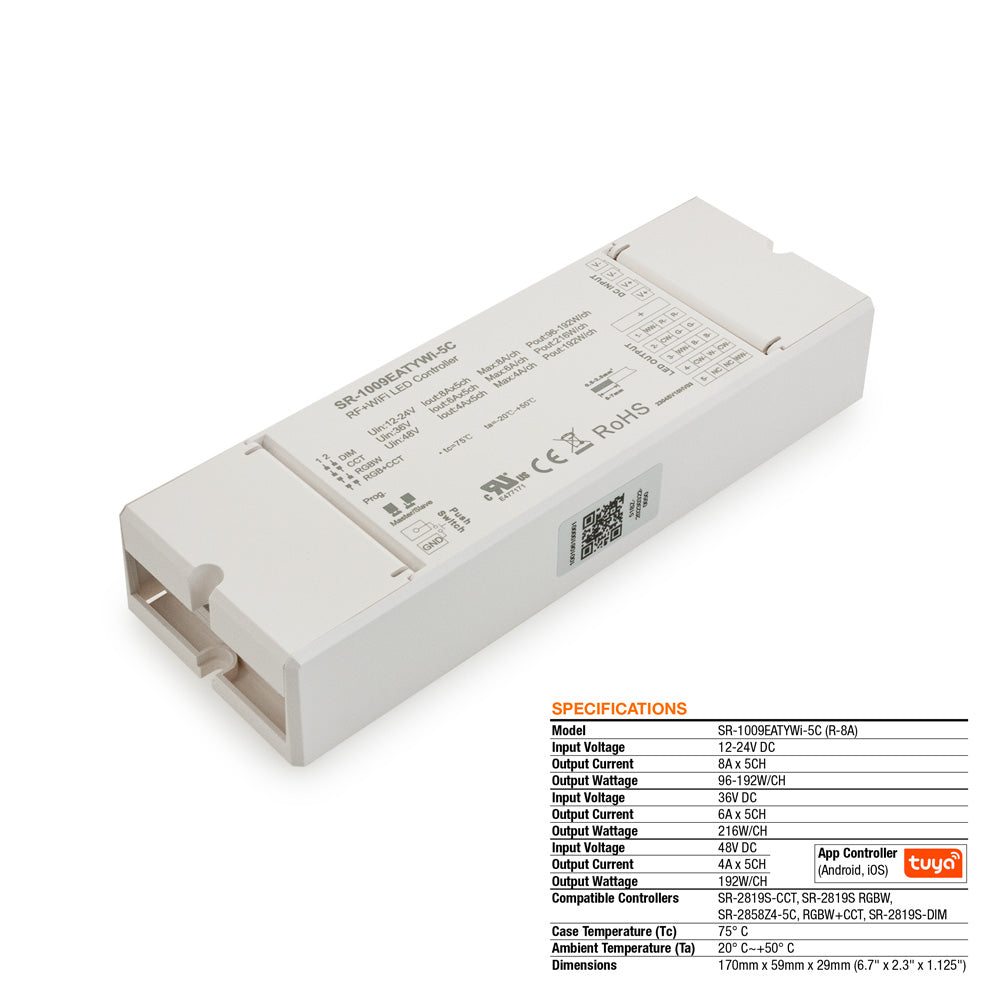

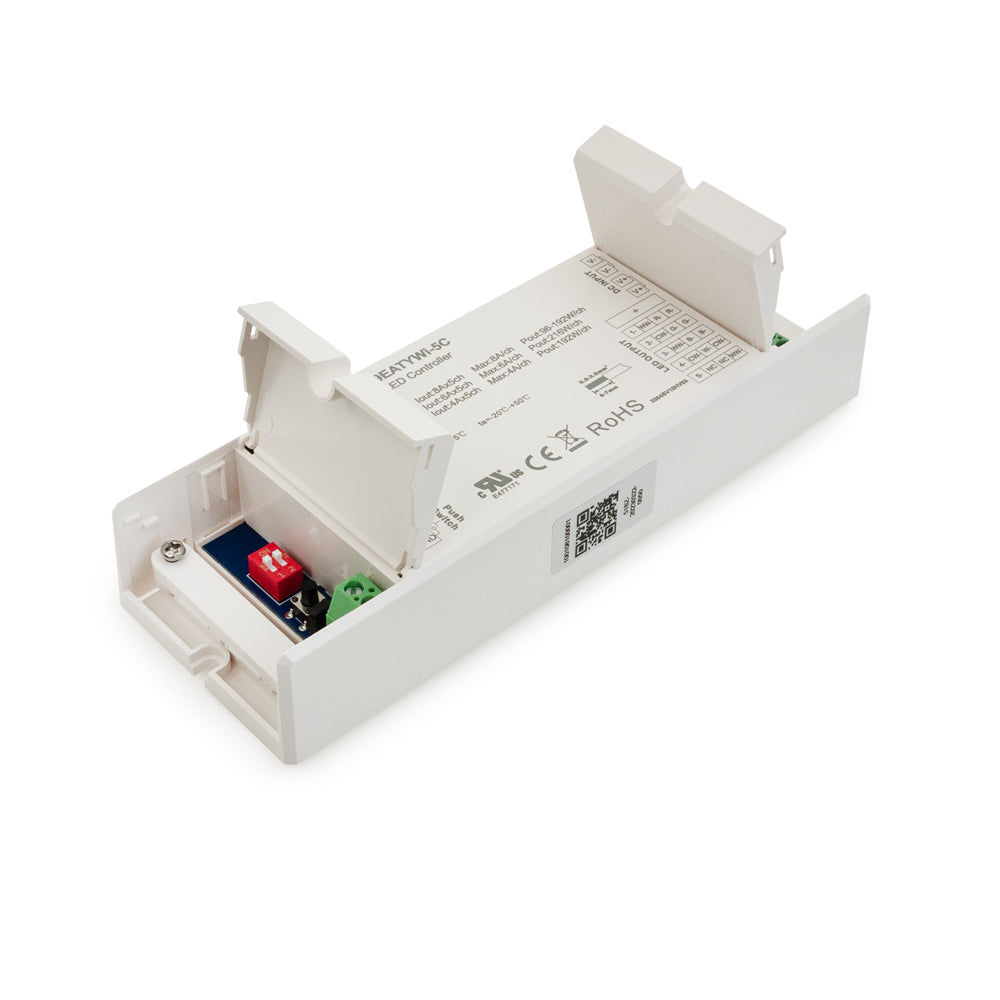

Constant Voltage LED Light Receiver SR-1009EATYWI-5C (R-8A), 12-48V 96-216W/ch

Constant Voltage LED Light Receiver SR-1009EATYWI-5C (R-8A), 12-48V 96-216W/ch

Ask Question!

SKU: SKU:666561430795

Regular price $123.00 USD
Regular price Sale price $123.00 USD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order.

Cart-wide bulk pricing · estimated savings

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 USD or more. Some products are excluded; oversized-item surcharges may apply. Availability is confirmed at checkout.

Available Discounts

Buy more, save more across your cart:

  • 10–24 items: 15% off
  • 25–49 items: 18% off
  • 50+ items: 20% off

Shipping & Return Policy

Please allow an additional 3–4 days beyond the estimated delivery date shown at checkout.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in original packaging. A 30% restocking fee applies; shipping charges and product exclusions also apply.

Complete shipping, return and exclusion policies

View full details

Product Description

Product LED Receiver (Controller)
Model SR-1009EATYWI-5C (R-8A)
Input Voltage
Output Current
Output Wattage
12-24V DC
8A x 5ch
96-192W/ch
Input Voltage
Output Current
Output Wattage
36V DC
6A x 5ch
216W/ch
Input Voltage
Output Current
Output Wattage
48V DC
4A x 5ch
192W/ch
App  Tuya
Android
IOS
Compatible Remote Controllers (Sold Separately) SR-2819S-DIM (R1)
SR-2819S-CCT (R2)
SR-2819S RGBW (R3)
SR-2858Z4-5C RGBW+CCT (R4)
Case Temperature(Tc) 75℃
Ambient Temperature(Ta) 20℃-+50℃

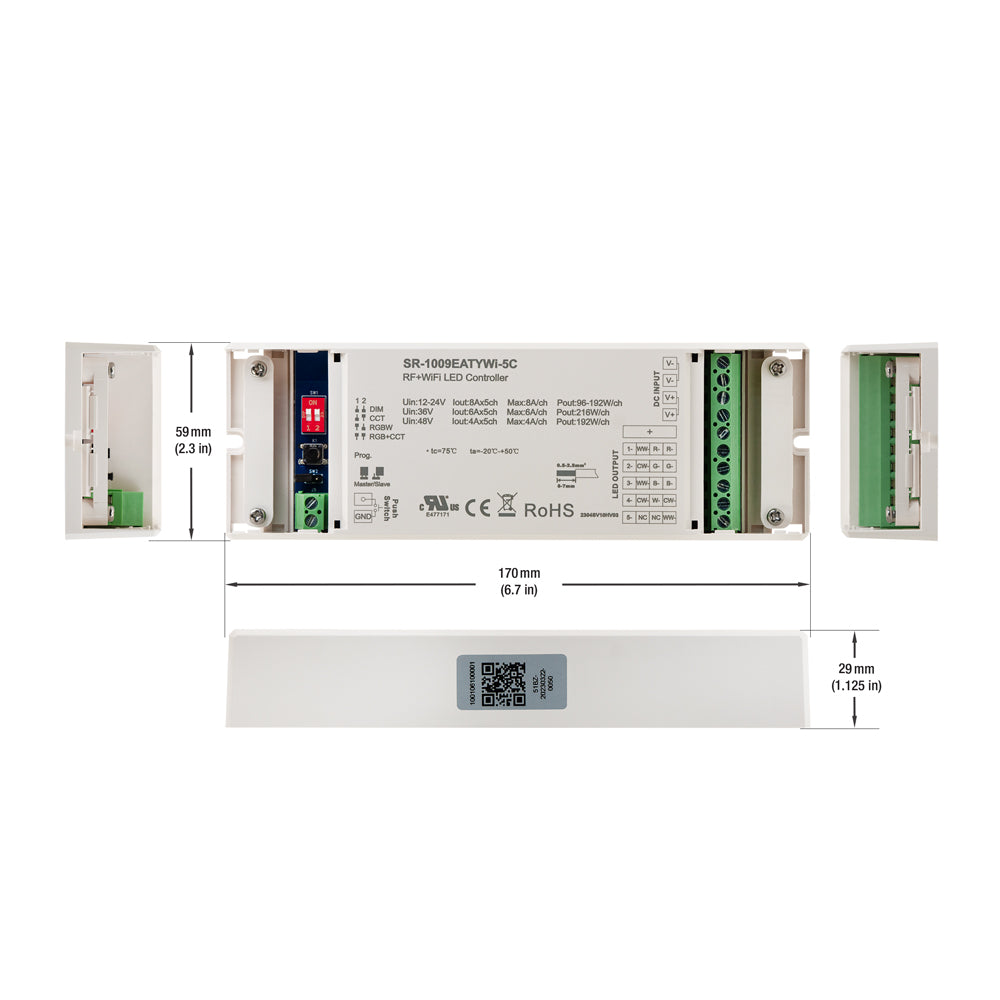

Dimensions 170 X 59 X 29mm (6.7 x 2.3 x 1.1in)
Certifications



Features:

  • The Constant Voltage Receiver SR-1009EATYWI-5C (R-8A) UL is a 5 channel full functional constant voltage RF LED controller.
  • It can operate with an input voltage range of 12-48VDC and deliver a maximum of 5A per channel output.
  • The Receiver can be used to drive RGB and dual color (warm white and cold white) LED lighting with a single receiver while pairing with an RGB & CCT remote.
  • The Receiver is also compatible with mono chrome, dual color, RGB and RGBW LED lighting while pairing with corresponding remote or wall-mounted control.
  • The LED controller is fully compatible with a variety of mono chrome, dual color, RGB/RGBW and RGB+CCT RF remotes.
  • The controller enables multiple zones to be controlled separately or synchronously with endless receivers in each zone, and each receiver can be controlled by a maximum of 8 different remotes.
  • The SR-1009EATYWI-5C (R-8A) can be WiFi controlled by an app installed on iOS or Android mobile devices while working with a WiFi-RF converter.
  • The brightness of each R, G, B, and W can be adjusted to achieve millions of colors.
  • The radio frequency available is 869.5/434/916.5MHz.
  • The LED controller is UL certified and can operate at a case temperature (Tc) of up to 75℃ and ambient temperature (Ta) range of 20℃-+50℃.
