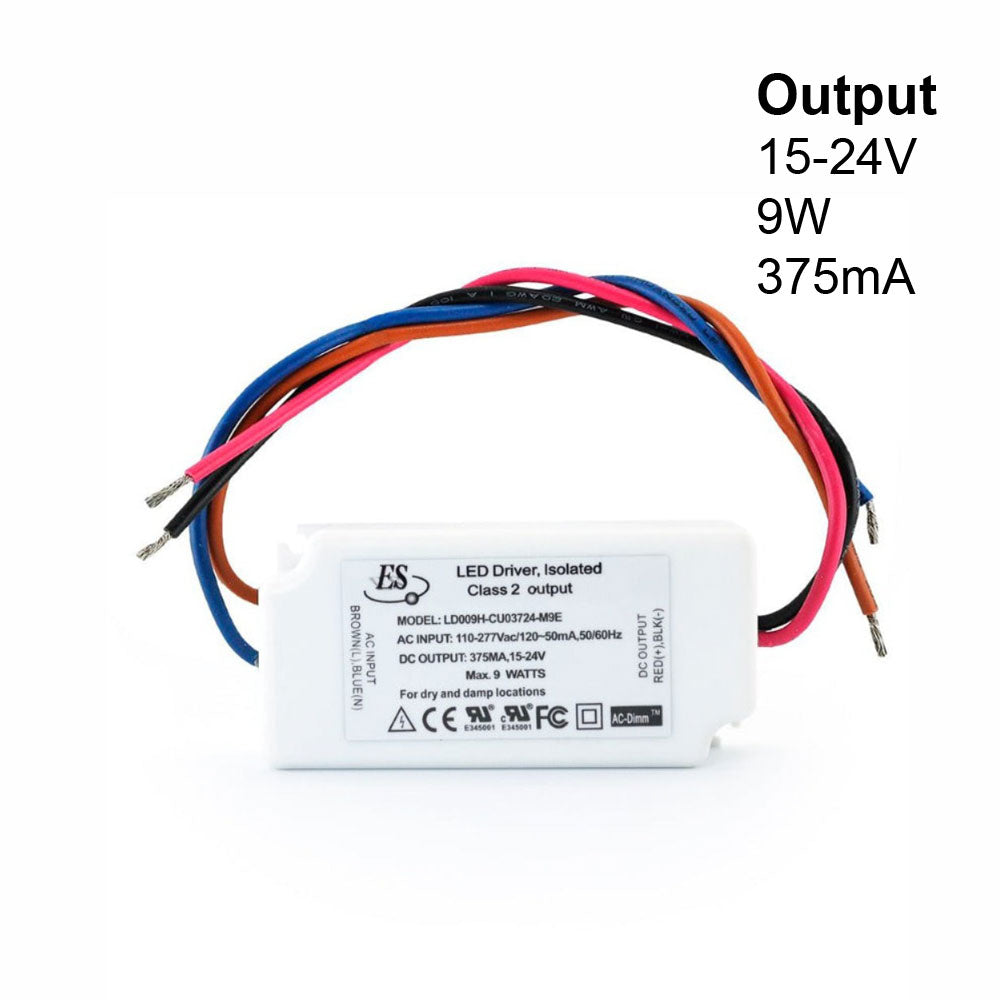

ES LD009H-CU03724-M9E Constant Current LED Driver, 375mA 15-24V 9W
|Product||Constant Current LED Driver|
|Input Voltage||110 - 277V AC|
|Output Voltage||15-24V DC|
|Output Regulated Current||375mA|
|Output Power||9W max|
|Dimensions||70 x 25 x 34.5mm (2.75 x 0.98 x 1.35 in)|
|Class Certification||Class 2/ Class II|
Constant current dimmable LED drivers are used for LED lights that require a fixed output current as well as a variety of output voltages. ES LD009H-CU03724-M9E Dimming LED Constant Current Driver (Constant Current Power Supply) Suitable for lighting with 375mA output regulated current. This class 2 constant current driver has Input Voltage of 110-277V AC, can produce 15-24V DC output voltage and 9W of output power. It is suitable for operation with main supply dimmer and also suitable for dry and damp locations.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
How to Install ES LD009H-CU03724-M9E Dimming Constant Current LED Driver?
It is easy to Install constant current power supply, by following these steps,
1. Make sure power is off.
2. Double check output current of the light and the driver.
3. Blue and Brown color wires will be connected to 110-277V AC by splice the Blue color wire to Neutral (N) and the Brown color Wire to Line (L).
4. Splice Red color wire to the positive (+) wire of the light and Black wire to the negative (-) wire of the light as well.
