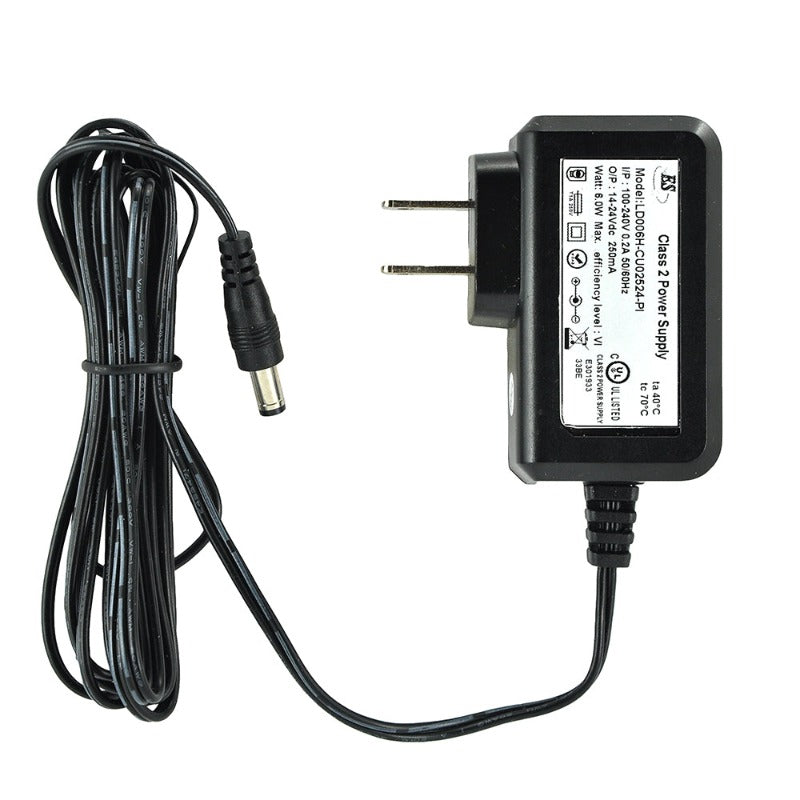

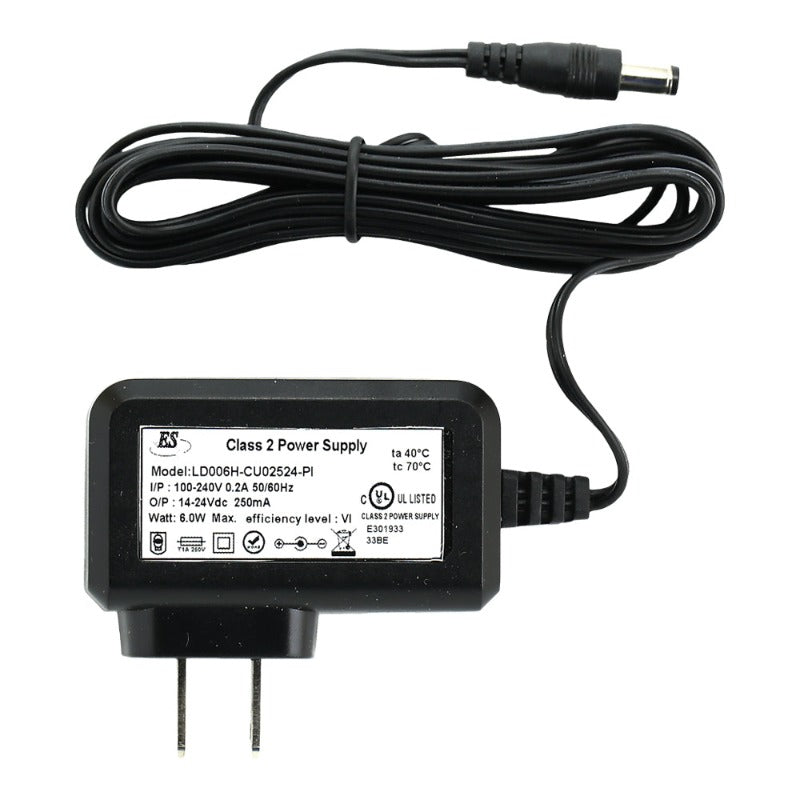

ES LD006H-CU02524-PI Non-Dimmable Constant Current Plug-In LED Driver, 250mA 14-24V 6W max
|Product||Non-dimmable Constant Current LED Driver|
|Input Voltage||100-240V AC|
|Output Regulated Current||250mA|
|Output Voltage||14-24V DC|
|Dimensions||68 x 38 x 26 mm
(2.68 x 1.5 x 1 in)
|Class Certification||Class 2/ Class II|
|Suitable for DRY and DAMP locations|
|Short Circuit Protection|
The ES LD006H-CU02524-PI is a non-dimmable constant current plug-in LED driver that is suitable for use in dry and damp locations. It has an input voltage range of 100-240V AC, input current of 0.2A, and can operate at a frequency of 50/60Hz.
This LED driver has an output regulated current of 250mA and an output power of 6W. It has an output voltage range of 14-24V DC, which makes it suitable for powering LED lighting systems that require constant current output.
The LD006H-CU02524-PI LED driver has dimensions of 68 x 38 x 26 mm (2.68 x 1.5 x 1 in) and is Class 2/Class II certified, which provides double insulation protection and ensures safe operation in applications where contact with electrical conductors is possible.
It is also equipped with short circuit protection, which protects the LED lighting system from damage in case of faults. The LD006H-CU02524-PI LED driver is non-dimmable, meaning that it cannot be used to adjust the brightness of the connected LED lights.
- Non-dimmable constant current plug-in LED driver
- Input voltage range: 100-240V AC, input current of 0.2A, frequency of 50/60Hz
- Output regulated current of 250mA and output power of 6W
- Output voltage range of 14-24V DC for constant current output to LED lighting systems
- Dimensions of 68 x 38 x 26 mm (2.68 x 1.5 x 1 in)
- Class 2/Class II certified for double insulation protection and safe operation in applications with electrical conductors
- Suitable for use in dry and damp locations
- Equipped with short circuit protection to prevent damage to LED lighting system in case of faults
