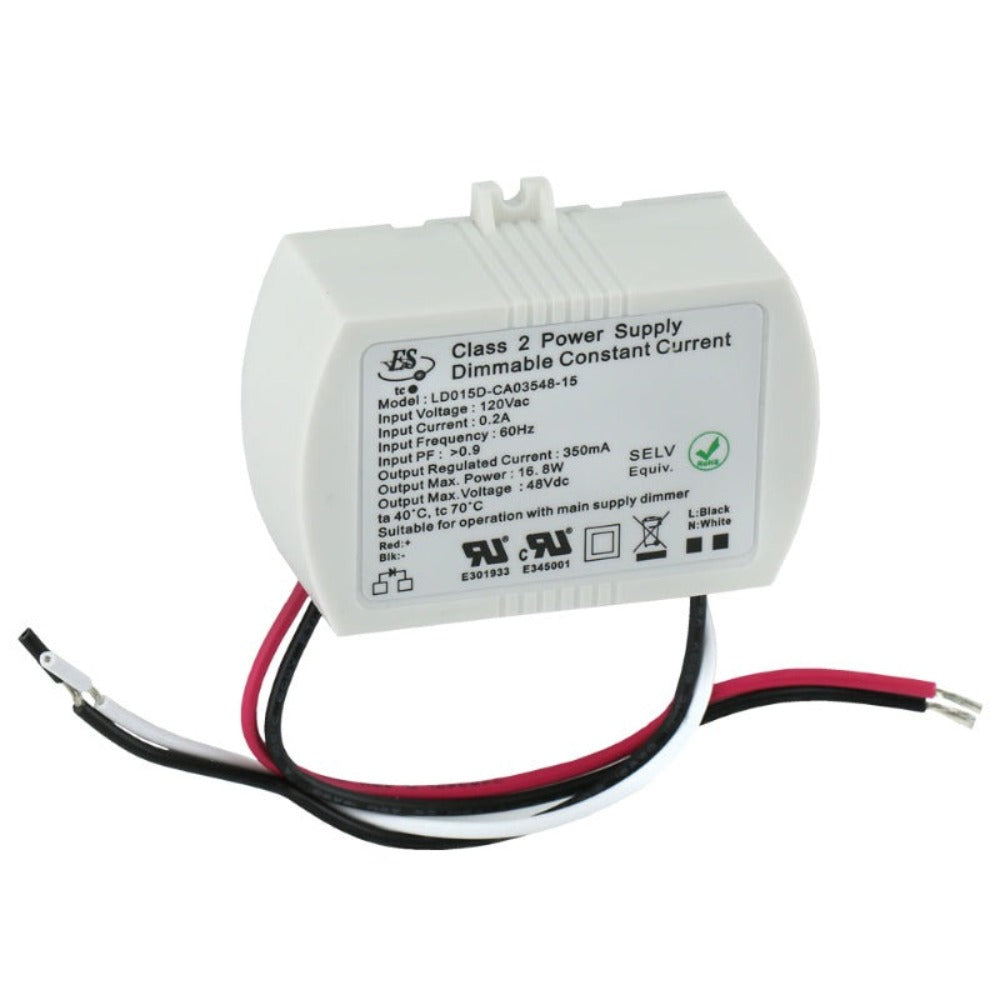

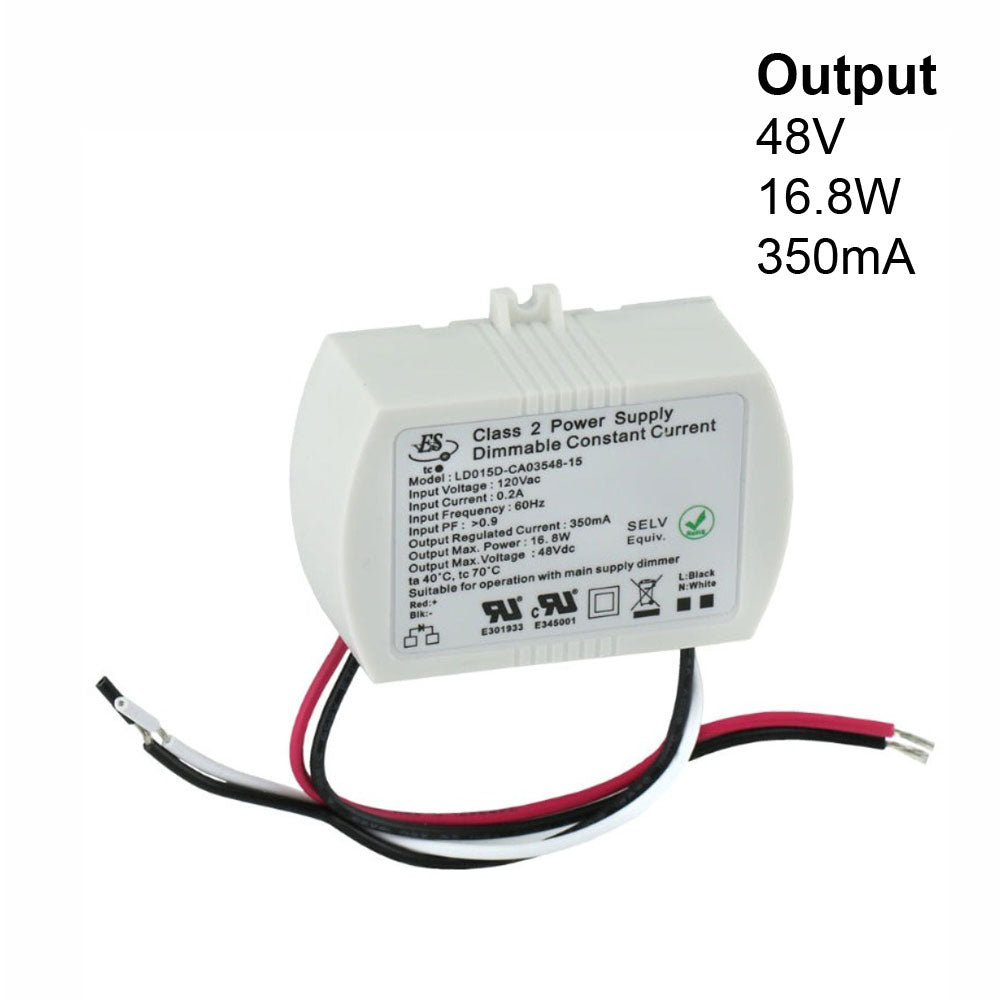

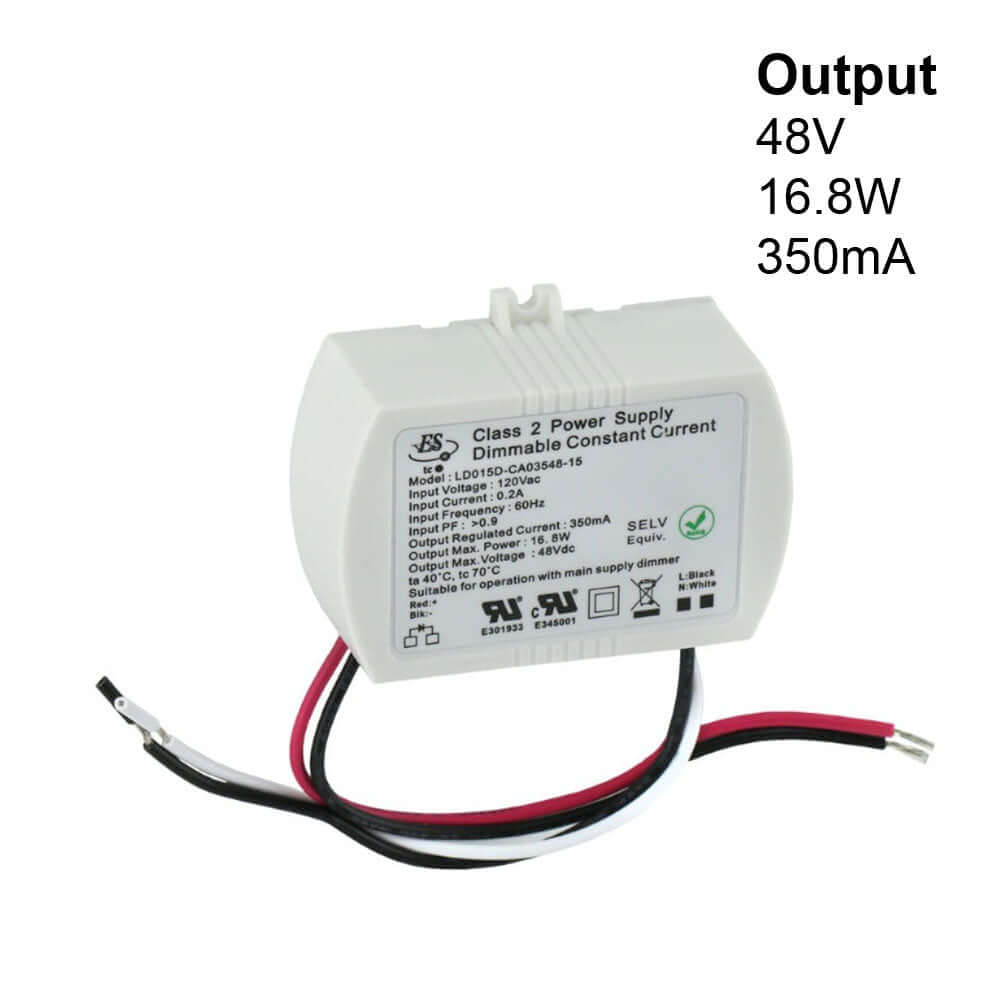

ES LD015D-CA03548-15 Constant Current LED Driver, 350mA 48V 16.8W max
|Product||Constant Current LED Driver|
|Input Voltage||120V AC|
Output Regulated Current
|Output Voltage||48V DC|
|Dimensions||85 x 55 x 35 mm (3.5 x 2.25 x 1.4 in)|
|Class Certification||Class 2/ Class II|
The ES LD015D-CA03548-15 is a constant current LED driver that is designed to regulate and provide a constant output current of 350mA. This LED driver is suitable for powering LED lighting fixtures that require a constant current supply. The model LD015D-CA03548-15 has an input voltage rating of 120V AC with an input current of 0.2A, and a frequency rating of 60Hz.
The output voltage of the driver is 48V DC, and the maximum output power that can be provided is 16.8W. The driver is also dimmable, which means that it can be adjusted to provide different levels of light output according to the user's requirements.
The LD015D-CA03548-15 driver has a compact size with dimensions of 85 x 55 x 35 mm (3.5 x 2.25 x 1.4 in), making it easy to install in various lighting applications. The driver is certified as Class 2 or Class II, which means it meets safety standards for use in low-voltage lighting systems.
Overall, the ES LD015D-CA03548-15 Constant Current LED Driver is a reliable and efficient solution for powering LED lighting systems, providing a constant current supply, and supporting dimming functionality.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
- The ES LD015D-CA03548-15 is a constant current LED driver designed to provide a regulated output current of 350mA, suitable for powering LED lighting fixtures that require a constant current supply.
- The input voltage rating for this model is 120V AC, with an input current of 0.2A and a frequency rating of 60Hz.
- The driver has an output voltage of 48V DC, with a maximum output power of 16.8W, making it compatible with a wide range of LED lighting fixtures.
- The LD015D-CA03548-15 driver is also dimmable, allowing the user to adjust the brightness of the LED lights to suit their needs.
- With its compact size of 85 x 55 x 35 mm (3.5 x 2.25 x 1.4 in), the driver is easy to install in various lighting applications.
- The driver is certified as Class 2 or Class II, ensuring that it meets safety standards for use in low-voltage lighting systems.
- Overall, the ES LD015D-CA03548-15 Constant Current LED Driver is a reliable and efficient solution for powering LED lighting systems, providing a constant current supply, and supporting dimming functionality.
How to Install ES LD015D-CA03548-15 Dimming Constant Current LED Driver?
Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.
Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.
Mount the driver: Use screws to mount the driver on a solid surface.
Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))
Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))
Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.
Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.
Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
