ES LD015D-CA04736-15 Constant Current LED Driver, 470mA 36V 16.8W Max

  • $52.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561412197
Title:
We only have 54 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

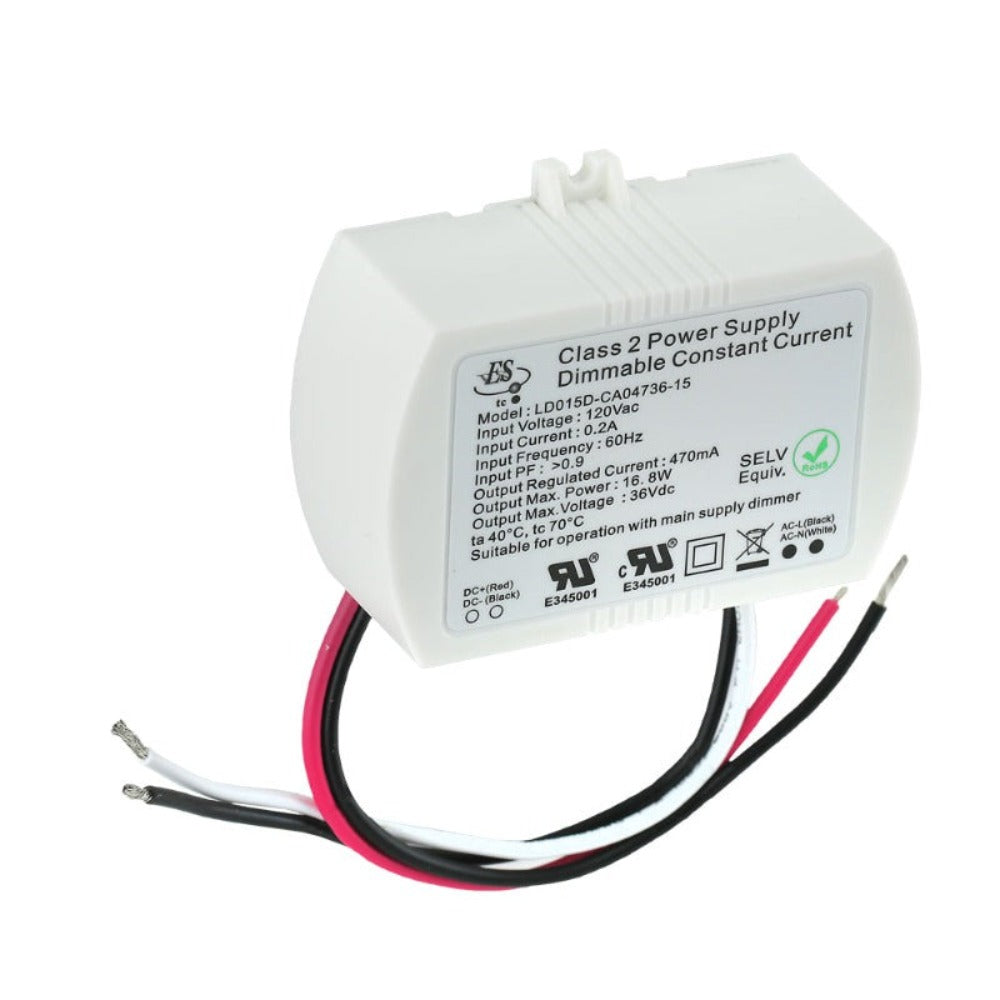

Product Constant Current LED Driver
Model LD015D-CA04736-15
Input Voltage 120V AC
Input Current 0.2A
Frequency 60 Hz
Power Factor P.F>0.9

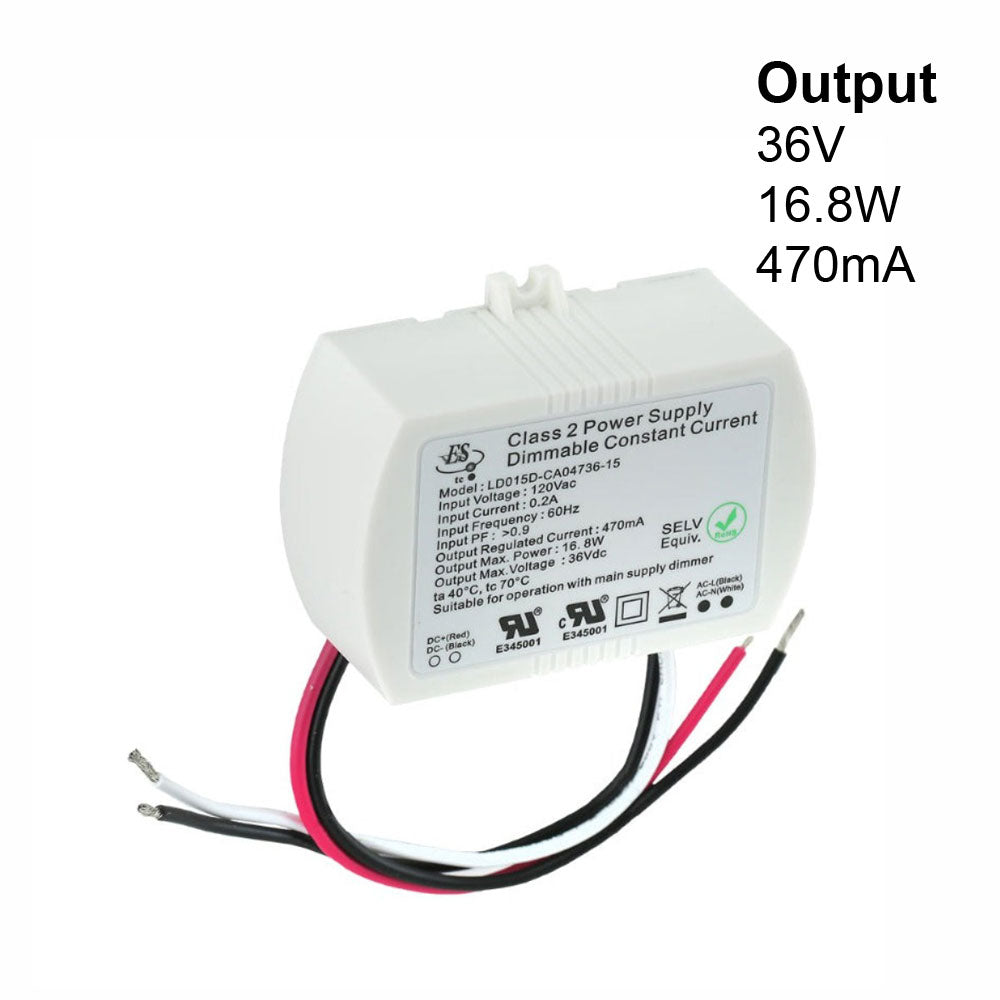

Output Regulated Current 470mA
Output Power 16.8W
Output Voltage 36V DC
Class Certification Class 2/ Class II

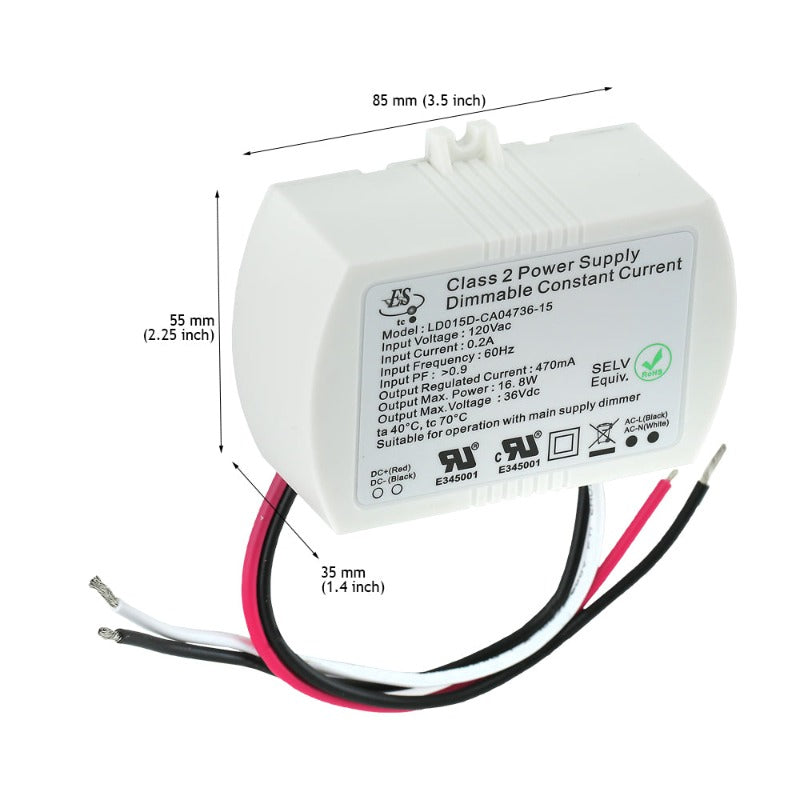

Dimensions 85 x 55 x 35 mm (3.5 x 2.25 x 1.4 in)
Certification


The ES LD015D-CA04736-15 is a constant current LED driver designed to power LED lighting fixtures that require a constant current supply. This driver model features an input voltage rating of 120V AC and an input current of 0.2A with a frequency rating of 60Hz. Additionally, it has a high power factor of P.F>0.9, which means that it operates efficiently, reducing energy consumption and costs.

The output voltage of the driver is 36V DC, and the maximum output power that can be provided is 16.8W, with a regulated output current of 470mA. The driver is certified as Class 2 or Class II, which means it meets safety standards for use in low-voltage lighting systems.

Features:

  • The ES LD015D-CA04736-15 is a constant current LED driver designed for LED lighting fixtures that require a constant current supply.
  • It has an input voltage rating of 120V AC and an input current of 0.2A with a frequency rating of 60Hz.
  • The driver has a high power factor of P.F>0.9, which reduces energy consumption and costs.
  • The output voltage is 36V DC, with a maximum output power of 16.8W and a regulated output current of 470mA.
  • The LD015D-CA04736-15 is certified as Class 2 or Class II, meeting safety standards for use in low-voltage lighting systems.
  • It has a compact size with dimensions of 85 x 55 x 35 mm (3.5 x 2.25 x 1.4 in).
  • Overall, it is a reliable and efficient solution for powering LED lighting systems and ensuring safe and efficient operation of connected LED lighting fixtures.

How to Install ES LD015D-CA07024-15 Dimming Constant Current LED Driver?

  1. Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.

  2. Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.

  3. Mount the driver: Use screws to mount the driver on a solid surface.

  4. Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))

  5. Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))

  6. Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.

  7. Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.

Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
