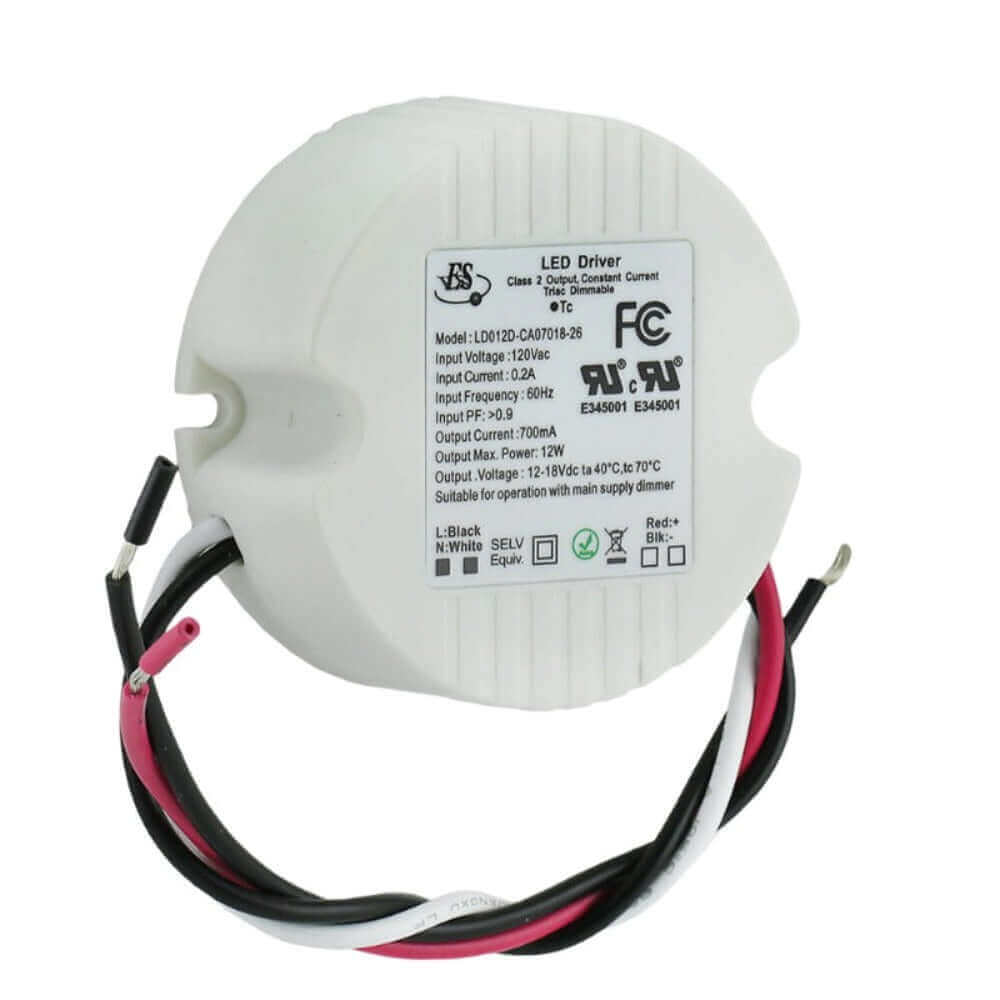

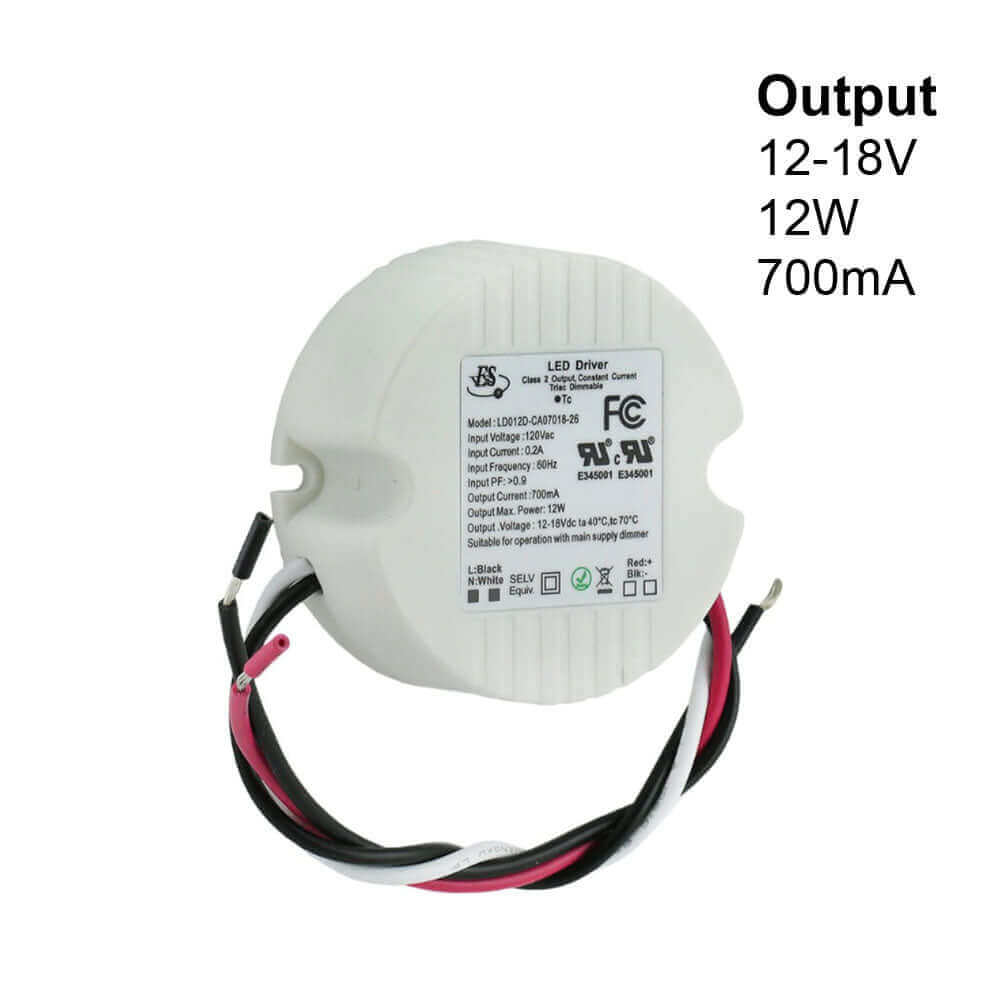

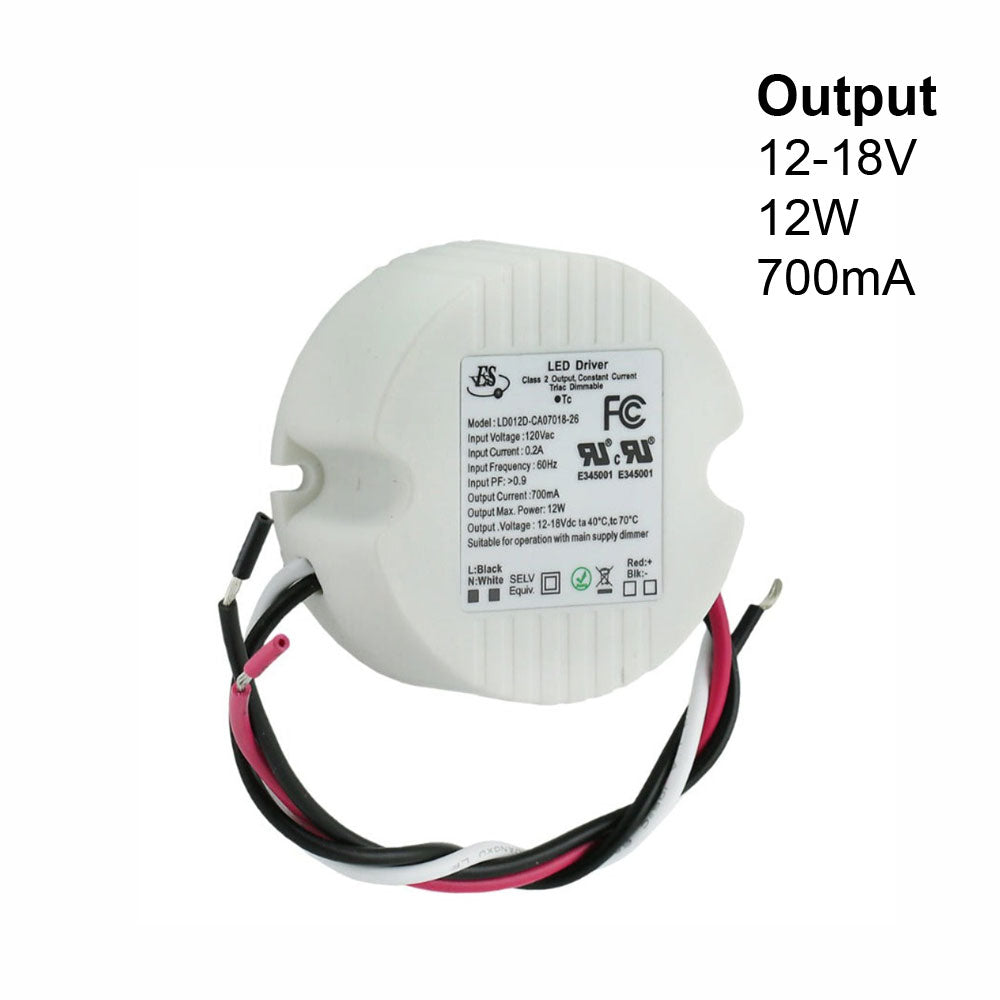

ES LD012D-CA07018-26 Constant Current LED Driver, 700mA 12-18V 12W max
|Product||Constant Current LED Driver|
|Input Voltage||120V AC|
|Output Voltage||12-18V DC|
|Output Regulated Current||700 mA|
|Output Power||12W max|

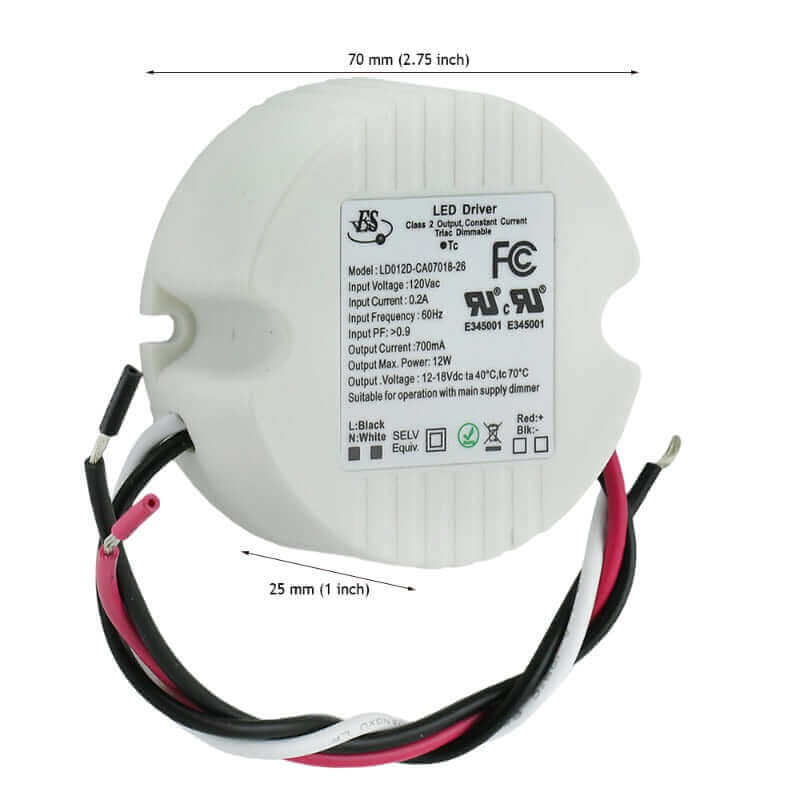

|Dimensions||70mm (2.75 in) Dia x 25mm (1 in) Depth|
|Class Certification||Class 2/ Class II|
The ES LD012D-CA07018-26 is a Constant Current LED Driver designed to power LED lighting systems. It features an input voltage of 120V AC with an input current of 0.2A and a frequency of 60Hz. With a power factor of >0.9, this LED driver offers high energy efficiency and helps to reduce energy consumption.
The LD012D-CA07018-26 is capable of delivering an output regulated current of 700mA with an output power of 12W max. It can operate with an output voltage of 12-18V DC, making it suitable for a range of LED lighting applications.
This LED driver is also dimmable, providing the flexibility to adjust the brightness of the LED lighting system as desired. Its dimensions are 70mm (2.75 in) in diameter and 25mm (1 in) in depth, making it a compact and space-saving option for LED lighting installations.
The LD012D-CA07018-26 is certified as Class 2/ Class II, indicating that it has been tested and meets safety standards for use in indoor lighting applications.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
- The ES LD012D-CA07018-26 is a Constant Current LED Driver designed for LED lighting systems.
- It has an input voltage of 120V AC and an input current of 0.2A with a frequency of 60Hz.
- The LED driver has a power factor of >0.9, providing high energy efficiency and reducing energy consumption.
- It can deliver a regulated output current of 700mA and a maximum output power of 12W.
- The driver can operate with an output voltage of 12-18V DC, making it suitable for a range of LED lighting applications.
- The LED driver is dimmable, providing flexibility to adjust the brightness of the LED lighting system.
- It has a compact circular design with dimensions of 70mm (2.75 in) in diameter and 25mm (1 in) in depth.
- The LD012D-CA07018-26 is certified as Class 2/ Class II, ensuring that it meets safety standards for indoor lighting applications.
How to Install ES LD012D-CA07018-26 Dimming Constant Current LED Driver?
Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.
Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.
Mount the driver: Use screws to mount the driver on a solid surface.
Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))
Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))
Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.
Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.
Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
