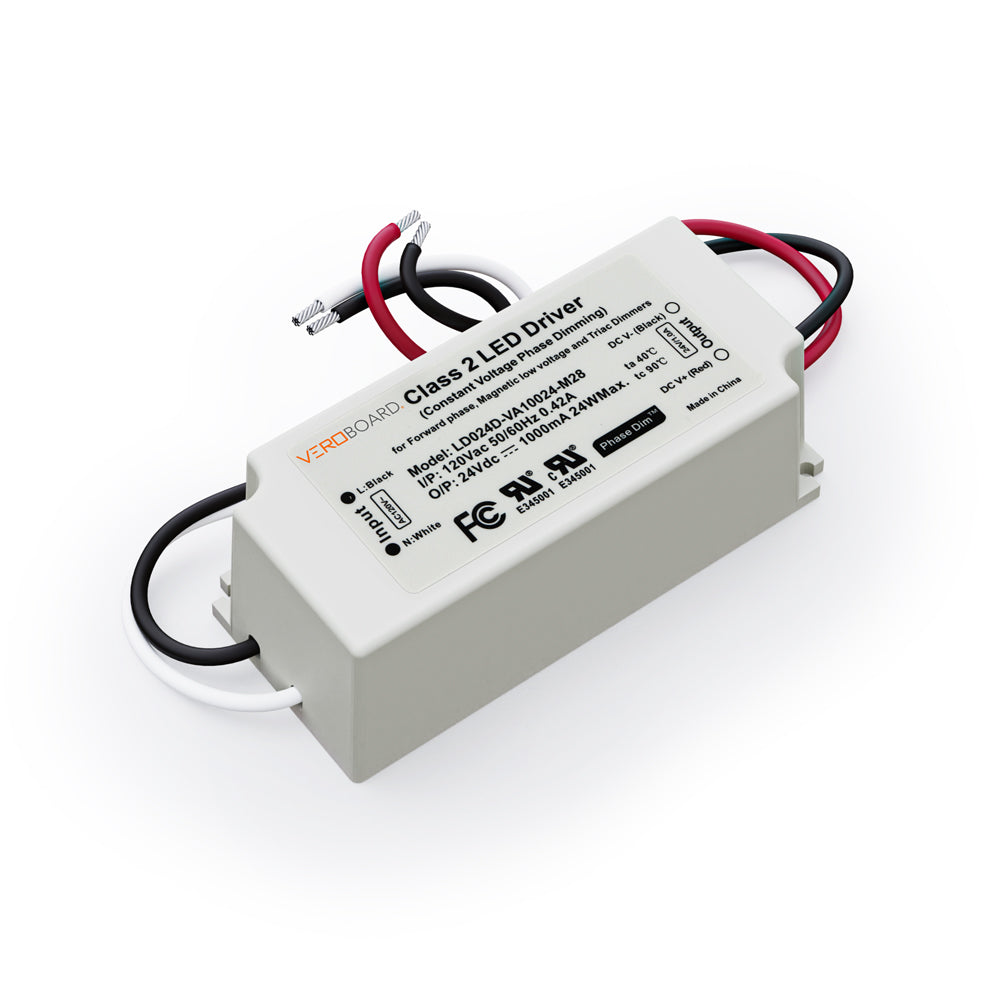

ES LD024D-VA10024-M28 J-Box triac dimmable Constant Voltage LED Driver, 24V 1A 24W

  • $48.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561418144
Title:
We only have 29 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

Model LD024D-VA10024-M28
Input voltage 120V AC

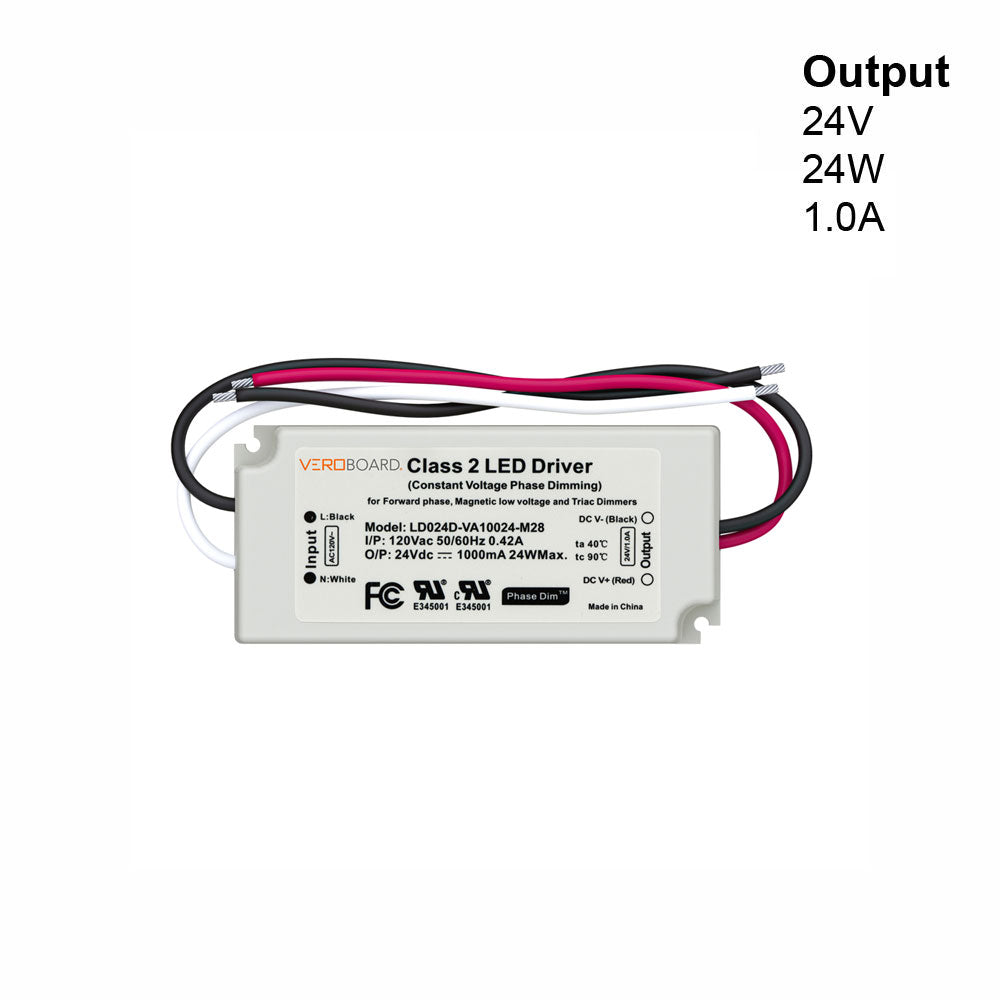

Output voltage 24V DC
Input current 0.42A
Frequency 50/60Hz
Output regulated current 1000mA
Output max Power 24W max
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
Dimmable Yes (Forward Phase, MLV, Triac)
IP Rating IP20

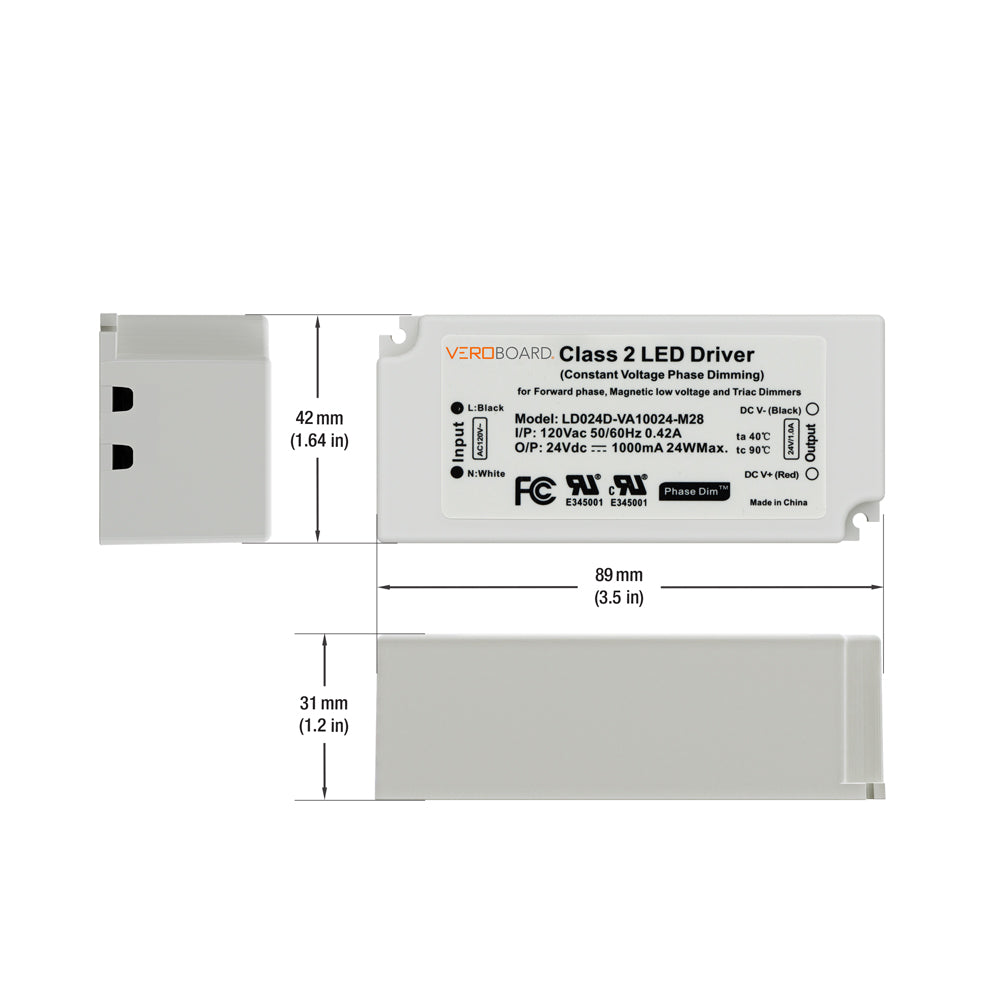

Dimensions 88.5 x 30.5 x 41.39mm (3.48 x 1.2 x 1.63in)
Certification
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers
Applicable for Dry and Damp locations



The ES LD024D-VA10024-M28 is a constant voltage LED driver that is designed for use with LED lighting fixtures. The model number of the driver is LD024D-VA10024-M28, and it is dimmable using forward phase, MLV, and Triac dimming methods. The input voltage of the driver is 120V AC, and it has an input current of 0.42A. The frequency of the driver is 50/60Hz.

The driver produces an output voltage of 24V DC, and it can regulate the output current at a maximum of 1000mA. The maximum power output of the driver is 24W. The driver has an IP20 rating, which means it is protected against solid objects greater than 12.5mm in diameter but is not protected against the ingress of water.

The driver has a case temperature (Tc) of 90°C and can operate in ambient temperatures (Ta) of up to 40°C. It has dimensions of 88.5 x 30.5 x 41.39mm (3.48 x 1.2 x 1.63in) and is FCC certified, indicating that it meets regulatory requirements for use in North America.

Features:

  • Model number: LD024D-VA10024-M28
  • Designed for use with LED lighting fixtures
  • Dimming methods: forward phase, MLV, and Triac
  • Input voltage: 120V AC, input current: 0.42A, frequency: 50/60Hz
  • Output voltage: 24V DC, maximum output current: 1000mA, maximum power output: 24W
  • IP20 rated: protected against solid objects >12.5mm in diameter, not protected against water ingress
  • Case temperature (Tc): 90°C, ambient temperature (Ta) range: up to 40°C
  • Dimensions: 88.5 x 30.5 x 41.39mm (3.48 x 1.2 x 1.63in)
  • FCC certified: meets regulatory requirements for use in North America
