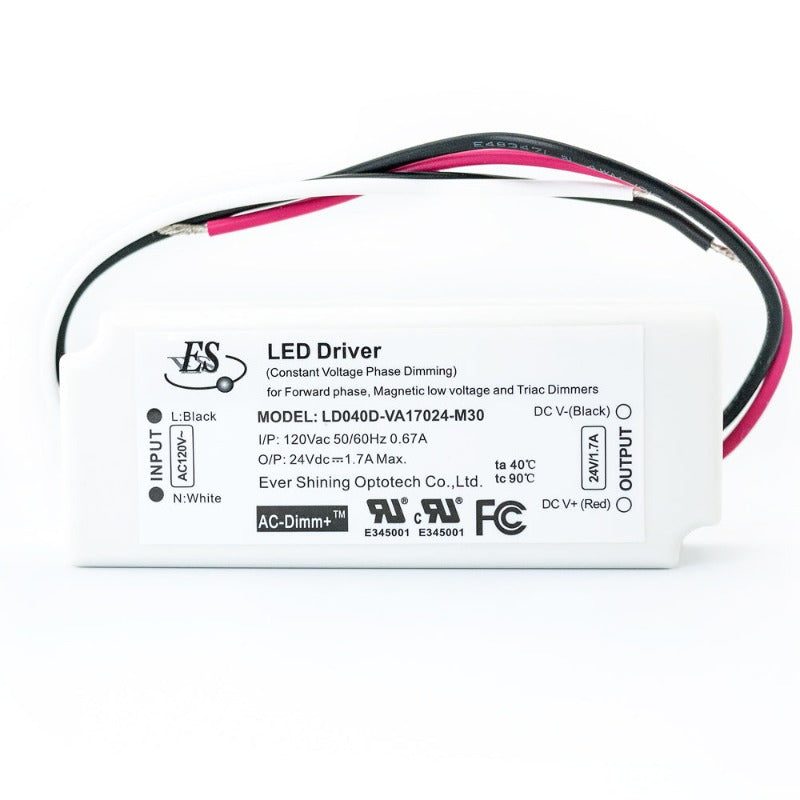

ES LD040D-VA17024-M30 SQJ-Box Triac Dimmable Constant Voltage LED Driver, 24V 1.7A 40W

  • $59.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561418168
Title:
We only have 385 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Model LD040D-VA17024-M30
Input Voltage 120V AC
Input Current 0.67A
Frequency 50/60Hz

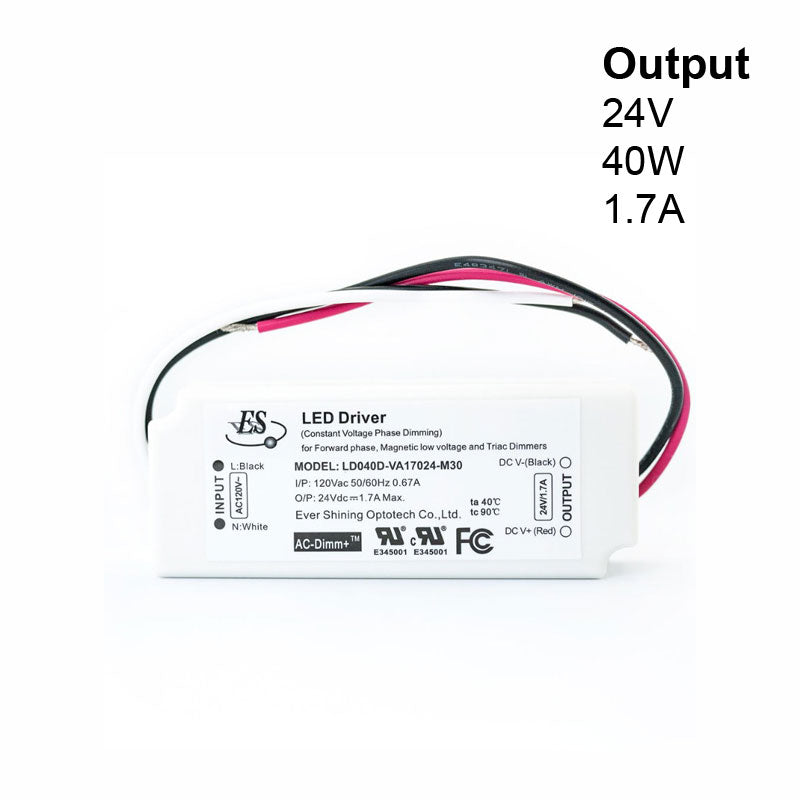

Output Voltage 24V DC
Output regulated Current 1.7A
Output Power 40W max
Ambient Temperature (Ta) 40°C
Case temperature (Tc) 90°C
Dimmable Yes (Forward Phase, MLV, Triac)
IP Rating IP20

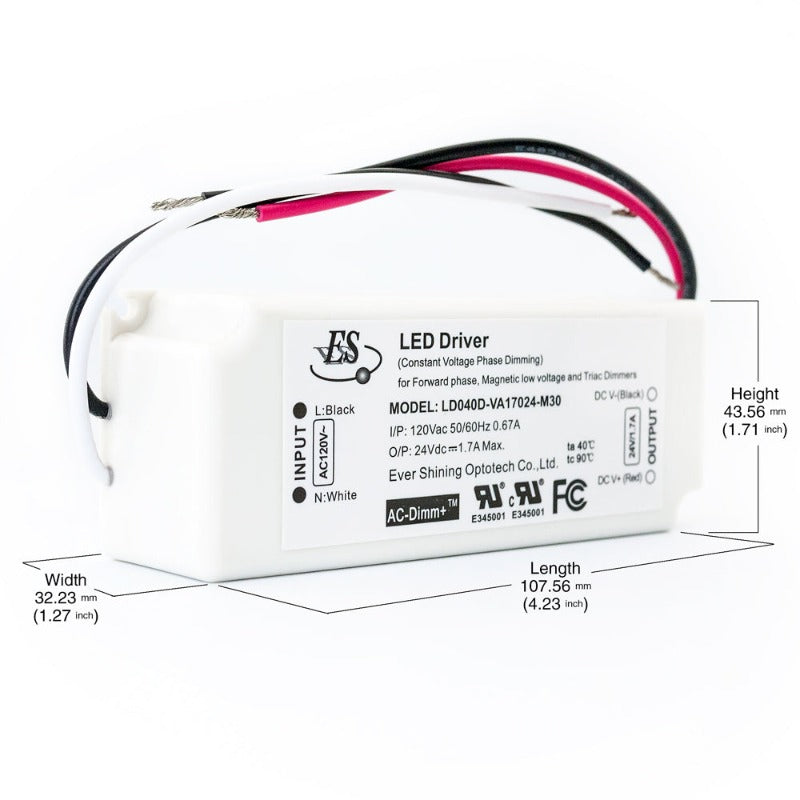

Dimensions 107.56 x 32.23 x 43.56mm (4.23 x 1.27 x 1.71in)
Certifications

Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers
Applicable for Dry and Damp locations



The ES LD040D-VA17024-M30 is a constant voltage LED driver designed for use with LED lighting fixtures. The model number of the driver is LD040D-VA17024-M30, and it is dimmable using phase/triac dimming methods. The input voltage of the driver is 120V AC, and it has an input current of 0.67A. The frequency of the driver is 50/60Hz.

The driver produces an output voltage of 24V DC, and it can regulate the output current at a maximum of 1.7A. The maximum power output of the driver is 40W. The driver has an IP20 rating, which means it is protected against solid objects greater than 12.5mm in diameter but is not protected against the ingress of water.

The driver has a case temperature (Tc) of 90°C and can operate in ambient temperatures (Ta) of up to 40°C. It has dimensions of 107.56 x 32.23 x 43.56mm (4.23 x 1.27 x 1.71in) and is FCC certified, indicating that it meets regulatory requirements for use in North America.

Features:

  • Model number: LD040D-VA17024-M30
  • Designed for use with LED lighting fixtures
  • Dimming methods: phase/triac
  • Input voltage: 120V AC, input current: 0.67A, frequency: 50/60Hz
  • Output voltage: 24V DC, maximum output current: 1.7A, maximum power output: 40W
  • IP20 rated: protected against solid objects >12.5mm in diameter, not protected against water ingress
  • Case temperature (Tc): 90°C, ambient temperature (Ta) range: up to 40°C
  • Dimensions: 107.56 x 32.23 x 43.56mm (4.23 x 1.27 x 1.71in)
  • FCC certified: meets regulatory requirements for use in North America
