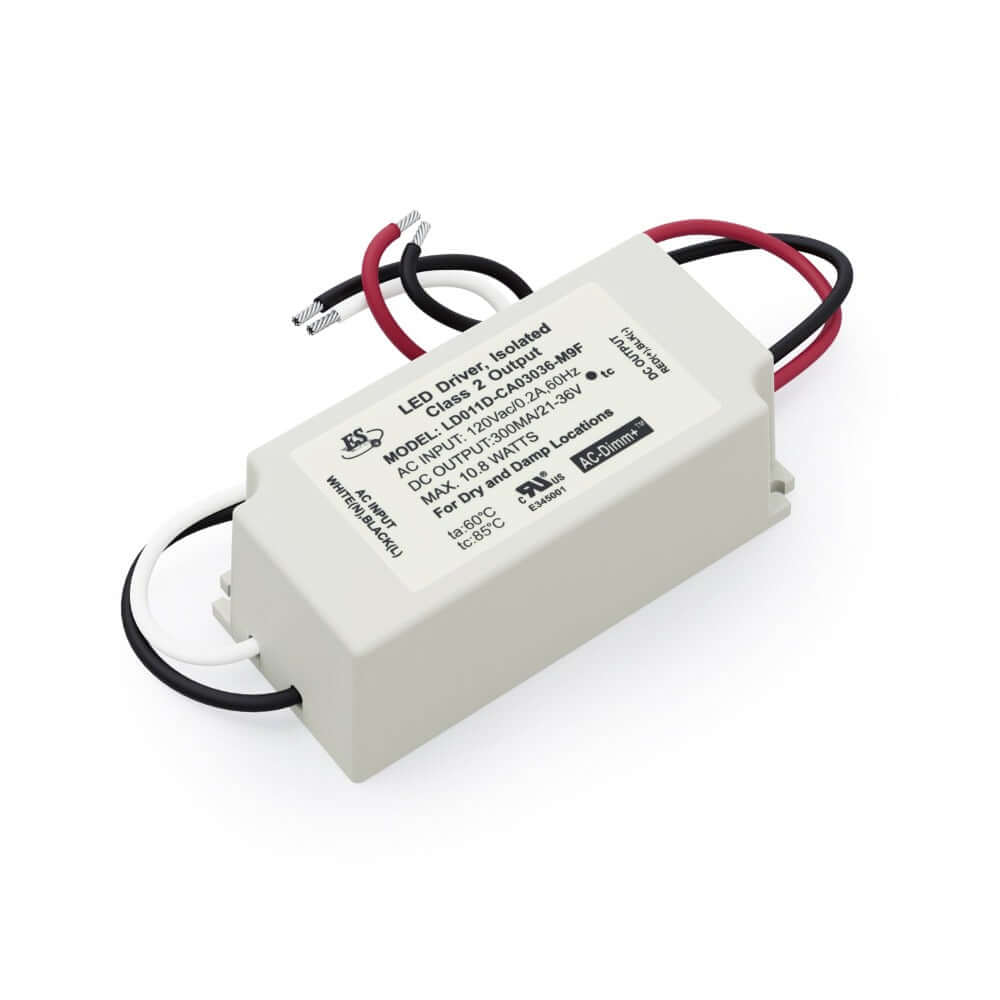

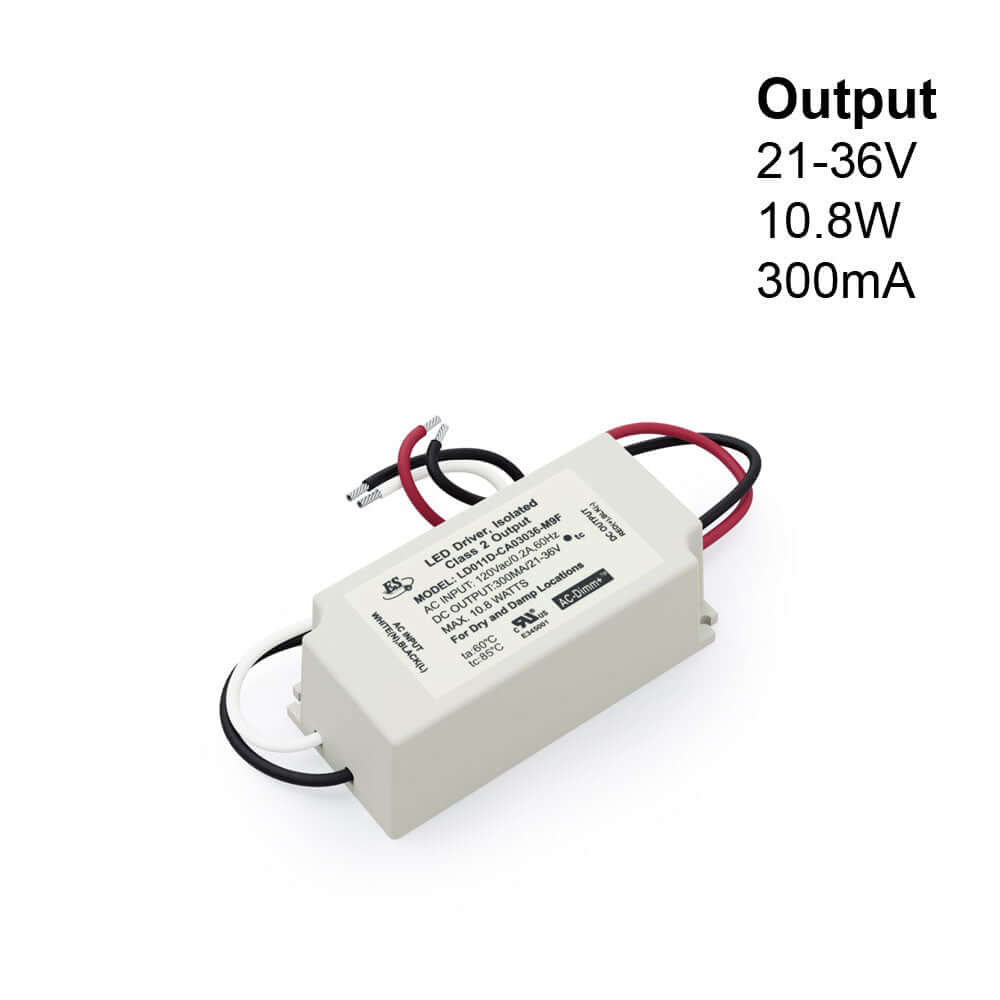

ES LD011D-CA03036-M9F (LD009D-CU03036-M9) Constant Current LED Driver, 300mA, 21-36V 10.8W

  • $49.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428273
We only have 78 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Product Constant Current LED Driver
Model LD011D-CA03036-M9F
(LD009D-CU03036-M9)
Input Voltage 120V AC
Output Voltage 21-36V DC
Output Regulated Current 300mA
Input Current 0.2A
Output Power 10.8W max
Input Frequency 60Hz
Dimmable Yes

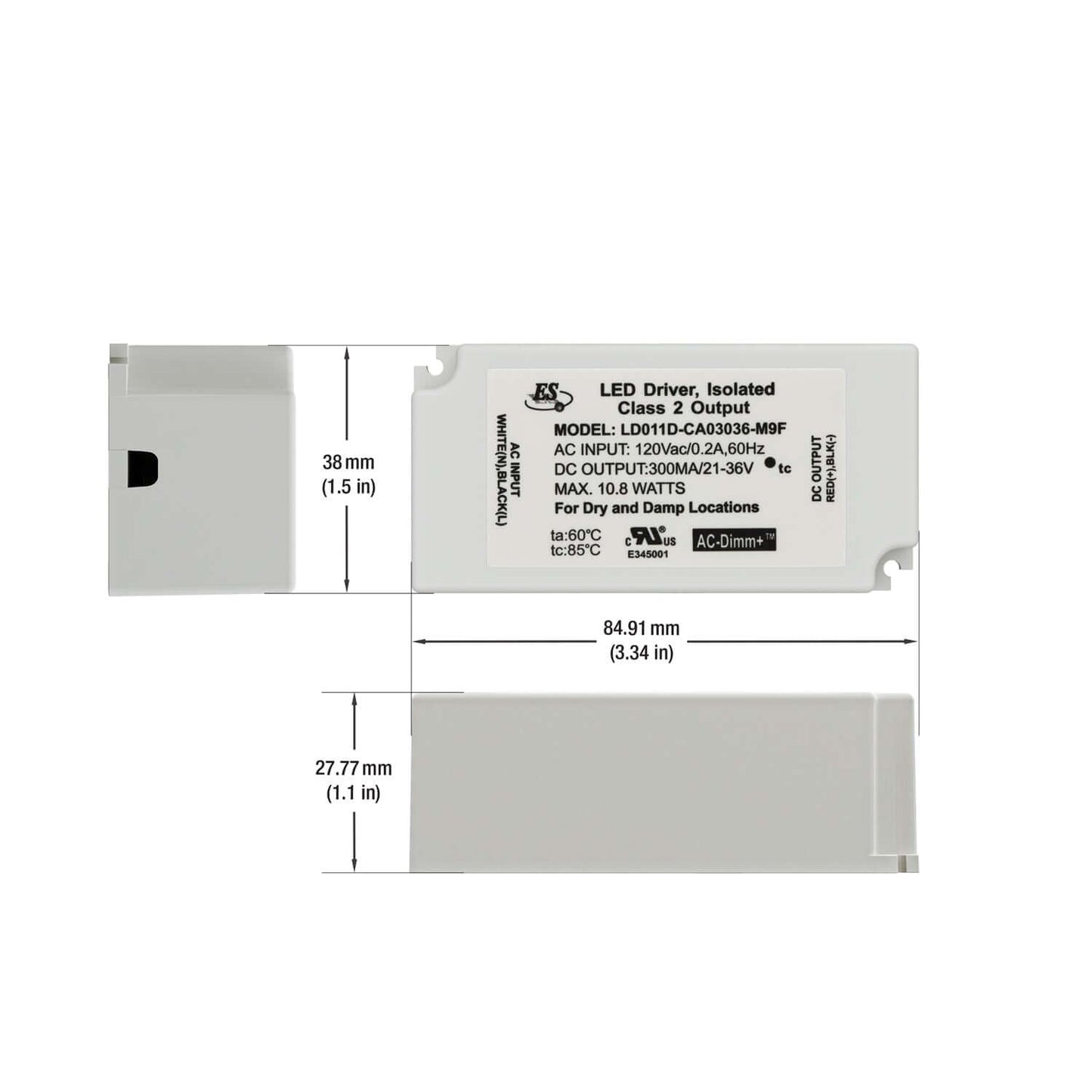

Dimensions 84.9 x 38 x 27.7mm (3.3 x 1.5 x 1.1in)
Class Certification Class 2
Certification



The LD011D-CA03036-M9F (also known as LD009D-CU03036-M9) is a Constant Current LED Driver designed to power and regulate LED lighting systems. Its model number is LD011D-CA03036-M9F, and it can provide a regulated current output of 300mA with an output voltage range of 21-36V.

The input voltage range for this driver is 120V AC, and it can operate with an input current of 0.2A and an input frequency of 60Hz. The maximum output power of this driver is 10.8W. The driver is also dimmable, which means that it can be controlled using a compatible dimming system.

Features:

  • The model number of the driver is LD011D-CA03036-M9F (also known as LD009D-CU03036-M9).
  • It provides a regulated current output of 300mA with an output voltage range of 21-36V.
  • The input voltage range is 120V AC, with an input current of 0.2A and an input frequency of 60Hz.
  • The maximum output power of the driver is 10.8W, and it is dimmable with a compatible dimming system.
  • The driver dimensions are 84.9 x 38 x 27.7mm (3.3 x 1.5 x 1.1in), and it is classified as Class 2.
  • It is suitable for various LED lighting applications, including commercial and residential settings, and provides stable and consistent light output with its constant current regulation.

How to Install LD011D-CA03036-M9F Dimming Constant Current LED Driver?

  1. Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.

  2. Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.

  3. Mount the driver: Use screws to mount the driver on a solid surface.

  4. Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))

  5. Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))

  6. Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.

  7. Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.

Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
