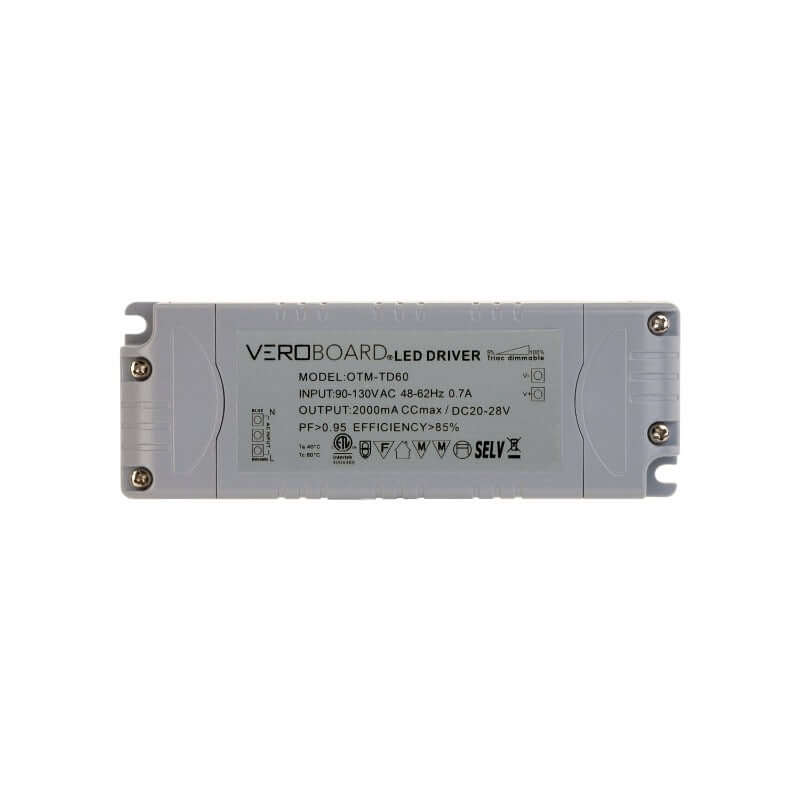

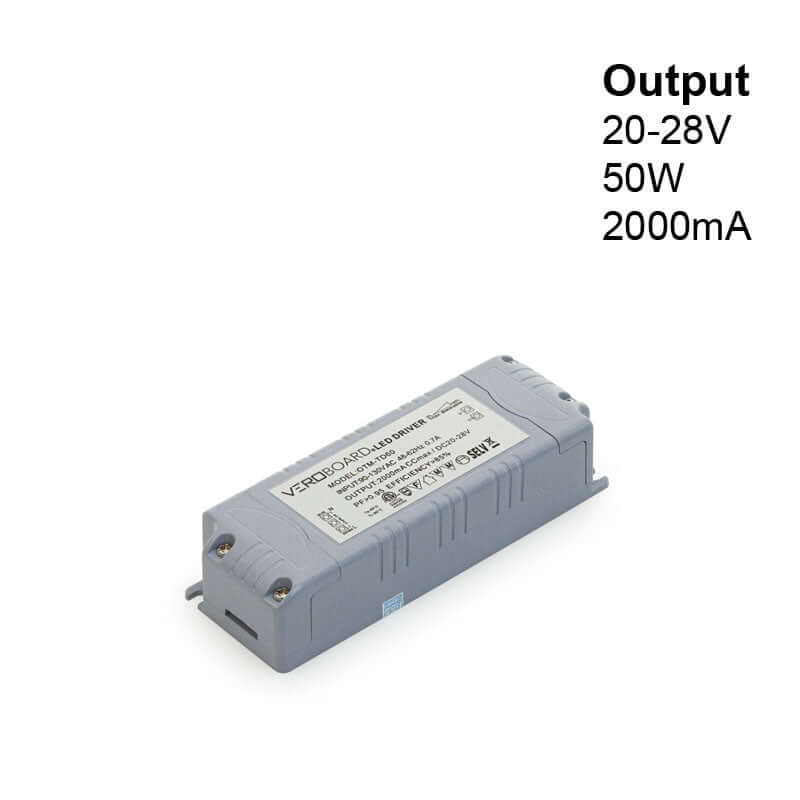

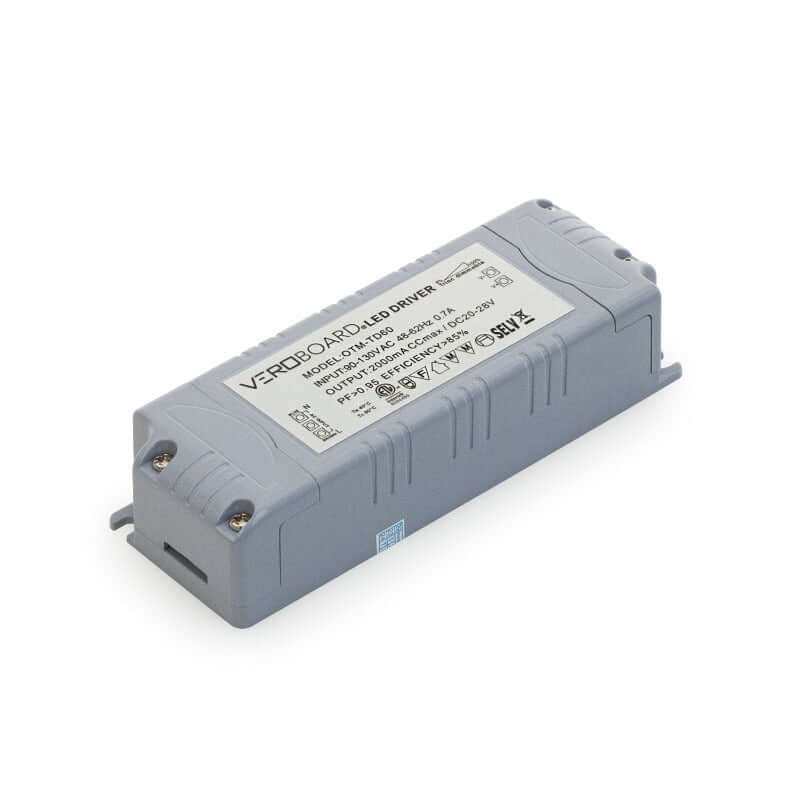

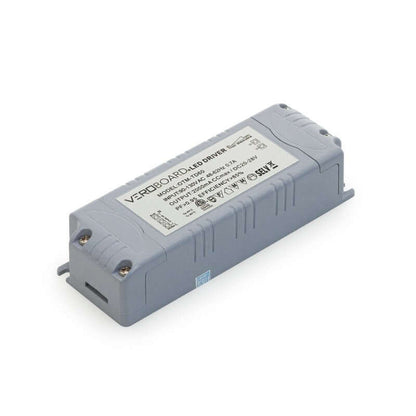

OTM-TD60-2000 Constant Current LED Driver, 2000mA 20-28VDC = LD048H-CU20024-M48E
Product Description
Product | Constant Current LED Driver |
Model | OTM-TD60-2000 |
Input Voltage | 90-130V AC |
Input Current | 0.7A |
Input Frequency | 48-62Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 2000mA |
Output Power | 50W |
Output Voltage | 20-28V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 80°C |
IP Rating | IP20 (Indoor use only) |

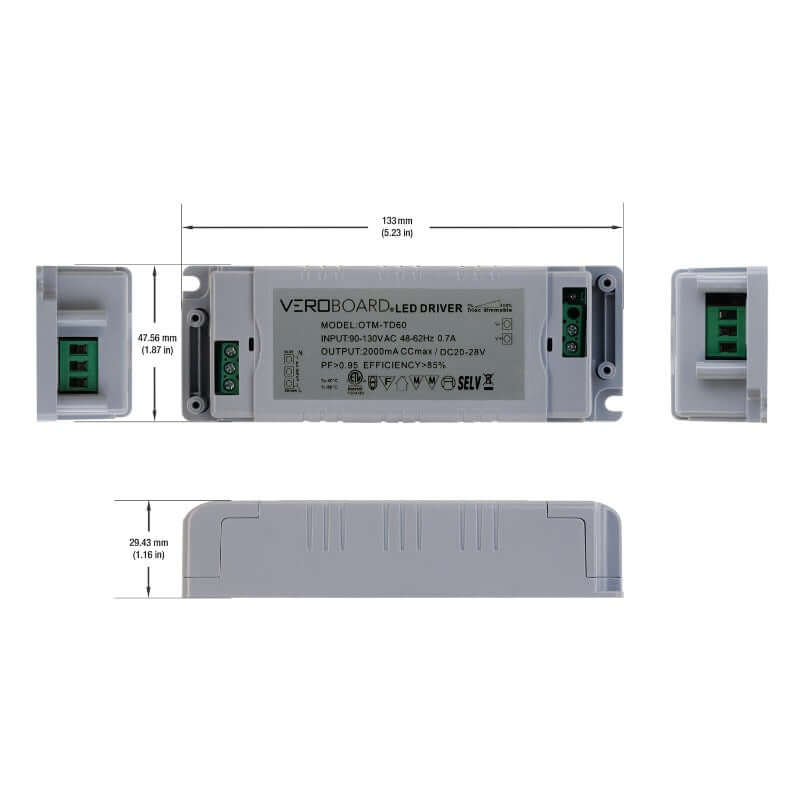

Dimensions | 133 x 47.5 x 29.4 mm (5.2 x 1.8 x 1.1 in) |
Class Certification | Class II |
Certification |
|
The OTM-TD60-2000 Constant Current LED Driver is a product designed to regulate and power LED lighting systems. Its model number is OTM-TD60-2000, and it is capable of providing a regulated current output of 2000mA with a power output of 50W.
The input voltage range of the driver is 90-130V AC, and it can operate with an input current of 0.7A and an input frequency of 48-62Hz. The power factor of the driver is greater than 0.95, and its efficiency is greater than 85%.
The output voltage range of the driver is 20-28V DC, which is ideal for LED lighting systems. The driver is dimmable, and it can be controlled using Triac dimming. The ambient temperature range (Ta) for the driver is 40°C, and the case temperature (Tc) can reach up to 80°C.
Features:
- OTM-TD60-2000 Constant Current LED Driver designed to regulate and power LED lighting systems
- Model number is OTM-TD60-2000, capable of providing a regulated current output of 2000mA with a power output of 50W
- Input voltage range of 90-130V AC, input current of 0.7A, and an input frequency of 48-62Hz
- Power factor of the driver is greater than 0.95, and its efficiency is greater than 85%
- Output voltage range of the driver is 20-28V DC, ideal for LED lighting systems
- Dimmable and controllable using Triac dimming
- Ambient temperature range (Ta) for the driver is 40°C, and the case temperature (Tc) can reach up to 80°C
- Rated IP20, suitable for indoor use only
- Compact size of 133 x 47.5 x 29.4 mm (5.2 x 1.8 x 1.1 in), easy-to-install product
- Certified as Class II, has double insulation and does not require a ground connection.
How to Install OTM-TD60-2000 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.

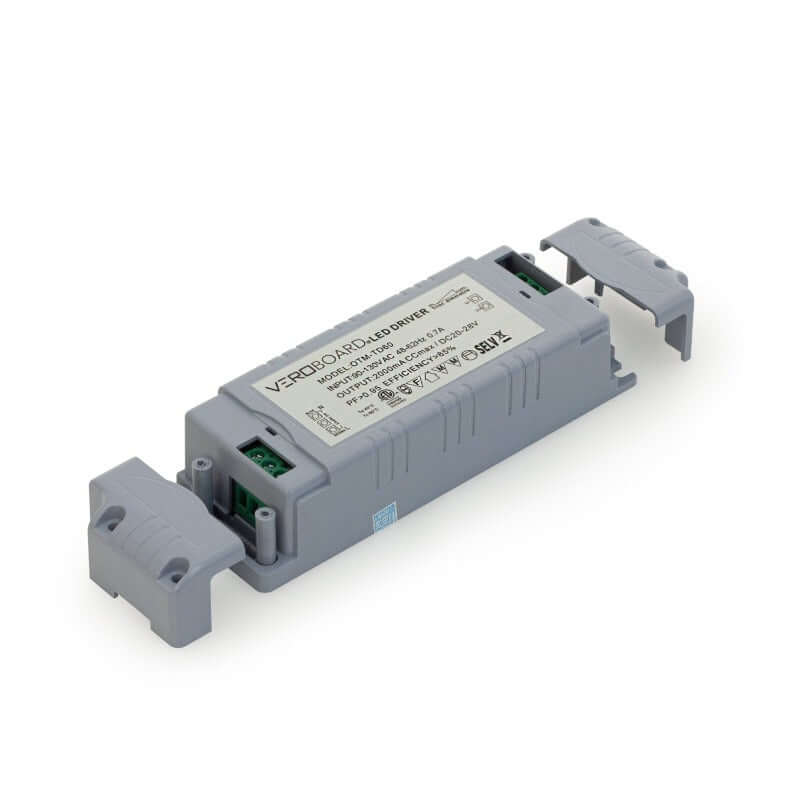

- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
