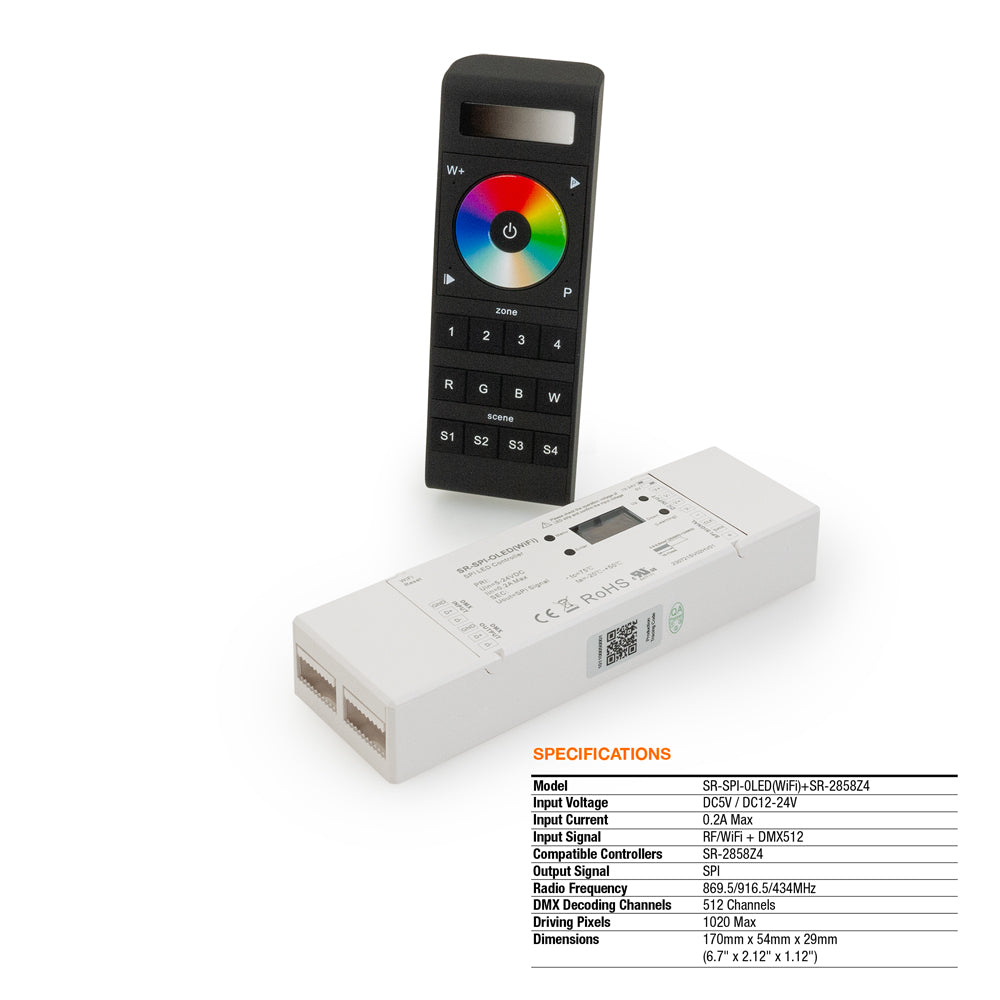

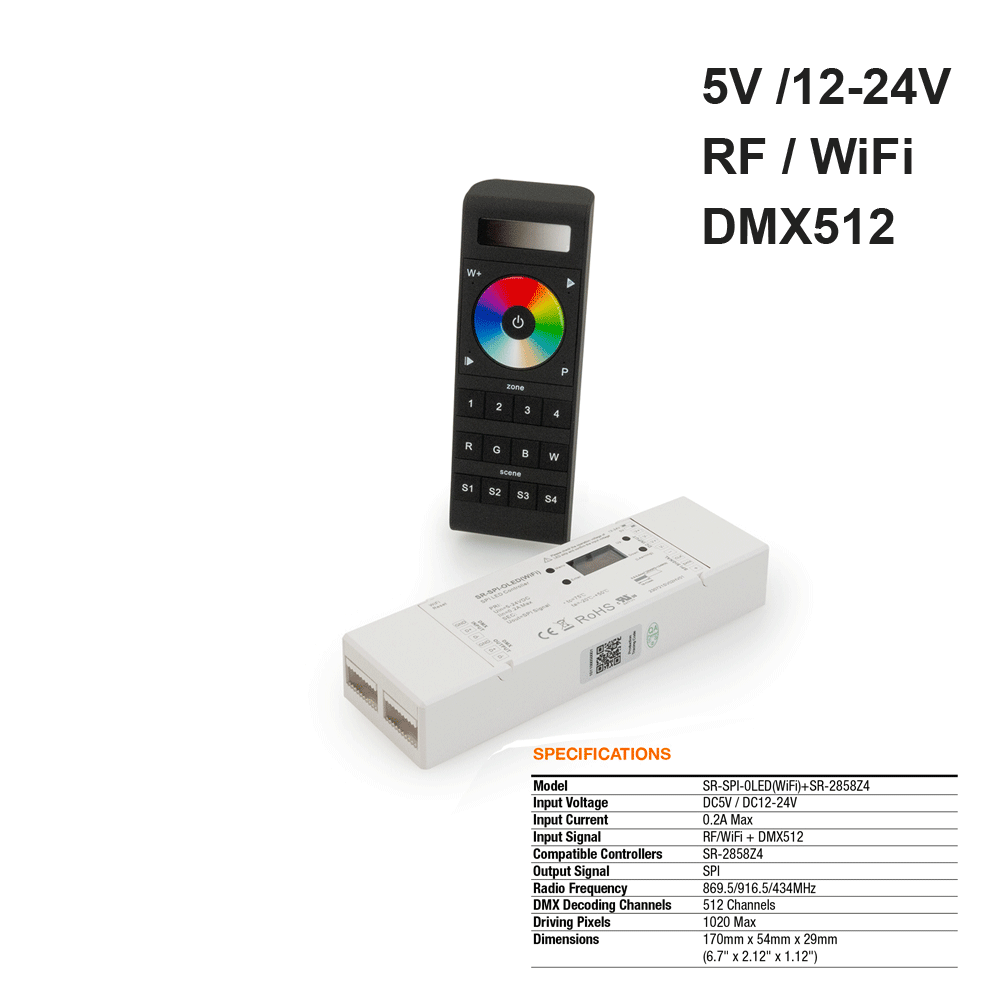

SR-SPI-OLED(WiFi) DMX LED Light Receiver with SR-2858Z4 Remote Controller, 5-24V DC
Product Description
Model | SR-SPI-OLED(WiFi)+SR-2858Z4 |
Input Voltage | DC5V / DC12-24V |
Input Current | 0.2A Max. |
Input Signal | RF/WiFi + DMX512 |
Output Signal | SPI |
Radio frequency | 869.5/916.5/434MHz |
DMX Decoding Channels | 512 Channels |
Driving Pixels | Max. 1020 |
Package content | SR-SPI-0LED(WiFi) SR-2858Z4 |
App |
<<Download Manual>> Android IOS |

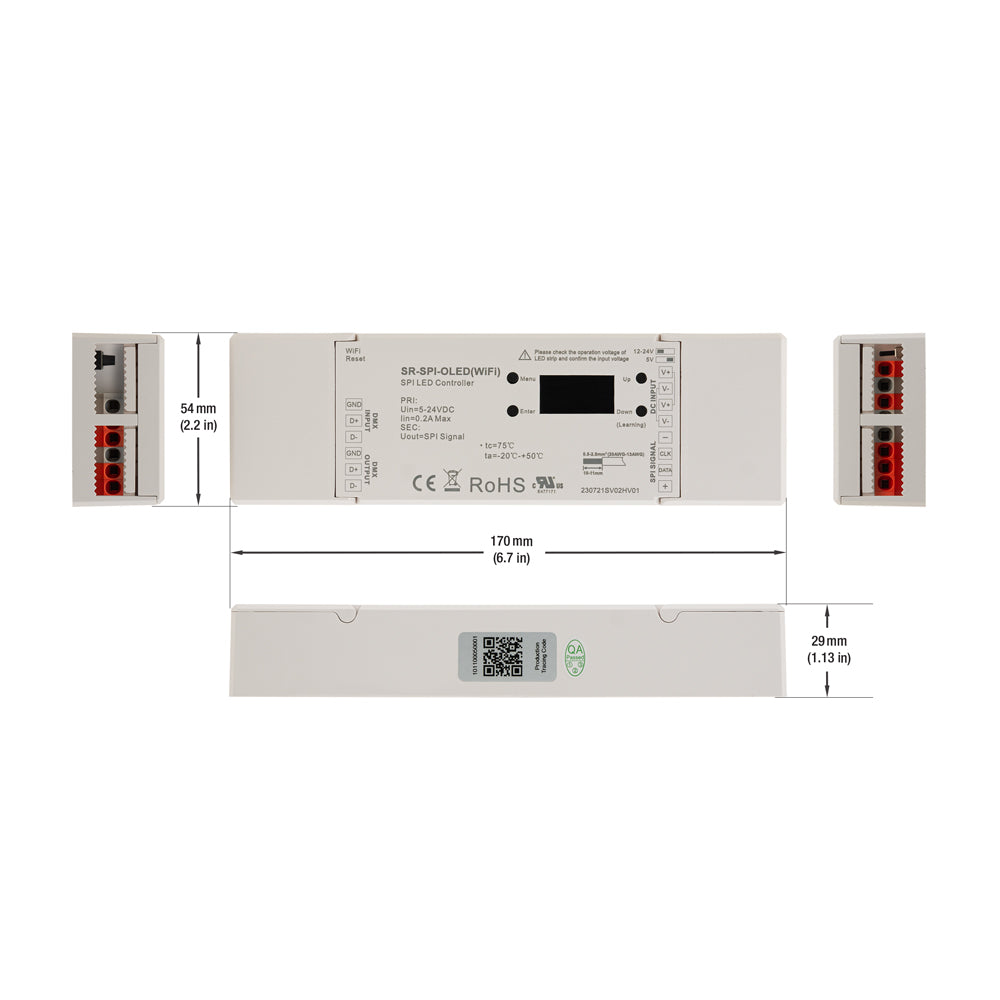

Dimensions | 170 x 53.4 x 28mm (6.6 x 2.1 x 1.1in) |
Certifications |
The SR-SPI-OLED(WiFi) LED pixel controller, combined with the SR-2858Z4 DMX LED Light Receiver, for a comprehensive lighting control solution. This package offers seamless integration of cutting-edge technology and precise control, enhancing your LED lighting experience.

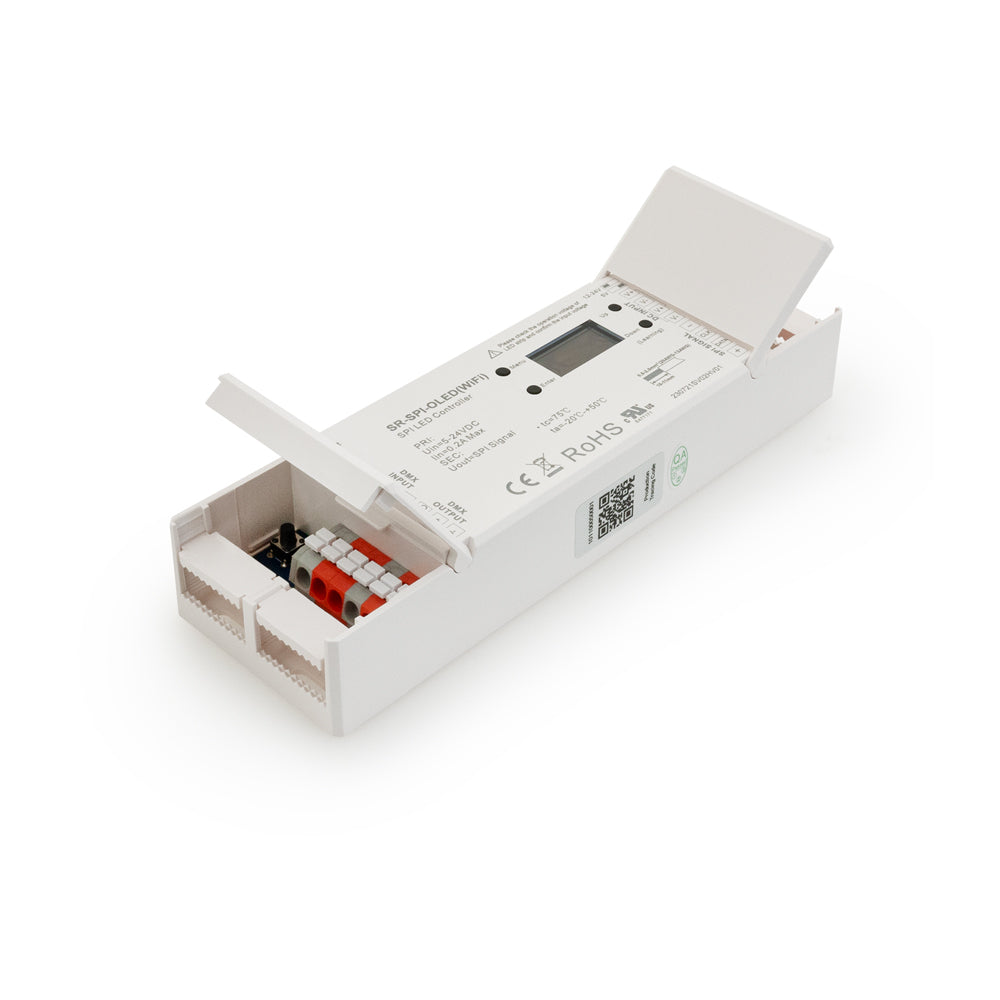

The SR-SPI-OLED(WiFi) is a smart LED pixel controller designed to effortlessly manage digital IC RGB/RGBW LED strip lights using advanced SPI signal technology. Its OLED backlit panel not only adds a touch of sophistication but also facilitates intuitive configuration of settings, ensuring you have complete control at your fingertips. The controller's compact dimensions, measuring 170 x 53.4 x 28mm (6.6 x 2.1 x 1.1in), guarantee easy integration into a wide range of setups.
With a versatile input voltage range of DC5V to DC12-24V and an input current of 0.2A Max, the SR-SPI-OLED(WiFi) caters to various power sources and consumption needs. It's equipped to handle both RF/WiFi and DMX512 input signals, providing you with the flexibility to choose your preferred control method. The included radio frequency options of 869.5/916.5/434MHz ensure reliable and efficient communication.
Feature:
- Integrate SR-SPI-OLED(WiFi) controller with SR-2858Z4 LED Light Receiver for advanced LED control.
- Manage RGB/RGBW LED strip lights effortlessly with SPI technology and OLED panel.
- Controller fits various setups with dimensions of 170 x 53.4 x 28mm.
- Supports DC5V to DC12-24V input voltage, up to 0.2A Max input current.
- RF/WiFi and DMX512 input signals, with multiple RF frequency options.
- Drive up to 1020 pixels, compatible with 38 driving IC types.
- Configure pixel quantity, IC type, and 7 RGB/RGBW color order options.
- Access 35 dynamic color sequences through RF remotes or dedicated apps.
- Switch to DMX mode, support up to 512 decoding channels, easy DMX address configuration via OLED display.
