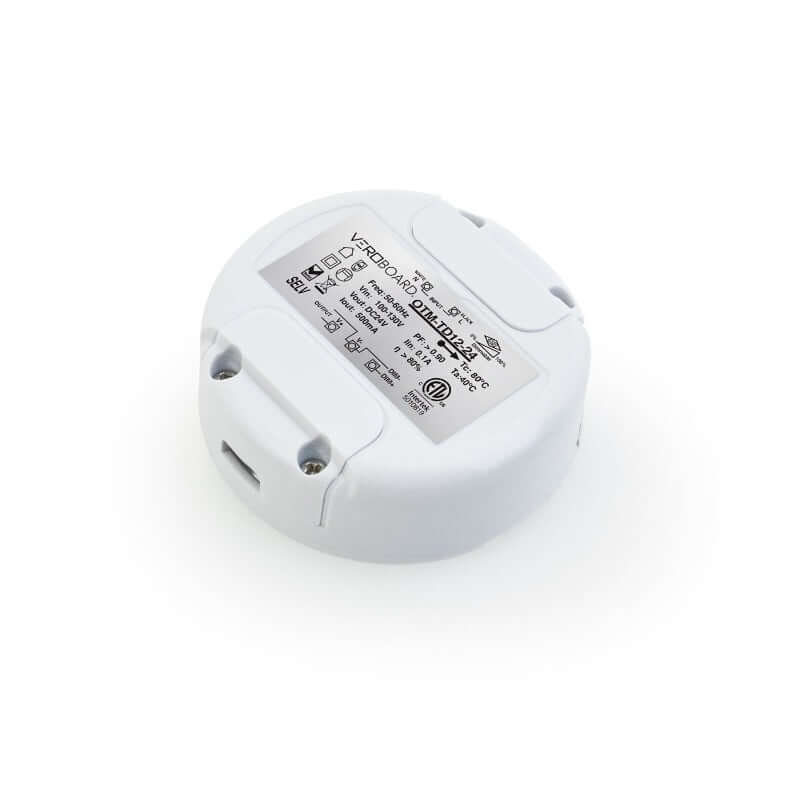

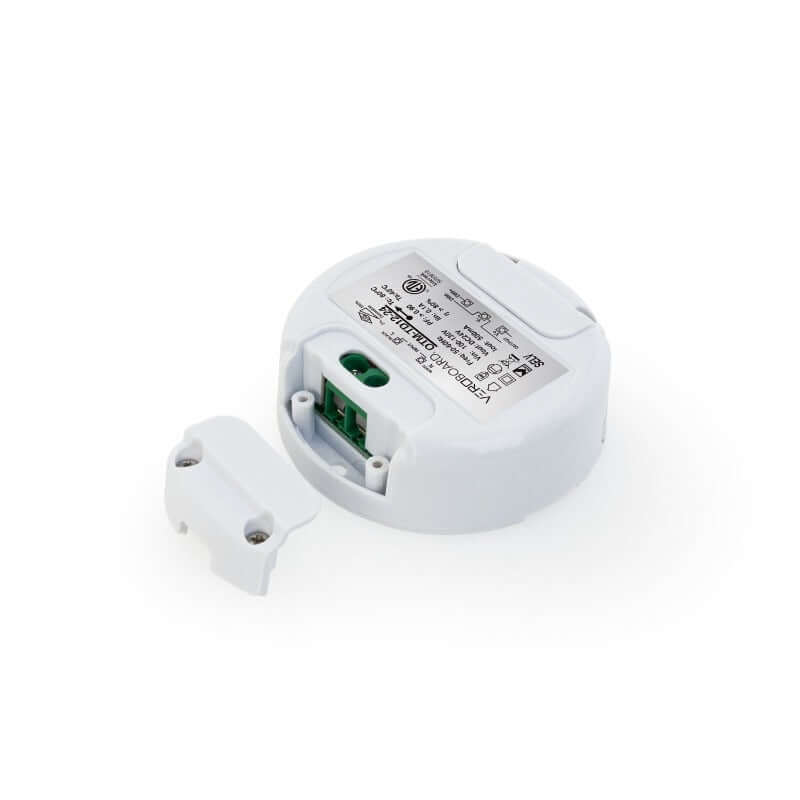

OTM-TD12-24 Constant Voltage LED Driver, 0-10V Dimming J Box LED Driver 24V 12W

  • $37.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425500
We only have 136 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).





Product Description

Model OTM-TD12-24
Input Voltage 100-130V AC
Input Current 0.1A
Frequency 50-60Hz
Efficiency >80%

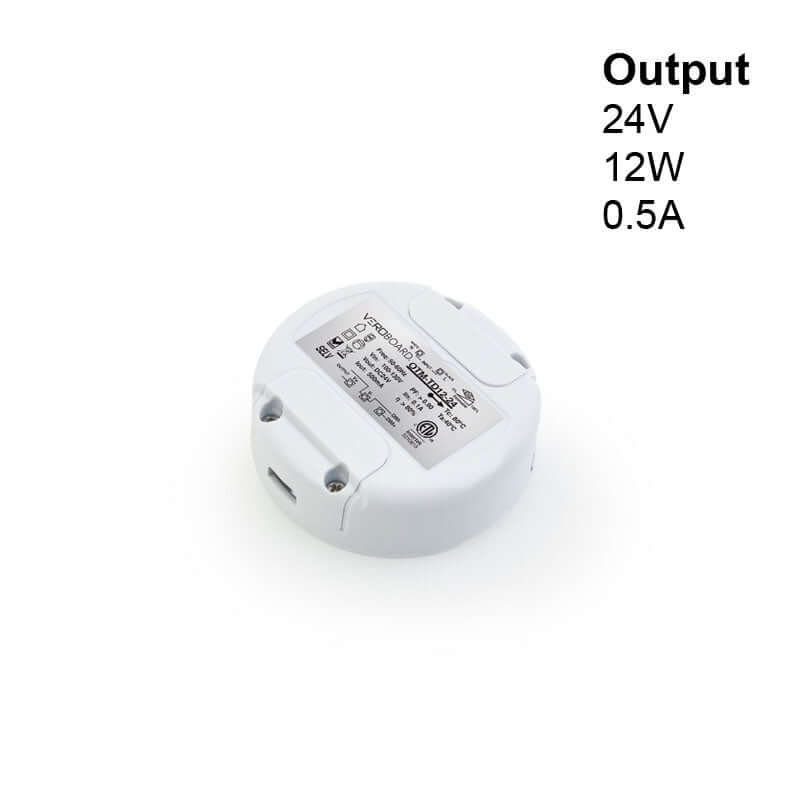

Output Voltage 24V DC
Output regulated Current 500mA
Output Power 12W max
Power Factor >0.90
Dimmable Yes (0-10V Dimming)
IP Rating IP20
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 80°C
Class Certification Class II/ SELV

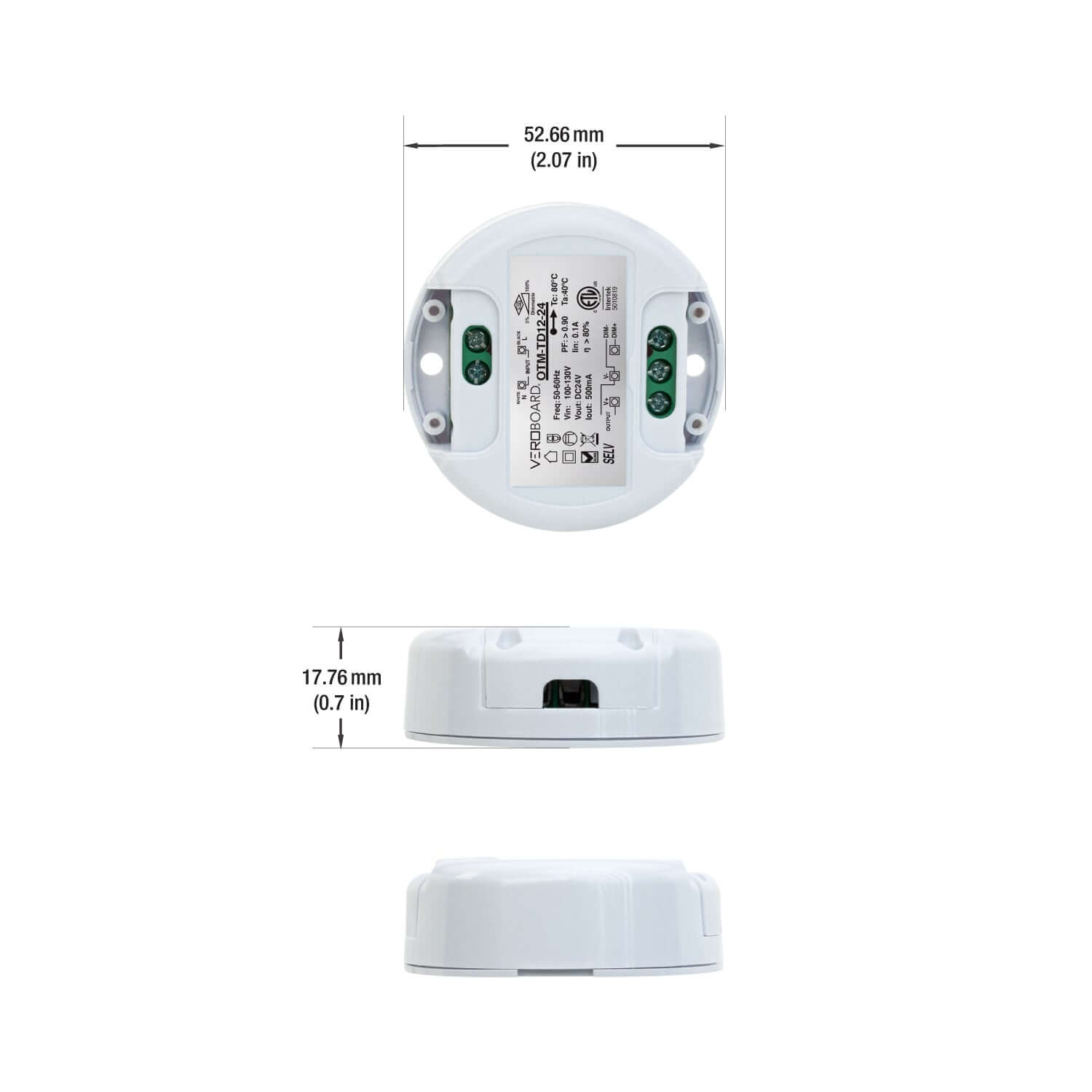

Dimensions

Ø52.66mm (2.07 in)
Depth 17.76mm x (0.7 in)

Certification
Compatible with 0-10V Dimmers
Applicable for Dry and Damp locations
Short circuit and Overload Protected
Class II Power Supply, Double-layer insulation
Easily fits in a 1-Gang Standard Box or Single Gang Box


The OTM-TD12-24 is a constant voltage LED driver designed for use with LED lighting fixtures. The model number of the driver is OTM-TD12-24, and it is dimmable using 0-10V dimming methods. The input voltage of the driver is 100-130V AC, and it has an input current of 0.1A. The frequency of the driver is 50-60Hz. Easily fits in a 1-Gang Standard Box or Single Gang Box.

The driver produces an output voltage of 24V DC, and it can regulate the output current at a maximum of 500mA. The maximum power output of the driver is 12W. The driver has an IP20 rating, which means it is protected against solid objects greater than 12.5mm in diameter but is not protected against the ingress of water.

The driver has a power factor greater than 0.90, indicating that it is energy efficient. It has a case temperature (Tc) of 80°C and can operate in ambient temperatures (Ta) of up to 40°C. It has dimensions of 52.66mm x 17.76mm (2.07 in) diameter x (0.7 in) depth and is certified by ETL, indicating that it meets safety and performance standards for use in the United States and Canada.

The driver also has Class II/SELV certification, which means it is designed with double insulation or reinforced insulation to provide a high level of protection against electric shock.

Features:

  • Output power: 12W maximum
  • IP20 rating, protected against solid objects >12.5mm in diameter
  • Power factor >0.90, indicating energy efficiency
  • Case temperature (Tc) of 80°C
  • Ambient temperature (Ta) range: up to 40°C
  • Dimensions: 52.66mm x 17.76mm (2.07 in) diameter x (0.7 in) depth
  • ETL certified for safety and performance standards in the US and Canada
  • Class II/SELV certification for high level of protection against electric shock.
