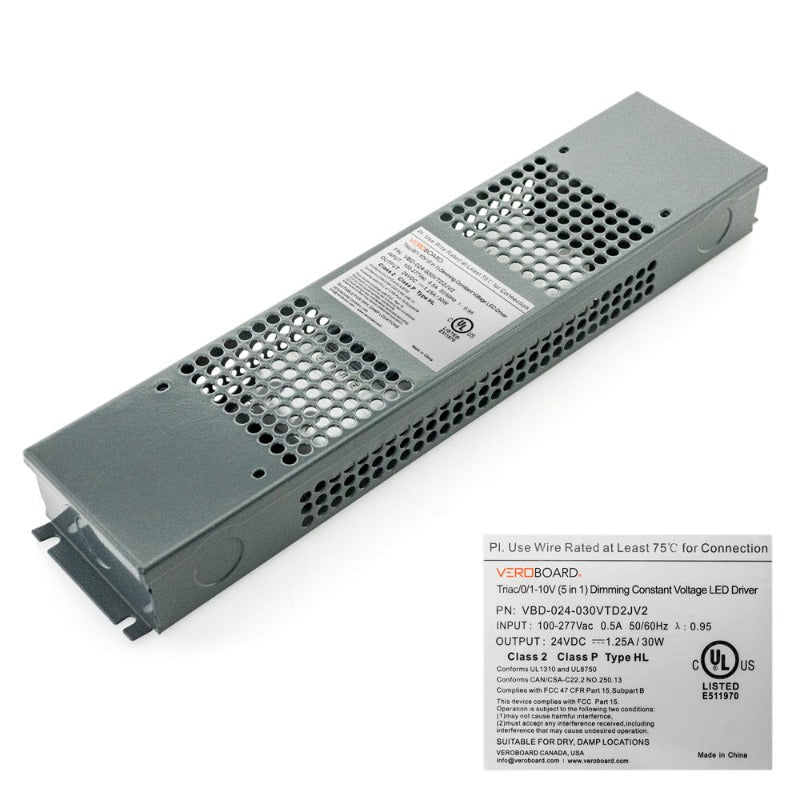

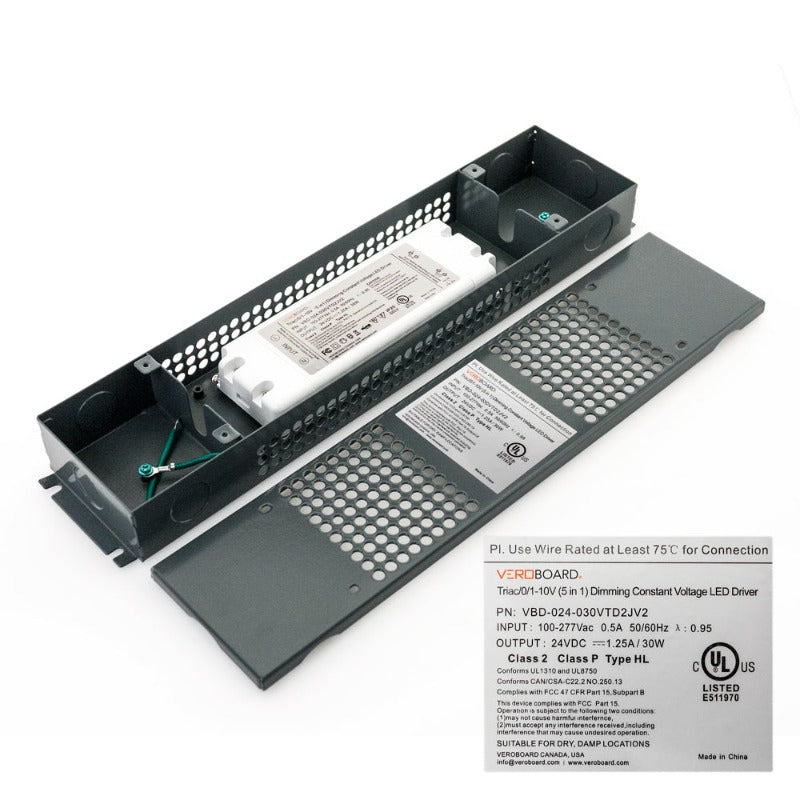

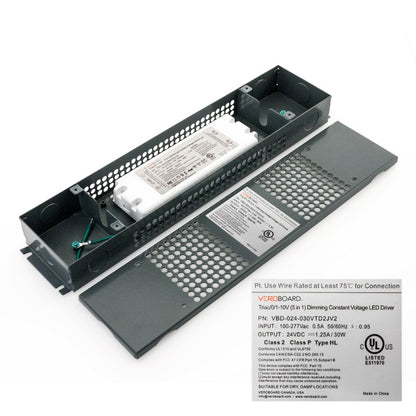

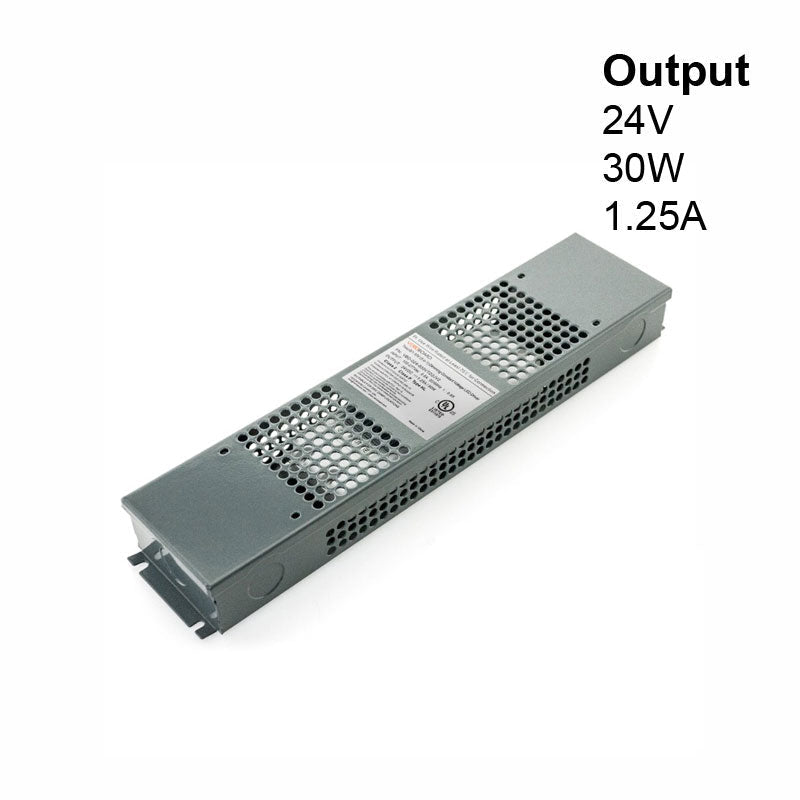

VBD-024-030VTD2JV2 Triac/0-10V Dimmable Constant Voltage LED Driver, 24V 30W 100-277V AC
|Input Voltage||100-277V AC|
|Output voltage||24V DC|
|Output regulated current||1.25A|
|Output max Power||30W max|
|Dimmable||Yes (Triac/0/10V Dimming)|
|Class Certification||Class 2/ Class P/ Type HL/ Class II|

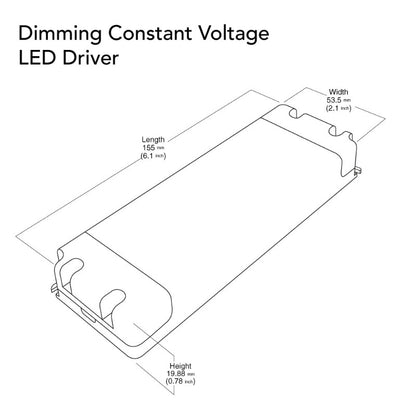

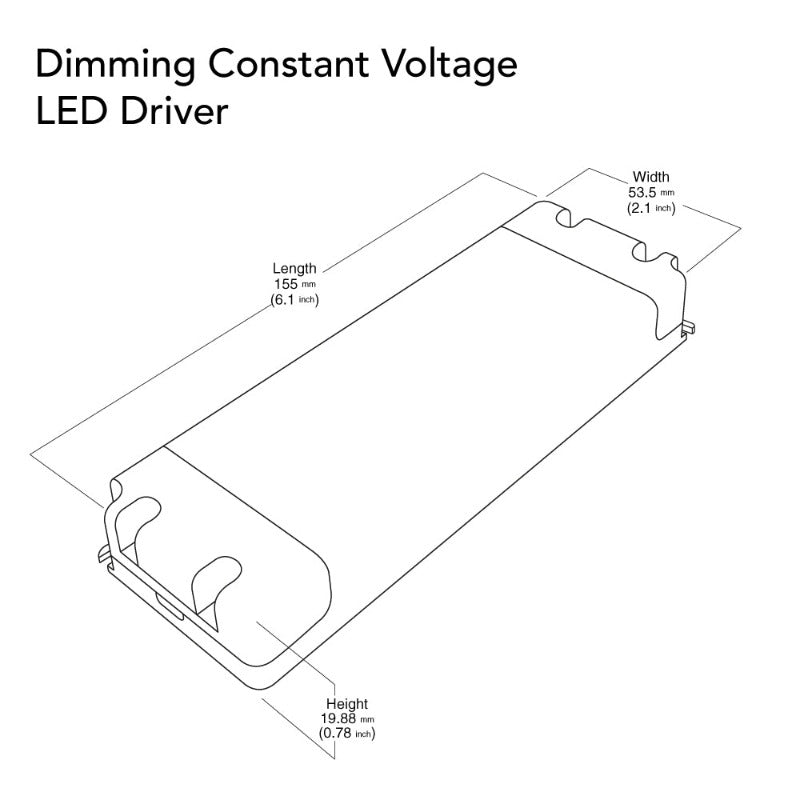

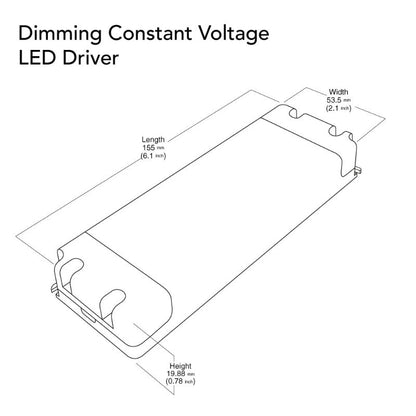

|Dimensions (Without Box)||155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in)|

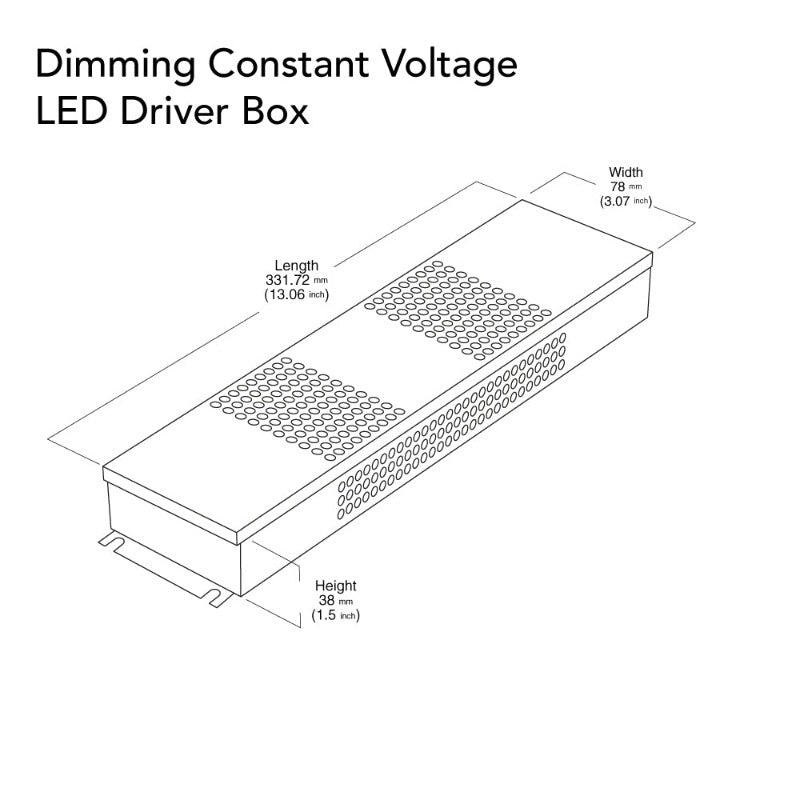

|Dimensions (Box)||331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in)|
|Suitable for DRY and DAMP locations|
|Compatible with Forward-Phase, 0-10V, Magnetic low Voltage, ELV & Triac dimmers|
The VBD-024-030VTD2JV2 is a Triac/0-10V dimmable constant voltage LED driver designed to convert 100-277V AC input voltage to 24V DC output voltage, with an output regulated current of 1.25A and a maximum output power of 30W.
This LED driver features 5-in-1 dimming, allowing it to be controlled via a variety of dimming methods including Triac, ELV, 0-10V, PWM, and resistor. It has a high power factor of 0.95, indicating that it is efficient in converting input power to output power.
The driver has Class 2, Class P, Type HL, and Class II certifications, which means that it meets safety standards for electrical insulation, fire safety, and hazardous location installations. It has an IP20 rating, making it suitable for indoor use only. The dimensions of the driver without the box are 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in), and with the box, they are 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in).
The driver is certified with UL and FCC certifications, indicating that it has been tested and certified to meet certain safety and performance standards set by these organizations.
- Triac/0-10V dimmable constant voltage LED driver
- Input voltage range: 100-277V AC, output voltage: 24V DC, regulated output current: 1.25A, maximum output power: 30W
- 5-in-1 dimming compatibility with Triac, ELV, 0-10V, PWM, and resistor control
- High power factor of 0.95 for efficient power conversion
- Class 2, Class P, Type HL, and Class II certifications for electrical insulation, fire safety, and hazardous location installations
- IP20 rating for indoor use only
- Dimensions without box: 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in), with box: 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
- UL and FCC certified for safety and performance standards
