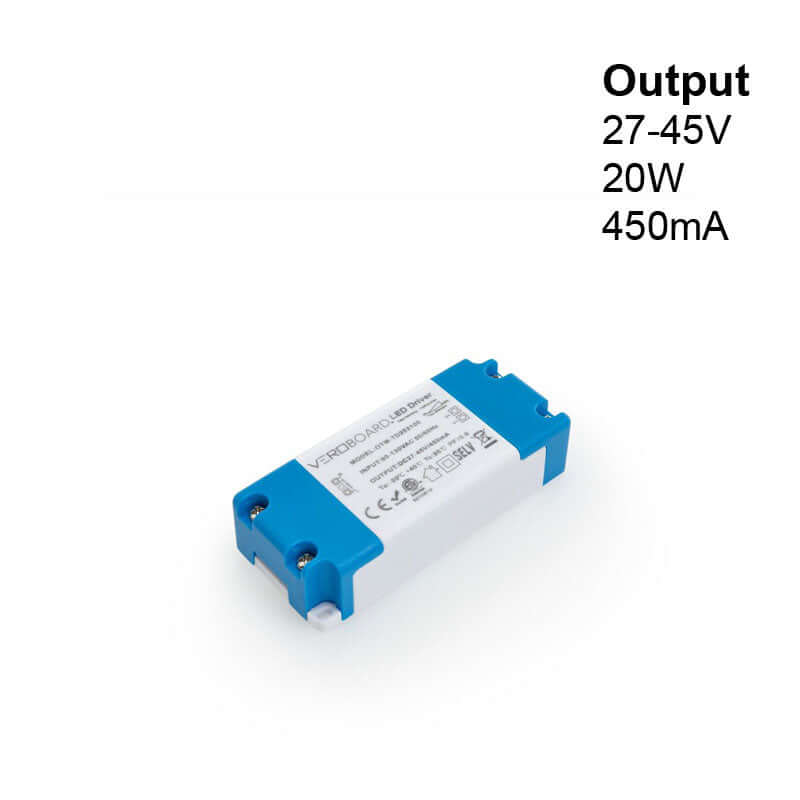

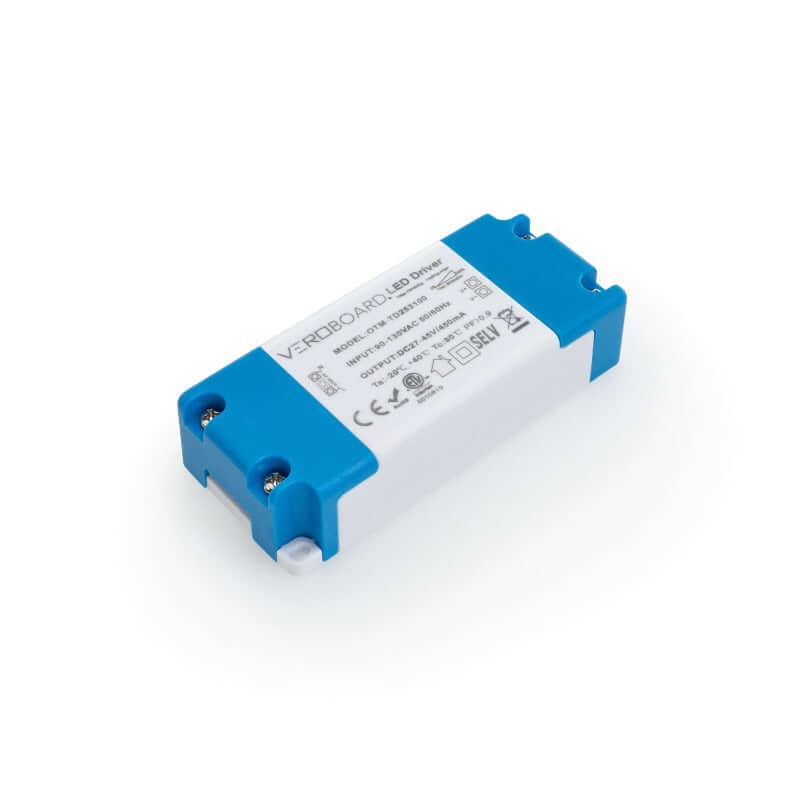

OTM-TD253100-450-20 Constant Current LED Driver, 450mA 27-45V 20W Dimmable

  • $32.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561426453
We only have 15 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).




Product Description

Product Constant Current LED Driver
Model OTM-TD253100-450-20
Input Voltage 90-130V AC
Input Current 0.9A
Input Frequency 50-60Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 450mA
Output Power 20W
Output Voltage 27-45V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Dry and Damp Locations)

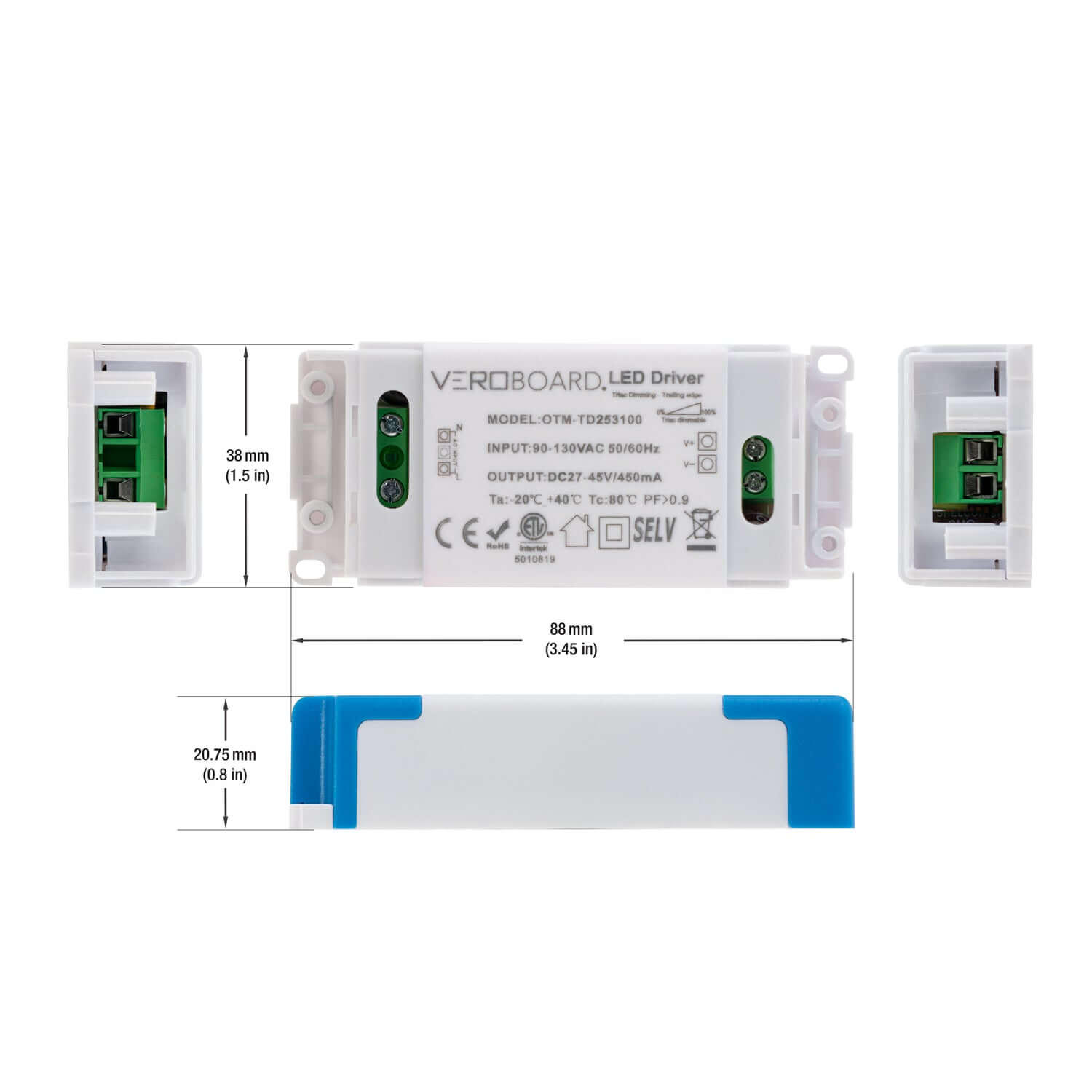

Dimensions 88mm x 38mm x 20.75mm
(3.45in x 1.5in x 0.8in)
Class Certification Class 2
Certification



The OTM-TD253100-450-20 is a Constant Current LED Driver that provides a regulated output current of 450mA and an output power of 20W to LED lighting applications. It is designed to be dimmable, allowing for brightness control and flexibility in lighting design.

The LED driver operates with an input voltage of 90-130V AC, input current of 0.9A, and input frequency of 50-60Hz. It has a power factor of more than 0.95 and an efficiency of greater than 85%, which ensures high energy efficiency and reduces power losses.

The output voltage of the LED driver is 27-45V DC, making it suitable for use with most LED lighting applications. The driver is designed to be used in dry and damp locations, with an IP20 rating, making it suitable for indoor lighting applications.

Features:

  • The OTM-TD253100-450-20 is a Constant Current LED Driver for LED lighting applications.
  • It provides a regulated output current of 450mA and an output power of 20W.
  • The driver is designed to be dimmable, allowing for brightness control and flexibility in lighting design.
  • It operates with an input voltage of 90-130V AC, input current of 0.9A, and input frequency of 50-60Hz.
  • The driver has a power factor of more than 0.95 and an efficiency of greater than 85%.
  • The output voltage of the LED driver is 27-45V DC, making it suitable for most LED lighting applications.
  • It has an IP20 rating, making it suitable for indoor lighting applications in dry and damp locations.
  • It is classified as a Class 2 device, which means it has limited power output and is safe to use.
  • The driver can operate at an ambient temperature of up to 40°C and has a case temperature of up to 90°C.
  • It is dimmable using Triac Dimming, which allows the brightness to be adjusted to the desired lighting conditions.

How to Install OTM-TD253100-450-20 Dimming Constant Current LED Driver?

  1. Ensure that the power is turned off.
  2. Verify the output current of both the light and the driver.

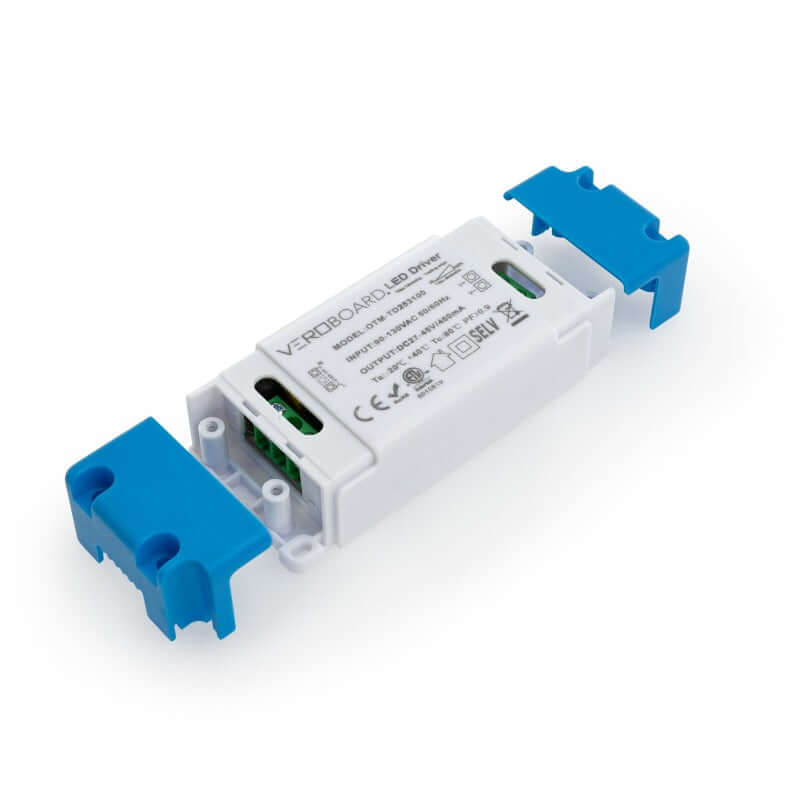

  3. Remove the caps on both sides and loosen the screws on the green terminals.
  4. Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
  5. Connect the positive wire of the light to V+ and the negative wire to V-.
