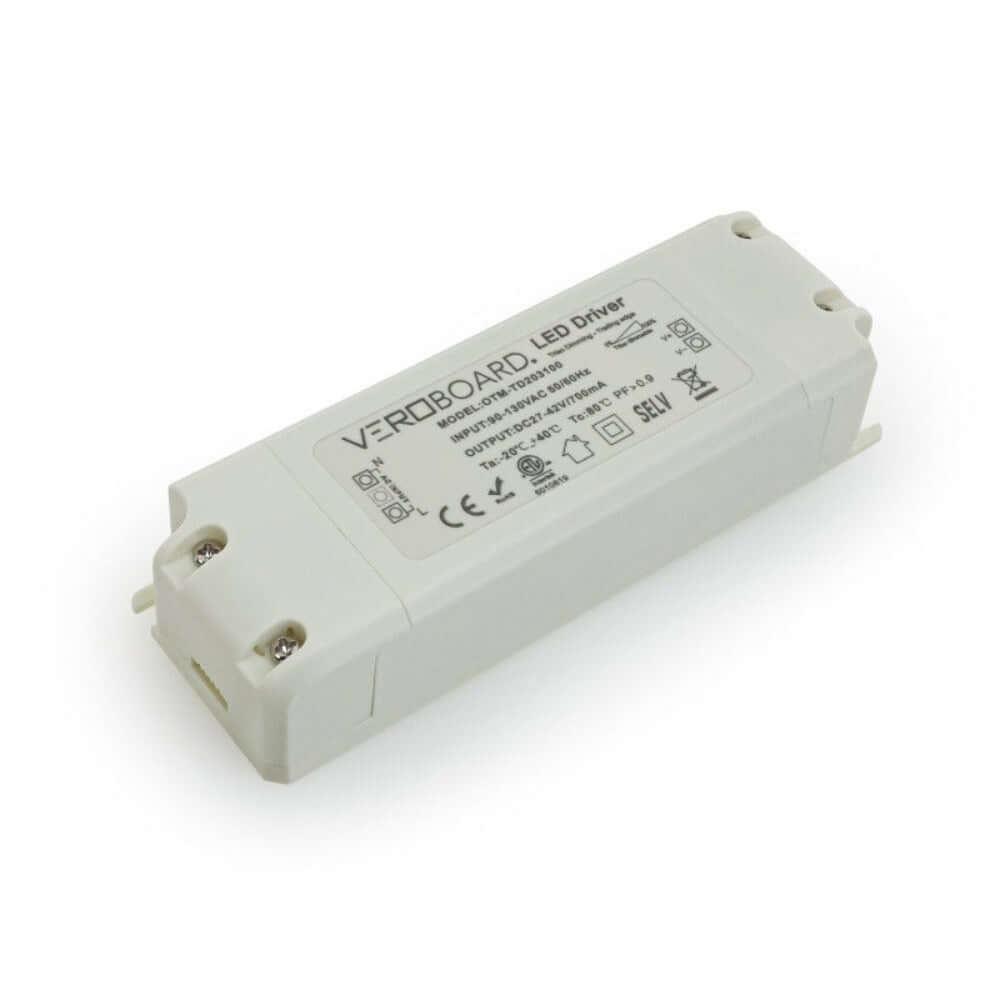

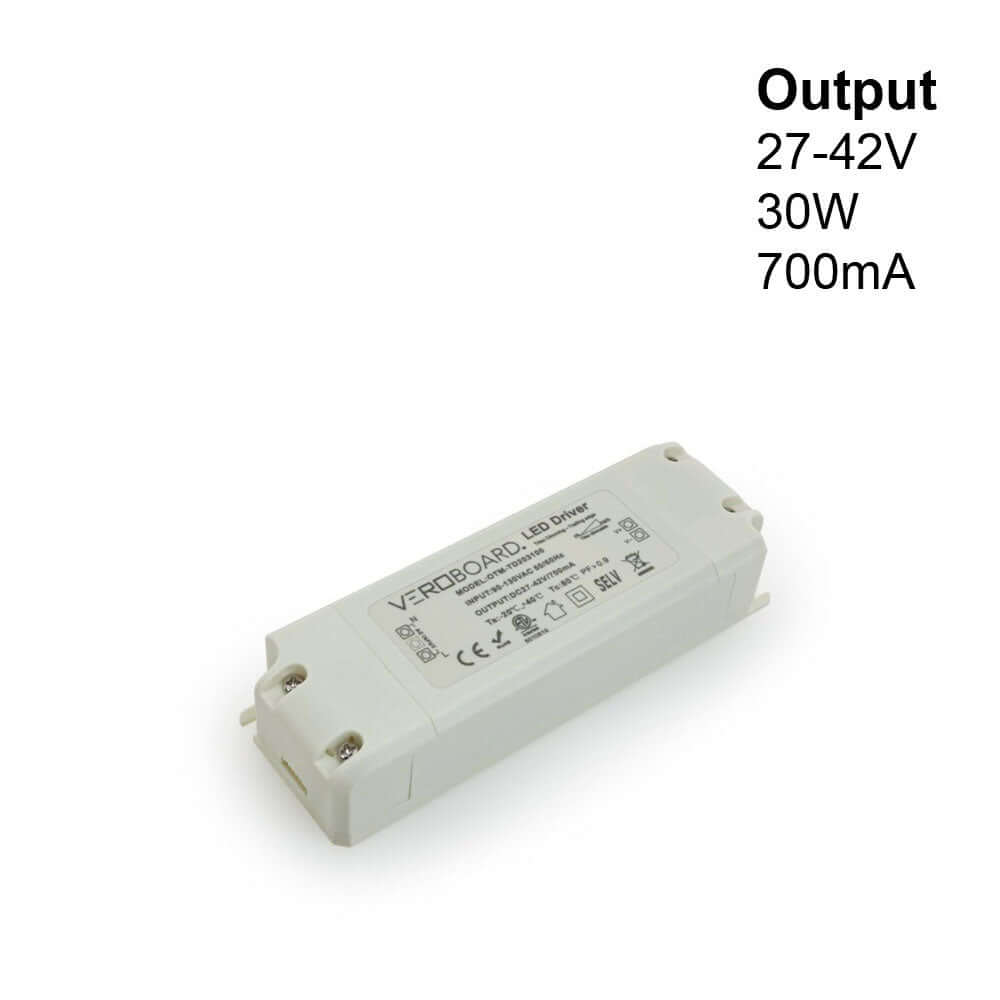

OTM-TD203100-700-30 Constant Current LED Driver, 700mA 27-42V 30W Dimmable
|Product||Constant Current LED Driver|
|Input Voltage||90-130V AC|
|Output Regulated Current||700mA|
|Output Voltage||27-42V DC|
|Dimmable||Yes (Triac Dimming)|
|Ambient Temperature (Ta)||40°C|
|Case Temperature (Tc)||90°C|
|IP Rating||IP20 (Dry and Damp Locations)|

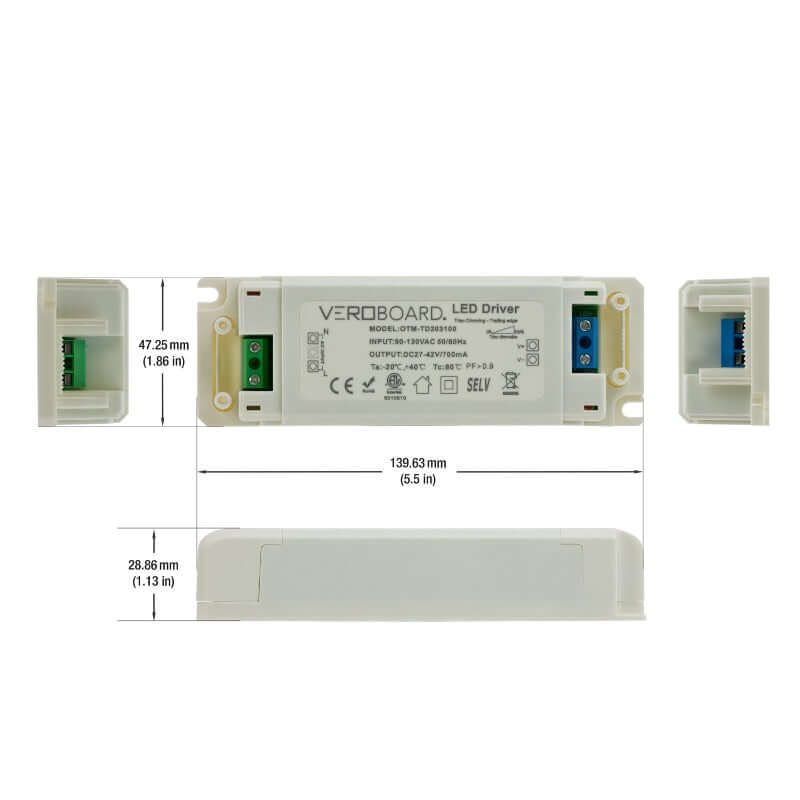

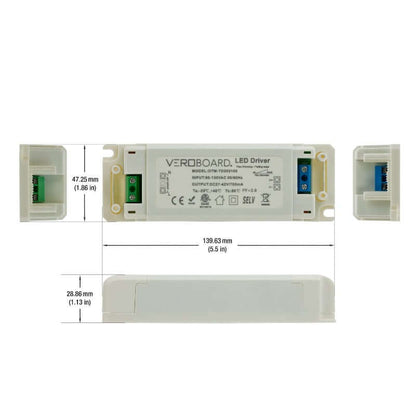

|Dimensions||139.63mm x 47.25mm x 28.86mm
(5.5in x 1.86in x 1.13in)
|Class Certification||Class 2|
Constant current dimmable LED drivers are used for LED lights that require a fixed output current as well as a variety of output voltages. OTM-TD203100-700-30 Dimming LED Constant Current Driver (Constant Current Power Supply) Suitable for lighting with 700mA output regulated current. This class 2 constant current driver has Input Voltage of 90-130V AC, can produce 27-42V DC output voltage and 30W of output power. It is suitable for operation with main supply dimmer and also suitable for dry and damp locations.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
- Constant current dimmable LED drivers are used for LED lights that require a fixed output current as well as a variety of output voltages.
- OTM-TD203100-700-30 is a dimming LED constant current driver (constant current power supply) suitable for lighting with 700mA output regulated current.
- This class 2 constant current driver has an input voltage of 90-130V AC and can produce 27-42V DC output voltage and 30W of output power.
- It is suitable for operation with a main supply dimmer and is also suitable for use in dry and damp locations.
How to Install OTM-TD203100-700-30 Dimming Constant Current LED Driver?
It is easy to Install constant current power supply, by following these steps,
1. Make sure power is off.
2. Double check output current of the light and the driver.

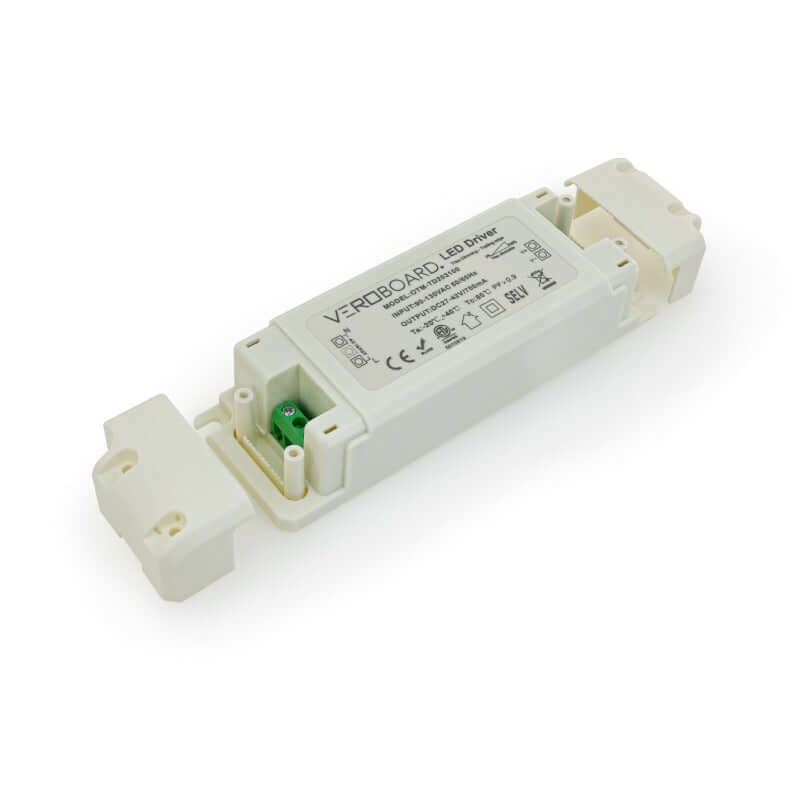

3. Open the caps on the both side, loosen the screws on the green terminals.
4. Fasten the AC Wires to the side that displays Line (L) and Neutral (N).
5. Connect the light's positive wire to V+ and its negative wire to V-.
