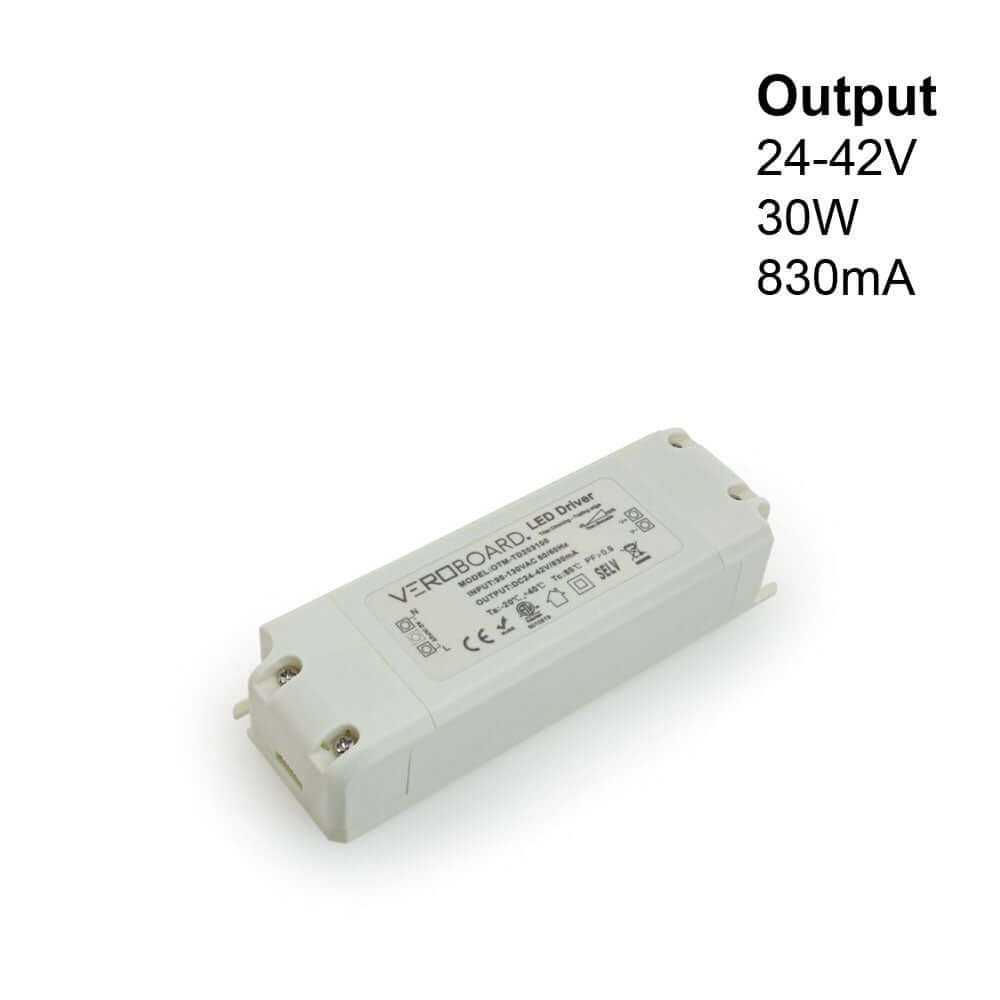

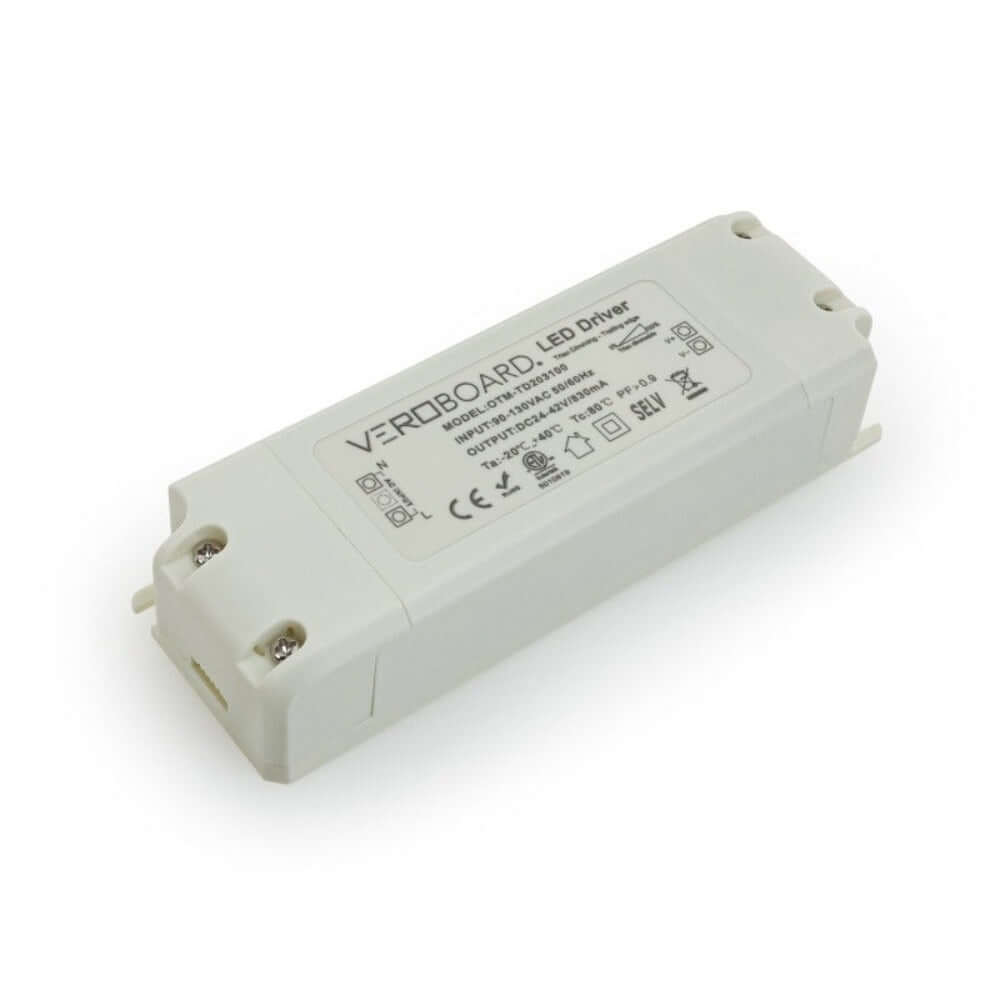

OTM-TD203100-830-30 Constant Current LED driver, 830mA 24-42V 30W Dimmable

  • $47.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561426545
We only have 16 left! Get it now before it's completely gone.

FREE Shipping over $49 USD (Canada and US Only)


 Product Description

Product Constant Current LED Driver
Model OTM-TD203100-830-30
Input Voltage 90-130V AC
Input Current 0.9A
Input Frequency 50-60Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 830mA
Output Power 30W
Output Voltage 24-42V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Dry and Damp Locations)

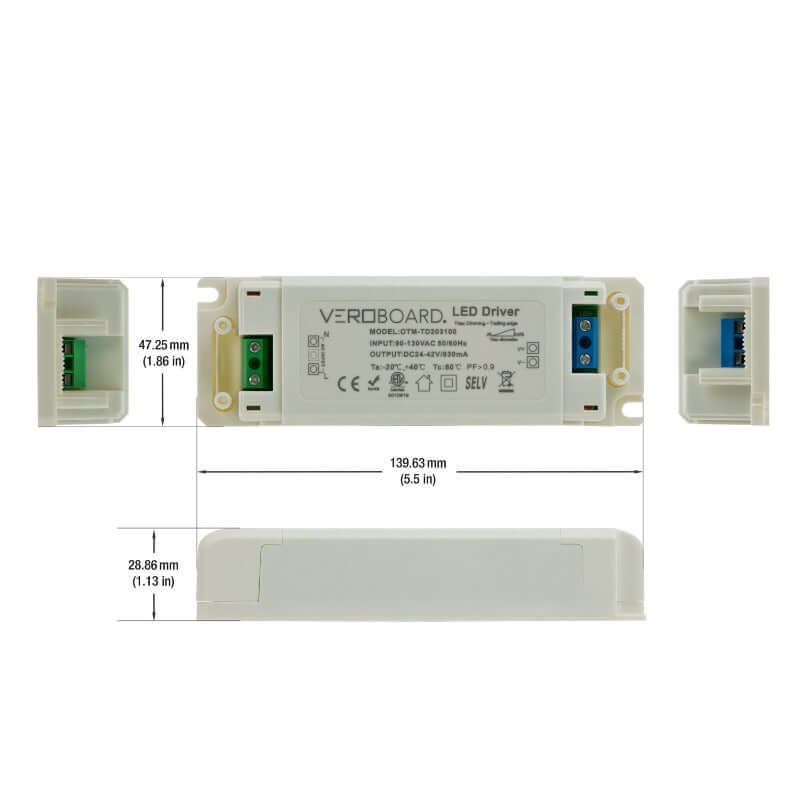

Dimensions 139.63mm x 47.25mm x 28.86mm
(5.5in x 1.86in x 1.13in)
Class Certification Class 2
Certification




The OTM-TD203100-830-30 is a constant current LED driver designed for use with LED lighting systems. It has an input voltage range of 90-130V AC, an input current of 0.9A, and an input frequency of 50-60Hz. The power factor is greater than 0.95, and the efficiency is greater than 85%. The output is a regulated current of 830mA and a power output of 30W, with an output voltage range of 24-42V DC.

This LED driver is dimmable with triac dimming, allowing for customized lighting options. It has an ambient temperature (Ta) rating of 40°C and a case temperature (Tc) rating of 90°C, ensuring that it can withstand high operating temperatures. The driver has an IP20 rating, making it suitable for use in dry and damp locations.

Features:

  • The OTM-TD203100-830-30 is a constant current LED driver designed for use with LED lighting systems.
  • It has an input voltage range of 90-130V AC, an input current of 0.9A, and an input frequency of 50-60Hz.
  • The power factor is greater than 0.95, and the efficiency is greater than 85%.
  • The output is a regulated current of 830mA and a power output of 30W, with an output voltage range of 24-42V DC.
  • This LED driver is dimmable with triac dimming, allowing for customized lighting options.
  • It has an ambient temperature (Ta) rating of 40°C and a case temperature (Tc) rating of 90°C, ensuring that it can withstand high operating temperatures.
  • The driver has an IP20 rating, making it suitable for use in dry and damp locations.
  • It has dimensions of 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in) and is Class 2 certified.

How to Install OTM-TD203100-830-30 Dimming Constant Current LED Driver?

  1. Ensure that the power is turned off.
  2. Verify the output current of both the light and the driver.

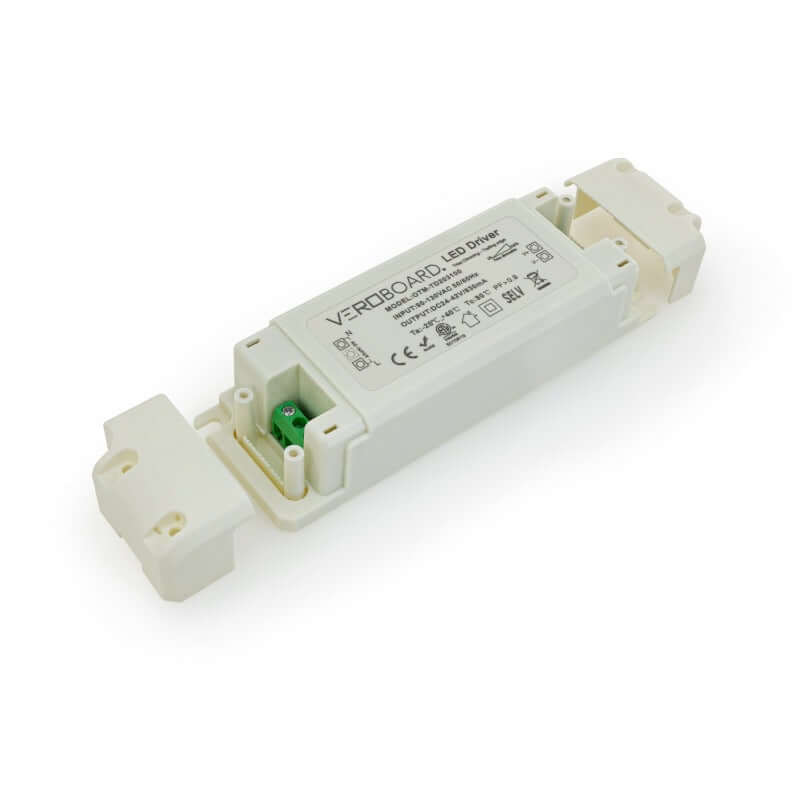

  3. Remove the caps on both sides and loosen the screws on the green terminals.
  4. Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
  5. Connect the positive wire of the light to V+ and the negative wire to V-.
